    How does optical alignment work?

    Hi,
    I see a lot of BGA Rework stations that offer optical alignment and I'm curious about how it works.

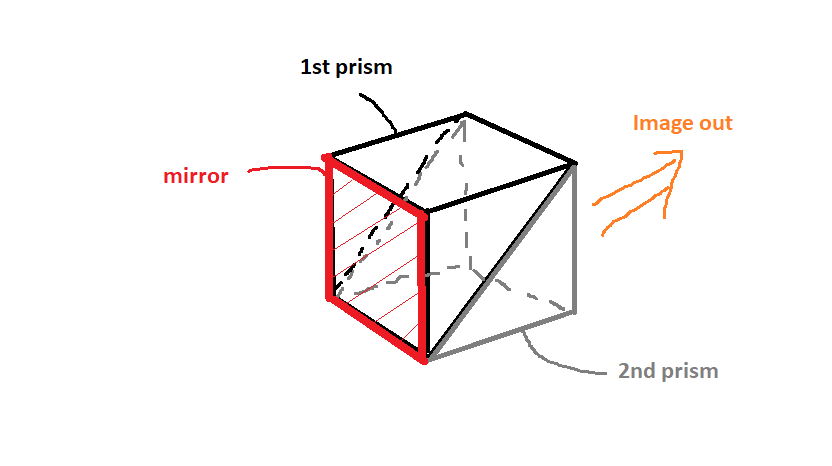

    I guess you need two right angle prisms placed in a cube with a mirror on one side like in the attached picture (sorry paint is all I had) but what determines the image size you can see and how does the camera that captures the image work?

    I tried googling but can nowhere find a diagram, so if anyone could draw one in paint or whatever, or has some info I'd be thankful.
    Attached Files
  • dicky96
    Sun Seeker
    • Mar 2017
    • 1825
    • Spain

    #2
    Re: How does optical alignment work?

    I've got a LY-G720 BGA station on order - it has optical alignment and it should arrive early next week.

    https://www.youtube.com/watch?v=rX_J061xtVc

    I've never used a BGA station before either with or without optical alignment but I will be posting my findings here. I'll be happy to post some pics of the alignment system if I can get to it without breaking anything, if that helps

    Rich
    Last edited by dicky96; 12-06-2019, 10:05 AM.
    Follow me on YouTube
    ------------------
    Learn Electronics Repair
    https://www.youtube.com/channel/UCFX...R8UZ2vg/videos

    Comment

    • bangaham
      Member
      • Sep 2019
      • 10
      • Croatia

      #3
      Re: How does optical alignment work?

      Originally posted by dicky96
      I've got a LY-G720 BGA station on order - it has optical alignment and it should arrive early next week.

      https://www.youtube.com/watch?v=rX_J061xtVc

      I've never used a BGA station before either with or without optical alignment but I will be posting my findings here. I'll be happy to post some pics of the alignment system if I can get to it without breaking anything, if that helps

      Rich
      That would be great, thanks. Hope you enjoy your station.

      Comment

      • dicky96
        Sun Seeker
        • Mar 2017
        • 1825
        • Spain

        #4
        Re: How does optical alignment work?

        I had a look at the optical alignment on my machine

        The pull out camera is like a clear glass cube, you can see right the way through it looking down from the top. There does seem to be a mirror on at least one side of the cube, I couldn't see that it had prisms inside.

        There is a ring of LEDs around the glass block edges so it's a bit hard to look into it properly because of the glare

        I hope that helps
        Follow me on YouTube
        ------------------
        Learn Electronics Repair
        https://www.youtube.com/channel/UCFX...R8UZ2vg/videos

        Comment

        • bangaham
          Member
          • Sep 2019
          • 10
          • Croatia

          #5
          Re: How does optical alignment work?

          It helps a lot. Thanks

          Comment

          • bangaham
            Member
            • Sep 2019
            • 10
            • Croatia

            #6
            Re: How does optical alignment work?

            Originally posted by dicky96
            I had a look at the optical alignment on my machine

            The pull out camera is like a clear glass cube, you can see right the way through it looking down from the top. There does seem to be a mirror on at least one side of the cube, I couldn't see that it had prisms inside.

            There is a ring of LEDs around the glass block edges so it's a bit hard to look into it properly because of the glare

            I hope that helps
            Hi again,
            if it's not too much trouble, could you measure the size of the cube?
            Doesn't need to be super precise.

            Thanks

            Comment

            • dicky96
              Sun Seeker
              • Mar 2017
              • 1825
              • Spain

              #7
              Re: How does optical alignment work?

              Its 70mm cubed though the LEDs around the top and bottom obscure some of that

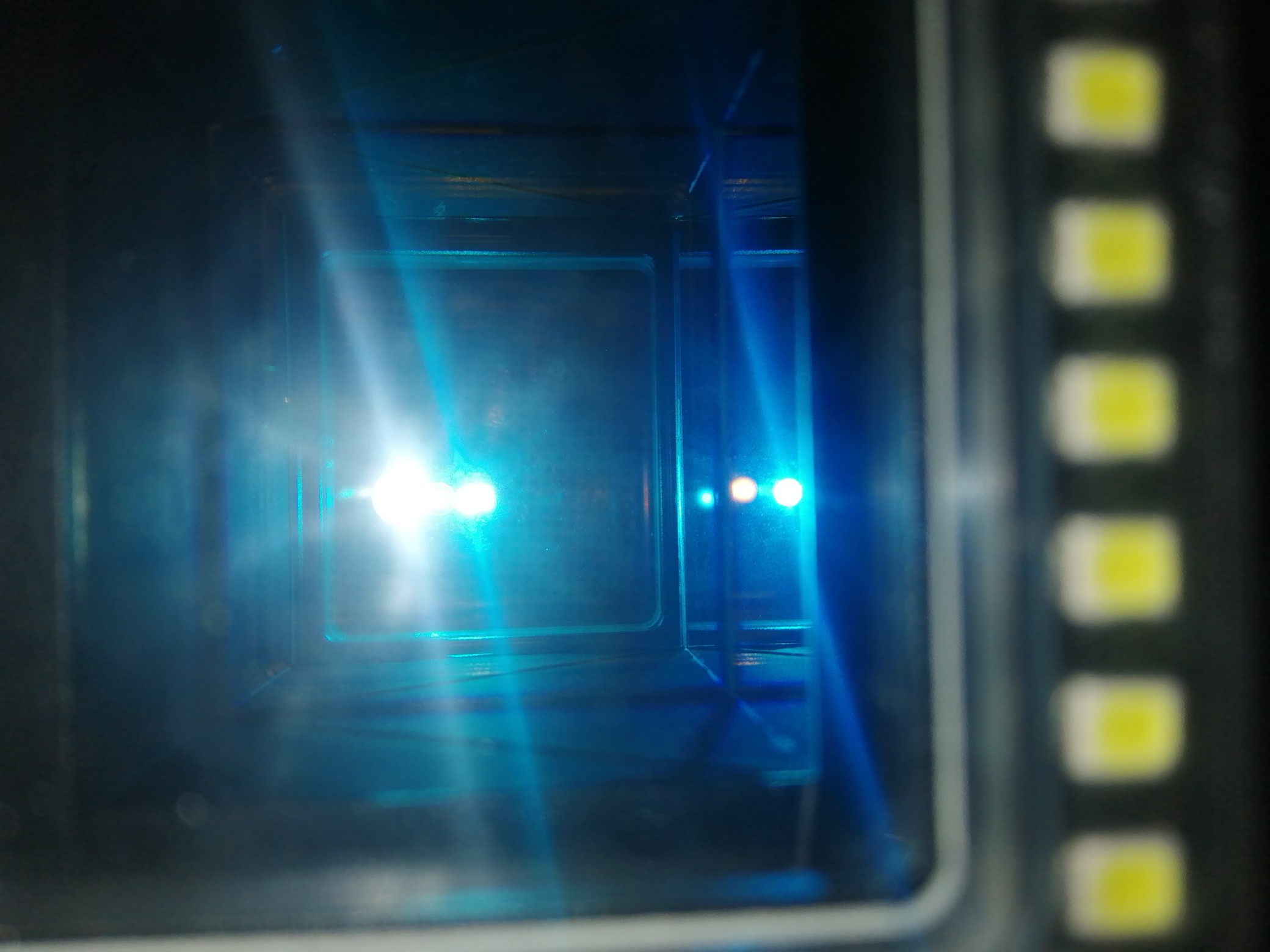

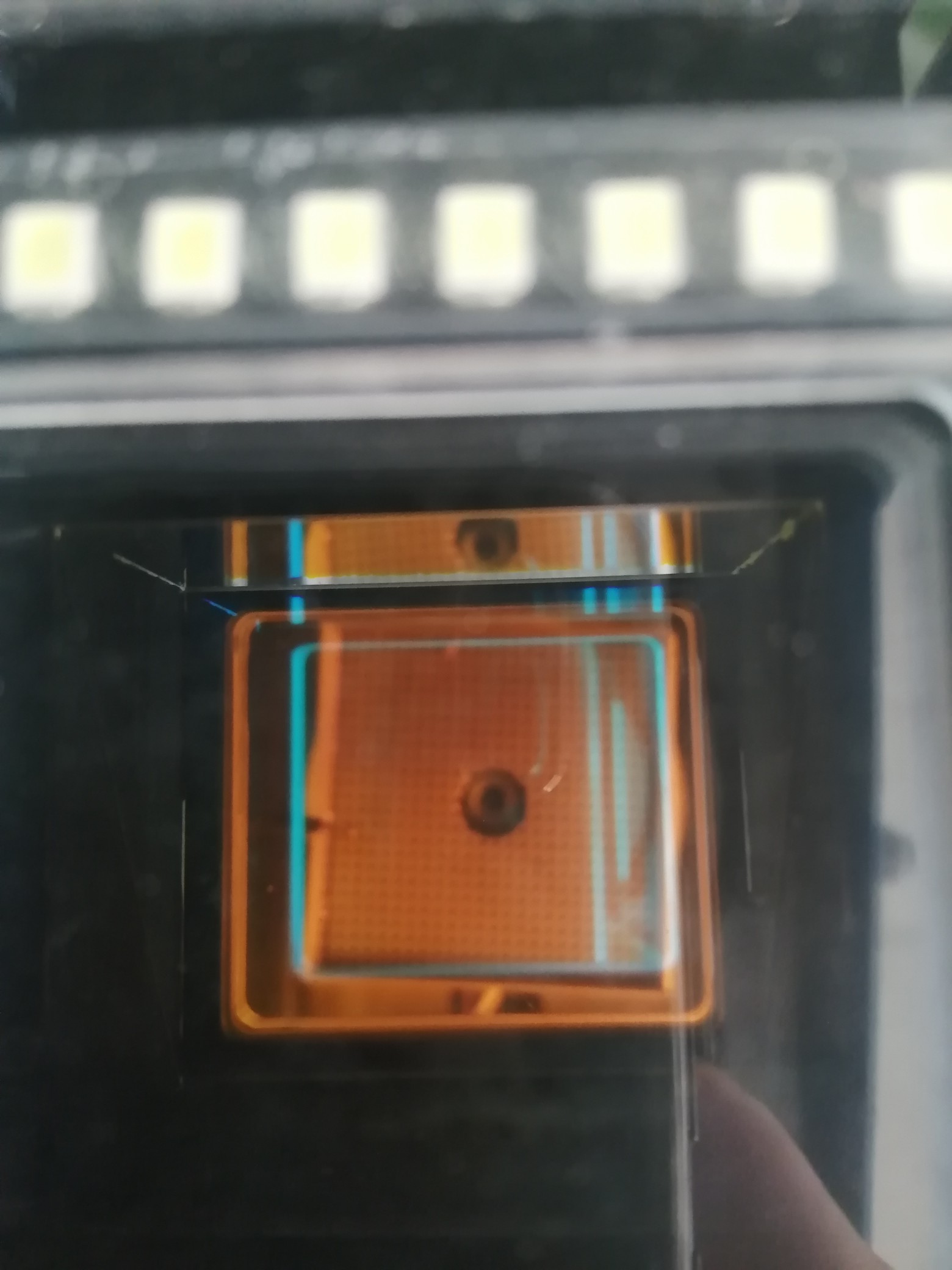

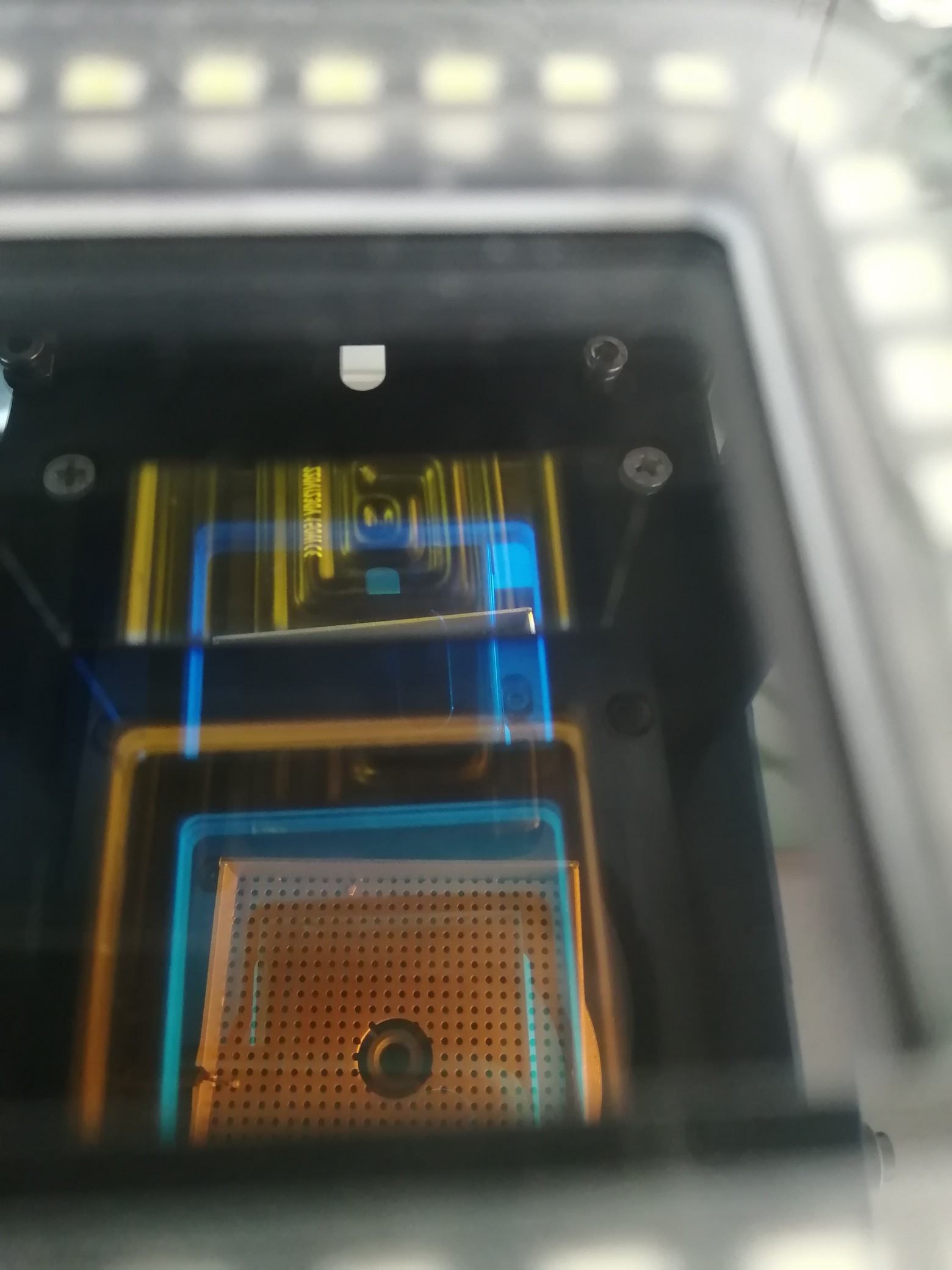

              Here are some pics looking the cube from different angles.
              Attached Files
              Follow me on YouTube
              ------------------
              Learn Electronics Repair
              https://www.youtube.com/channel/UCFX...R8UZ2vg/videos

              Comment

              • bangaham
                Member
                • Sep 2019
                • 10
                • Croatia

                #8
                Re: How does optical alignment work?

                Originally posted by dicky96
                Its 70mm cubed though the LEDs around the top and bottom obscure some of that

                Here are some pics looking the cube from different angles.
                Thank you very much!

                Comment
