    Schematic for Lenovo PCG010 power supply

    Dear Friends,

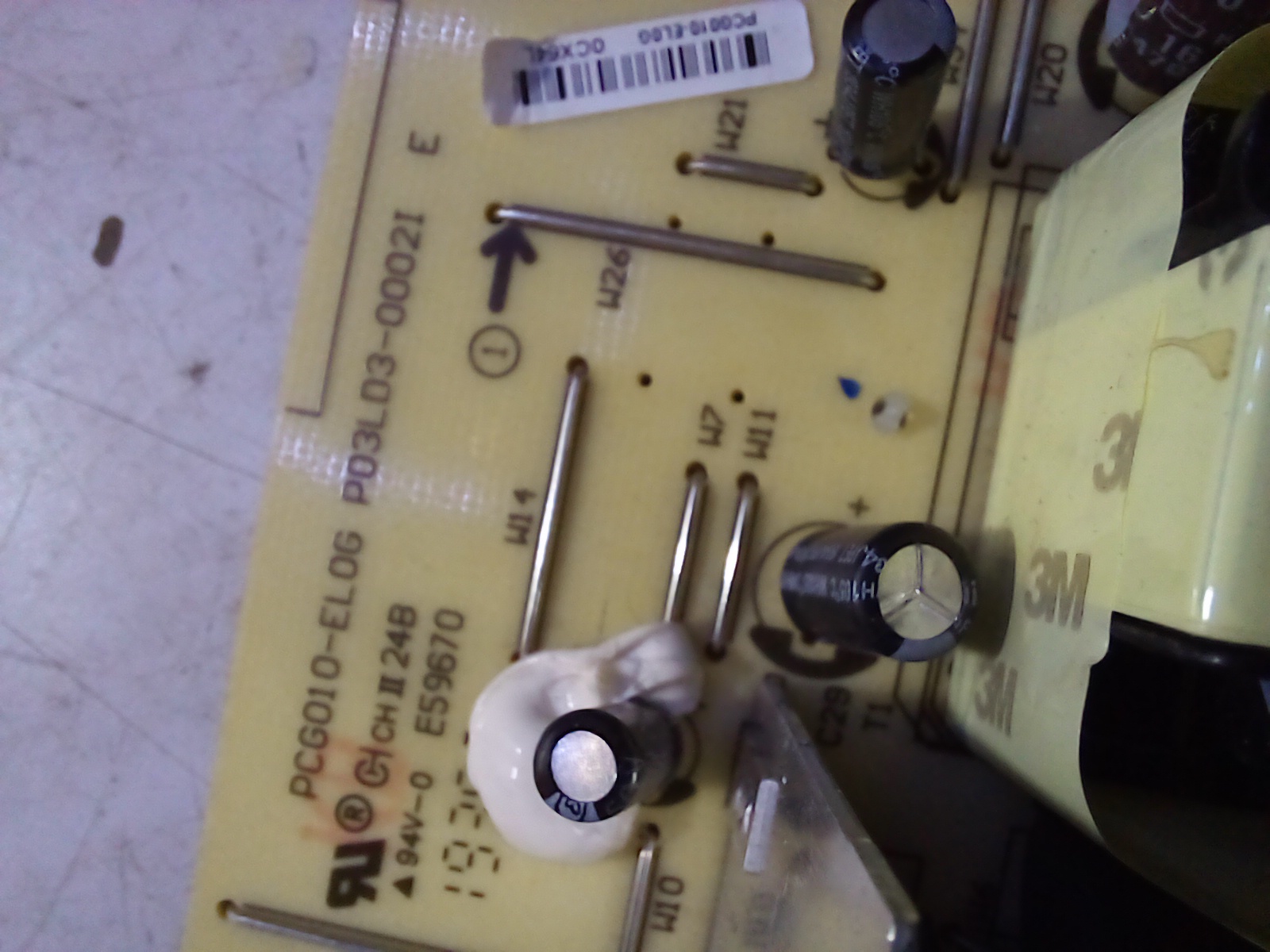

    Could you please share the schematic of this power supply.

    Model PCG 010. (Lenovo)



    Thank you.
    Attached Files

    if you find these attachements useful please consider making a small donation to the site

    Last edited by SMDFlea; 08-04-2023, 02:49 AM. Reason: Added "PCG010" to thread title !
    Tags: None
    • g0v
      New Member
      • Aug 2023
      • 5
      • Saudi Arabia
      #2
      Re: Schematic for Lenovo power supply

      This is a one side pcb ? I think you should watch this video its very helpful for u :

      https://youtu.be/-ndt1voIjSw

        Comment

        • NiroPall
          Senior Member
          • Dec 2018
          • 119
          • Sri Lanka
          #3
          Re: Schematic for Lenovo power supply

          Originally posted by g0v
          This is a one side pcb ? I think you should watch this video its very helpful for u :

          https://youtu.be/-ndt1voIjSw
          Yes one side pcb.

          Thank you.

            Comment

            • prashants
              New Member
              • Jun 2021
              • 2
              • India
              #4
              Re: Schematic for Lenovo PCG010 power supply

              Can you please give the Q1 and Q11 mosfet number?

                Comment

                • Genius gopi
                  New Member
                  • Sep 2023
                  • 3
                  • India
                  #5
                  Q1= K12A50D Q11=K12A50D

                    Comment

                    • Genius gopi
                      New Member
                      • Sep 2023
                      • 3
                      • India
                      #6
                      READ TEA19161 and TEA19162 controller ICs PAGE NUMBER 95 TO 98
