DELL INSPIRON 5593 FDI45 la-j091p

[h-tech]

hi i need help
i need DELL INSPIRON 5593 FDI45 la-j091p Schematics
thanks for all

[serdar64]

Re: DELL INSPIRON 5593 FDI45 la-j091p

did you find

[darckreign1984]

Re: DELL INSPIRON 5593 FDI45 la-j091p

i have same motherboard = faulty

near battery conecter its a blown chip 4*5 pin

[antonsugath]

Re: DELL INSPIRON 5593 FDI45 la-j091p

pls help i need la-j091p schematic

[raihan]

Re: DELL INSPIRON 5593 FDI45 la-j091p

here schematic

[kadi144]

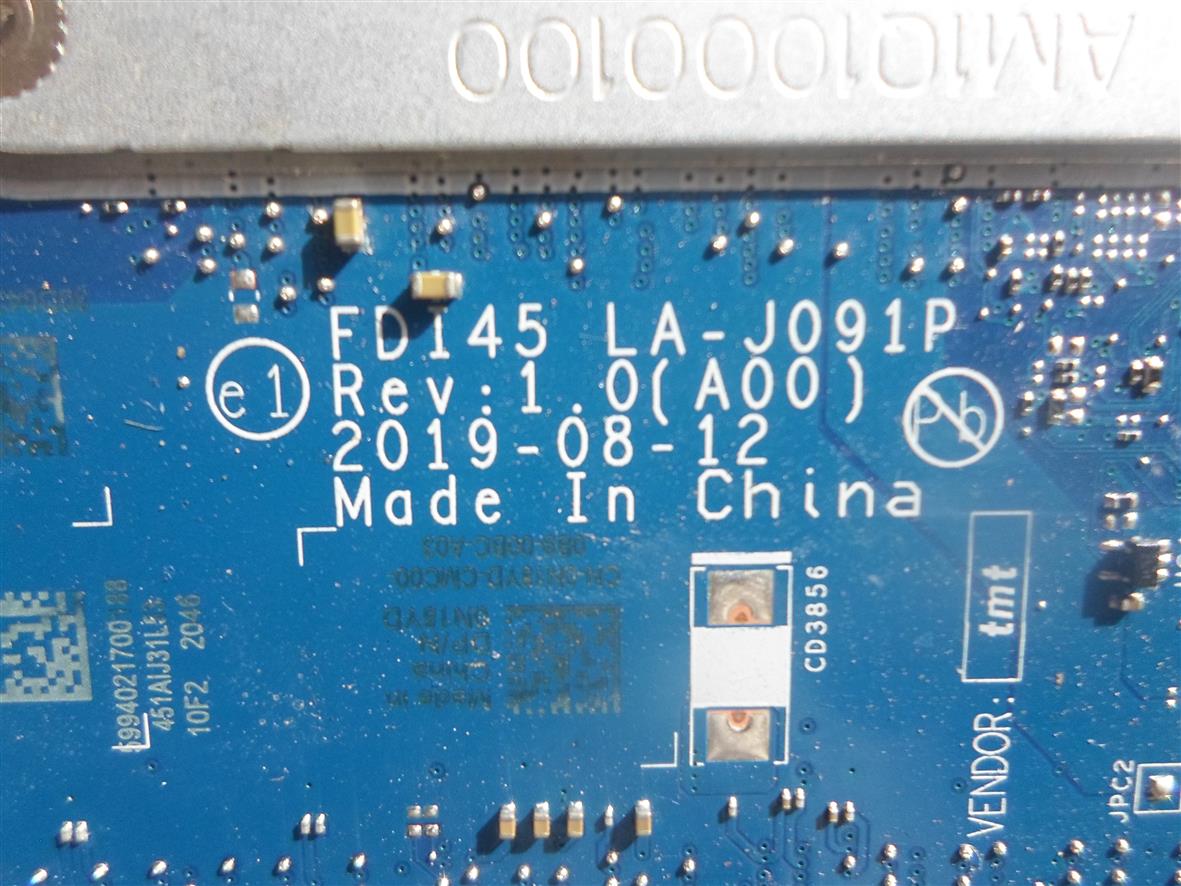

DELL INSPIRON 3793 Platforma FDI45 la-j091p rev 1.0

HI all

i need a DELL INSPIRON 3793 Platforma FDI45 la-j091p rev 1.0 shematic

core i7

thanks

[SMDFlea]

Re: DELL INSPIRON 3793 Platforma FDI45 la-j091p rev 1.0

HI all

i need a DELL INSPIRON 3793 Platforma FDI45 la-j091p rev 1.0 shematic

core i7

thanks

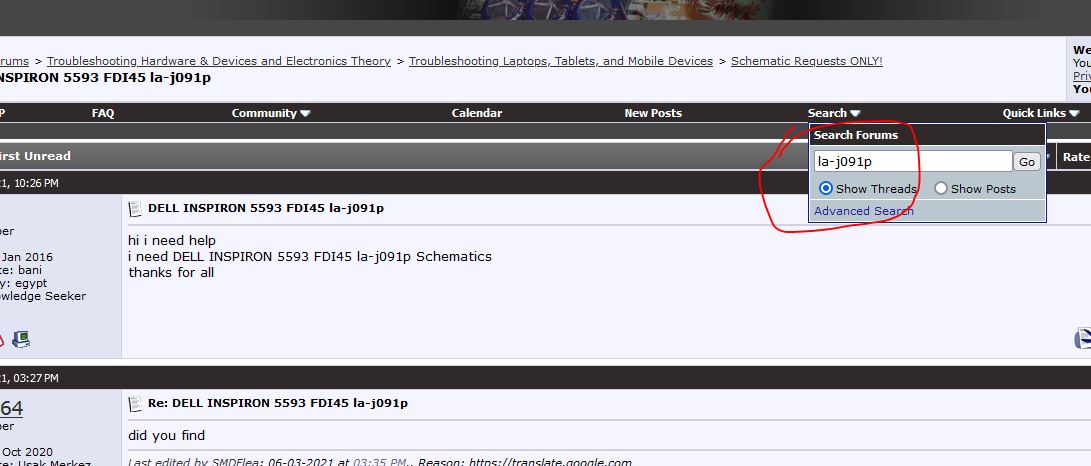

Try using the forum search

[kadi144]

Re: DELL INSPIRON 3793 Platforma FDI45 la-j091p rev 1.0

Try using the forum search

thanks

[hlokhand]

Re: DELL INSPIRON 5593 FDI45 la-j091p

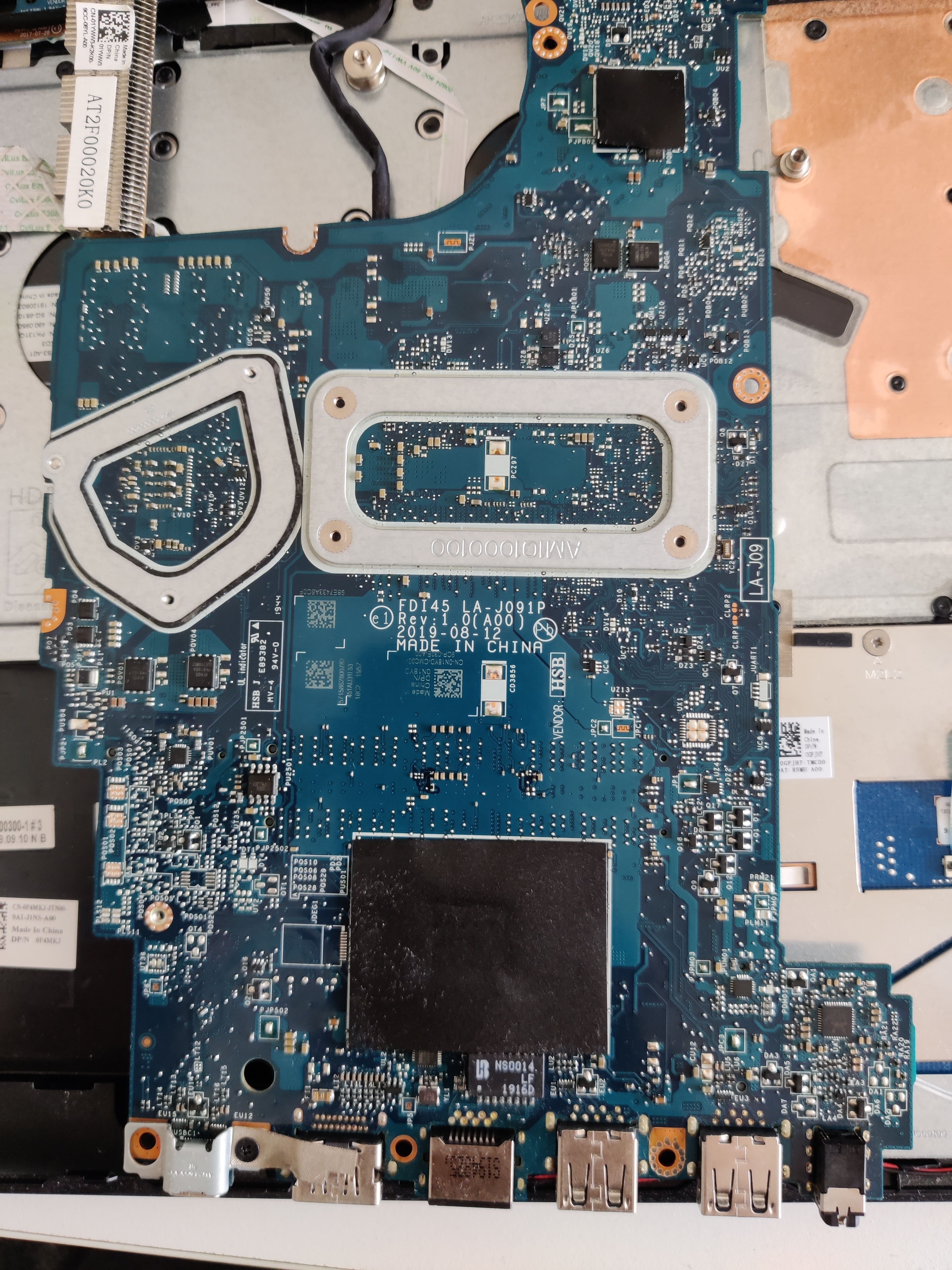

any one plz send FDI45 la-j091p rev 1.0 clear charging section photo. i recived water damage mobo unable to recognise some of the components. plz help

thanks in advance

[siroos_tz]

Re: DELL INSPIRON 5593 FDI45 la-j091p

here schematic

Thank you very much

[elbostan]

Re: DELL INSPIRON 5593 FDI45 la-j091p

thank you

[trepachka]

Re: DELL INSPIRON 5593 FDI45 la-j091p

I know this is an old one but I currently have the schematics for Inspiron 5593. I also need the boardview file for this model. Does anyone have it, by any chance? I would appreciate it. Thanks.

[Lisa Su]

Re: DELL INSPIRON 5593 FDI45 la-j091p

I know this is an old one but I currently have the schematics for Inspiron 5593. I also need the boardview file for this model. Does anyone have it, by any chance? I would appreciate it. Thanks.

Try these

[trepachka]

Re: DELL INSPIRON 5593 FDI45 la-j091p

Thank you very much for the schematics. A quick question: the laptop will not turn without the battery. According to the schematics, their literal wording, H_PROCHOT# is what keeping the circuit closed because an user is not supposed to be removing the battery. Can anyone confirm this? My current battery is completely dead and the OEM replacement battery I received is also completely dead. Unplugging the battery and powering on the laptop with just the charger does nothing, no power lights, even for a brief moment.

[techfreak9356]

Re: DELL INSPIRON 5593 FDI45 la-j091p

Hi, I have an Inspiron motherboard with no display output on LCD cable. I would like to see a boardview for FDI45 LA-J091P if there is one available. Repair shops here in my city simply just shrug off my problem as LCD issue even though it is having a board-level issue. Thanks in advance

[canali]

Re: DELL INSPIRON 5593 FDI45 la-j091p

thank you

[chandana kumara]

Re: DELL INSPIRON 5593 FDI45 la-j091p

thank you for the schematic

[Seshmaru]

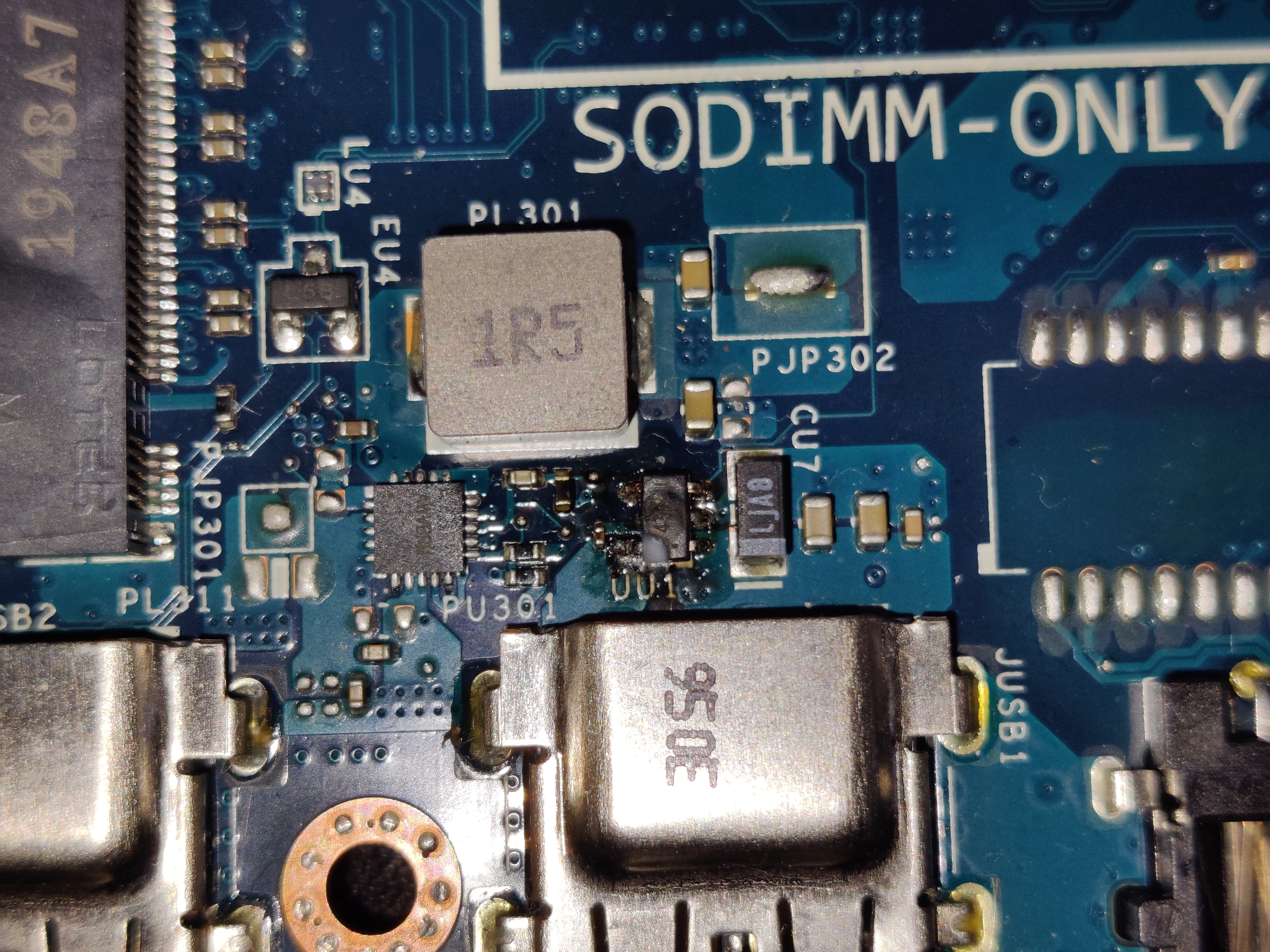

Sorry for bumping up an old thread, but I was not able to open the schematic for this, so maybe someone could let me know what would be a replacement for this component?

Currently there is no sign of life, no power and a short

[Seshmaru]

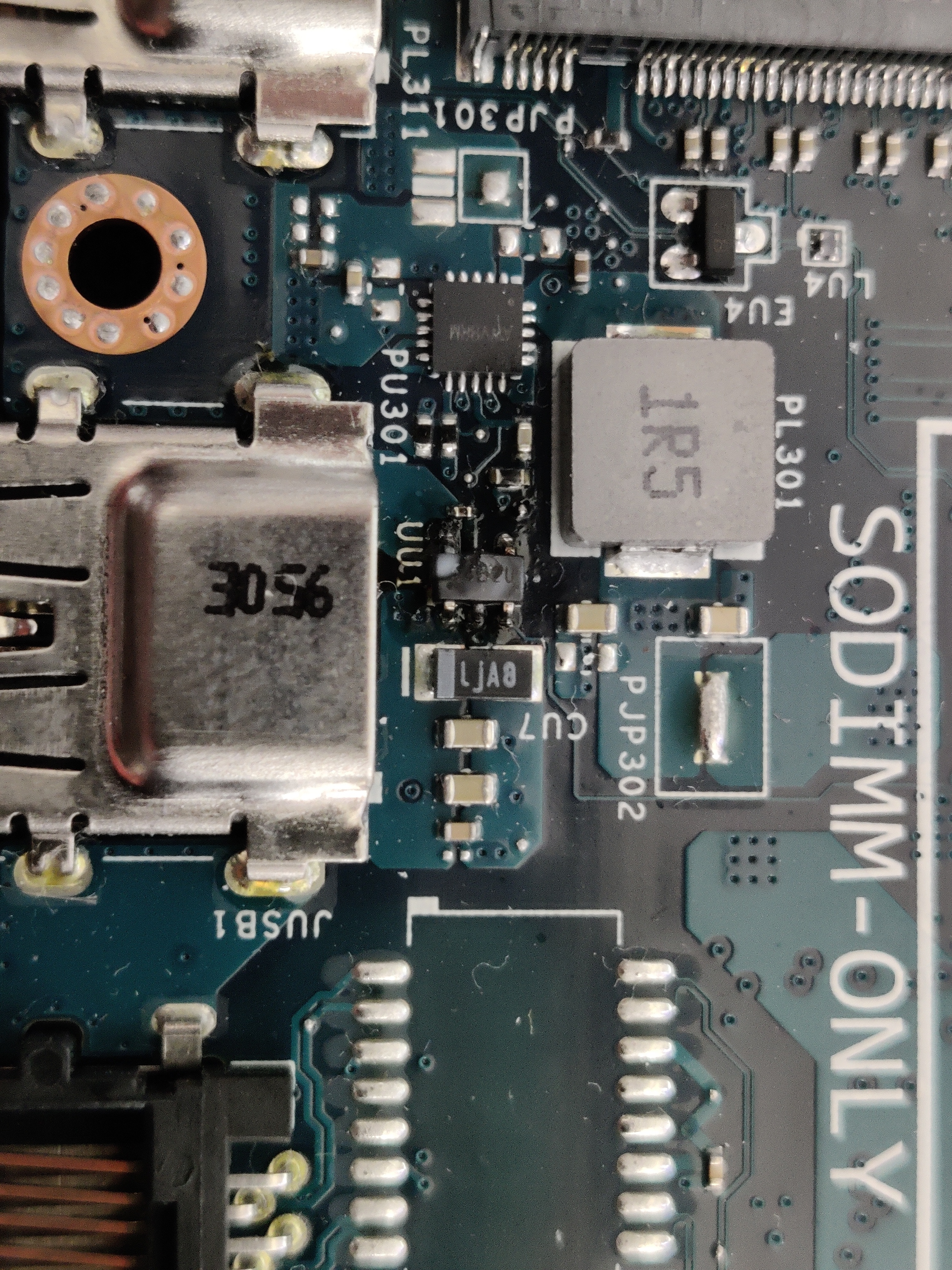

It seems like a voltage regulator, but I can't find much info about it "4B2U" seems written on it

[afelect]

Sorry for bumping up an old thread, but I was not able to open the schematic for this, so maybe someone could let me know what would be a replacement for this component?

Currently there is no sign of life, no power and a short

Hi, it's a SY8286BRAC Regards
