    Hp 15-ab532tx dax1bmb1af0 rev f schematic

    Hp 15-ab532tx dax1bmb1af0 rev f schematic
    hi all any one have this motherboard schematic please share

    hp 15-ab
    in this motherboard one buck controller ic is short
    ic = MT5VA i need to replace this ic but i am not able to find equivalents
    please help
    Tags: None
    • yashjovi
      Senior Member
      • Nov 2011
      • 130
      #2
      Re: Hp 15-ab532tx dax1bmb1af0 rev f schematic

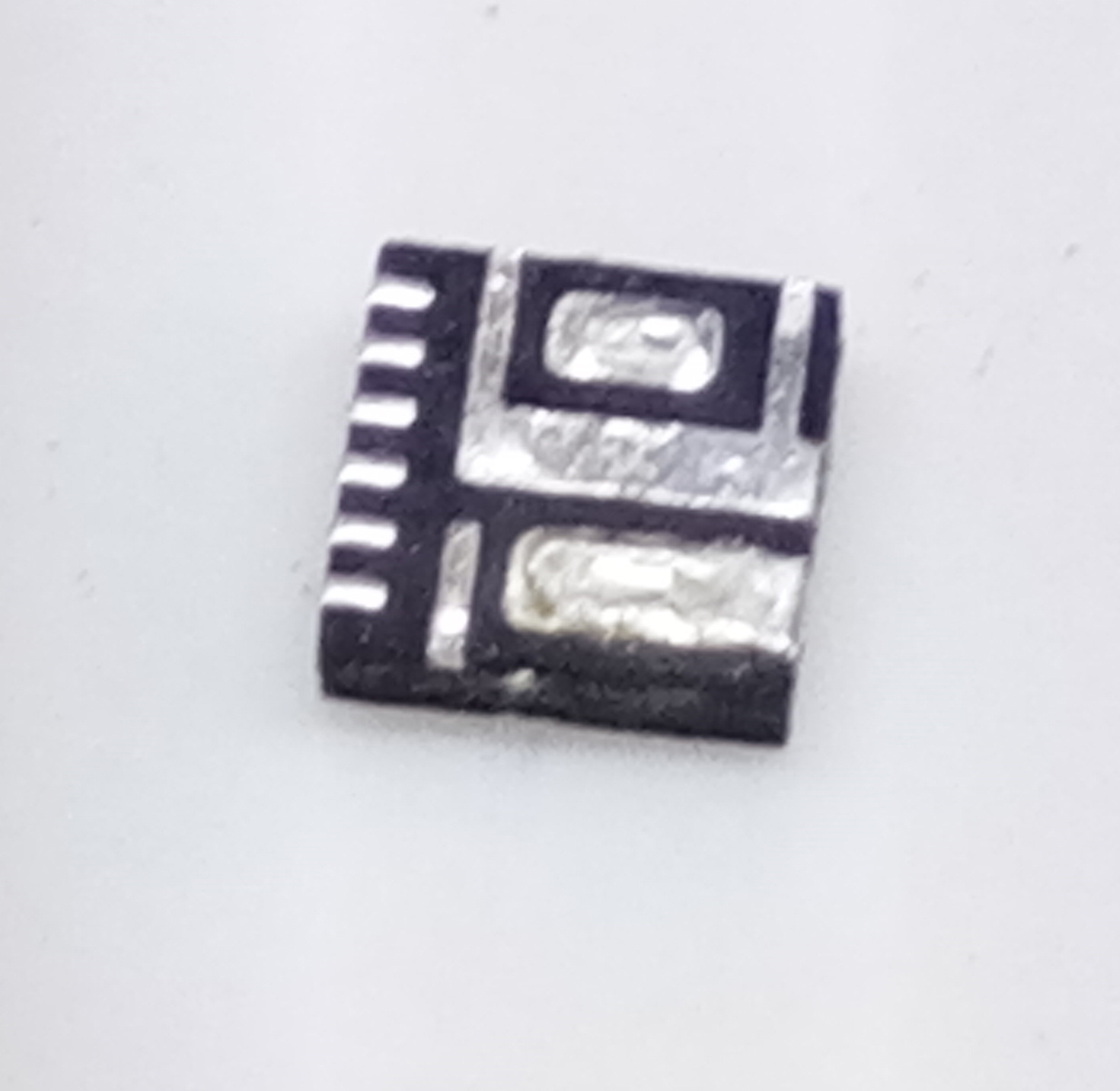

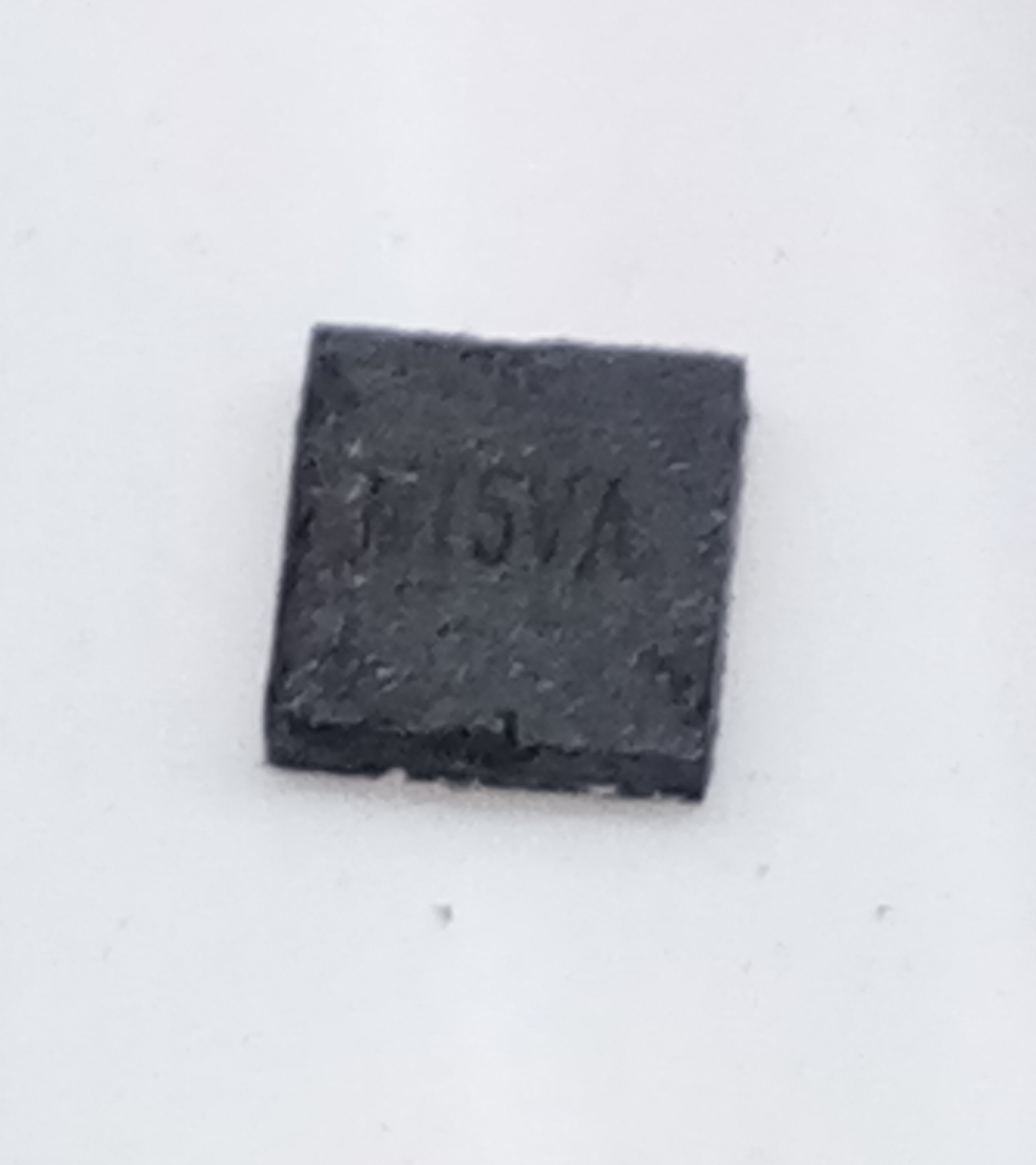

      ic = MT5VA
      Attached Files

        Comment

        • yashjovi
          Senior Member
          • Nov 2011
          • 130
          #3
          Re: Hp 15-ab532tx dax1bmb1af0 rev f schematic

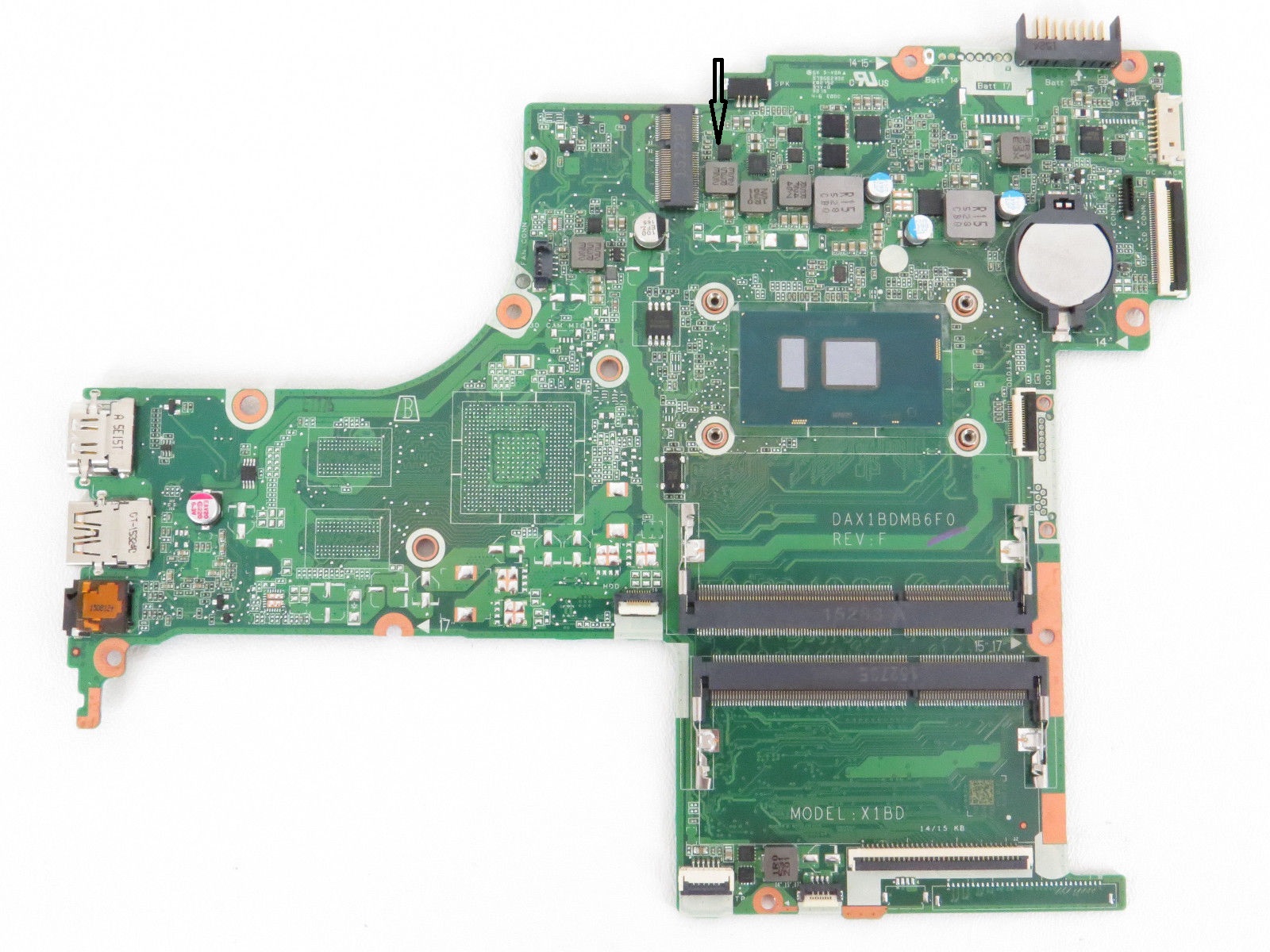

          Re: Hp 15-ab532tx dax1bmb1af0 rev f ic location
          Attached Files

            Comment

            • piernov
              Super Moderator
              • Jan 2016
              • 4435
              • France
              #4
              Re: Hp 15-ab532tx dax1bmb1af0 rev f schematic

              The IC is a Silergy SY8208CQNC I think.
              OpenBoardView — https://github.com/OpenBoardView/OpenBoardView

                Comment

                • redman13
                  Senior Member
                  • Aug 2016
                  • 66
                  • bangkok
                  #5
                  Re: Hp 15-ab532tx dax1bmb1af0 rev f schematic

                  DIS (14" / 15" / 17") Chocolate
                  Attached Files

                    Comment

                    • Wolverine 72
                      New Member
                      • Jun 2021
                      • 1
                      • India
                      #6
                      Re: Hp 15-ab532tx dax1bmb1af0 rev f schematic

                      Anyone know which MOSFETs are used in charging circuit of X1B DAX1BMB1AFO REV F.?

                        Comment
