Need schematic for this board (cyberpowerpc tracer 2)

ronaldo17

New Member

Join Date: Oct 2024

Posts: 4

Country: Vietnam
#1

Need schematic for this board (cyberpowerpc tracer 2)

07-23-2025, 02:32 AM

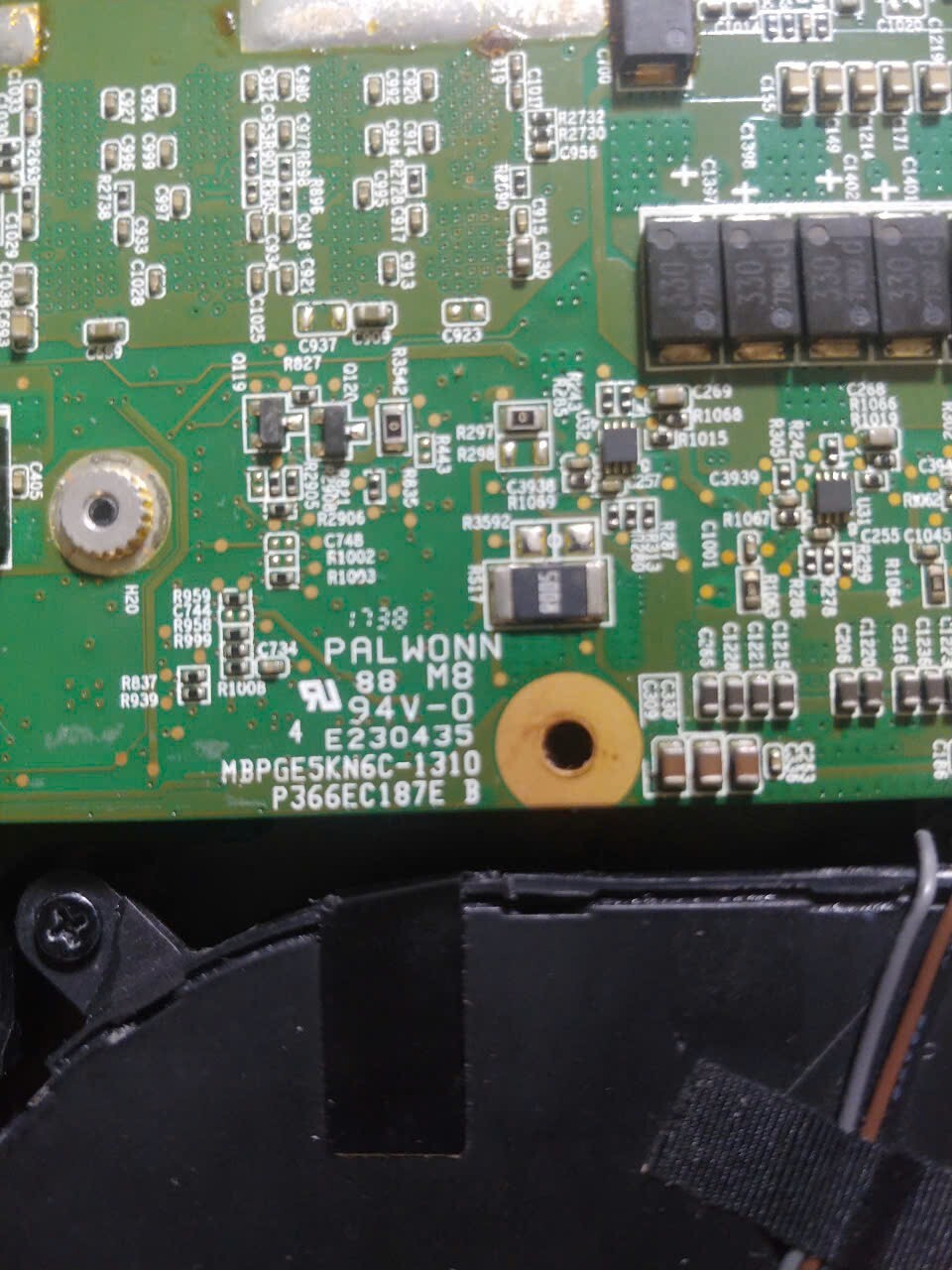

I need schematic for this board.
Spec:
I7 7700HQ
GTX 1070
This is just my second topic on this forum,so if i do anything wrong,please forgive me(I even dont know how to reply)
Thank you very much beacause helped me
