    Schematics & Boardview MSI CYBORG 15 - MS-15K11

    Hello team,
    I'm searching Schematics & Boardview for an MSI CYBORG 15 - MS-15K11 rev 1.0.
    I need the PU15 what component is.
    I attached photos.
    Thank you
    Attached Files

    #2

    Comment


      #3
      I don't have a diagram but I can help with a photo.

      Comment


        #4
        Originally posted by quic307 View Post
        Hello team,
        I'm searching Schematics & Boardview for an MSI CYBORG 15 - MS-15K11 rev 1.0.
        I need the PU15 what component is.
        I attached photos.
        Thank you
        Monolithic Power NB691GG-Z https://www.badcaps.net/forum/troubl...20#post1482820

        There`s no datasheet available but you can find the chip in the GK5MP5X schematic, U1 page 37 https://www.badcaps.net/forum/troubl...-v15-9-gk5mp5x

        All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

        Comment


          #5
          Originally posted by SMDFlea View Post

          Monolithic Power NB691GG-Z https://www.badcaps.net/forum/troubl...20#post1482820

          There`s no datasheet available but you can find the chip in the GK5MP5X schematic, U1 page 37 https://www.badcaps.net/forum/troubl...-v15-9-gk5mp5x
          Thank you for info. I'll try to order it ....

          Comment


            #6
            please help, resistance measurements of all coils are needed, in particular pl18, pl19, on my board there was a breakdown of pl25, at this stage when pressing the power button, standby voltages appear for 5 seconds and disappear

            Comment


              #7

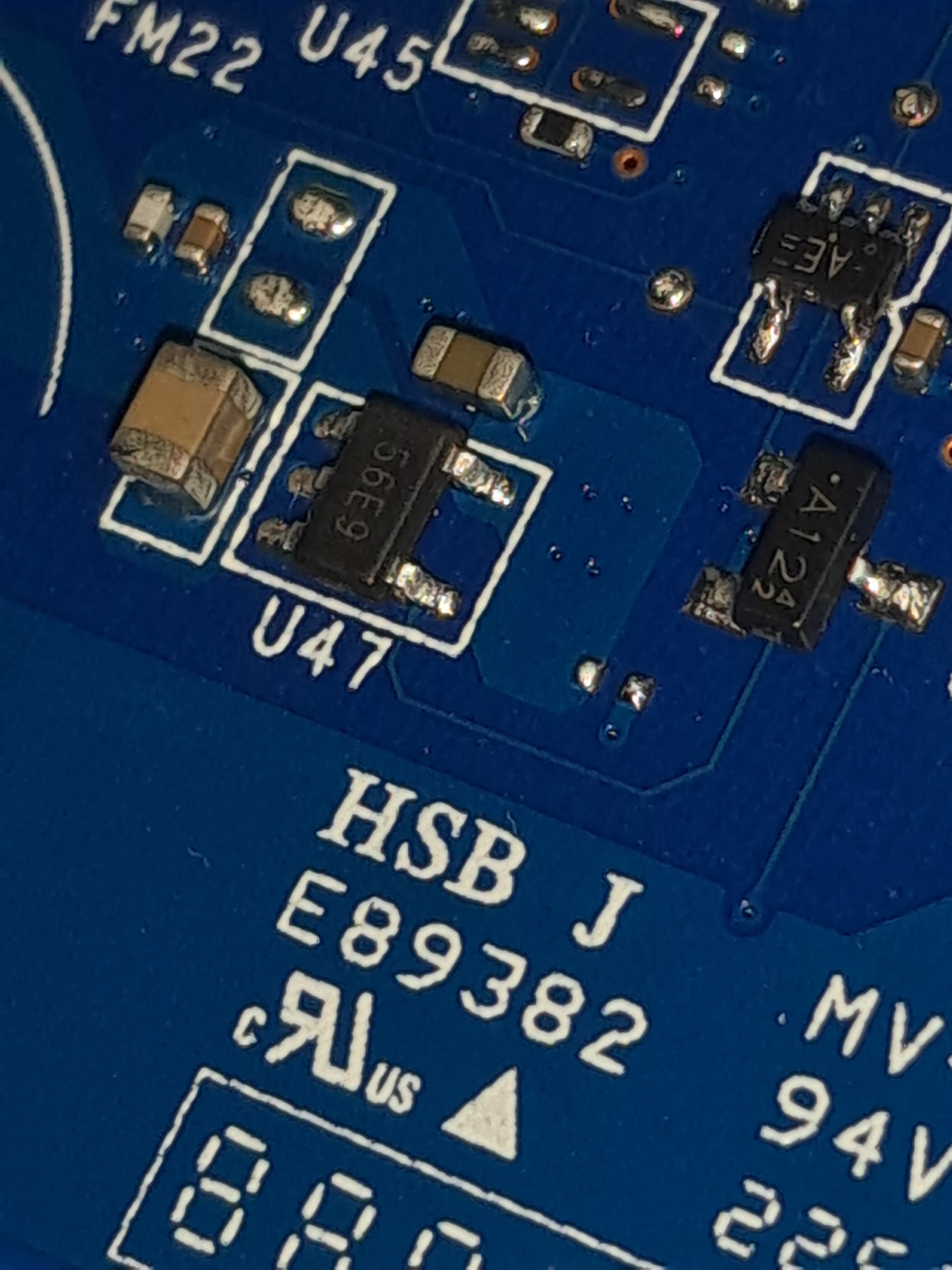

              hi to everyone, can any help me!!!

              i have the same board, and have a short on this component

              I need the u47 what component is.
              I attached photos.
              Thank you
              Attached Files

              Comment


                #8
                i can't find that datasheet, maybe someone can find it.
                Attached Files
