Need a schematic for Dynobook A30-E-1JC (board BTC-212 94V-0)

Darren Hibbert

Senior Member

Join Date: Feb 2024

Posts: 102

Country: UK
#1

Need a schematic for Dynobook A30-E-1JC (board BTC-212 94V-0)

03-23-2024, 04:05 PM

Hello friends.

I have a Dynobook A30-E-1JC notebook that is dead and I'm trying to find a schematic.

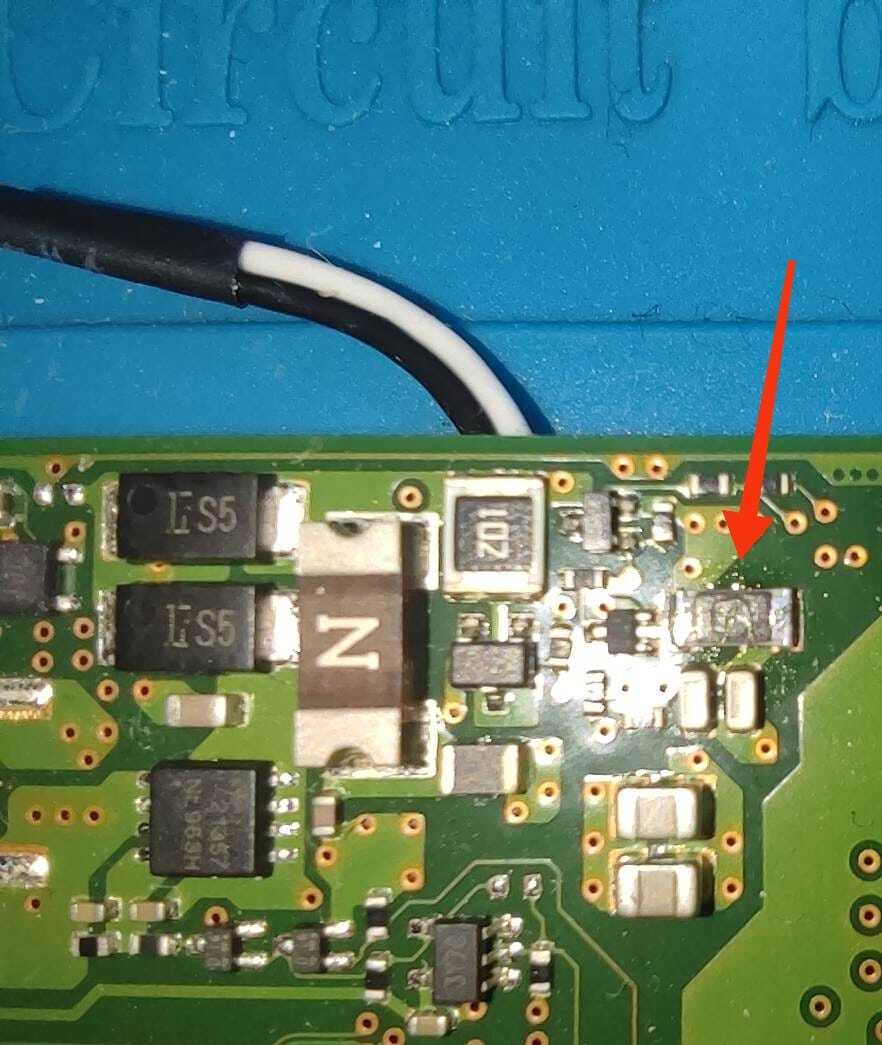

Unless someone can identify this chip that looks dodgy and has no continuity.

Many thanks.
Attached Files
Tags: None
Darren Hibbert

Senior Member

Join Date: Feb 2024

Posts: 102

Country: UK
#2

03-31-2024, 08:41 AM

*Bump
Comment
SMDFlea

Super Moderator

Join Date: Jan 2018

Posts: 20511

Country: UK
#3

03-31-2024, 02:37 PM

Originally posted by Darren Hibbert

*Bump

Any other markings on the board such as FDIASY3 .Post pictures of both sides of the board please .
