    Dell Latitude 5430 LA-L591P schematic diagram request

    Hello everyone,

    i request a schematic diagram for a board LA-L591P

    The problem on this board is that i don't have 3.3 volt on pin 8 on UC6,is only 1.45.

    Somebody try to reflash the UC6 chip to remove password and after that laptop is on no power state.

    I try to put 3.3 volt from 3v stby,the laptop powers on but remains still's on logo.

    i flash both spi flash with original bin and still does' boot.

    Thanks in advance for all suggestion.
    Attached Files
  • supernovato
    New Member
    • Nov 2022
    • 3
    • Puerto Rico

    #2
    Need Schematic for LA-591P Rev1.0 Dell LAtitude 5430

    Need Schematic for LA-591P Rev1.0 Dell LAtitude 5430

    Comment

    • Arkadiy84
      Member
      • Feb 2019
      • 12
      • Ukraine

      #3

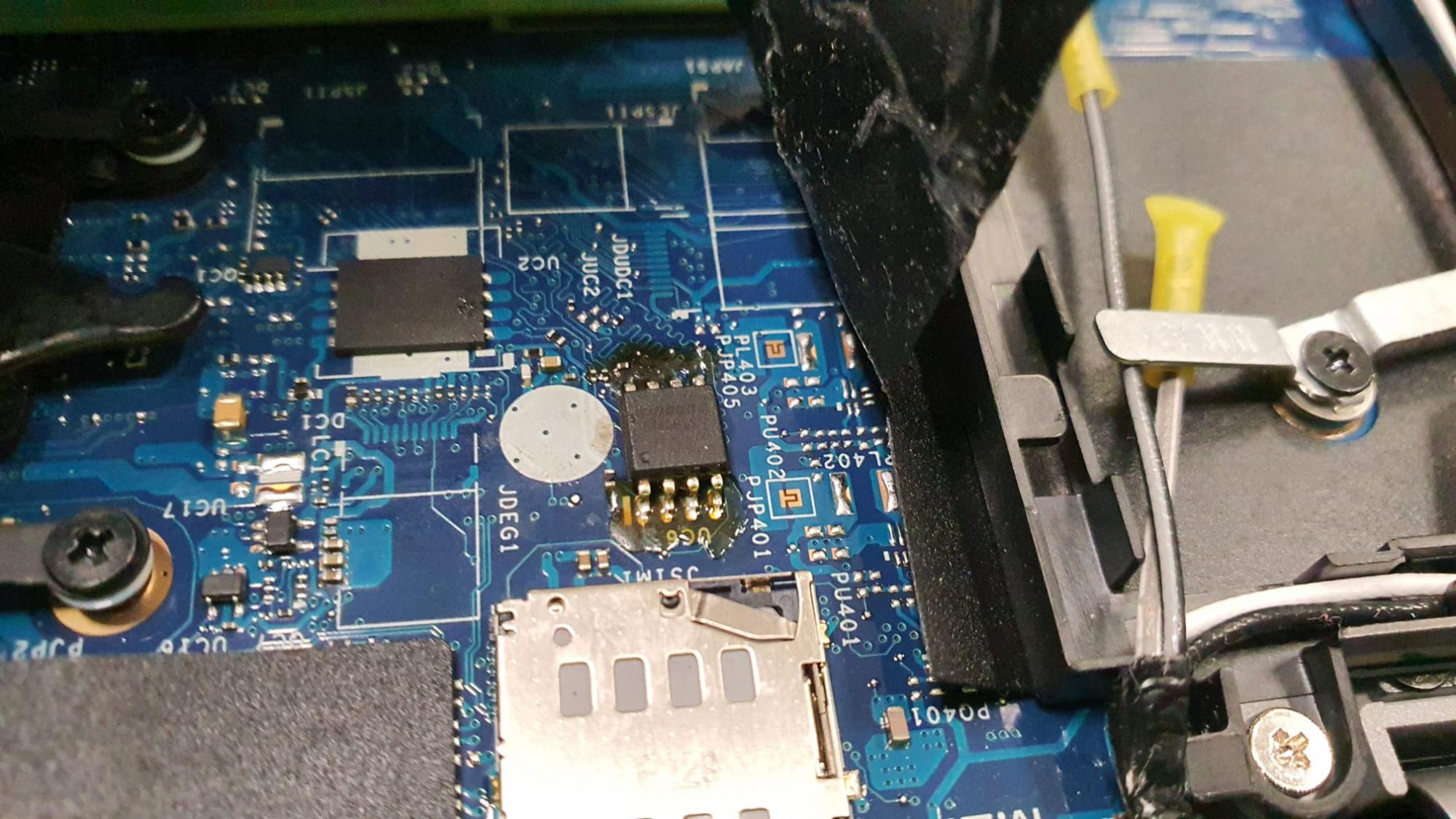

      Hello. I would like to ask you to take a picture of the wiring of the microcircuit UC2. Or a photo from the top angle of this microcircuit

      Comment

      • Arkadiy84
        Member
        • Feb 2019
        • 12
        • Ukraine

        #4
        Hello. Tell me the ratings of resistors 1 and 2

        Comment

        • newdes
          Member
          • Aug 2018
          • 34
          • MX

          #5

          Hello, I have this same motherboard but it has a short on the main 5V line and it is this component. Does anyone know what it is or what its replacement could be? Thank you.

          DNBEWC

          Comment

          • Gernet
            Member
            • May 2021
            • 46
            • Italy

            #6
            =Does anyone know what it is = DNBEWC

            SYD370CTMC

            Comment

            • PycLaH
              Member
              • Feb 2022
              • 28
              • UK

              #7
              hello please can anyone help me with Schematic for LA-591P, dell latitude 5430
              after pressing power on btn, i have white led flashing 4 times. (error code is for memory fault/error)
              measuring voltage on the memory bank i have 0 volts.
              is it possible that bios chip corrupt ? or flashed with wrong file ?

              please help

              Comment

              • newdes
                Member
                • Aug 2018
                • 34
                • MX

                #8
                Originally posted by Gernet
                =Does anyone know what it is = DNBEWC

                SYD370CTMC
                thank you

                Comment

                • Slavol
                  Senior Member
                  • May 2015
                  • 61
                  • Poland

                  #9
                  BoardView in CAD Enjoy
                  Attached Files

                  Comment
