    High resolution image of Samsung J200G Motherboard

    Hi Folks

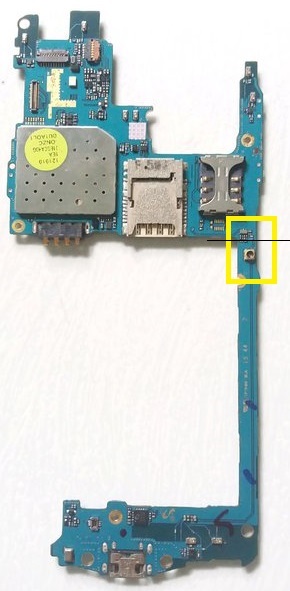

    My Samsung Galaxy J2 mobile has a broken motherboard. I am trying to join this back by using jumpers, but for that i need a high res image of the section highlighted in yellow. Thats the area where the motherboard broke. The black line indicates exactly where the board broke

    I need to see how the the tracks across the two sections are joined so that i can use jumper cable to connect it across.

    So if any one can help me with the image it would be appreciated. Thanks
