    Asus g513 Problem with chip identification

    Hello Friends

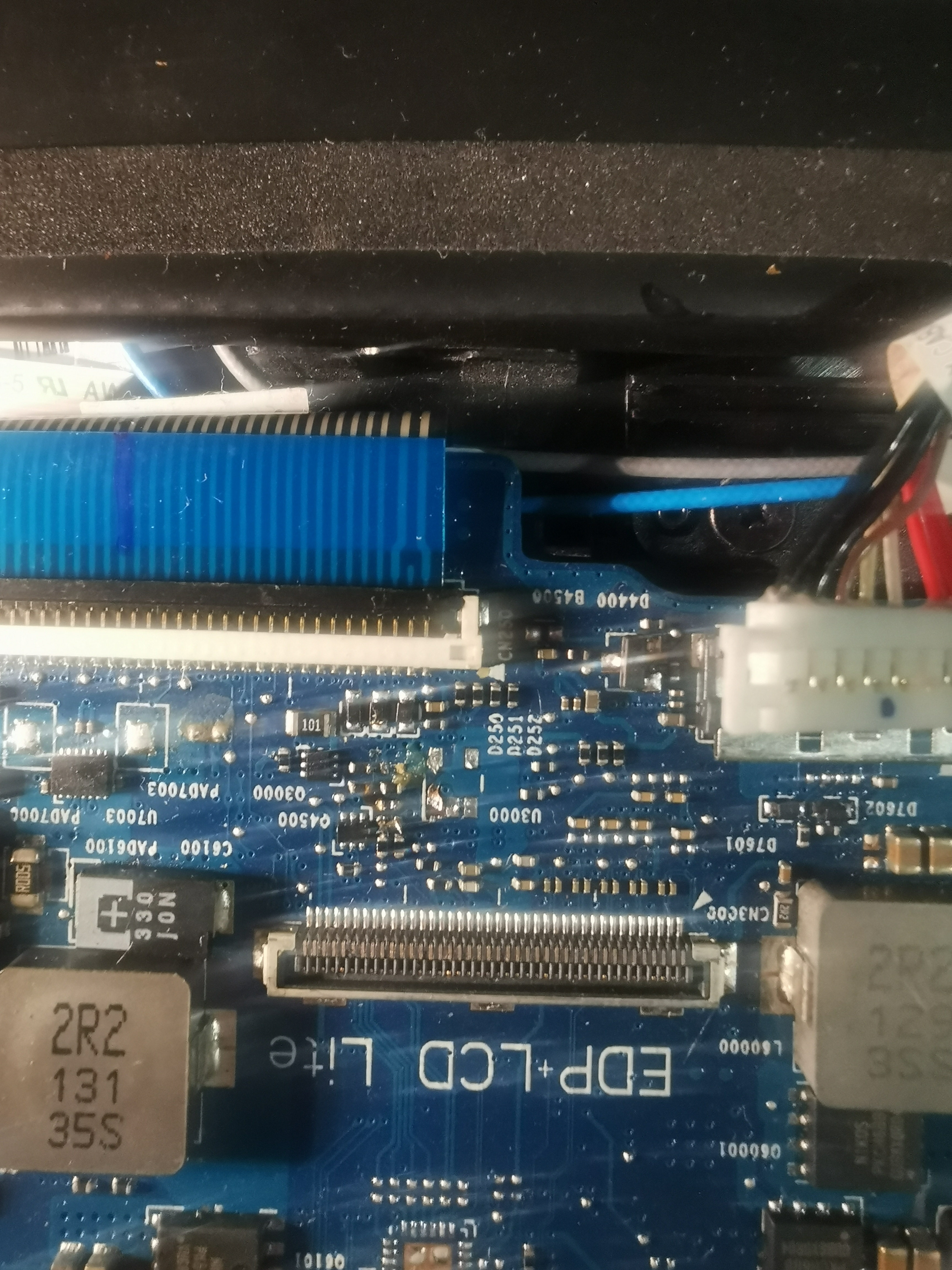

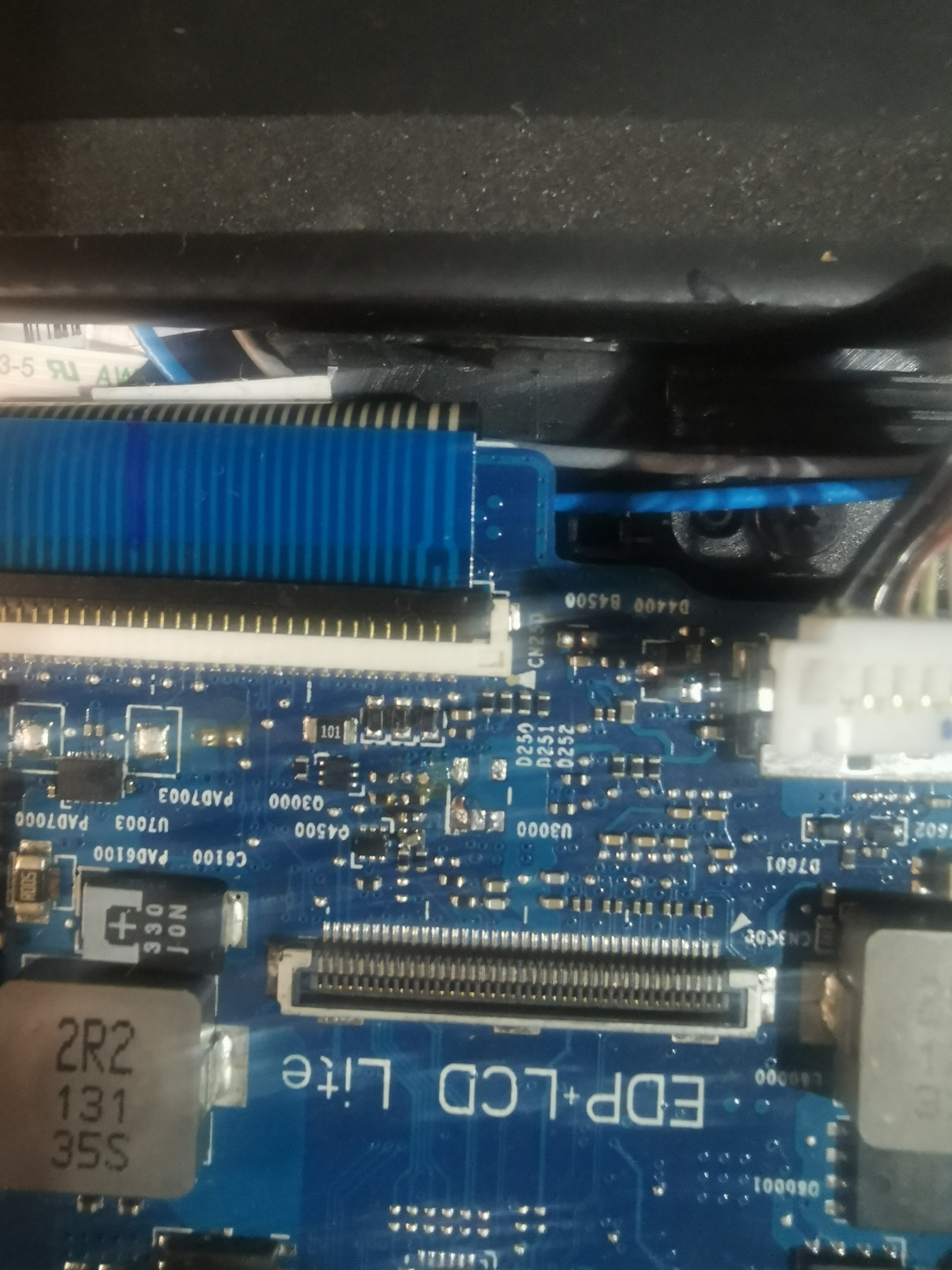

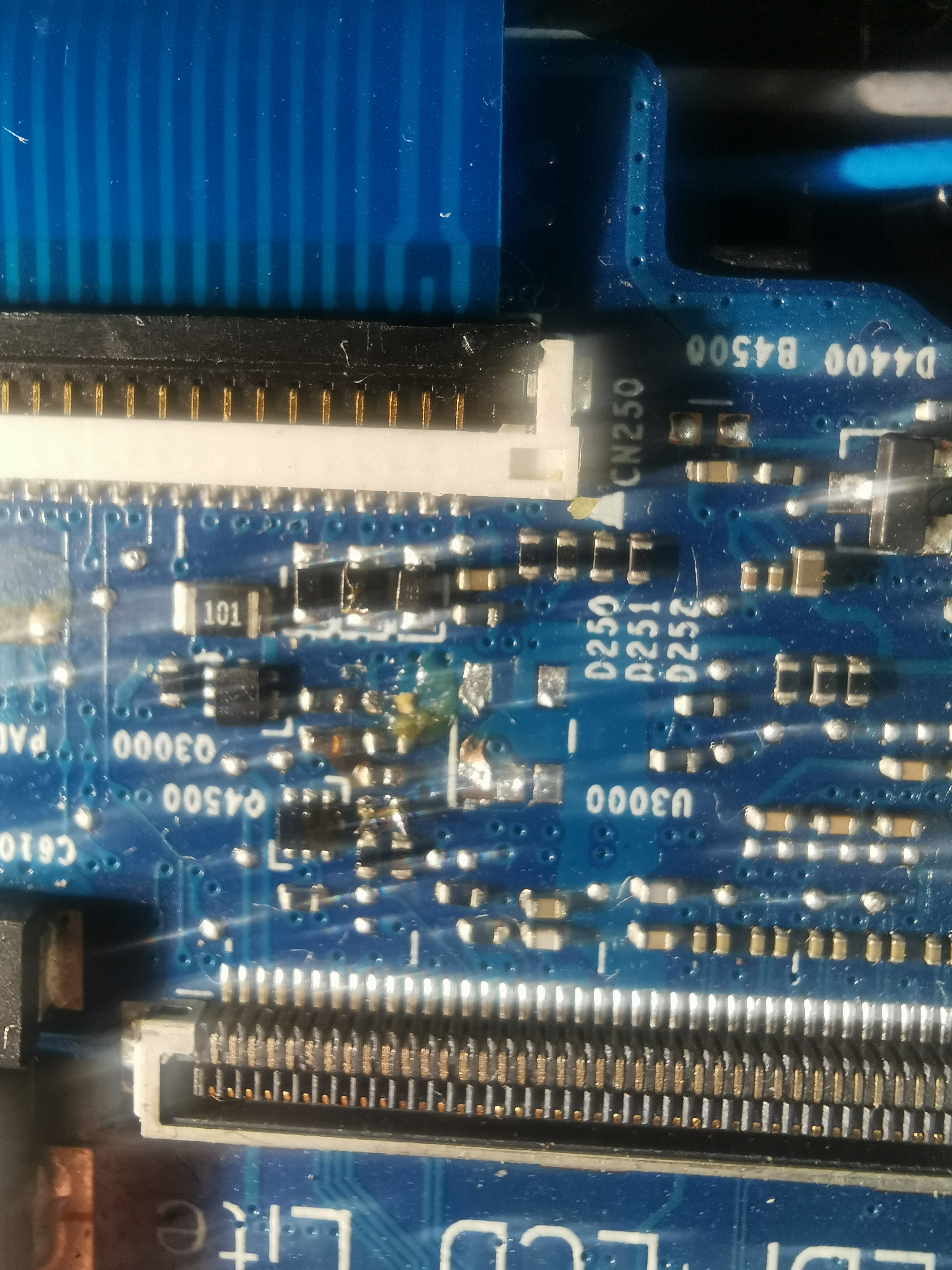

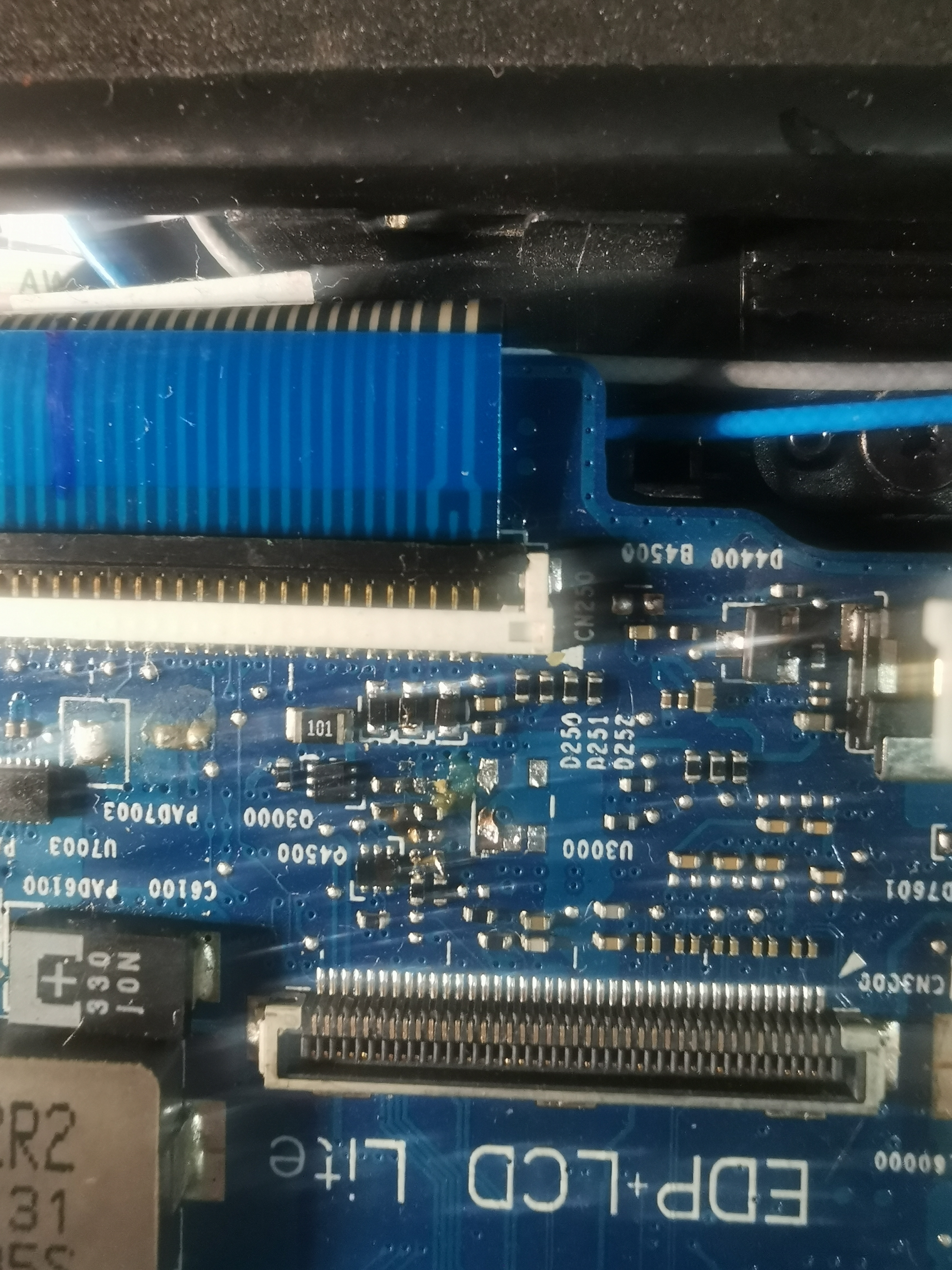

    Please provide the ID of the component that is missing from the board.

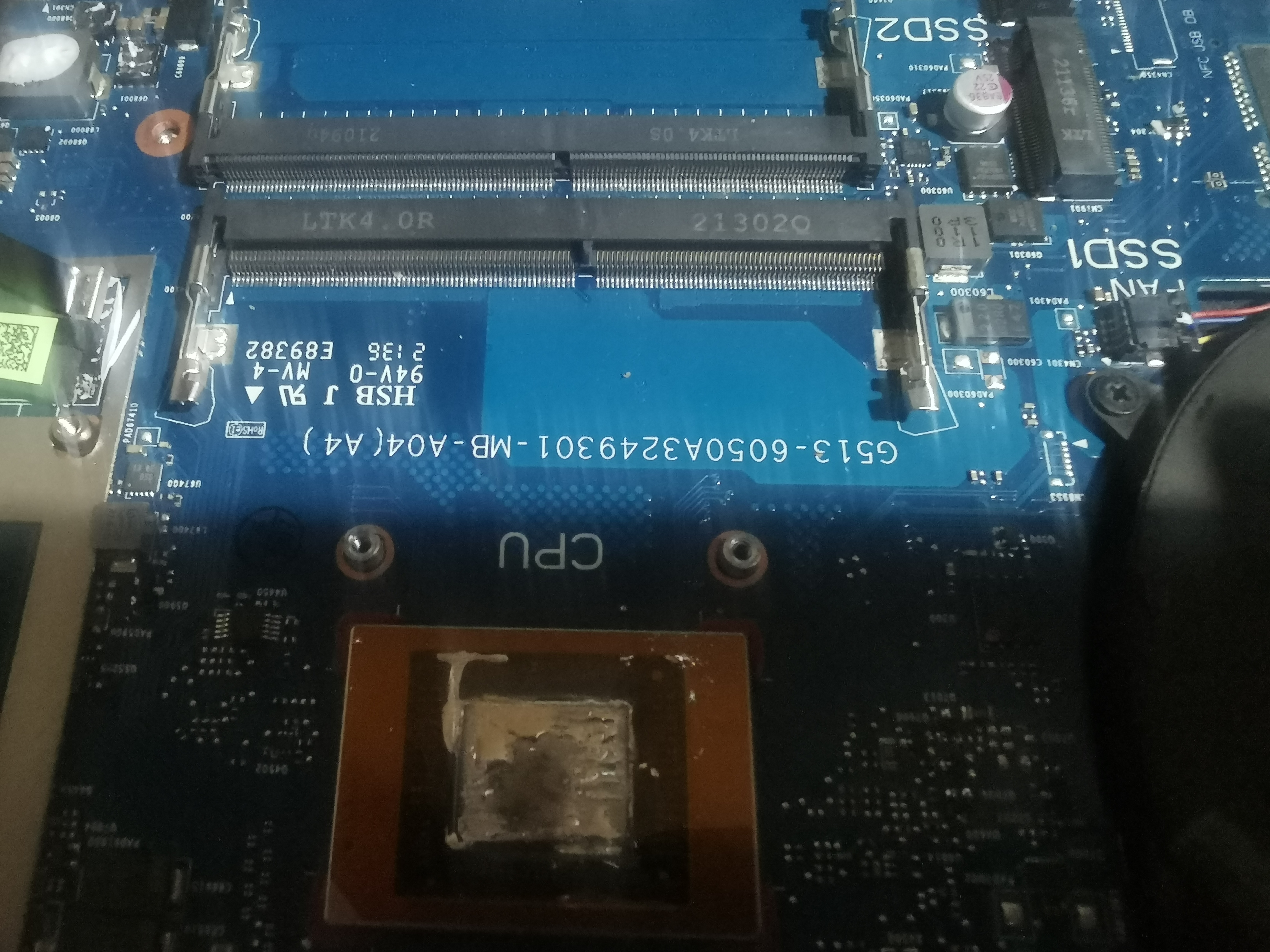

    Asus g513
    Motherboard G513-6050A3249301 mb 04
    Thanks for help
