Help with identifying a broken camera connector

Collapse
X
Collapse

  • Page of 1
  • Time
  • Show
Clear All
new posts
Previous template Next
  • orientalsniper
    Badcaps Veteran
    • Apr 2013
    • 459
    • USA
    #1

    Help with identifying a broken camera connector

    Help! Connector got broken down!

    It's an A1278 (MacBook Pro).

    With boardview, the pinouts are:

    1: GND
    2: USB_CAMERA_CNN_N
    3: USB_CAMERA_CNN_P
    4: SMBUS_SMC_A_S3_SDA
    5: SMBUS_SMC_A_S3_SCL
    6: PP5V_S3_ALSCAMERA_F

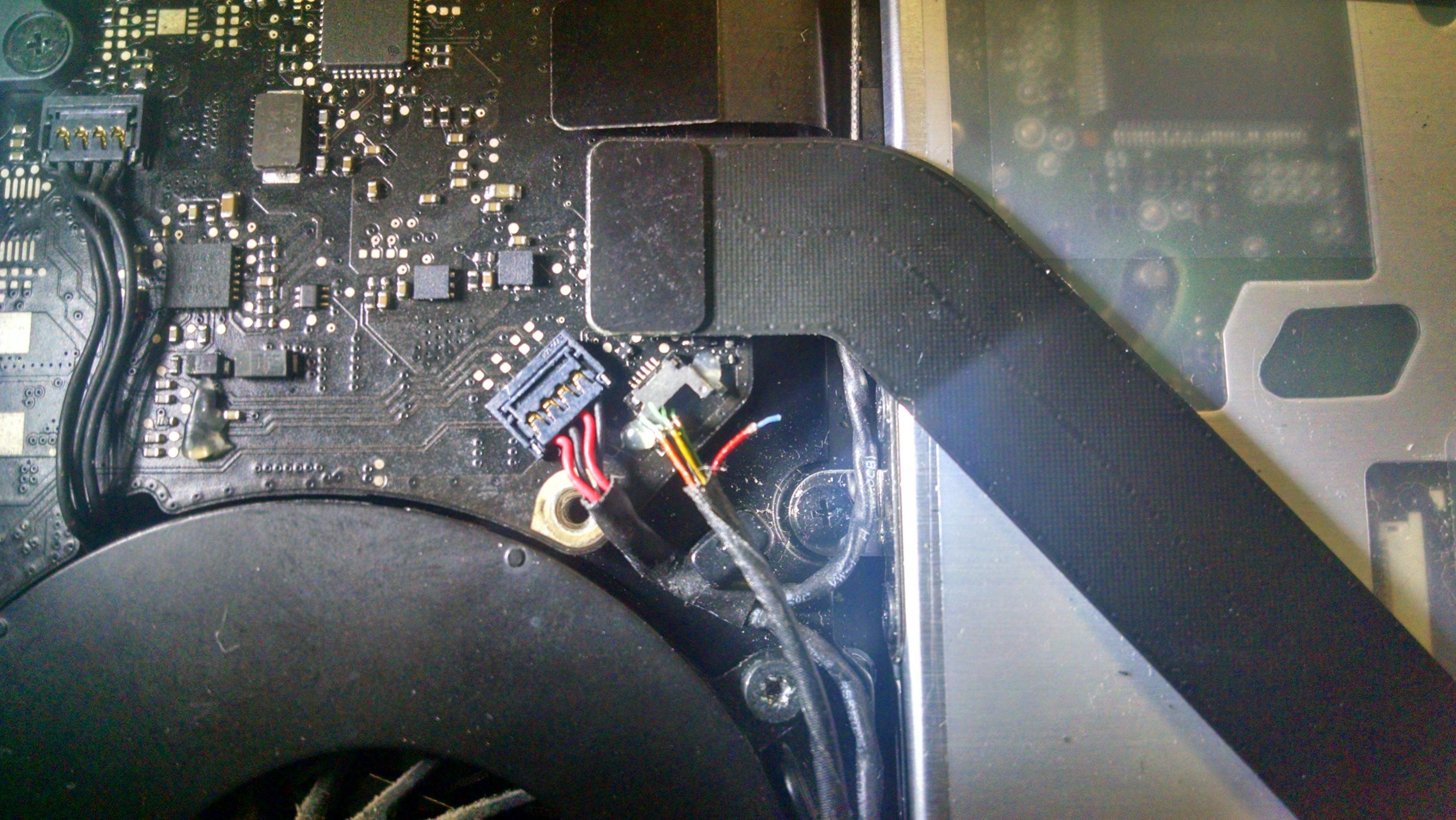

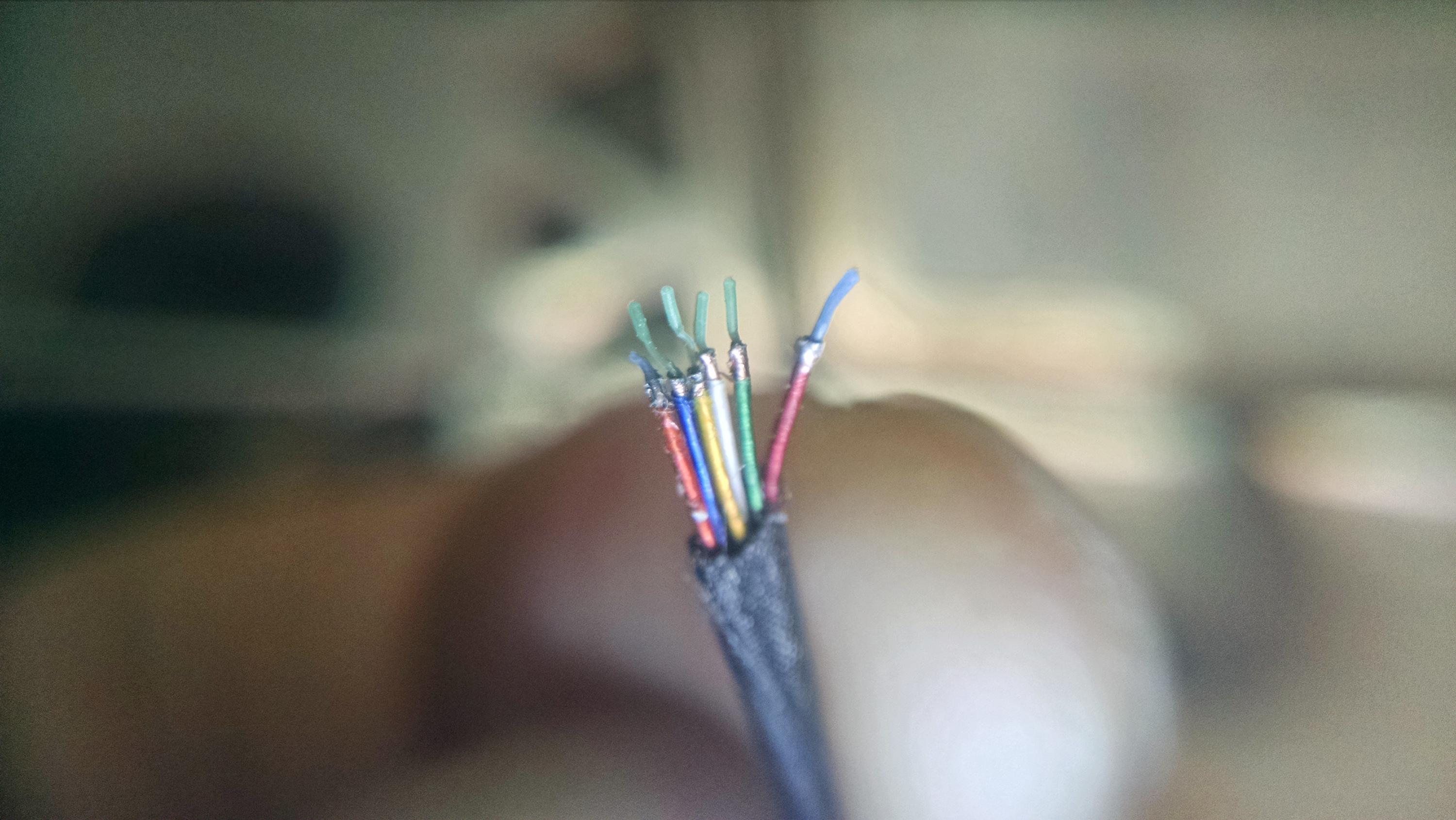

    I attached the photos. I need help identifying which colors belong to which.
