    PS4 SMD capacitor value?

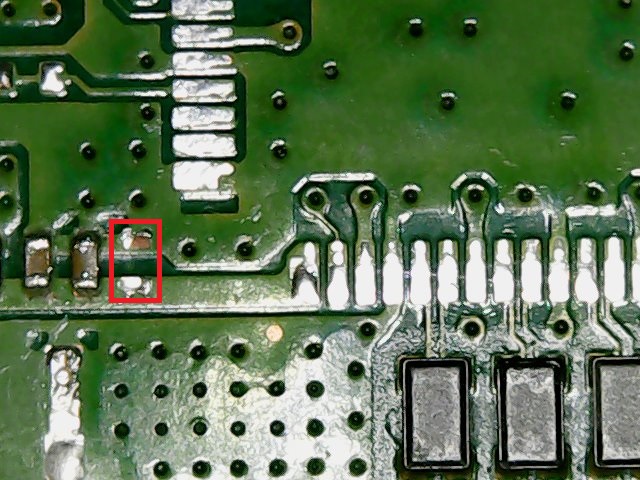

    I was replacing the HDMI encoder IC on this PS4 last night and got too much heat into the first cap on pin 64 (red box in image). It was moved off of the pads and when I picked it up with tweezers it went flying somewhere.

    Does anybody have the value of this cap? If nothing else I will just replace it with a 100 nF but I would prefer to use the correct value.

    Attached Files
    Last edited by jssamp; 02-26-2022, 01:29 PM. Reason: Having trouble getting image into post.
    Tags: None
