Dell RTX3090 board view (MSI v388)

11-18-2022, 06:36 PM

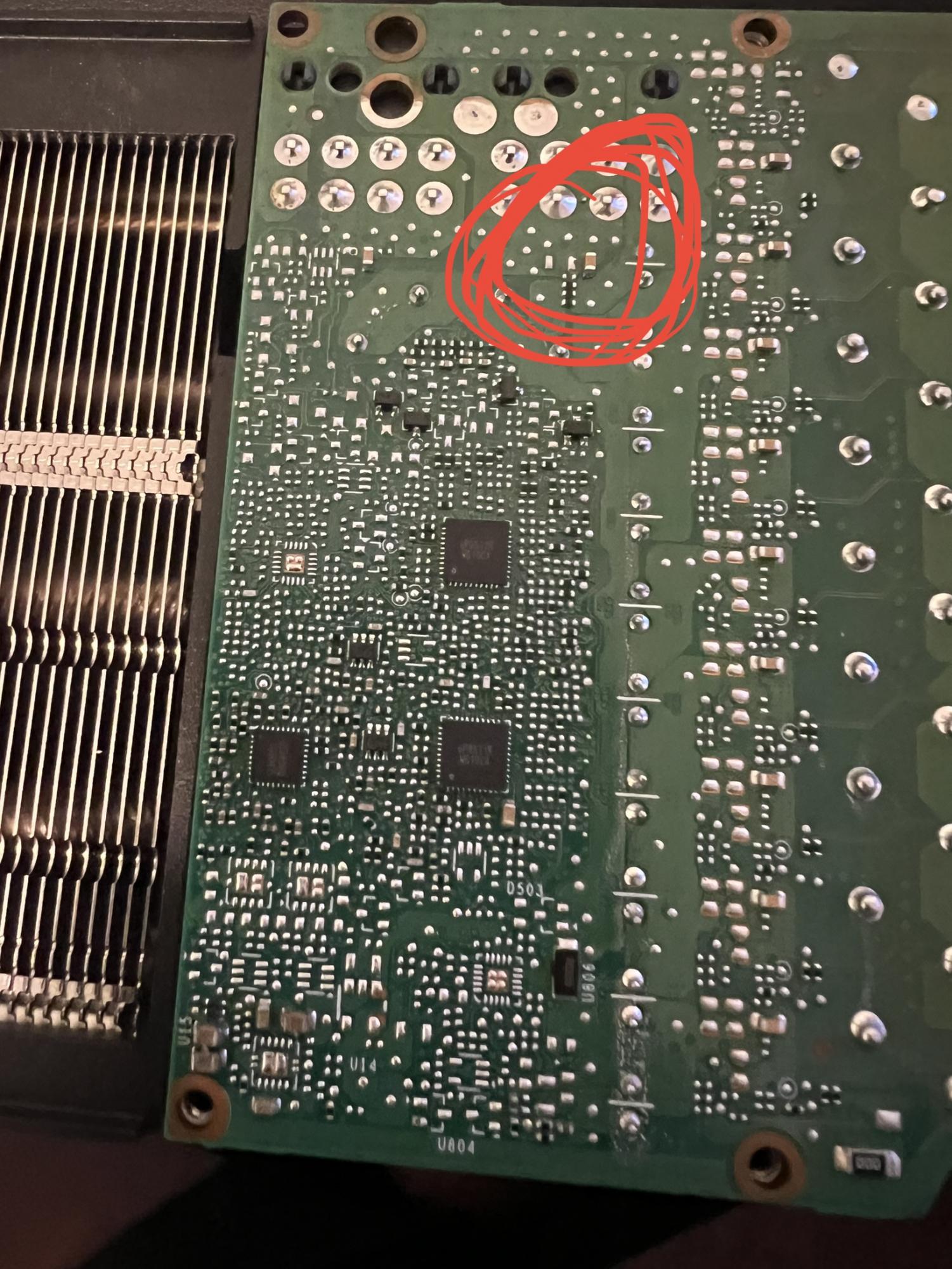

i had to remove some resistors on the back to look for a short and they bounced off the table while looking for its value using a meter, i attached a pic of them, id trake the value of them if any one knows them but if therre is a board view it would be great as well since itll help me trace the short.

Thank You
