    BOARD VIEW FOR MS-7D42 VER 1.1 BOARDVIEW

    HI
    i need boardview for msi b660 ms-7d42 because some components are missing behind pch (resistors and capacitors ) the motherboard just stop on yellow dram light

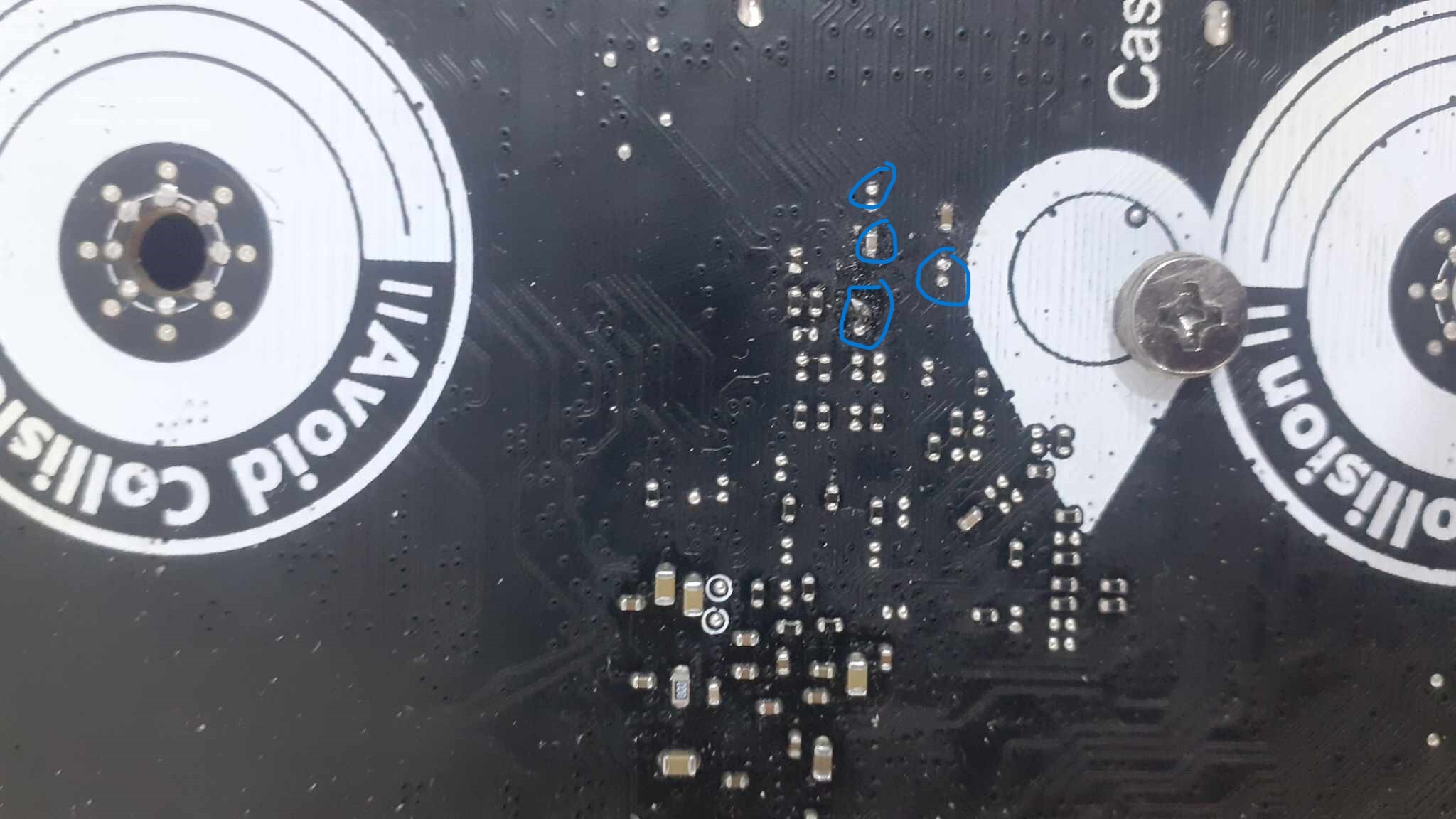

    Attached Files

    if you find these attachements useful please consider making a small donation to the site

    Tags: None
    • Rezistor
      Badcaps Veteran
      • Jun 2021
      • 306
      • USSR
      #2

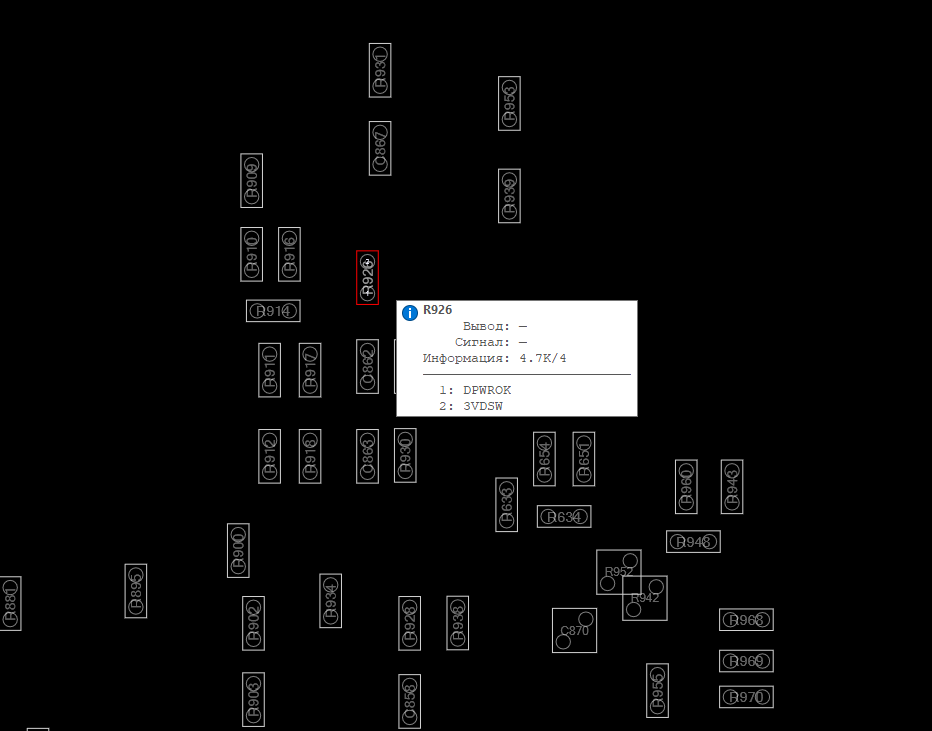

      There is no lower resistor 4.7K Click image for larger version Name: Снимок экрана 2024-06-01 224429.png Views: 886 Size: 68.3 KB ID: 3282269

        Comment

        • mo000
          Badcaps Veteran
          • Nov 2017
          • 285
          • algeria
          #3
          Originally posted by Rezistor
          There is no lower resistor 4.7K Click image for larger version Name: Снимок экрана 2024-06-01 224429.png Views: 27 Size: 68.3 KB ID: 3282269
          but without this reistor motherboard not power on
          please share with me the boardview
          Last edited by mo000; 06-03-2024, 05:39 AM.

            Comment

            • albioua
              New Member
              • Feb 2022
              • 7
              • poland
              #4
              Here Boardview for MS-7D42 VER 1.1 BOARDVIEW

              ​
              Attached Files

              if you find these attachements useful please consider making a small donation to the site

                Comment

                • shaon_kof
                  Member
                  • Feb 2014
                  • 41
                  • Bangladesh
                  #5
                  Originally posted by albioua
                  Here Boardview for MS-7D42 VER 1.1 BOARDVIEW

                  ​
                  thanks

                    Comment
