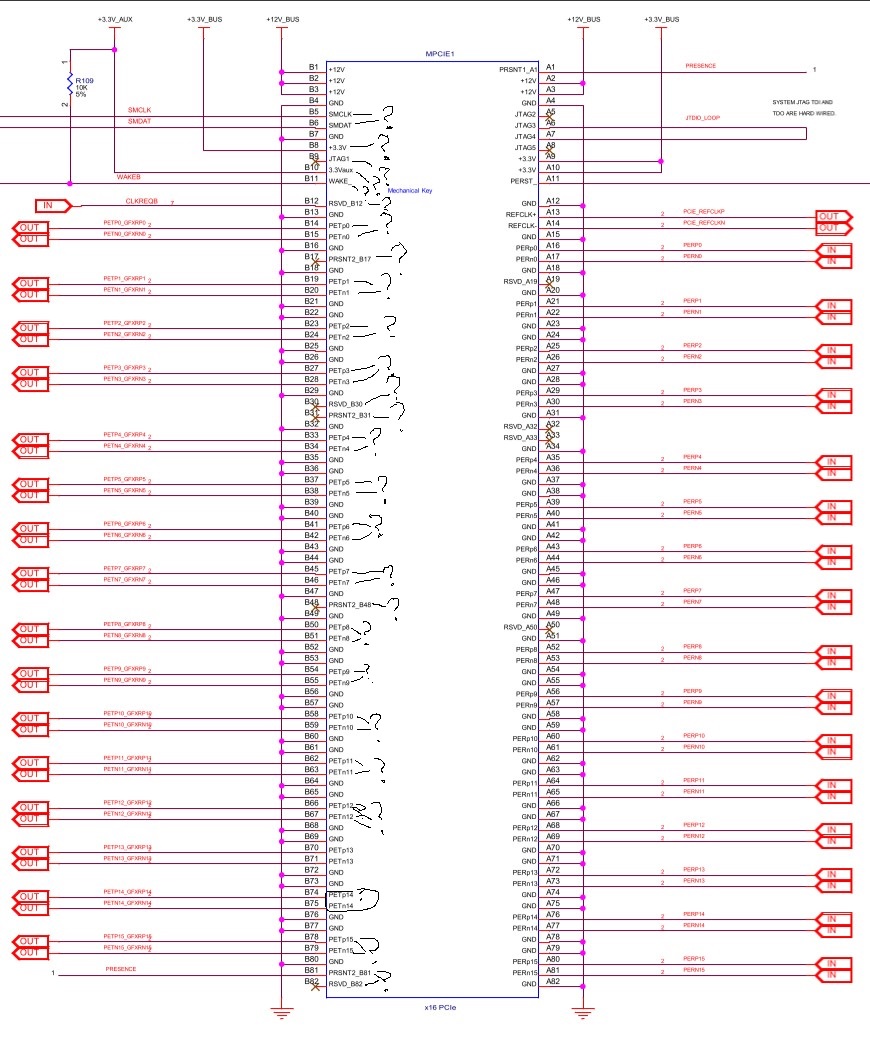

If someone could help me indentify pins that i marked on the picture
Attached Files
-
I have a Samsung UN58TU7000FXZC (same as UN58TU7000FXZA, just the Canadian model) with no picture. Backlight is on and sound is coming out just fine. Just no picture.
What is frustrating is that there's no voltage test point and no component labelling of any kind.
What I have found so far:
1. No voltage at pins 91-94 of the 96 pins connector CN1300 (marked 1 on the picture). This TV set has no T-CON board. The 96 pin flex cable goes directly to the right (when facing TV) lower panel board. Itself is linked with another flex to the other side.
2. Voltage... -
vizio e650i-a2 (LWJAOZBP Serial) led backlight flashes then turns off, has video (via flashlight) and audio.
panel: au optronics T650HVN05.4
72 led total on 12 strips, 6 led per strip wired in three groups of 24 (led driver board has three anode and three cathode pins)
link to datasheet: https://datasheetspdf.com/pdf-file/8.../T650HVN05.4/1
Vizio 56.04219.641G (liteon PA-3231-01WN-LF) Power Supply Unit
https://www.shopjimmy.com/vizio-56-0...-power-supply/
Vizio 55.75J01.001G (91.75J10.004G) Main Board... -
Hi guys! I realized you have a lot of knowledge here so i am hoping you could point me in right direction with my odd issue.
The Tv is a Philips 58PUS8545/12, it had no picture but working backlights.
Original T-con:
Opened the Tv and tested to unplug one ribbon cable at a time. With this test i could see that i got fine picture on both halves as long as there was only one ribbon cable connected, with two connected picture were gone.
First replacement T-con:
I thought it might be t-con and ordered new t-con from china(supposedly tested)... -
Hi, I have a Samsung UE50TU with:
- sound and backlight, but no picture
- when it arrived, it had a picture for a few seconds
- it keeps rebooting
- without ribbon cable between the two panel boards, it does not reboot but I have no picture
- without cable between mainboard and lcd panel, it does not reboot (but obviously i have no picture)
- when i try a tape fix, its keeps rebooting, unless I tape off pin 1 (the innermost pin). In that case it does not reboot but I have no picture.
- without cable between mainboard and lcd panel and with a jumpered... -
I have a 60 inch Samsung UN60EH6000F flatscreen TV. The screen went black a few months ago Sound is good, backlight is good, no menu. I replaced the TCon board with a used board purchased from Ebay. It worked fine for a 3-4 months, then the screen started ‘fading' back. Once again, sound is good, backlight is good, no menu. However, this time the picture looks fine for about 10-15 minutes, then fades back. If I power cycle the TV, the display reappears, for another 10-15 minutes, then fades black again. Repeatable ever time.
I ordered a supposedly ‘new' Tcon board this time, and...
