    Help! - Kenwood KR-33SW Stereo Receiver

    Hi everyone,

    I saved this Kenwood KR-33SW from the side of the road a little while ago.

    I'm halfway through rewiring the mains input circuit to make it safe, shouldn't have a problem with that specifically.

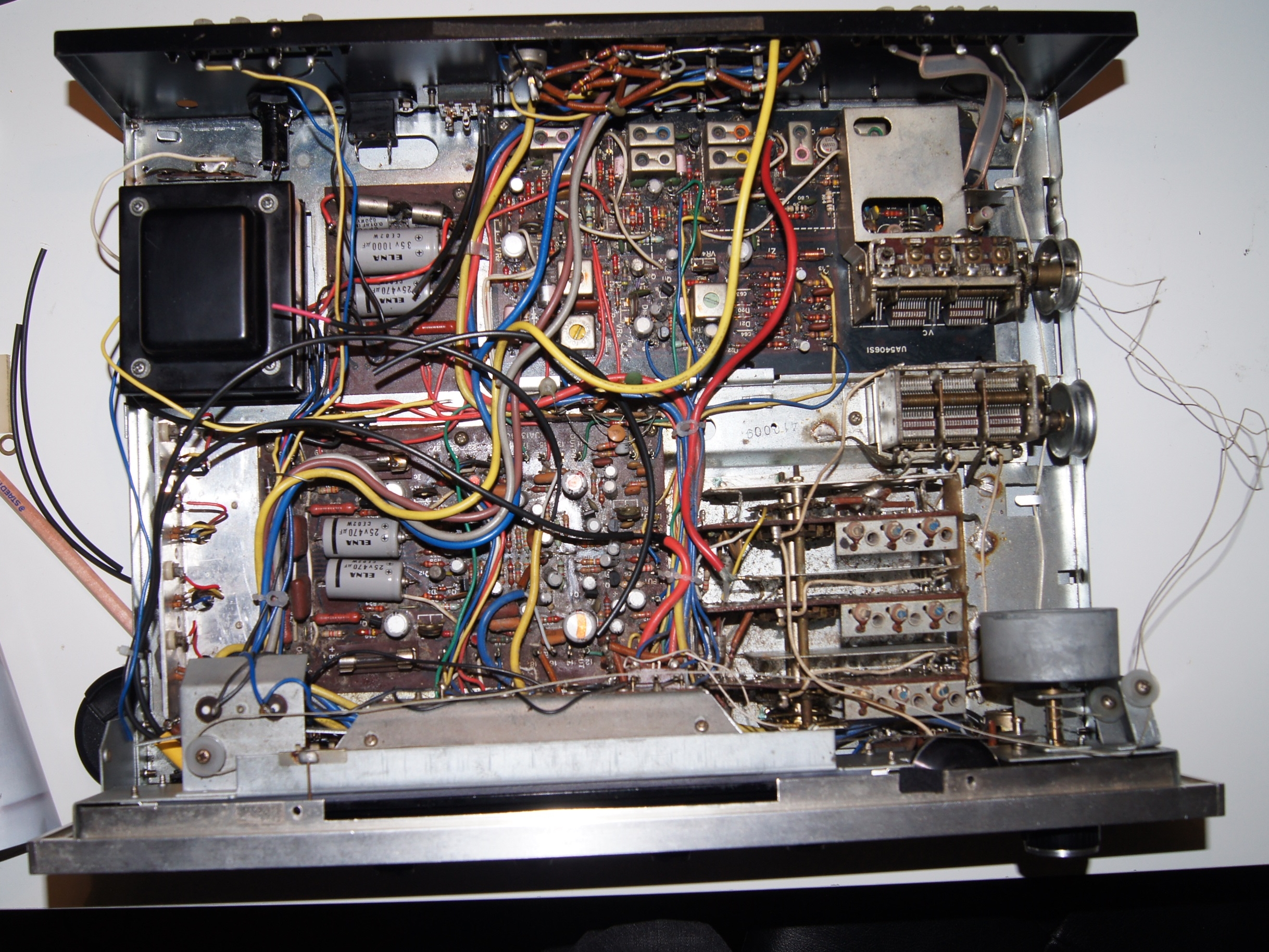

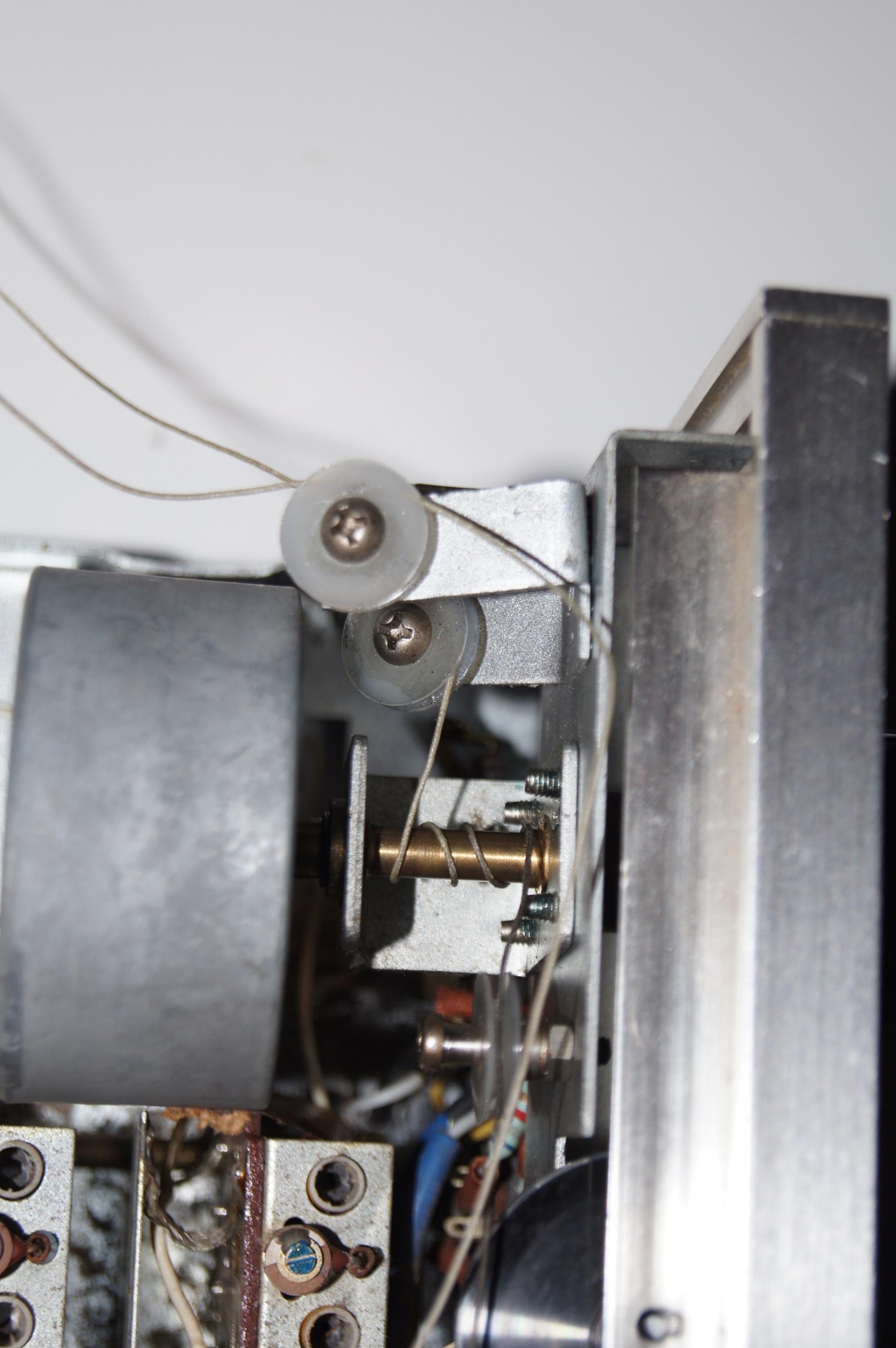

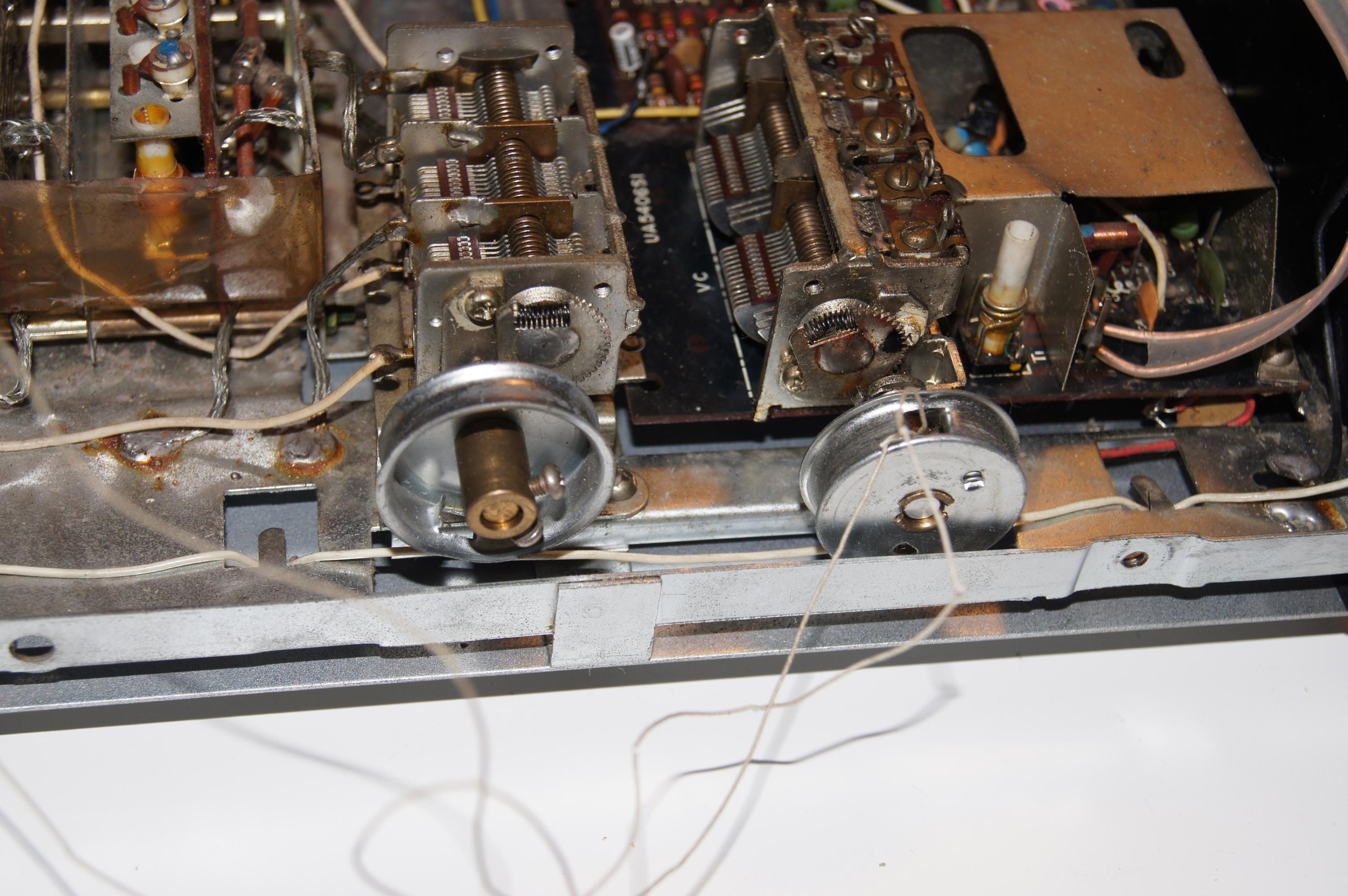

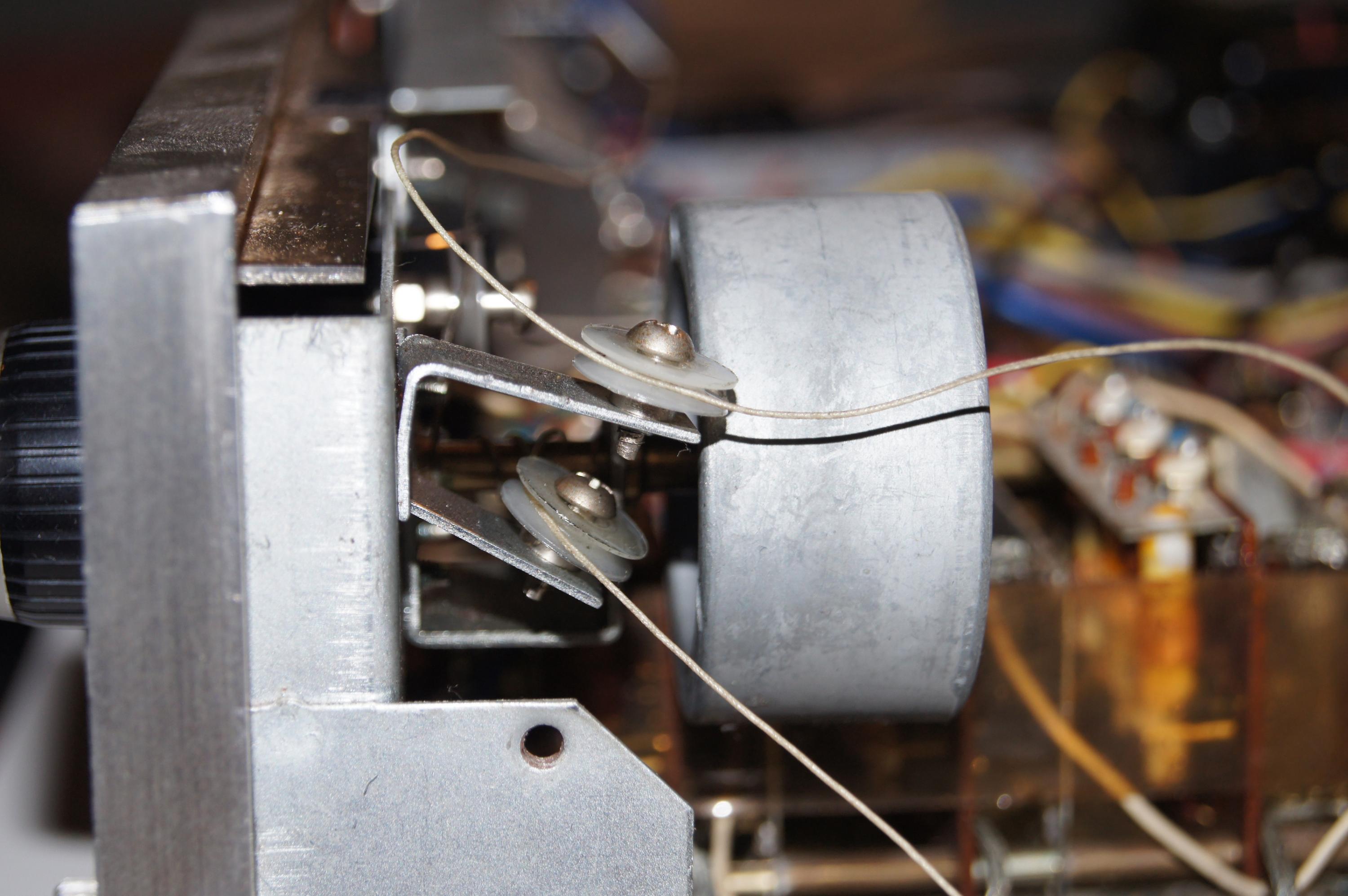

    However, I had to remove the front panel to rewire the mains switch. And while it was removed the tuning cord slipped off the tuning wheels! (right side of photo).

    I have no idea how the tuning cord was wound before. I can't find a tuning diagram or manual for this model or a similar model anywhere! Anyone want to take a guess???

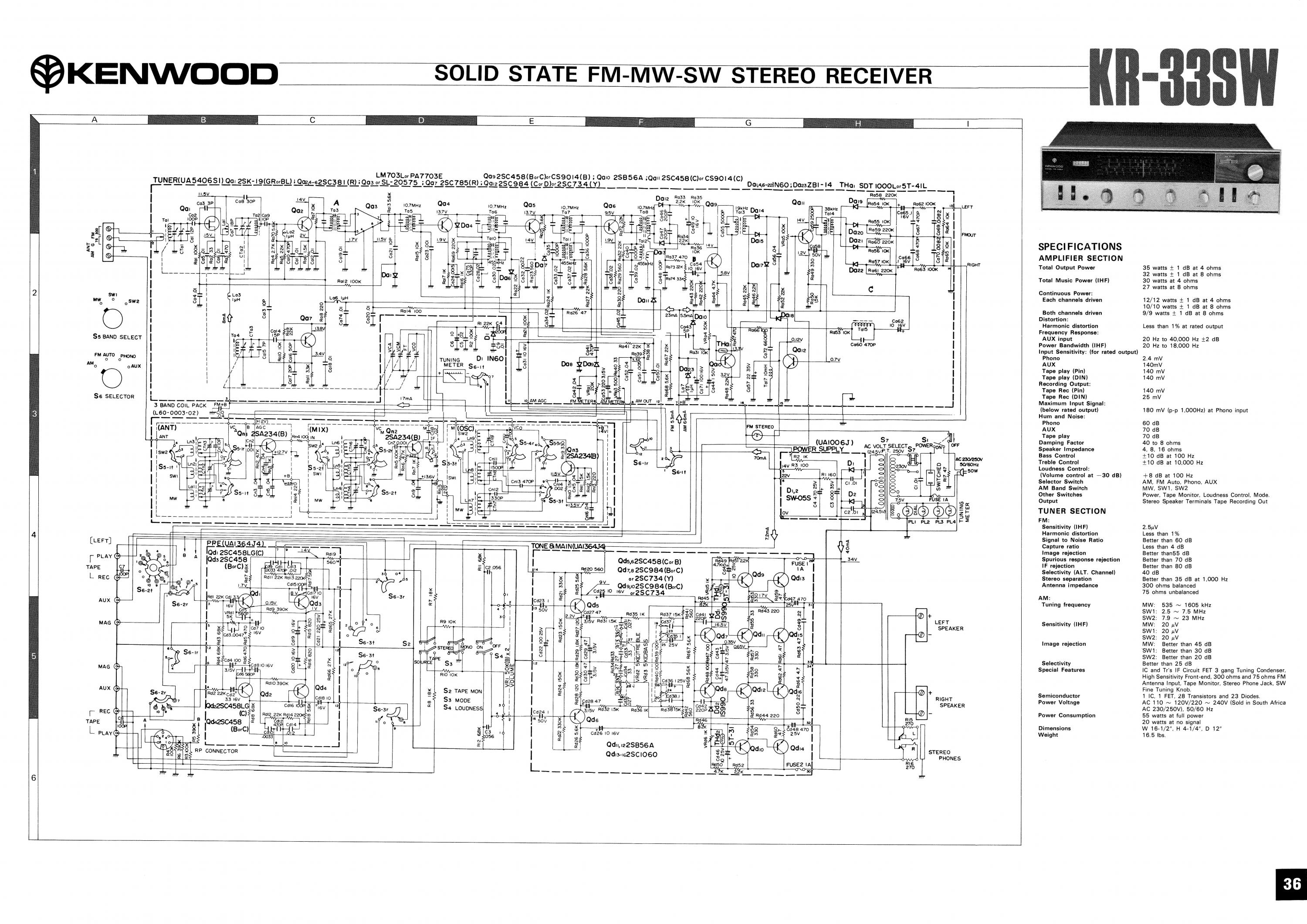

    (Also I uploaded a circuit diagram of a similar model just in case anyone is interested )
