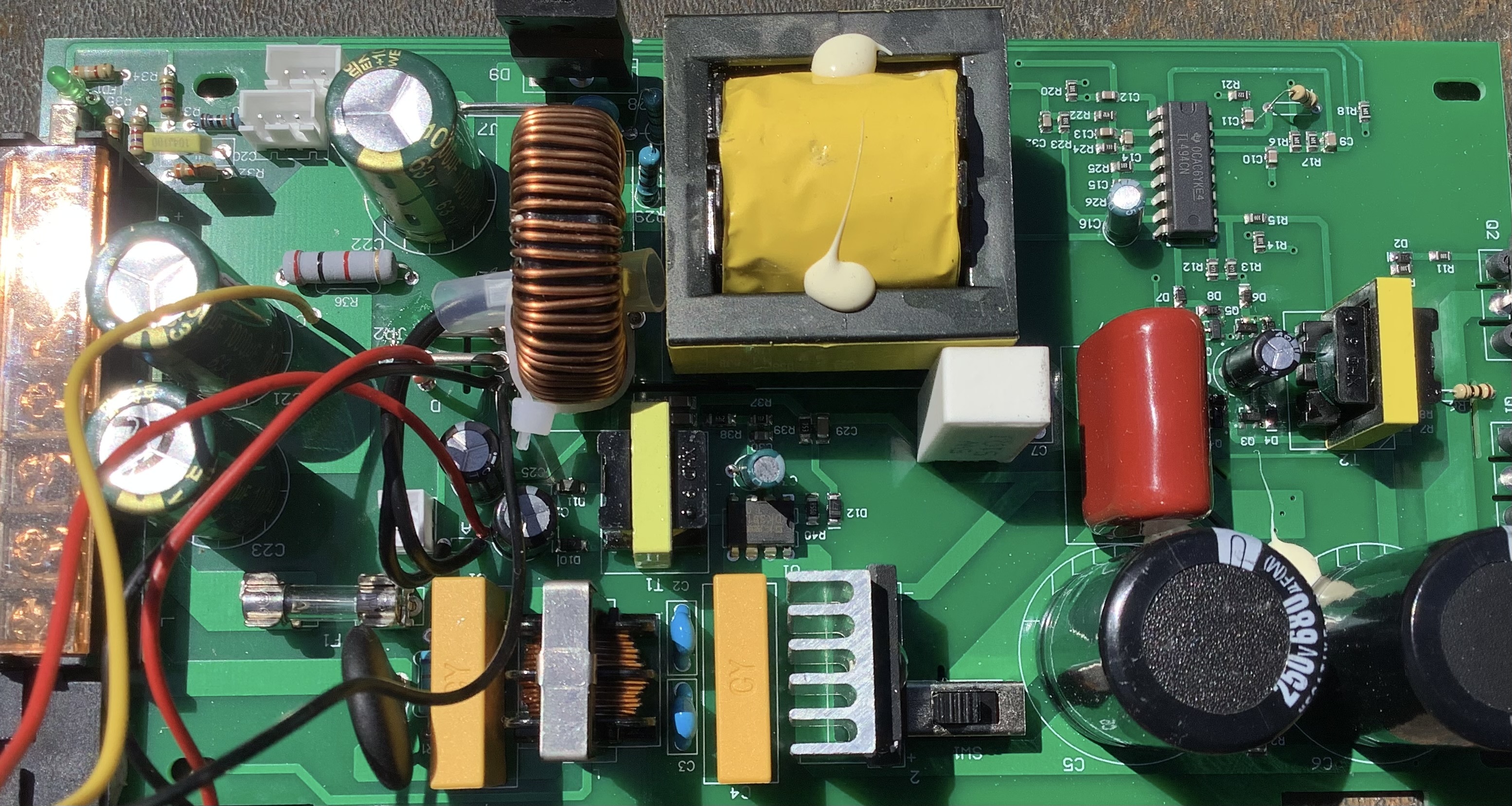

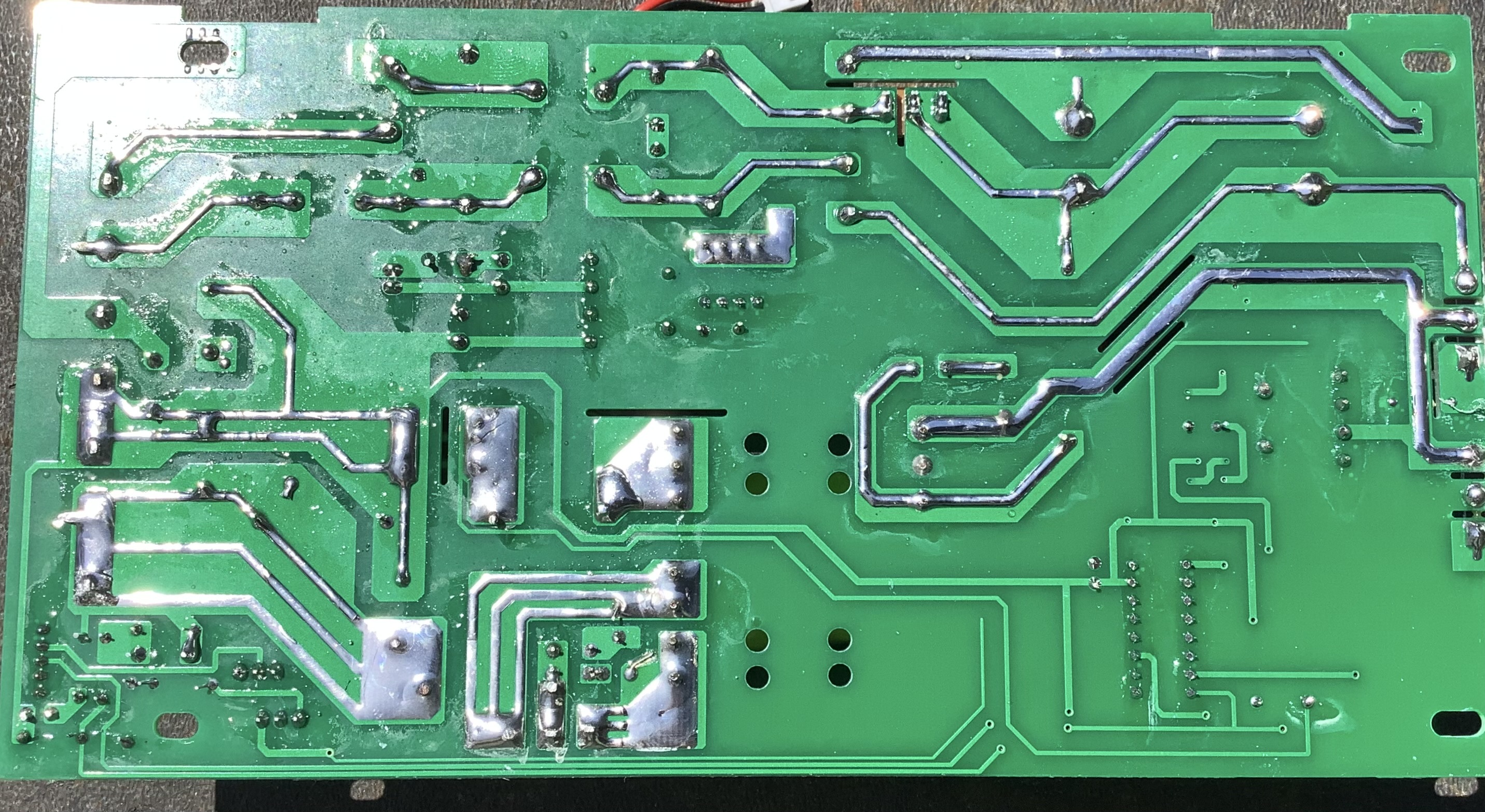

    A variable voltage/current 48V@10A switching power supply using a TL494CN ic chip

    I decided to do a write up about this switching power supply because of the use of this regular ic chip

    Which I have seen some computer switching power supplies use this ic chip before I wondering if a circuit board of this layout could be used to modify a computer switching power supply using this ic chip
