    Asus crosshair IV(4) formula

    Hello,

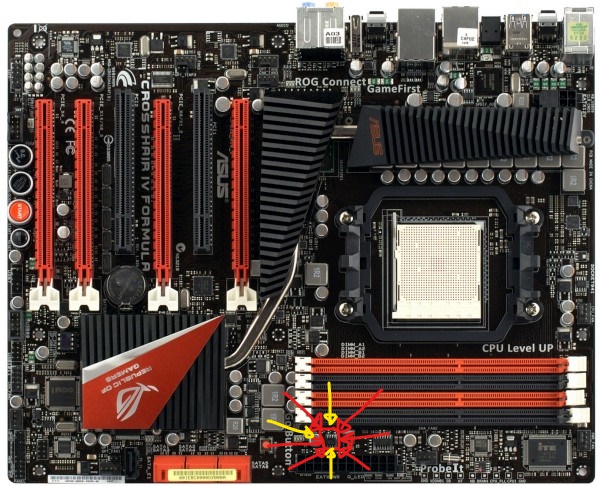

    I was wondering if some have this MB or maybe have some schematics for this MB from title (asus crosshair iv formula). I got it from a friend and i want to fix it, but i am missing a chip sop8, i dont have any information about it. My question is if some know what chip i am missing (on picture i have circled missing chip) and would share information about that missing chip, i would appreciate that.

    Thank you.

    Attached Files
    Tags: None
    • Snayperskaya
      Member
      • Nov 2015
      • 46
      • Brazil
      #2
      Re: Asus crosshair IV(4) formula

      Have you tried emailing ASUS tech? They might help you with a schematic.

        Comment

        • brethin
          Badcaps Legend
          • Dec 2008
          • 1907
          • USA
          #3
          Re: Asus crosshair IV(4) formula

          Picture not clear enough to see.

            Comment
