IMAX B6 Clone schematic wanted.

snipersquad100

Badcaps Veteran

Join Date: Nov 2013

Posts: 297

Country: uk
#1

IMAX B6 Clone schematic wanted.

02-26-2020, 09:53 AM

Hi folks.

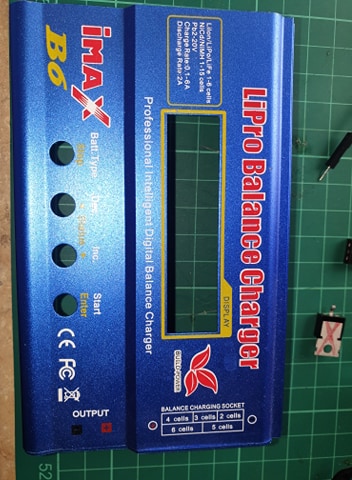

My Imax b6 clone has died, only had a short life (poor thing).

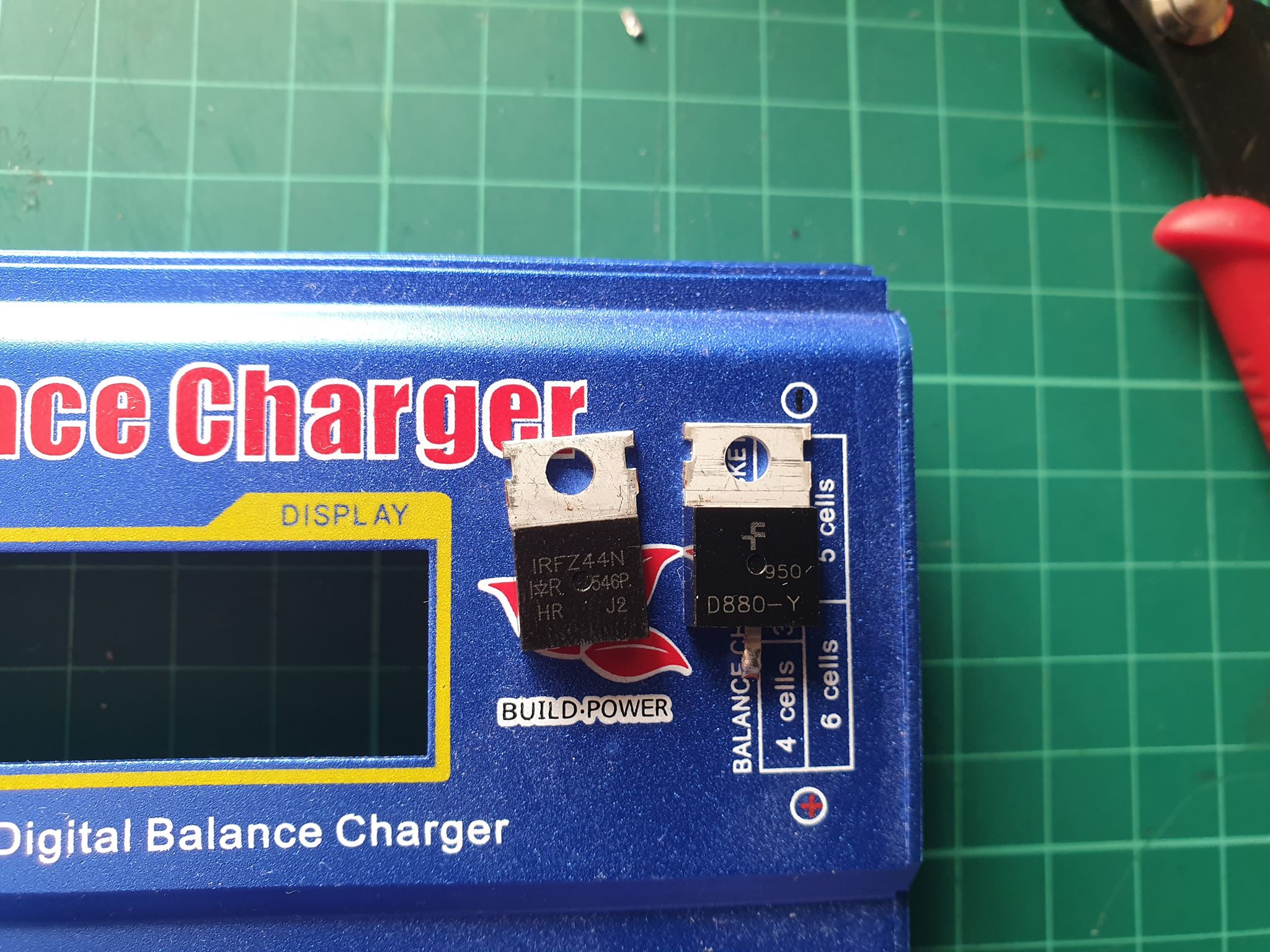

I have found two MOSFETs T220 packages that have failed which I will replace but was wondering if there is a schematic out there to help me find more potential problems on these circuits.

Thank you.

Attached Files
Tags: None
stj

Great Sage 齊天大聖

Join Date: Dec 2009

Posts: 31094

Country: Albion
#2

02-26-2020, 10:11 AM

Re: IMAX B6 Clone schematic wanted.

https://github.com/stawel/cheali-charger
lots of stuff there!
