Asus x512dk schematics

[zmeutz]

Hi!

Does anybody has a schematic for asus x512dk?

I have a short on this ic and I don't know what is…

[janoszw]

Re: Asus x512dk schematics

Rt8249cgqw

[jkyoho]

Re: Asus x512dk schematics

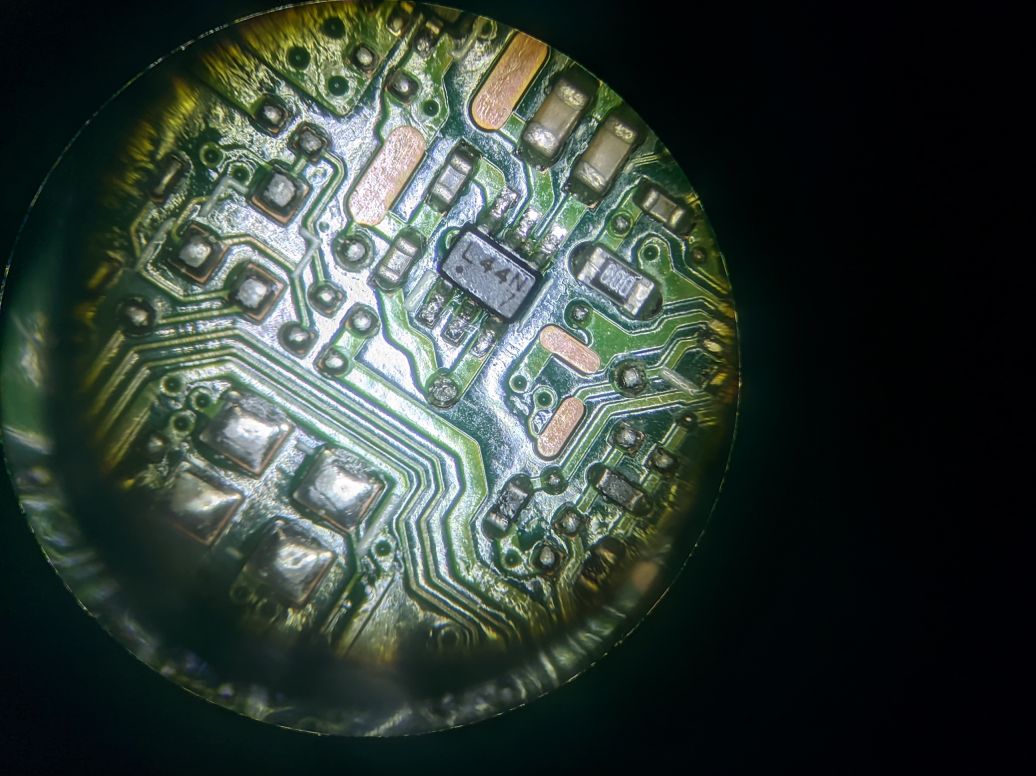

Anyone knows what this "L44N" is?

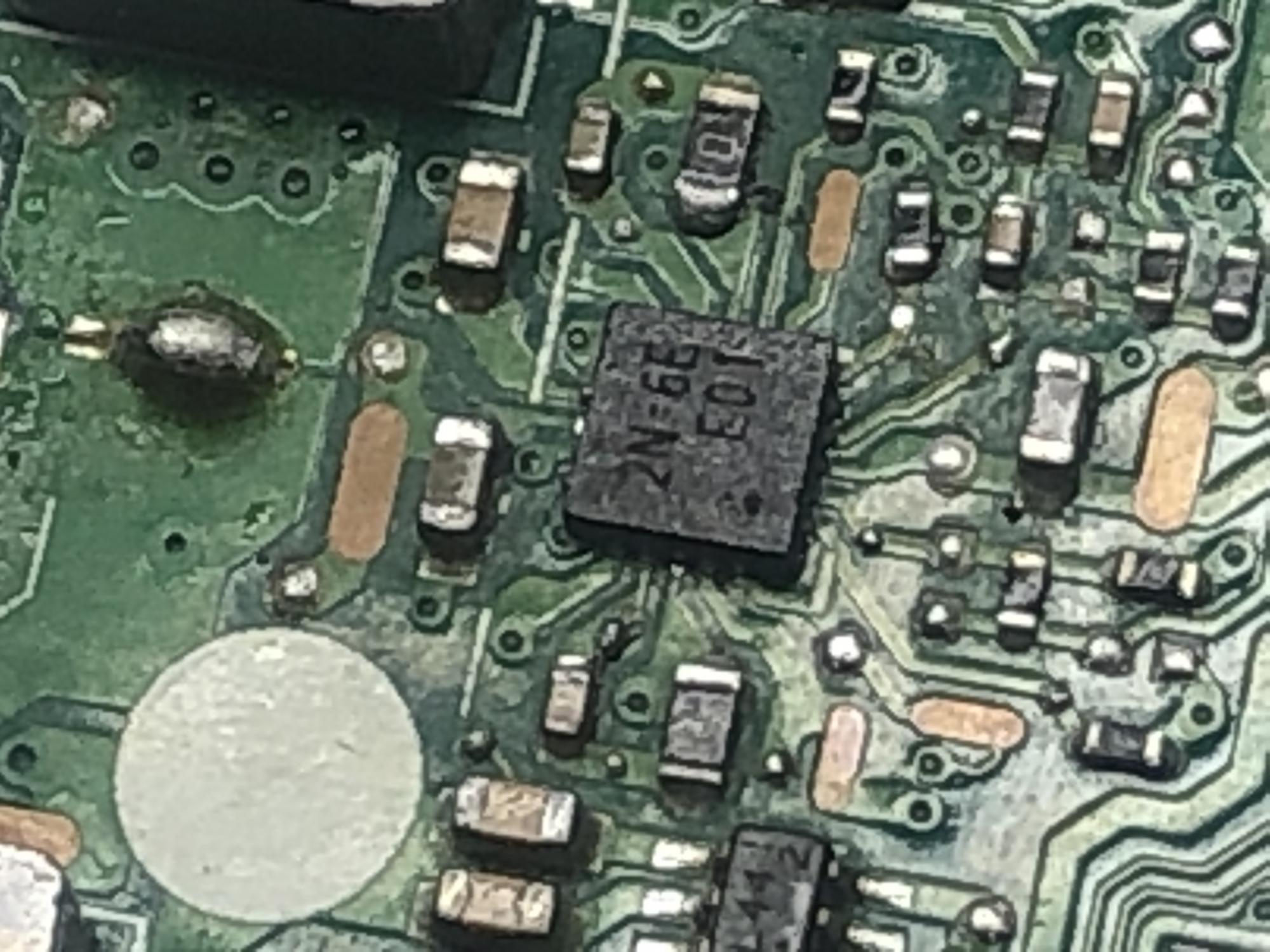

It next to the 2n=xx RT8249

[jkyoho]

Re: Asus x512dk schematics

Anyone knows what this "L44N" is?
It next to the 2n=xx RT8249

I eventually figured out that is a Panjit BAT54SDW
Digikey parts#
3757-BAT54SDW_R1_00001TR-ND

[magneh]

Re: Asus x512dk schematics

I eventually figured out that is a Panjit BAT54SDW
Digikey parts#
3757-BAT54SDW_R1_00001TR-ND

That IC was the problem?

I have the same board in my desk, dead no power.
Those 2 ICs are getting hot, the BAT54SDW is getting the hotest.

Thanks for any feedback!

[pabloroggeri]

Asus X512DK REV 2.1

Hi community, i need schematic diagram for Asus X512DK REV 2.1

Thanks!

[Bonzas]

Re: Asus X512DK REV 2.1

Hi community, i need schematic diagram for Asus X512DK REV 2.1

Thanks!

AFAIK not available on this time

[christopher miguel]

Re: Asus x512dk schematics

[QUOTE=zmeutz;1053971]Hi!

Does anybody has a schematic for asus x512dk?

I have a short on this ic and I don't know what is…[/QUOT

[n0by1]

Re: Asus x512dk schematics

[QUOTE=christopher miguel;1256717]

Hi!

Does anybody has a schematic for asus x512dk?

I have a short on this ic and I don't know what is…[/QUOT

Thak You!

[amamos]

Re: Asus x512dk schematics

[QUOTE=christopher miguel;1256717]

Hi!

Does anybody has a schematic for asus x512dk?

I have a short on this ic and I don't know what is…[/QUOT

THANK YOU MAN !

[redman13]

Re: Asus x512dk schematics

Thank All

[danro]

Thank you!

Is there a schematic also for this model? I need to find DIMM SEL resistors for disable onboard ram. (mainboard: 60NB0LZ0-MB1410, X512DA)
Any hint is wellcome.

Regards.

[dqtech]

thanks

[fraser34]

This is the schematics I found
