hi! i need schematics for nm-d031 motherboard, the numpad not working. thanks!
-
-
I need a schematic for Lenovo IdeaPad GS454/GS554/GV450/GV550
I need schematic for boardview for Lenovo IdeaPad GS454/GS554/GV450/GV550 NM-D031 REV:1.0 board,
display does not have a backlight and I tried it on another computer and it works correctly, so the problem is in the motherboard.
I hope you can help meComment
-
Re: I need a schematic for Lenovo IdeaPad GS454/GS554/GV450/GV550
thank you very much for the scheme
but I need to ask for help it is the first edp screen I see and I don't know why the backlight does not turn on
I already checked the schematic but I can't find the fault, the only weird thing is on pin 1 and 2 it only gives me 7.5 volt
DISPOFF is not physically on the board
INVT_PWM is missing two resistors that do not come as in the schematic I am lost
I hope you can help me
and thanks in advanceComment
-
Re: I need a schematic for Lenovo IdeaPad GS454/GS554/GV450/GV550
Start a new thread in the main laptop forum if you want more help, and post a link to this thread so members can look at the schematic. thank you very much for the scheme
but I need to ask for help it is the first edp screen I see and I don't know why the backlight does not turn on
I already checked the schematic but I can't find the fault, the only weird thing is on pin 1 and 2 it only gives me 7.5 volt
DISPOFF is not physically on the board
INVT_PWM is missing two resistors that do not come as in the schematic I am lost
I hope you can help me
and thanks in advanceComment
-
Re: schematics for nm-d031 motherboard
Is that .rar file working for anyone else? For me, the files just keep extracting into the mult-gigabyte range and never complete.Comment
-
Re: schematics for nm-d031 motherboard
Thanks!!Comment
-
Re: schematics for nm-d031 motherboard
Hi.... nm-d031. How to disabale on board ramComment
-
Re: schematics for nm-d031 motherboard
Here are some information copied from other forum.
Good afternoon! If anyone is affected by the trouble of soldered memory in a lenovo ideapad 3 15iil05 laptop with an nm-d031 motherboard and there will be no money for new memory banks.

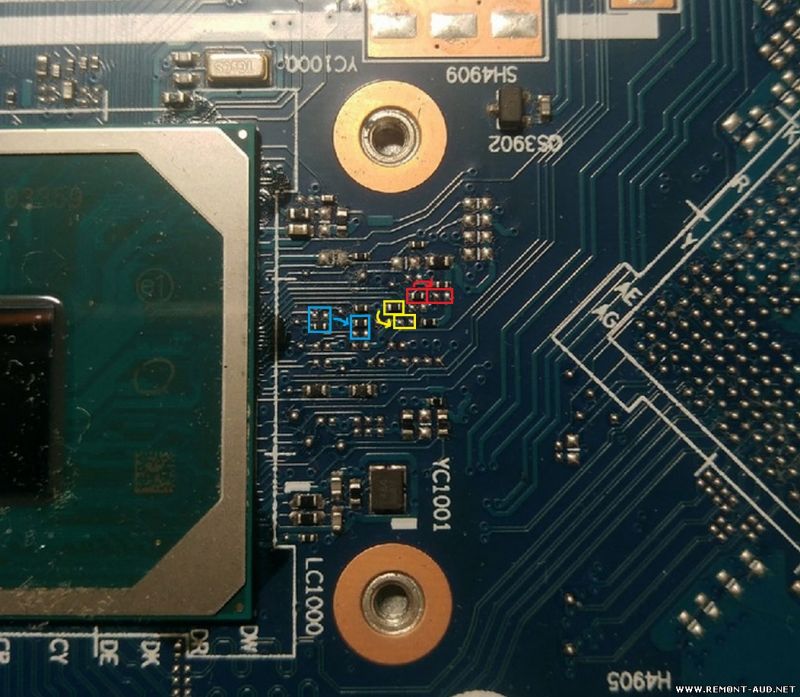

It is enough to solder 3-4 straps near the processor. Attaching photo.Attached FilesPremium supporters get full download access and other benefits.
Comment
-
-
Re: schematics for nm-d031 motherboard
@Lisa Su-Have you personally tested this strap config to disable onboard ram on this platform?? I dont have such a board in repair now with me,so not able to test it.Comment
-
Re: schematics for nm-d031 motherboard

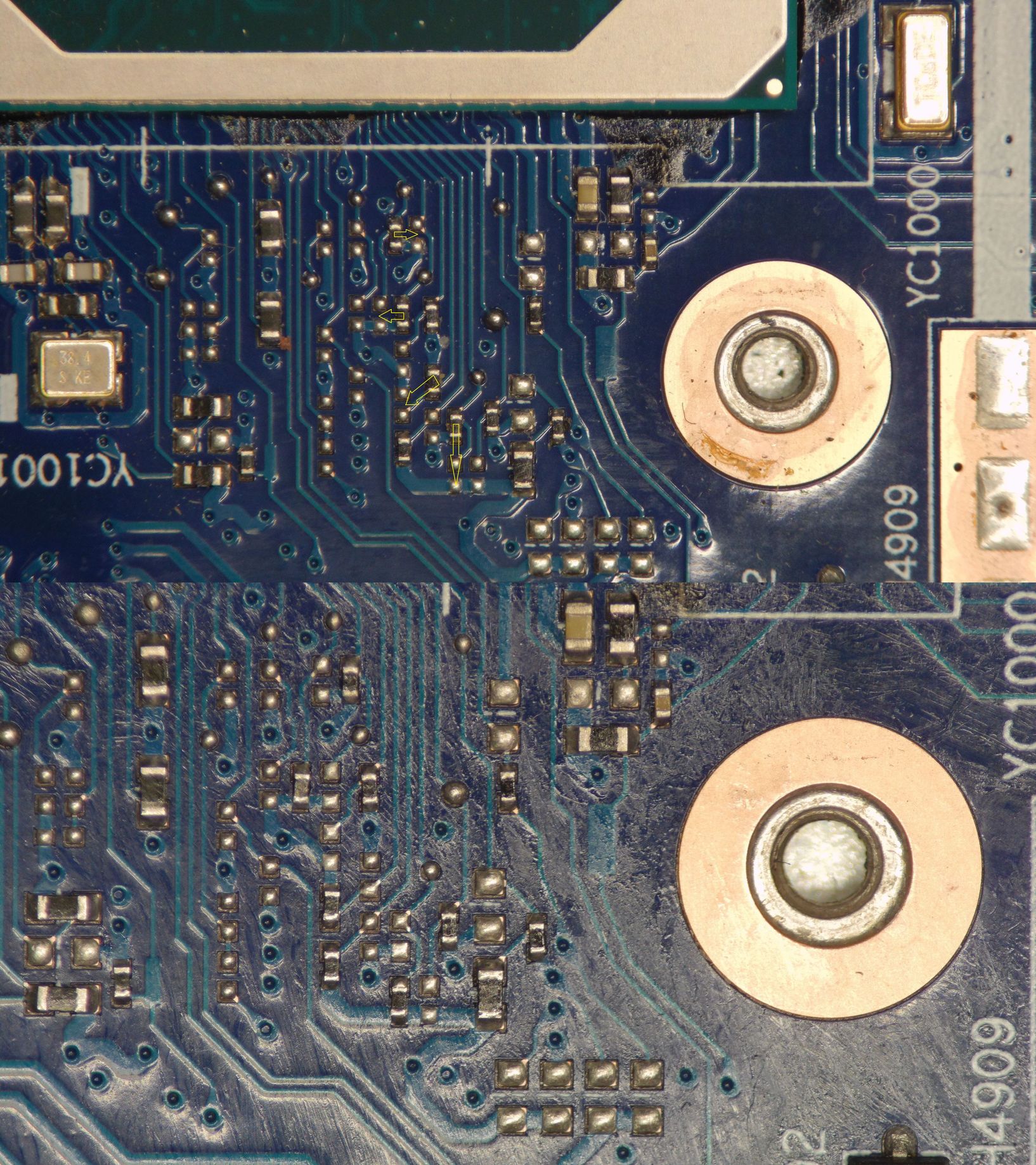

WorkAttached FilesPremium supporters get full download access and other benefits.
Comment
-
-
