    #1

    Asus F505BA schematics

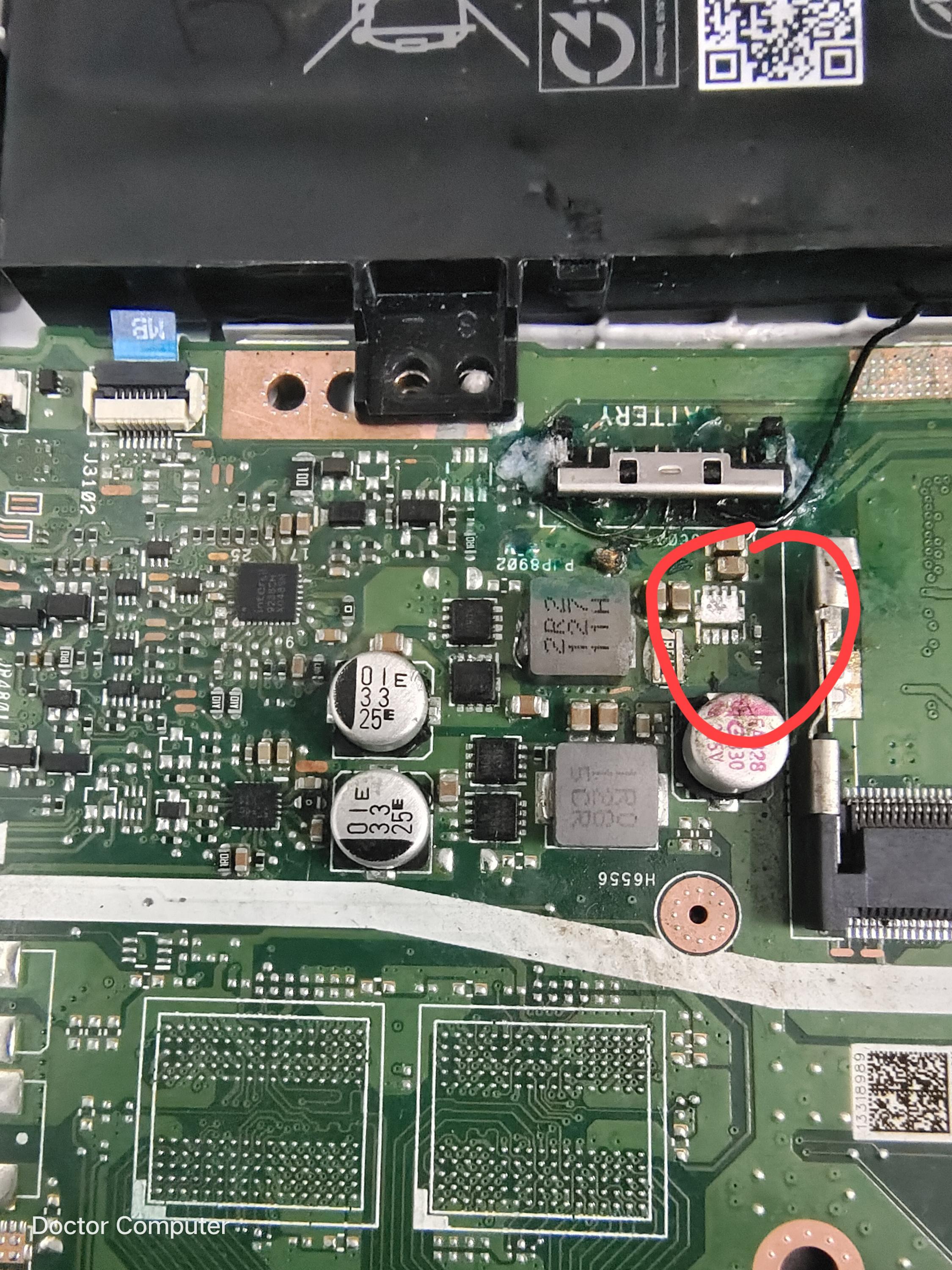

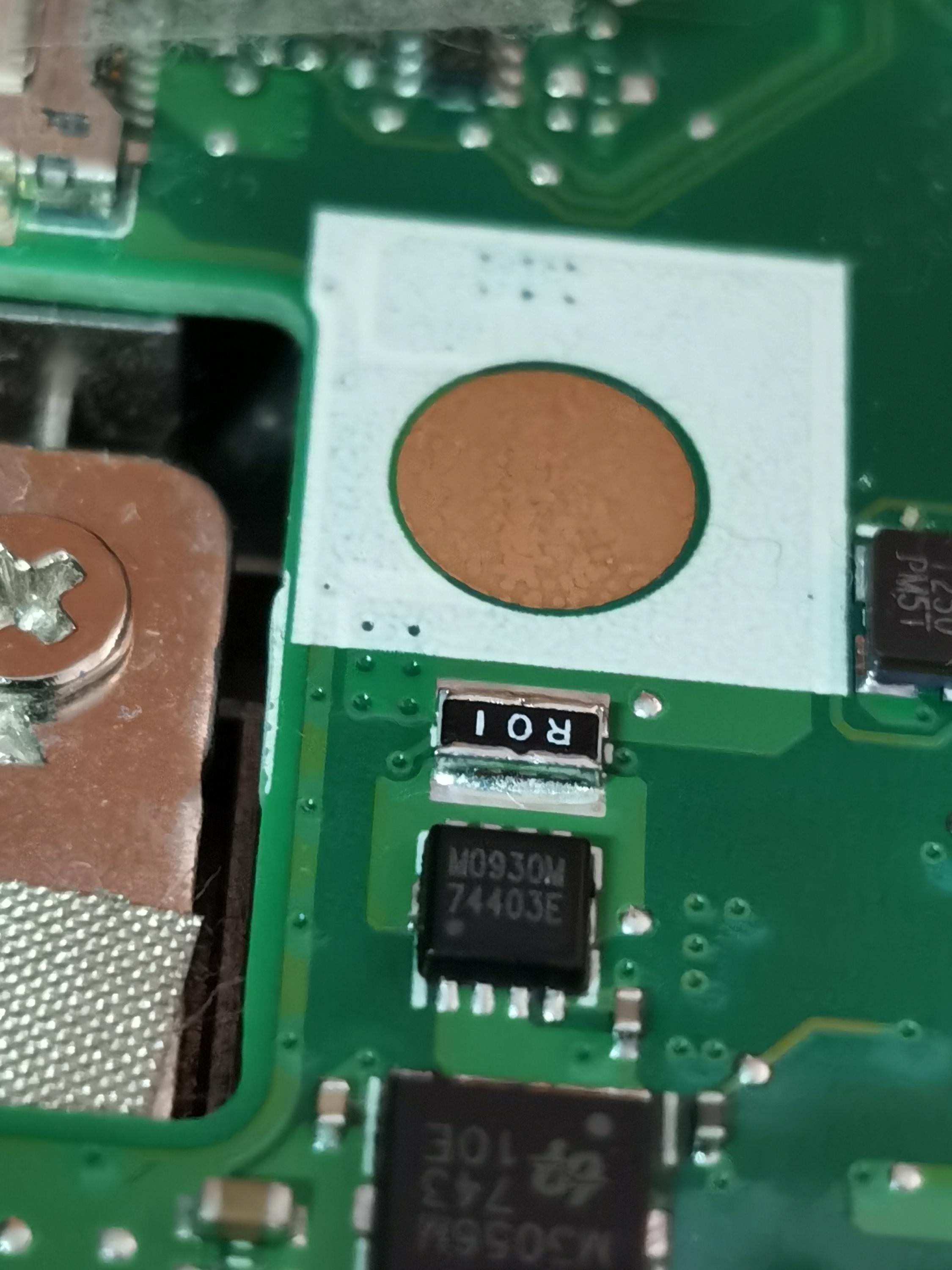

    Hi, this asus notebook dont power on (no leds), i found a mosfet (74403E) in short (image attached), but i cant found they datasheet, any one have this?


    Regards
    Attached Files

    if you find these attachements useful please consider making a small donation to the site

    Tags: None
    • SMDFlea
      Super Moderator
      • Jan 2018
      • 22084
      • UK
      #2
      Re: Asus F505BA schematics

      Its the other part number you want. Search for QM0930M3 QM0930M M0930M
      All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

        Comment

        • vabea
          Member
          • Dec 2019
          • 41
          • Portugal
          #3
          Re: Asus F505BA schematics

          Ok, i saw, is a 30v N-Channel.
          Thanks

            Comment

            • kalilinux25
              Badcaps Legend
              • Mar 2018
              • 2093
              • ZAMBOANGA SIBUGAY
              #4
              Re: Asus F505BA schematics

              Originally posted by SMDFlea
              Its the other part number you want. Search for QM0930M3 QM0930M M0930M
              Can I use a AON7410? tried it but it was not working

                Comment

                • lxlx4430
                  Member
                  • Sep 2012
                  • 18
                  • india
                  #5
                  Re: Asus F505BA schematics

                  ASUS X415JA (X415JA R3.1) Recognize Part Mosfet n or p
                  Attached Files

                  if you find these attachements useful please consider making a small donation to the site

                    Comment
