    Asus X555QG schematic

    I can't seem to find schematic for this laptop Asus model F555B, board model X555QG. I was hoping someone has a copy of this here. I'd like to see whether I can disable built in memory (soldered) so I can try memory slot for detection.

    Laptop has power but no display, all voltages are present and I think there's no short around power rails. I'm also doubting if its a processor issue too. And if it is, it may not worth the money to send it to a reballing shop. Thanks
    Tags: None
    • lezsimply
      The Wanderer
      • Jan 2013
      • 645
      • Philippines
      #2
      Re: Asus X555QG schematic

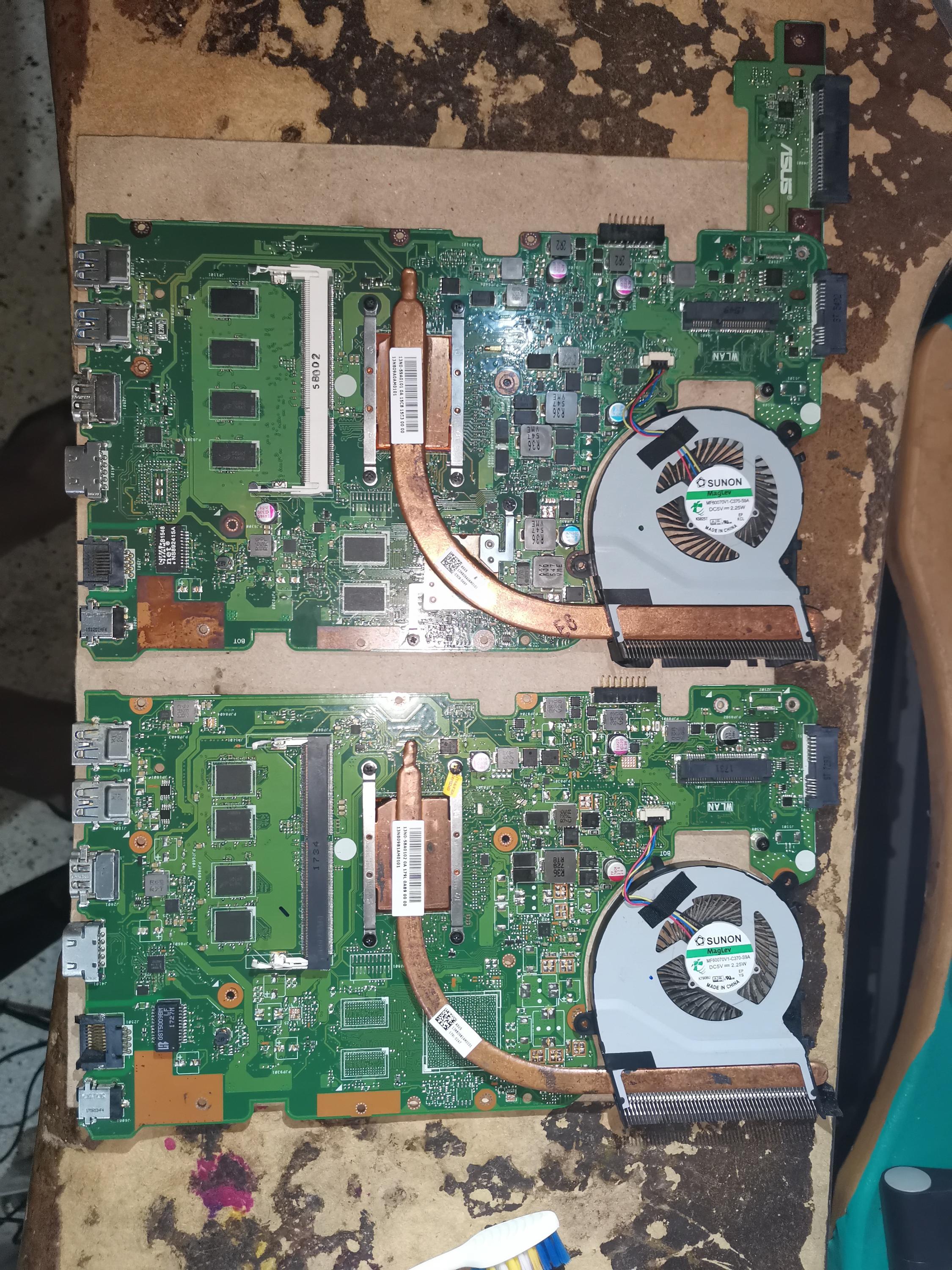

      Another unit came in with almost same motherboard but this time it has gpu chip. this one missing 3.3v. Maybe both of this has same schematic or similar in a way. Board model, X555DG rev 2.0
