Hello, I am looking for a schematic and possibly the board layout for the and Asus A15 with the model number FA506IC as the title has.

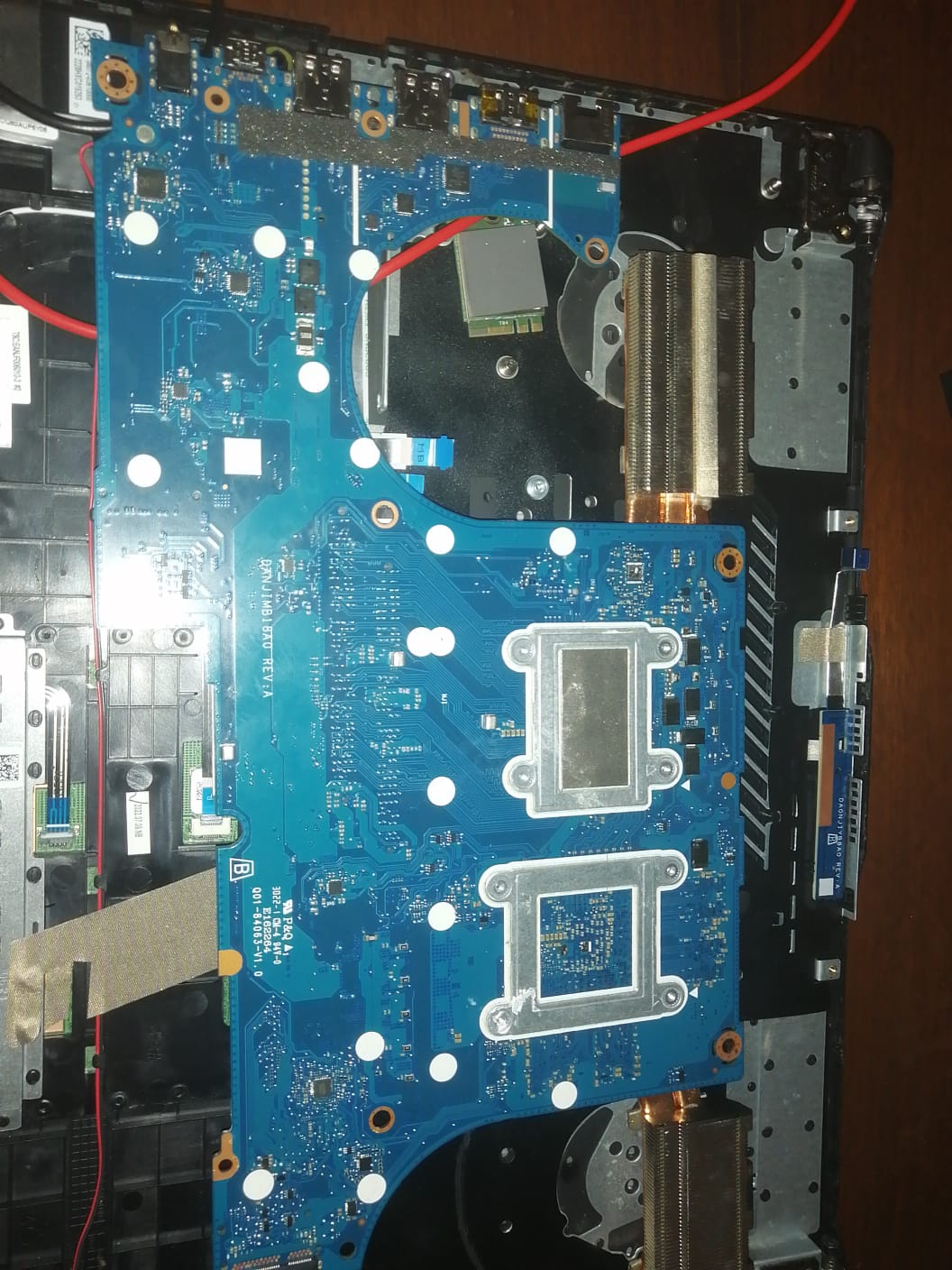

The board model on it is DANJIMB1BA0 Rev: A, I haven't been able to find one on here or elsewhere that has a matching layout.
There was a "repair" done, by a company and they didn't fix it but also left a chip off.
Basically it isn't getting power, the chip that is off looks like PU1 from the other board layouts that are similar, but it is a QFN40 and not 48. Hence my concern the layouts aren't exact.

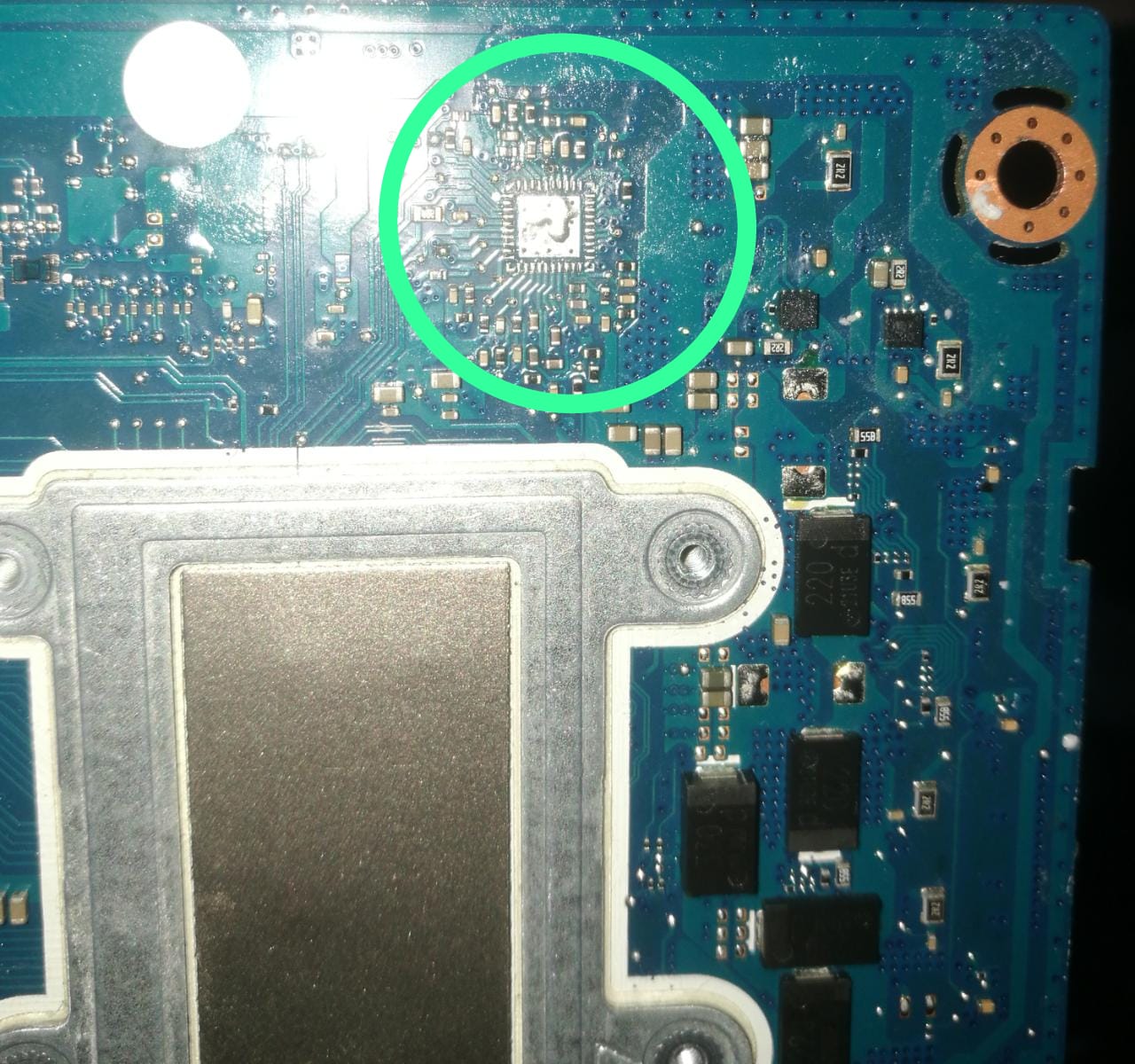

I have attached an image of the chip that was de-soldered.
Help would be greatly appreciated.
The board model on it is DANJIMB1BA0 Rev: A, I haven't been able to find one on here or elsewhere that has a matching layout.
There was a "repair" done, by a company and they didn't fix it but also left a chip off.
Basically it isn't getting power, the chip that is off looks like PU1 from the other board layouts that are similar, but it is a QFN40 and not 48. Hence my concern the layouts aren't exact.
I have attached an image of the chip that was de-soldered.
Help would be greatly appreciated.
