Schematic components with mark SL...

01-26-2022, 03:31 AM

Hello guys,

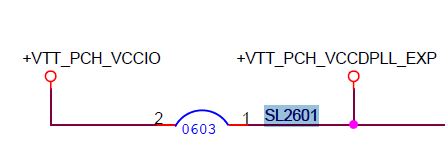

what exactly are components that start with SLxxxx, it seems they are just wires. Not sure what is their role on the motherboard. There is an example in the attachment.
I hope someone can clarify this.
Thank you.
Attached Files
Tags: None
Conste

Badcaps Veteran

Join Date: Oct 2018

Posts: 235

Country: Germany
#2

01-30-2022, 02:28 PM

Re: Schematic components with mark SL...

I do believe that these are like testpoints?!
Comment
mon2

Badcaps Legend

Join Date: Dec 2019

Posts: 13948

Country: Canada
#3

01-30-2022, 03:01 PM

Re: Schematic components with mark SL...

Yes - they should appear as blobs of solder or maybe a component which will be like a 0 ohm resistor = short circuit across the pads.
Comment
Adenitz

Senior Member

Join Date: Jan 2021

Posts: 122

Country: Congo
#4

01-31-2022, 02:18 AM

Re: Schematic components with mark SL...

Thank you guys.
Comment
