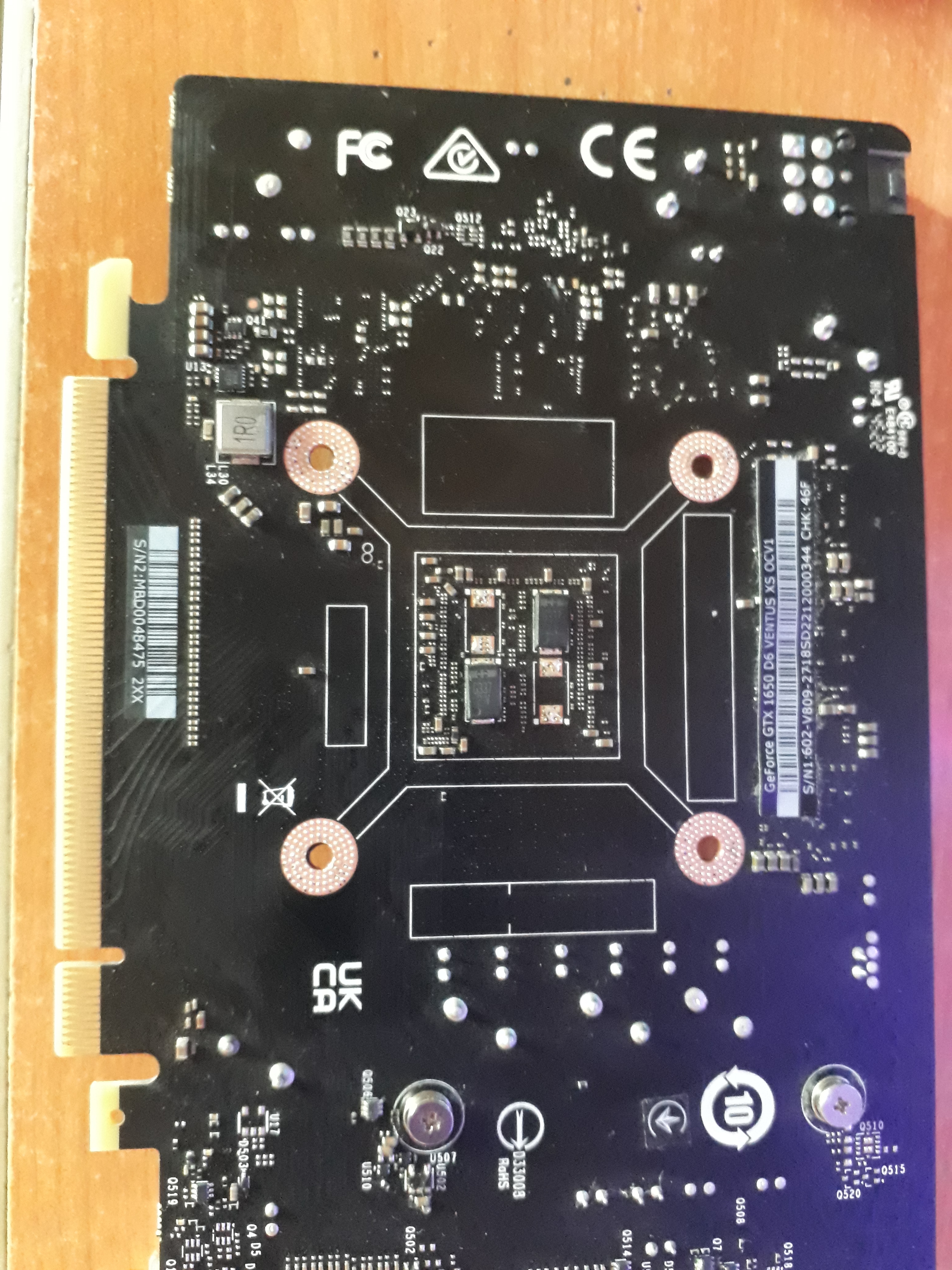

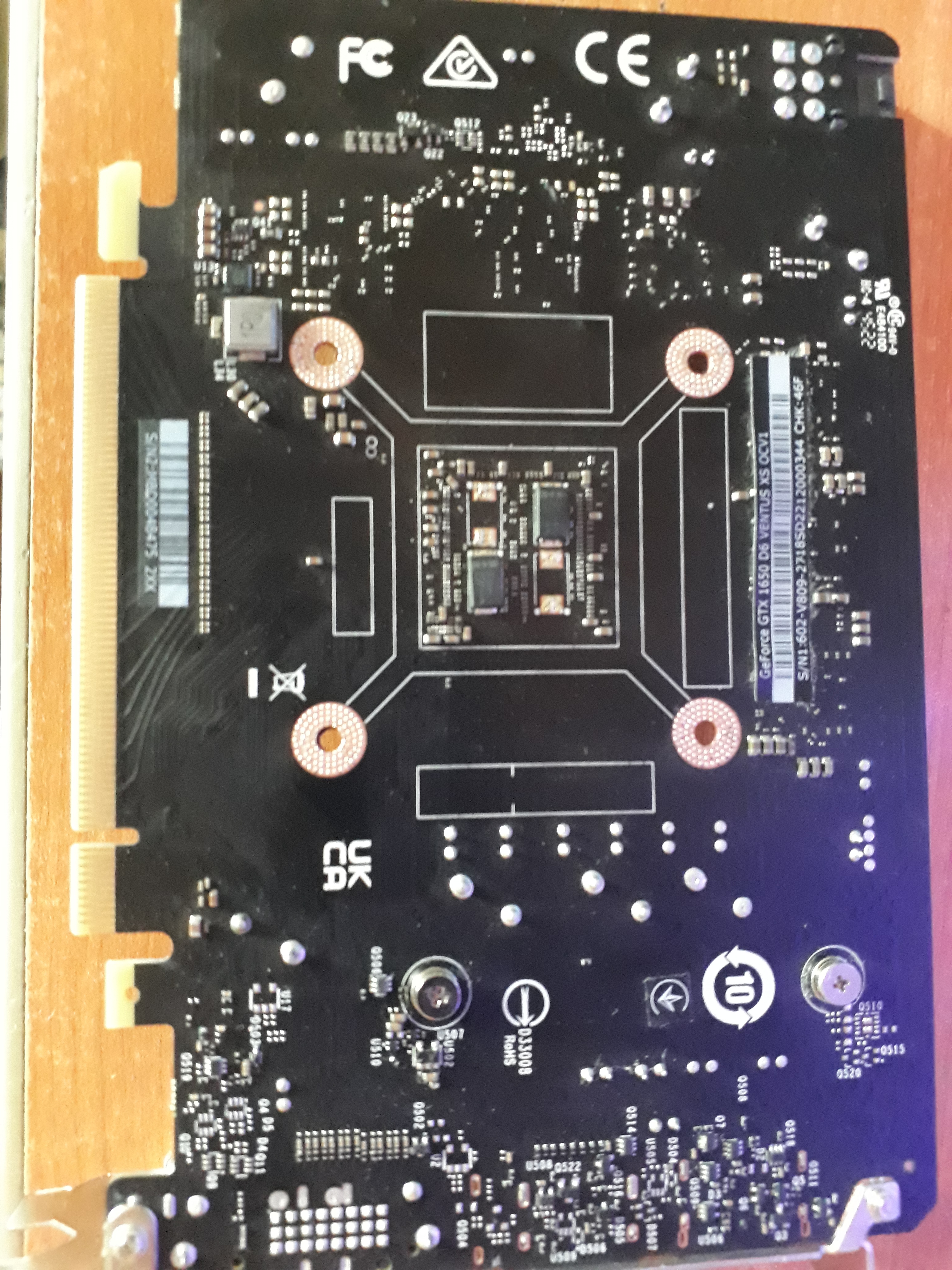

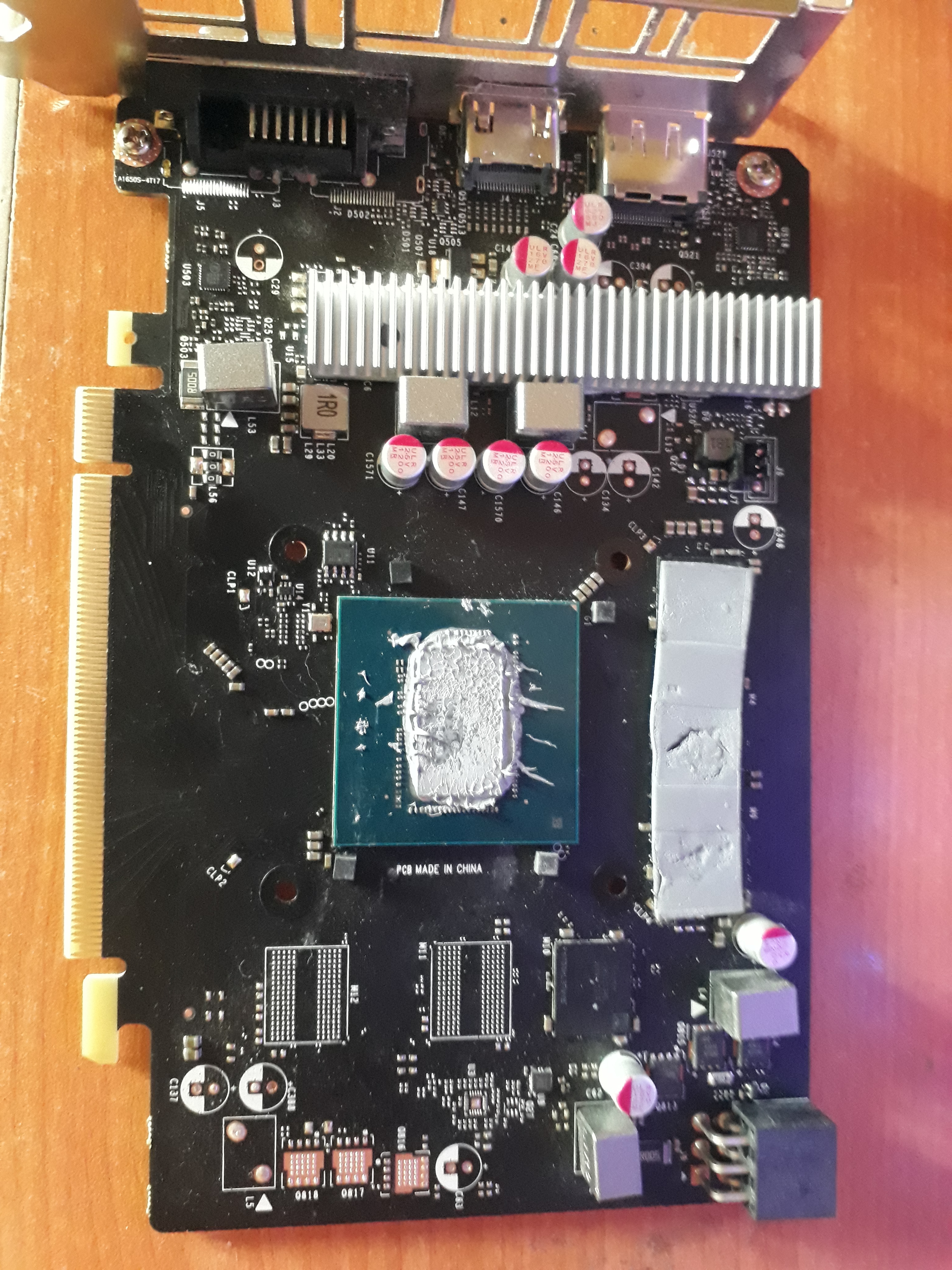

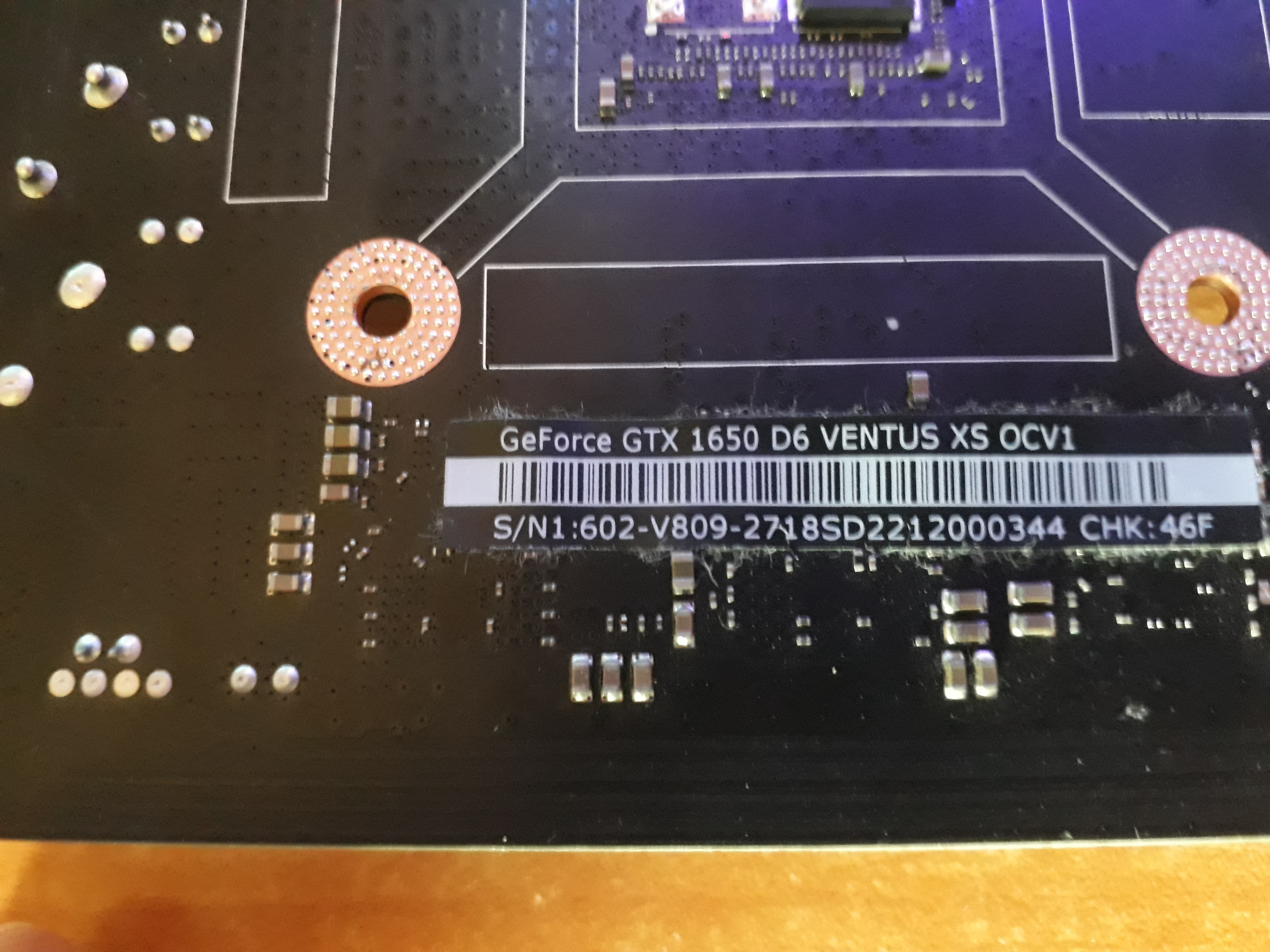

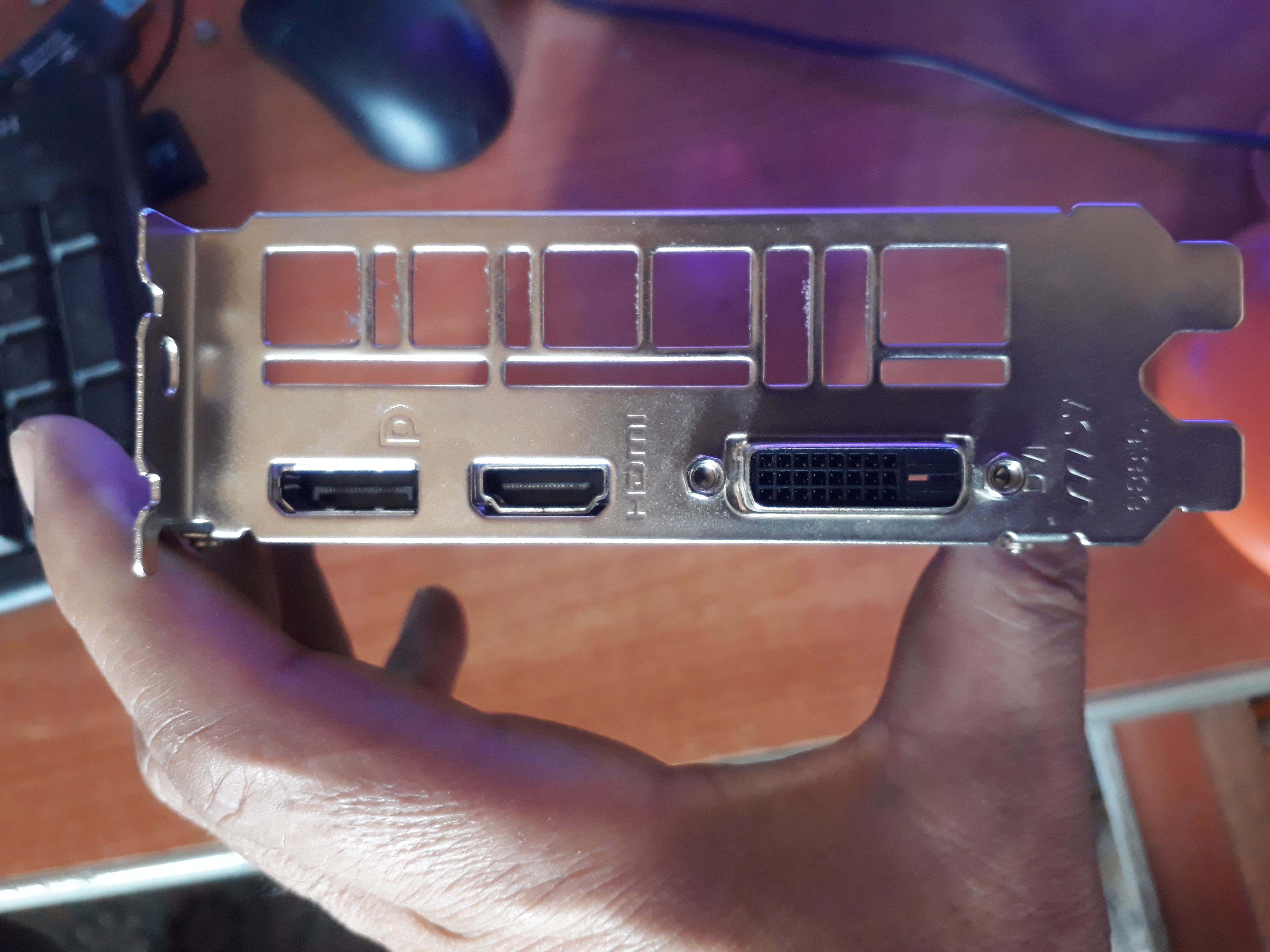

In search of this one, after it died(corrosion), my friend got it to another service, and they said that it's needed an other card for repair, so i got it without one voltage regulator and some smd resistors/capacitors back.
-
NVIDIA GeForce GTX 1650 Schematic & Board View
The GeForce GTX 1650 is a mid-range graphics card by NVIDIA, launched on April 23rd, 2019. Built on the 12 nm process, and based on the TU117 graphics processor, in its TU117-300-A1 variant, the card supports DirectX 12. This ensures that all modern games will run on GeForce GTX 1650. The TU117 graphics processor is an average sized chip with a die area of 200 mm² and 4,700 million transistors. It features 896 shading units, 56 texture mapping units, and 32 ROPs. NVIDIA has paired 4 GB GDDR5 memory with the GeForce GTX 1650, which... -
[HELP] Acer AN515-55 (LA-J871P Rev: 1B) – Board won't power on after GPU investigation – Suspecting Super I/O or PCH
Hi everyone,
I'm working on an Acer Nitro 5 unit with the following specs:- Motherboard: LA-J871P Rev: 1B
- Model: Acer AN515-55-59MT
- S/N: NHQ7JAL00403906A973400
- SNID: 03902728734
Initial Issue
The laptop initially presented graphic issues and driver failure (Code 43) for the GPU.
After preventive maintenance (cleaning, thermal paste, etc.), it powered on normally. We disassembled it again to inspect the GPU, reassembled... -
Hi everyone.
I need schematic or boarview mainboar colorful CF-B365M-HD V21
please share with me. thanks:
Error description : Can not turn on power. But when forced to turn on the power ( green wire to ground ). Can turn on power and use ok.
So, I think the circuit from Sio to green wire ( atx power ) is broken.but i don't know what electronic components it goes through.
Anyone know, can you show me where that electronic component is located on the motherboard? share schematic with me please . thanks:
...04-03-2025, 09:23 PM -
Hello guys,
I am troubleshooting this card and I need a clear picture of this card's PCB, if you have, it would be awesome if you can post it here. If front PCB is an issue, only the back side would be of help too. Thank you very much.... -
hi everyone .
i need schematic and boarview laptop hp 240 g9 ( 6050a3354201-mb-a01 )
thank a lot.03-23-2025, 11:07 PM
