    Mac mini M4 (A3238) Ripped Chip - Schematics+BoardView Needed

    Hi,

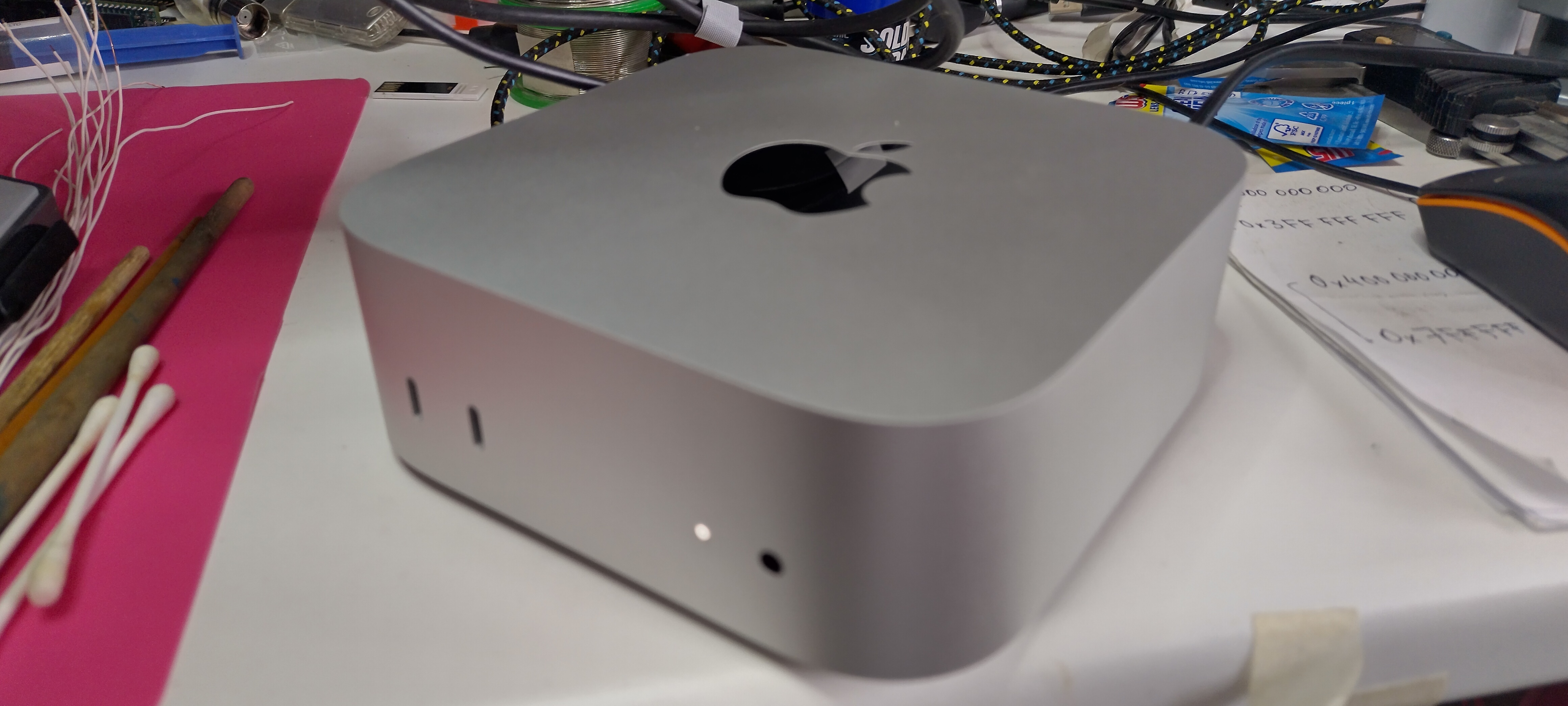

    I'm looking for assistance with a Mac mini (M4, 2024), model A3238 (Model MCYT4LL/A), which I recently purchased. The front USB-C ports are not providing power.

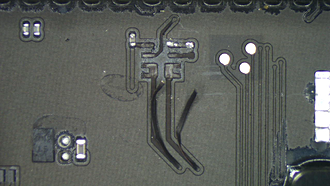

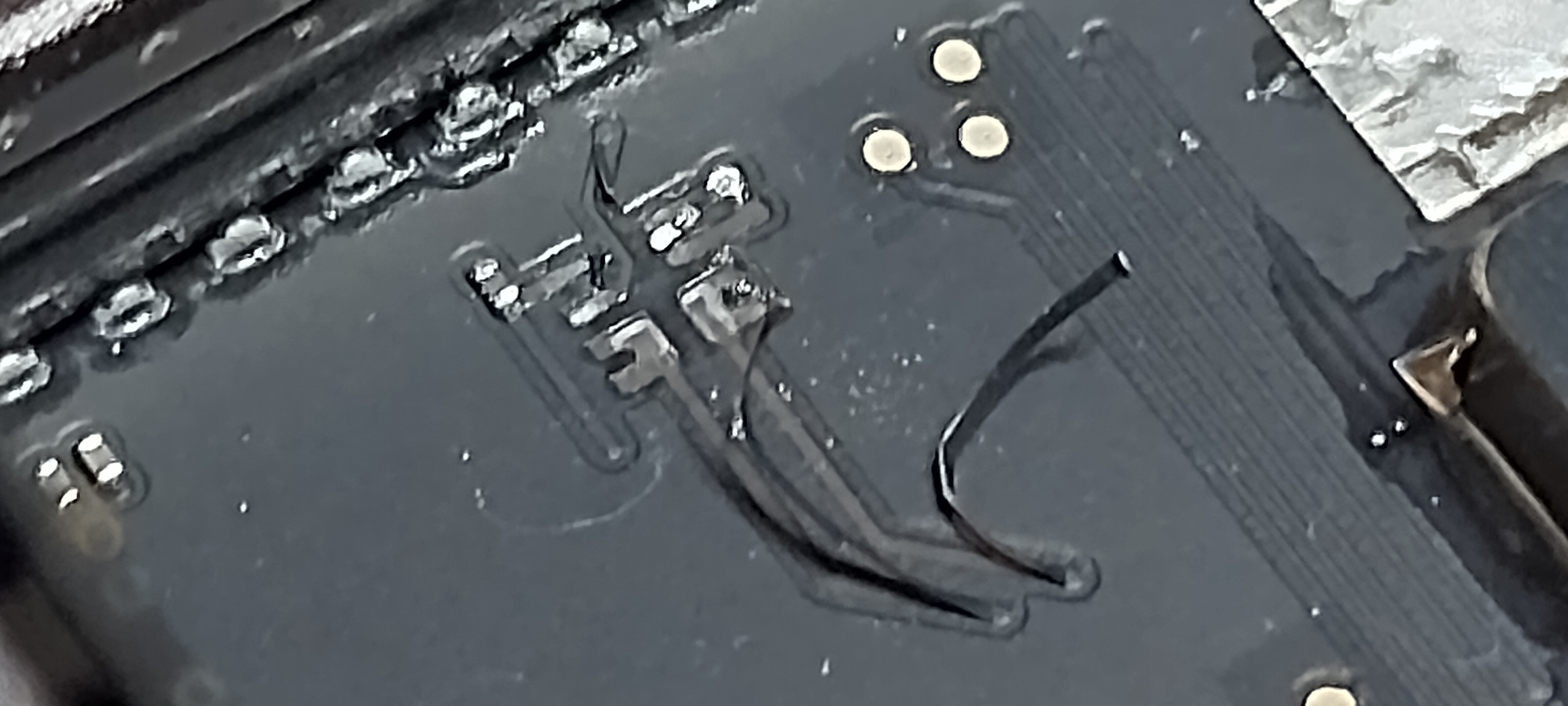

    Upon inspection, I've identified that a chip and an adjacent capacitor have been physically ripped off the logic board near the SSD connector.

    Could anyone provide information on the specifications of this missing chip? Additionally, I would greatly appreciate it if anyone has access to the schematics and board view for the Mac mini A3238 logic board.

    Thanks for your help!

    Click image for larger version Name: 2025.07.12 21.59.42 1280x720 72dpi.png Views: 37 Size: 1.02 MB ID: 3681448
    Attached Files
    Tags: None
    • ee91137
      Member
      • May 2022
      • 19
      • Portugal
      #2

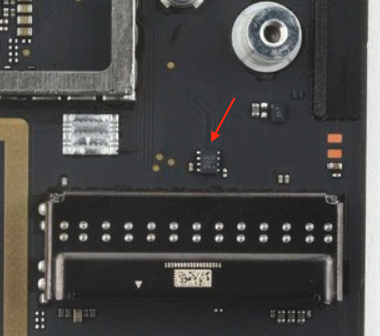

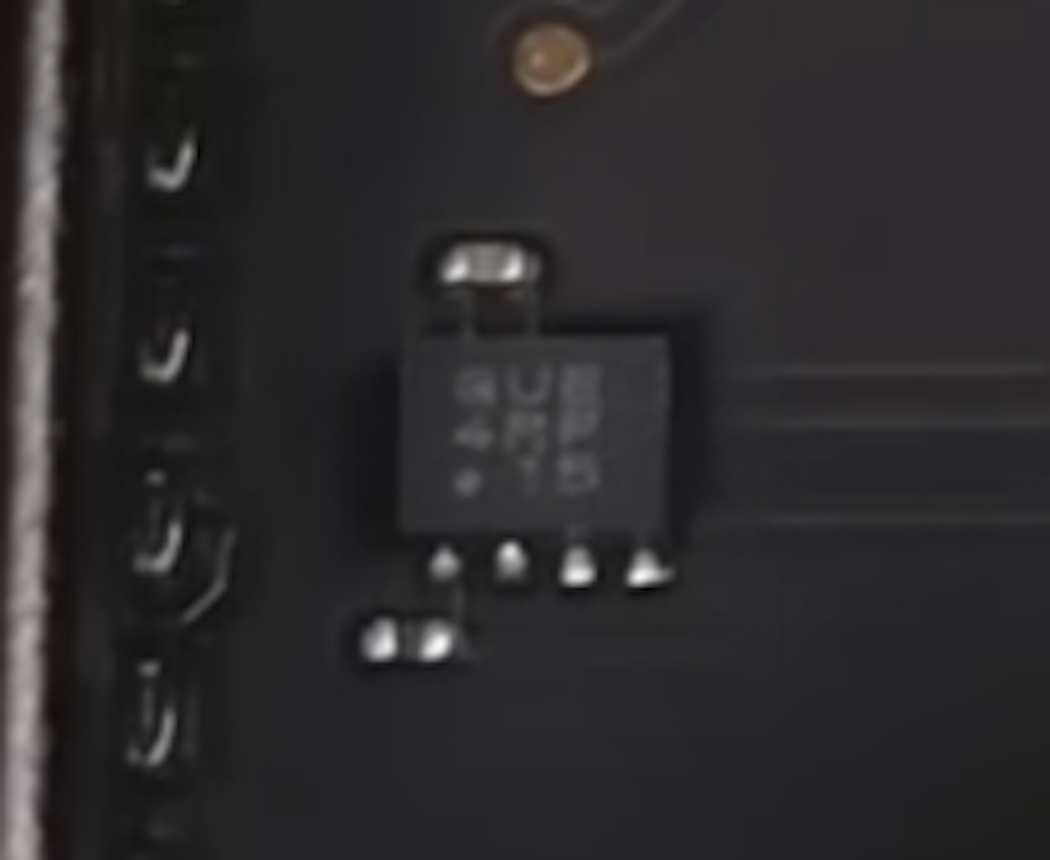

      Just found from a Youtube Video the Markings: QUE 4RP .15
