Requesting Clear Picture of MSI 1650 Super Ventus

Hachune

Member

Join Date: Sep 2022

Posts: 10

Country: IN
#1

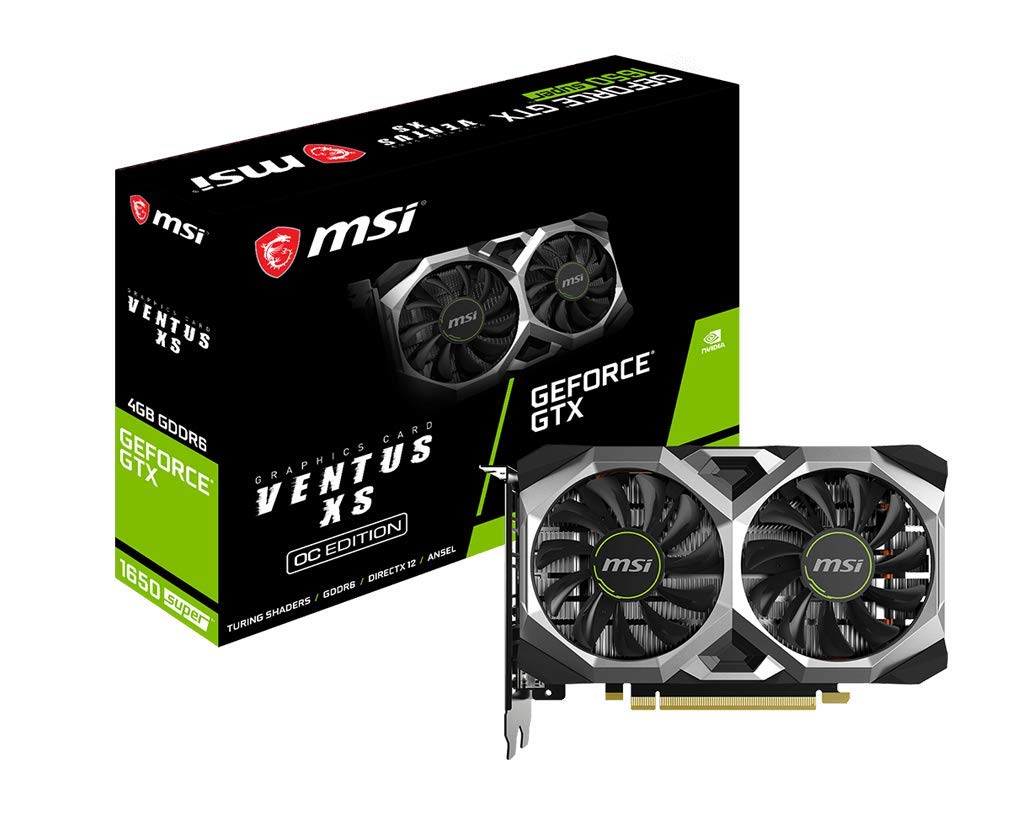

Requesting Clear Picture of MSI 1650 Super Ventus

02-07-2023, 08:56 AM

Hello guys,

I am troubleshooting this card and I need a clear picture of this card's PCB, if you have, it would be awesome if you can post it here. If front PCB is an issue, only the back side would be of help too. Thank you very much.
Attached Files

Last edited by SMDFlea; 02-07-2023, 09:08 AM. Reason: Offsite image uploaded
Tags: None
Hachune

Member

Join Date: Sep 2022

Posts: 10

Country: IN
#2

02-09-2023, 11:08 AM

Re: Requesting Clear Picture of MSI 1650 Super Ventus

Bump. I think there are similar design boards from other models too.
Comment
