Gigabyte 1660 Super - no EN signal for PEX

12-25-2022, 08:11 AM

Hello.
Have this Gigabyte 1660 Super that have no EN signal for PEX. It supposted to go from PGOOD from 1.8V ic but i cannot identify this ic
Attached Files
Tags: None
ktmmotocross

Boardkiller

Join Date: Feb 2014

Posts: 3560

Country: slovakia
#2

12-25-2022, 12:01 PM

Re: Gigabyte 1660 Super - no EN signal for PEX

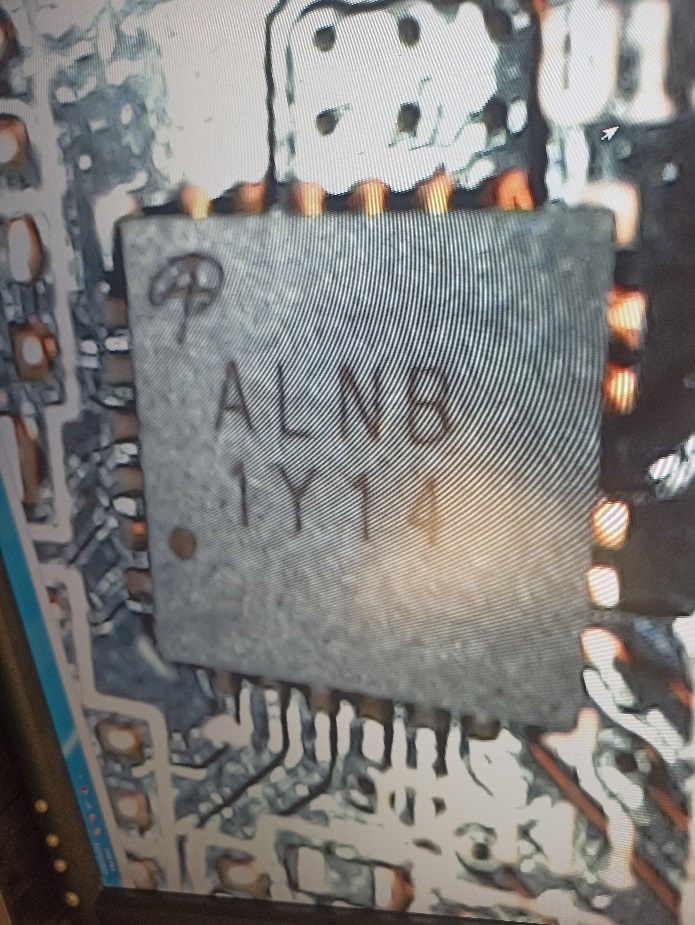

its so great to have marking codes here on page. found it. AOZ2261NQI-11

I have 5V on PGOOD/pin 1/ and must find where it goes

Last edited by ktmmotocross; 12-25-2022, 12:12 PM.
