    Wadia 23 cd player schematics & advice please

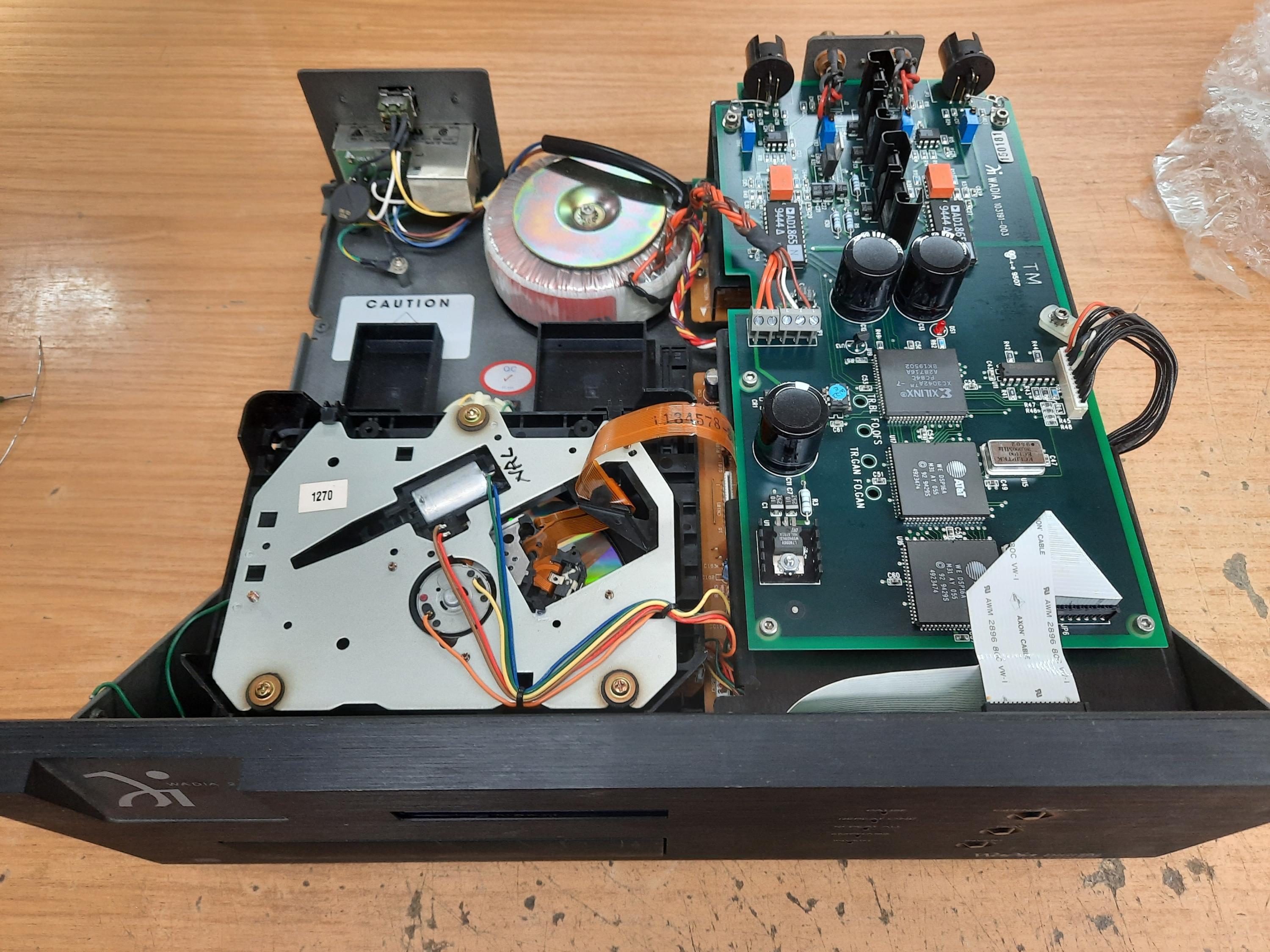

    Never seen one of these units before .

    Not playing disks .

    Rarely might pick up TOC , but that's as far as it will get .

    Replaced CD reader , but still not playing .

    Transport looks like Pioneer .

    Can anyone help ?
    Attached Files

    if you find these attachements useful please consider making a small donation to the site
