i try to repair a Asus ROG Maximus XII Extreme and i would like to know if someone can provide me schematics and boardview for this MB? until now i was unable to find them
the issue is once powered ON, no boot. only the 2" livedash oled display and the RGB lighting have power but that is it.
No Bios sequence LED (CPU, RAM, VGA, Boot), always OFF
after some checks,
* Discovered some incorrect config like switches for RSVD1, RSVD2 and Slow_Mode were ON. according to manual must be OFF
* Reloaded the bios through USB port. Oled display told me Update was done successfully. i did it for the both Bios Chips but still no boot

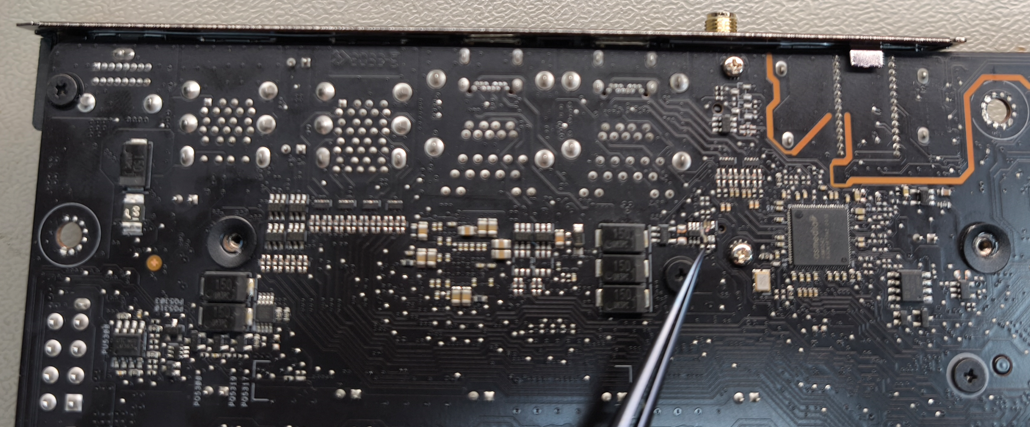

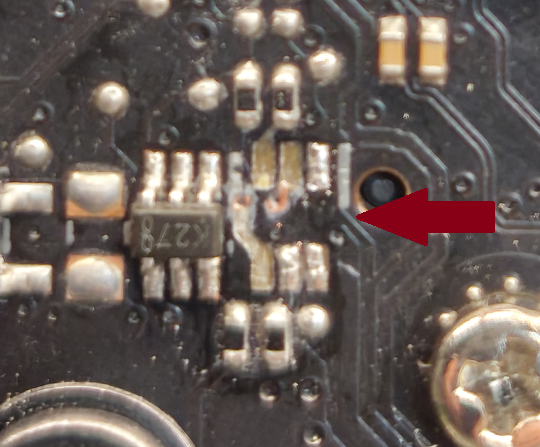

* finally i discovered at the back of the board one missing item (see pictures 1 and 2). not sure if the missing item must be same as one on its left (K27). Not sure also if it is main reason of no boot
So I will appreciate a lot if i could receive the schematics and boardview for this MB
Thanks
Zdlr
i try to repair a Asus ROG Maximus XII Extreme and i would like to know if someone can provide me schematics and boardview for this MB? until now i was unable to find them
the issue is once powered ON, no boot. only the 2" livedash oled display and the RGB lighting have power but that is it.
No Bios sequence LED (CPU, RAM, VGA, Boot), always OFF
after some checks,
* Discovered some incorrect config like switches for RSVD1, RSVD2 and Slow_Mode were ON. according to manual must be OFF
* Reloaded the bios through USB port. Oled display told me Update was done successfully. i did it for the both Bios Chips but still no boot
* finally i discovered at the back of the board one missing item (see pictures 1 and 2). not sure if the missing item must be same as one on its left (K27). Not sure also if it is main reason of no boot
So I will appreciate a lot if i could receive the schematics and boardview for this MB
Thanks
Zdlr
