Sharp LC-40LE820UN not coming on

Collapse
X

  • Time
  • Show
Clear All
new posts
  • superg
    Senior Member
    • Dec 2013
    • 58
    • Barbados

    #1

    Sharp LC-40LE820UN not coming on

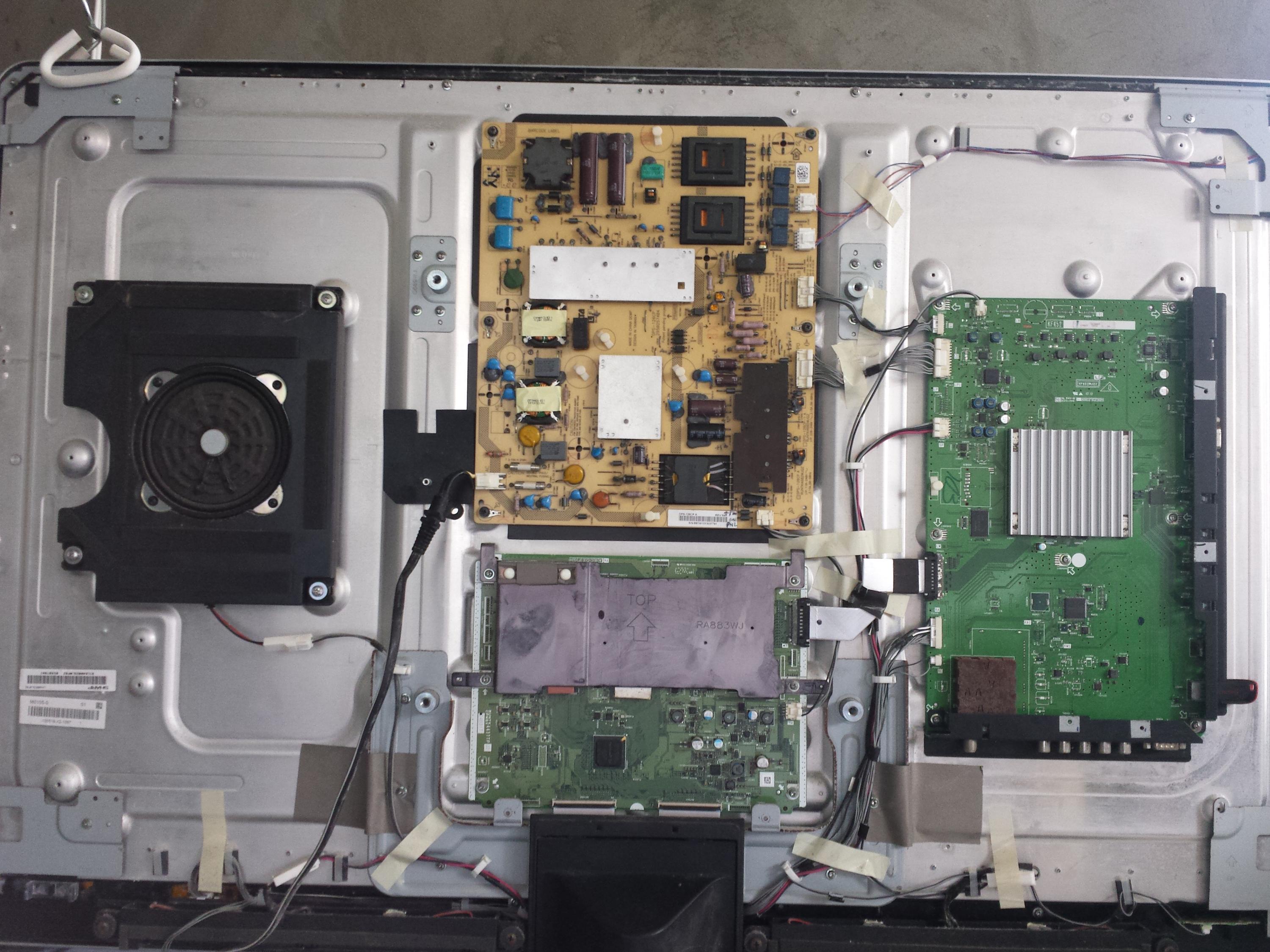

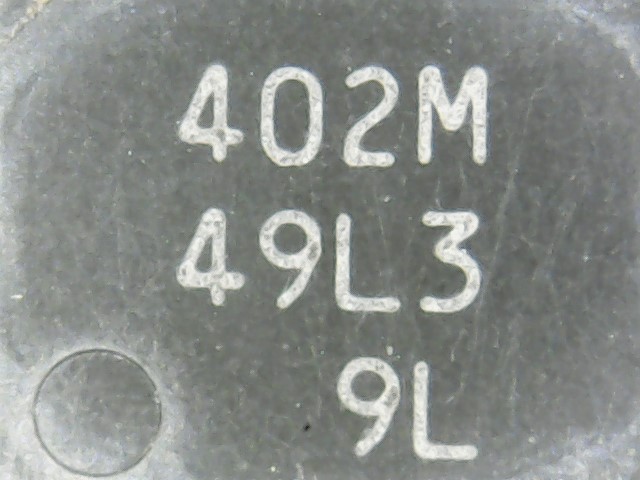

    This is a TV I had for a while. I have narrowed the fault down to the motherboard and I want to reprogram the EEPROM. Thing is I can't find any info on the EEPROM which is ic2004. I uploaded pics and a service manual.
    Attached Files
  • dick_barton
    Badcaps Legend
    • Aug 2015
    • 6642
    • Wales

    #2
    Re: Sharp LC-40LE820UN not coming on

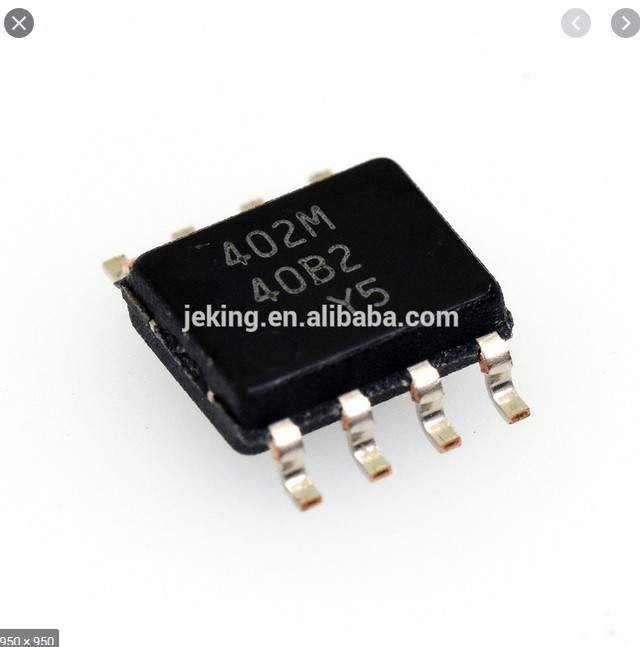

    Looks like an 8 pin.,2 wire, serial EEPROM, and from the schematic on page 86 operates on 3.3V supply, 2Kbits

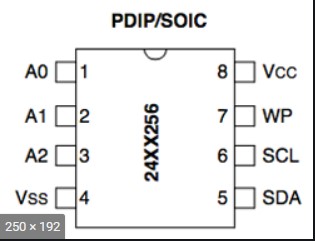

    Perhaps the pinout would be similar to other common EEPROM's
    Attached Files
    Last edited by dick_barton; 01-05-2021, 10:14 AM.
    Willing to help but I'm no expert.

    Comment
