    Chimai V216B1-L04 panel fault

    Hi,

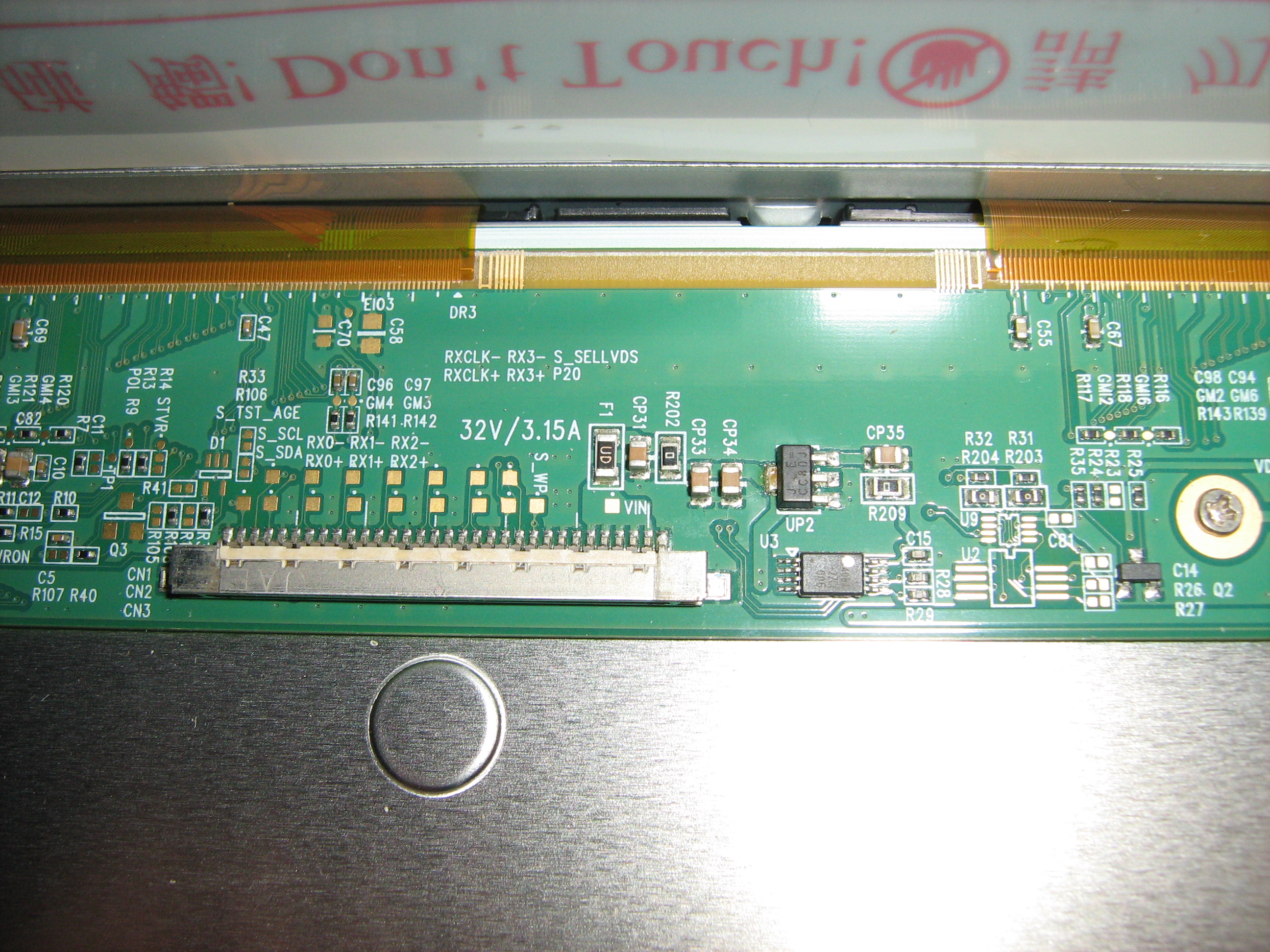

    I'm trying to repair a Panasonic TX-L22X20E. Changed video board with a used one from a TX-L26X20B, same TNP0EA017 (9) (A) so i tryed, but after a few seconds some smoke from the panel's pcb.
    I found UP2 shorted but I'm strugglying to find the hell the part is this.
    Panel pcb model is V216B1-XC03.
    Attached Files
