Wrong polarity used on Linksys WRT-54g v2 router

[mastamuzz]

As the title suggested by Toasty says I plugged the wrong cord on my router and I am completely lost with this, you must know Im a total knoob in electronics, probably that's why I need lots of help and patience please guys!

Ill ad some pics of board and close ups as needed!

I don't know where to start!


info of the router
WRT54G ver 2 rev:XH

[mastamuzz]

Re: Wrong polarity used on Linksys WRT-54g v2 router

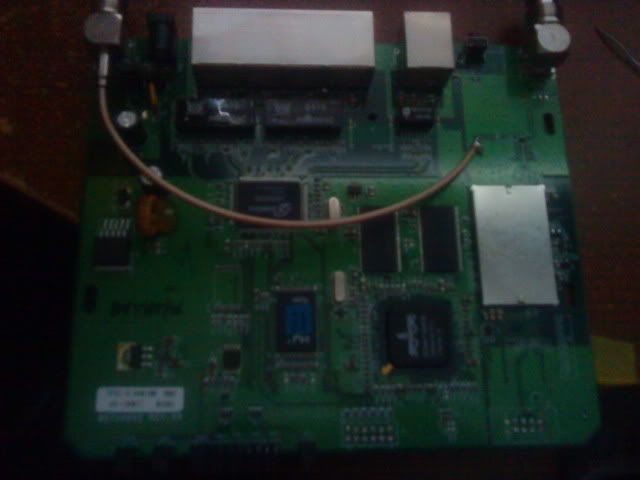

PIC1 whole mobo
http://i820.photobucket.com/albums/z...G/DSC00006.jpg

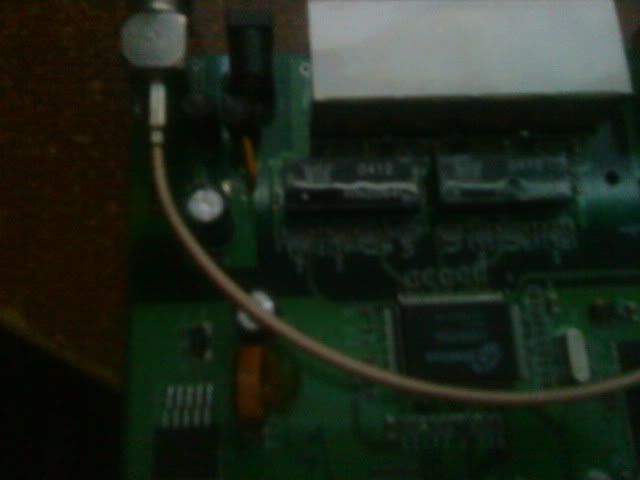

PIC2 plugging area
http://i820.photobucket.com/albums/z...G/DSC00007.jpg

[mastamuzz]

Re: Wrong polarity used on Linksys WRT-54g v2 router

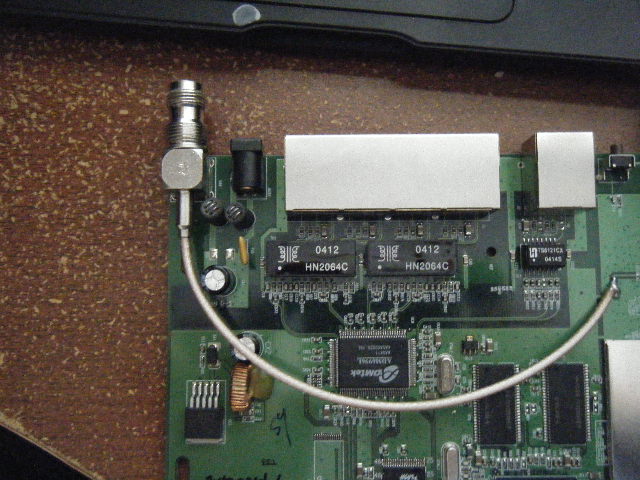

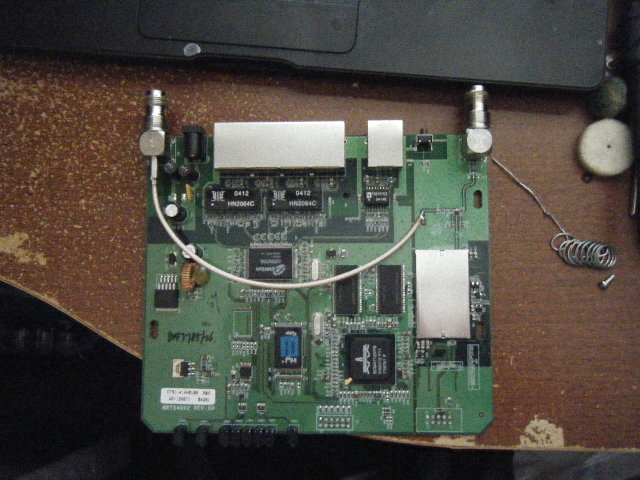

DC pics better than phone

[Toasty]

Re: Wrong polarity used on Linksys WRT-54g v2 router

What test equipment do you have? Any experience?

You need a DMM (digital multi-meter) or analog VOM(volt-ohm meter) at the least.

The pics are -very- dark and I can't make out anything. Please try to post brighter clearer pics under incandescent lighting if possible.

Primarily concerned with the area from the power jack and down to the 5 legged, black, square component (UC1?). Any components on the back side of board in that area?

Toast

[Toasty]

Re: Wrong polarity used on Linksys WRT-54g v2 router
