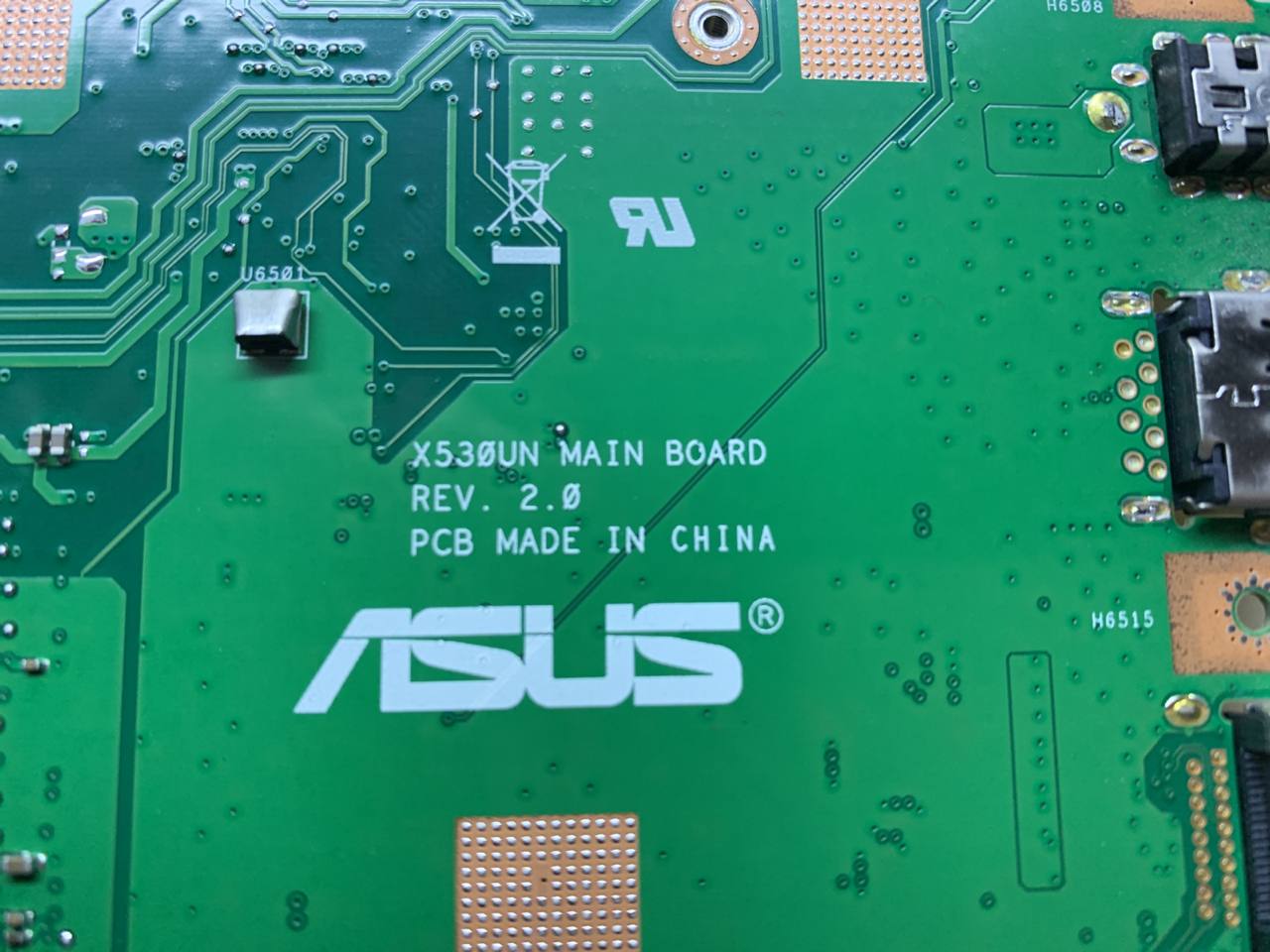

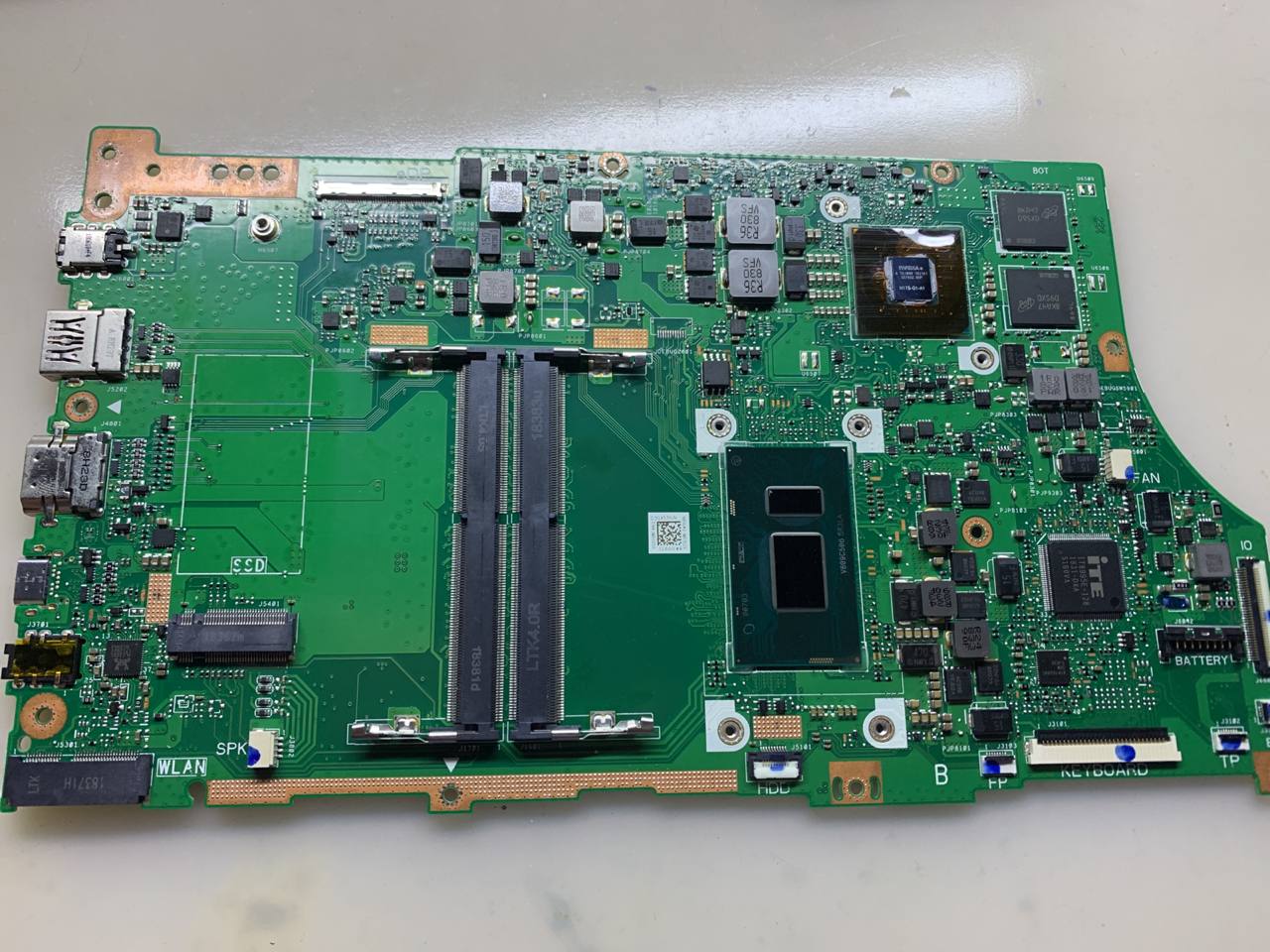

need schematic and boardview for Asus X530UN REV 2.0
Attached Files
-
Can someone share the boardview for Asus Pro WS X570-ACE ...08-01-2025, 04:16 PM -
Hello,
i'm looking for a schematic/boardview for an ASUS E3-PRO V5 (NOT E3 PRO GAMING, has a different layout).
I'm trying to find out where i can find SKTOCC# other than from the socket in order to ground it for a Coffee Lake mod. It must be somewhere near/around the SIO but I haven't found a datasheet for the NCT5539D this board has.
I've also found the schematic for the similarly named E3 PRO GAMING V5 but it has a different SIO so it's not of much help. And I don't trust myself to hold still a multimeter probe on top of a LGA socket pin to find where it comes out the...01-18-2025, 09:17 AM -
Heloo
I’m looking for the motherboard schematic or boardview for Asus UX3407R
board name UX3407QA R2.0
Thanks...
08-18-2025, 04:05 AM -
Hello!
I am looking for a schematic (if that's not out there, a boardview would suffice) for the ASUS PRIME H610I-PLUS D4, model 60MB1B20-MB0A01, rev 1.01. Are either of these available anywhere?07-25-2025, 05:11 AM -
I need a schematic or boardview for an ASUS Chromebook CB5500FE laptop. I want to program the Nuvoton NPCX797FC0BX microcontroller, and I don't know how the SWDIO, SWCLK, and nRESET signals are connected.07-20-2025, 04:22 PM
