    Gigabyte T1125 Battery Connection Pin Out Diagram Help?

    Gigabyte T1125 Battery Connection Pin Out Diagram Help?

    I need to know which connection on the board is Positive + & Negative - for that wire going to the board.

    As well as the pin out on the board & battery header of those 3 colored wires.

    Total : 5 wires

    *board power header*
    positive + (red/yellow)(is it on the left or right?)
    negative - (black)(is it on the left or right?)

    *3-pin header*
    unknown - (orange)
    unknown - (yellow)
    unknown - (green)



    #2
    Re: Gigabyte T1125 Battery Connection Pin Out Diagram Help?

    This video helps us get an idea but need to know which color on the board goes where & also need to be for sure that the positive negative terminal on the motherboard is connected correctly as well. Since the laptop has not worked with the battery at all... It's not a good design. I had to take the connect apart to solder smaller leads to the positive negative pins but did not take pics/ document where the wires were.

    https://www.youtube.com/watch?v=-J16hnOmBsI

    http://pinout.net/connectors/noteboo...ery_pinout.jpg
    Last edited by chris89; 02-03-2018, 06:16 PM.

    Comment


      #3
      Re: Gigabyte T1125 Battery Connection Pin Out Diagram Help?





      http://www.mediafire.com/view/hezduj...ections001.jpg

      http://www.mediafire.com/view/qxb24v...ections002.jpg
      Last edited by chris89; 02-07-2018, 04:12 AM.

      Comment


        #4
        Re: Gigabyte T1125 Battery Connection Pin Out Diagram Help?

        bump

        Comment


          #5
          Re: Gigabyte T1125 Battery Connection Pin Out Diagram Help?

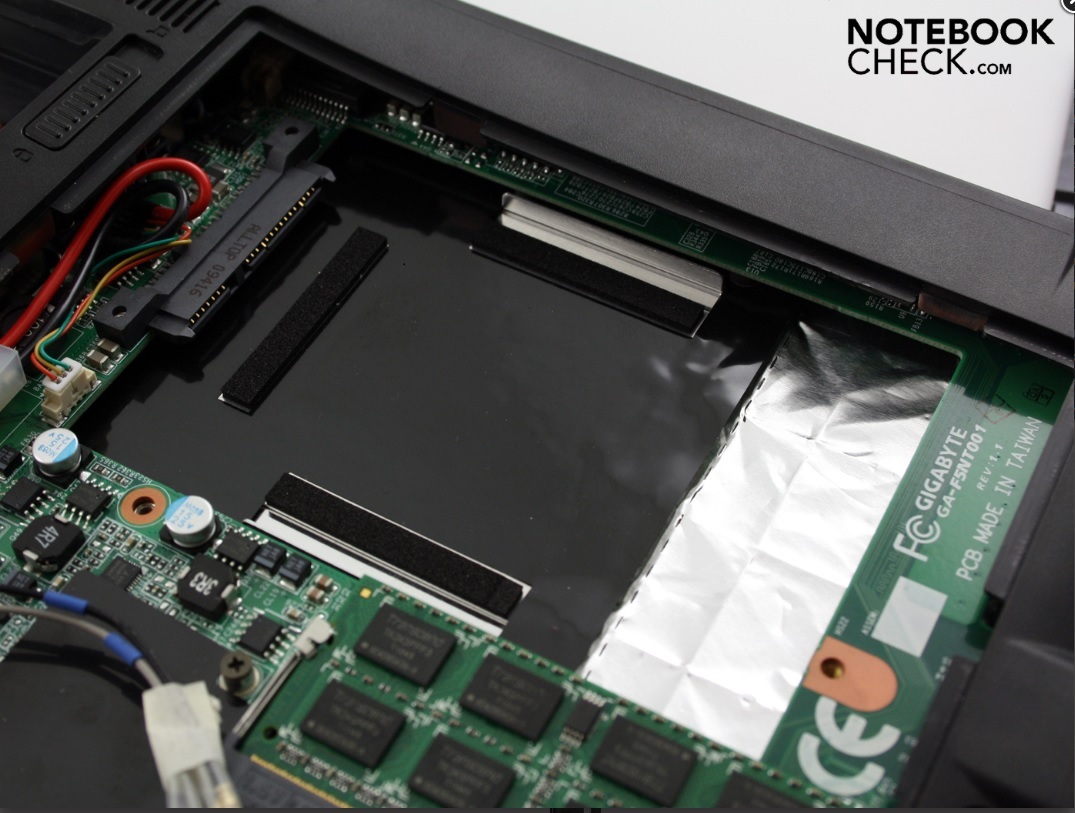

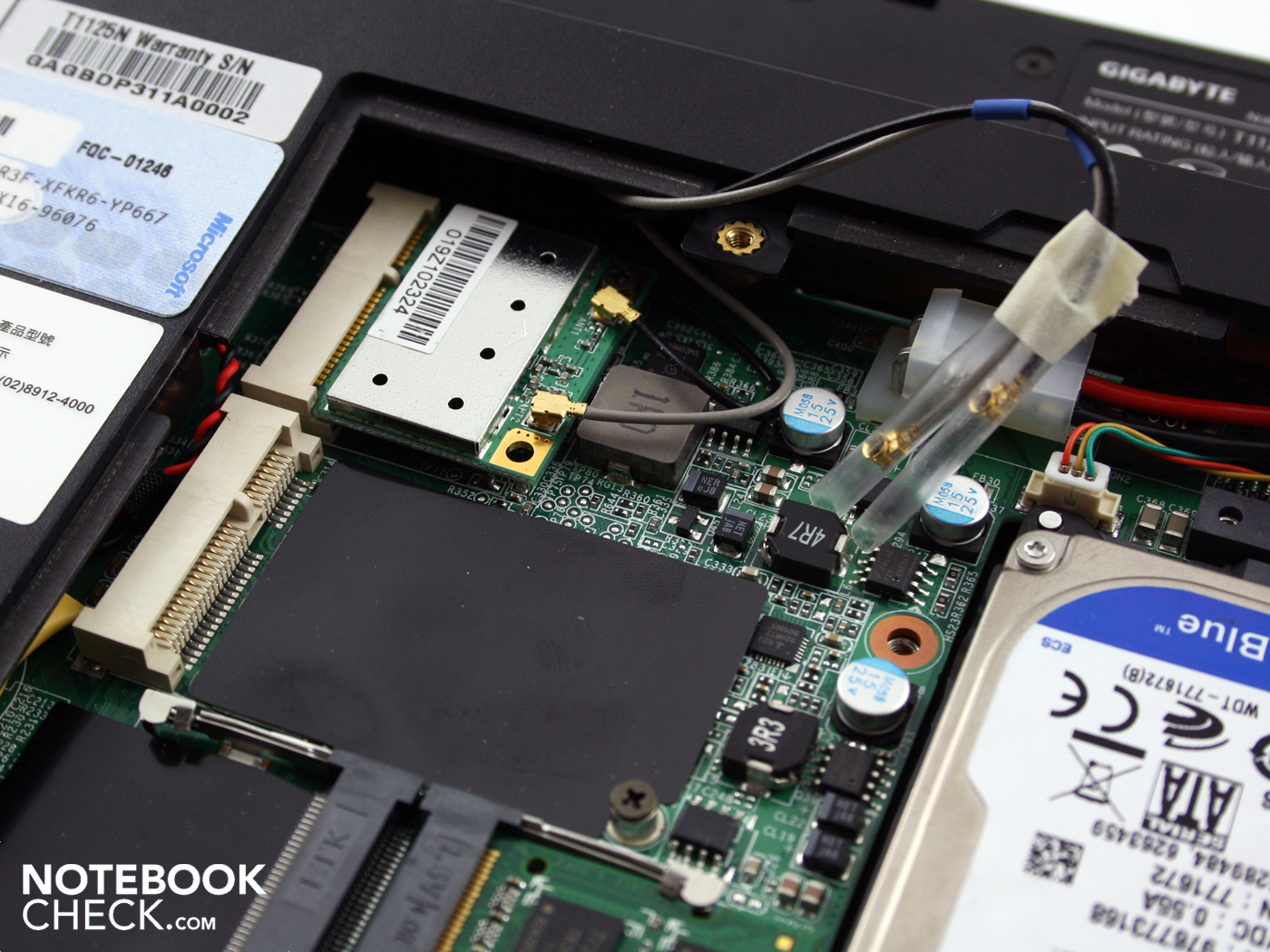

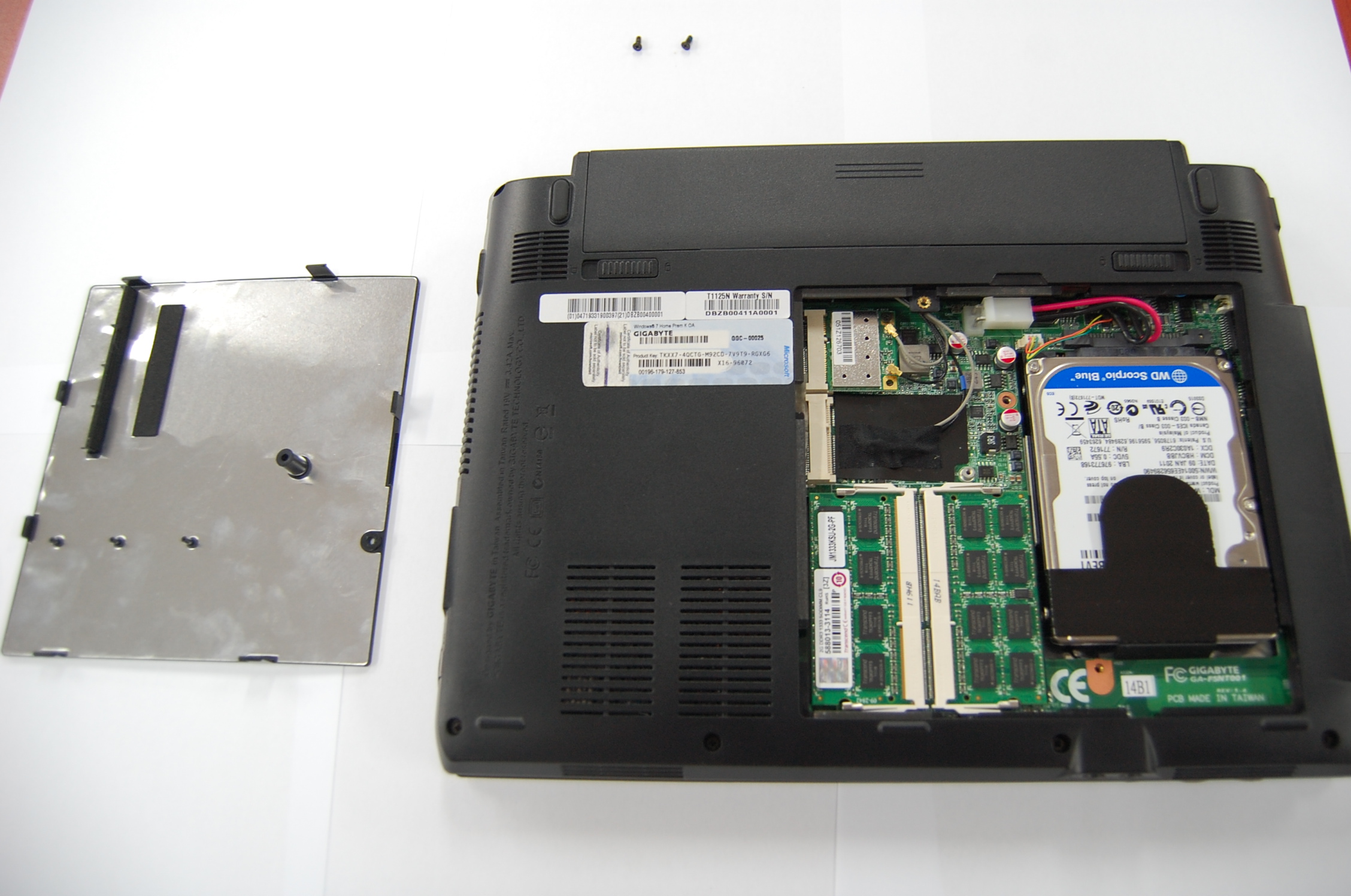

          I found one (small) picture that shows this connector. Unfortunately, it only shows clearly where black and red go.

          The other 3 wires are going to be clock, data, and either a thermistor or battery presence indicator. All should use 3.3V logic levels. You can measure the voltage on those 3 motherboard connector pins to make absolutely sure.

          As long as they all use 3.3V, it's really just a matter of time to find the right order. There are 6 possible permutations of those 3 wires. If you guess wrong, it won't be happy (thinking either the battery isn't installed or has a problem), but nothing should blow up.
          Attached Files

          Comment


            #6
            Re: Gigabyte T1125 Battery Connection Pin Out Diagram Help?

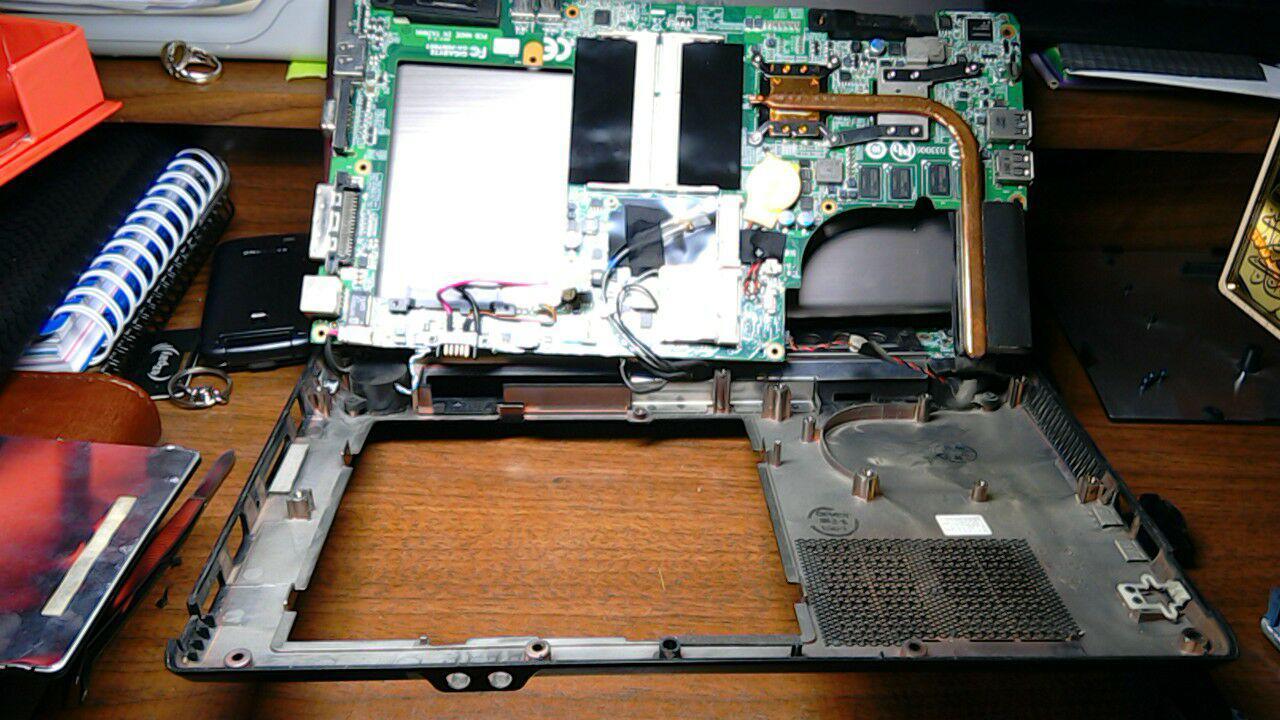

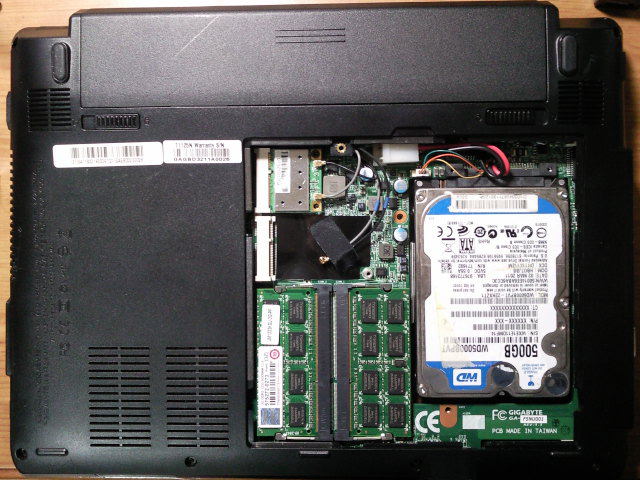

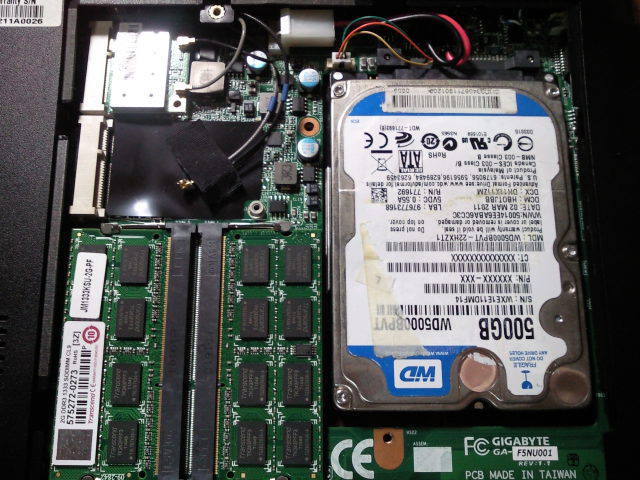

            It's insane how blurry that picture is well... now the Laptop won't even startup over the power supply... & making a weird whining out of the speakers...

            I need clear photos because the laptop *WAS* working fine prior to adjusting the battery connections

            It won't power on at all any more.. I know + / - RED BLACK is correct but the other wires are F****D.

            *3-pin header*
            unknown - (orange)
            unknown - (yellow)
            unknown - (green
            Attached Files
            Last edited by chris89; 02-08-2018, 03:45 AM.

            Comment


              #7
              Re: Gigabyte T1125 Battery Connection Pin Out Diagram Help?

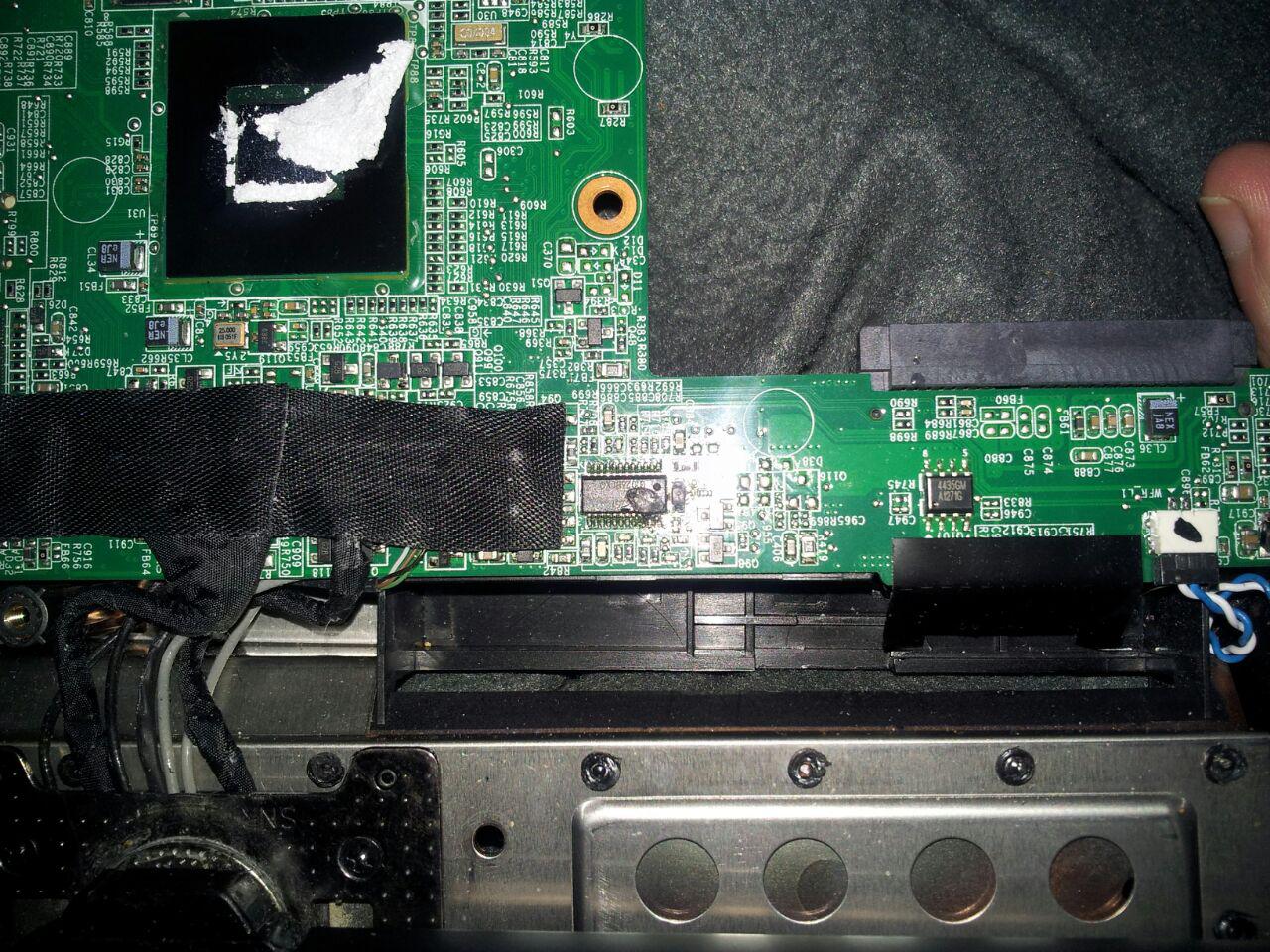

              Laptop is now TOAST... This sucks !!!!!!!!!!!!!!!!!!!!!!!!!! Smoke Billowed Out ... right under the 3-pin connector
              Attached Files
              Last edited by chris89; 02-08-2018, 04:14 AM.

              Comment
