    LENOVO THINKPAD L430 schematic needed.

    Does anyone have the schematic of LENOVO THINKPAD L430 motherboard?
    The laptop is now totally dead. no switch on. also the standby voltage missing.

    Here is the part no.
    LCD-1 MB
    11248-4
    48.4SE04.041
  • highpulse
    i hate HP
    • May 2013
    • 1488
    • portugal

    #2
    Re: LENOVO THINKPAD L430 schematic needed.

    here it is , also boardview
    Attached Files

    Comment

    • ikelectro
      Member
      • Aug 2013
      • 20
      • India

      #3
      Re: LENOVO THINKPAD L430 schematic needed.

      Originally posted by highpulse
      here it is , also boardview
      thanks a lot, I'll look through the MB by schematic now.

      Comment

      • ikelectro
        Member
        • Aug 2013
        • 20
        • India

        #4
        Re: LENOVO THINKPAD L430 schematic needed.

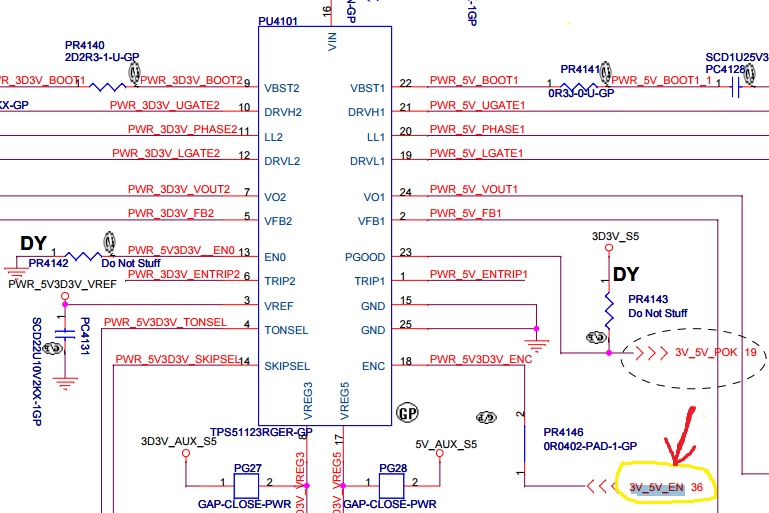

        The Enable signal is going off after some time of Adaptor is inserted on the motherboard. And it also goes off from GPIO34 (Pin14) at same time.
        Attached Files

        Comment

        • erotrance2017
          New Member
          • Feb 2017
          • 1
          • Germany

          #5
          Re: LENOVO THINKPAD L430 schematic needed.

          Thanks!
          It help me very much!

          Comment

          • mansourdiab
            New Member
            • Apr 2018
            • 1
            • yemen

            #6
            Re: LENOVO THINKPAD L430 schematic needed.

            think you very very much

            Comment

            • siroos_tz
              Senior Member
              • Feb 2014
              • 119
              • the UK

              #7
              Re: LENOVO THINKPAD L430 schematic needed.

              Tank you very much.

              Comment

              • QIAN YU
                New Member
                • Jun 2018
                • 3
                • CHINA

                #8
                Re: LENOVO THINKPAD L430 schematic needed.

                Thank you very much

                Comment

                • Alvep147123
                  New Member
                  • Mar 2023
                  • 1
                  • Peru

                  #9
                  Re: LENOVO THINKPAD L430 schematic needed.

                  bios ????

                  Comment

                  • AL._.EX
                    Badcaps Veteran
                    • Dec 2022
                    • 860
                    • Belarus

                    #10
                    Re: LENOVO THINKPAD L430 schematic needed.

                    Originally posted by Alvep147123
                    bios ????
                    https://www.badcaps.net/forum/showth...ighlight=11248

                    Comment
