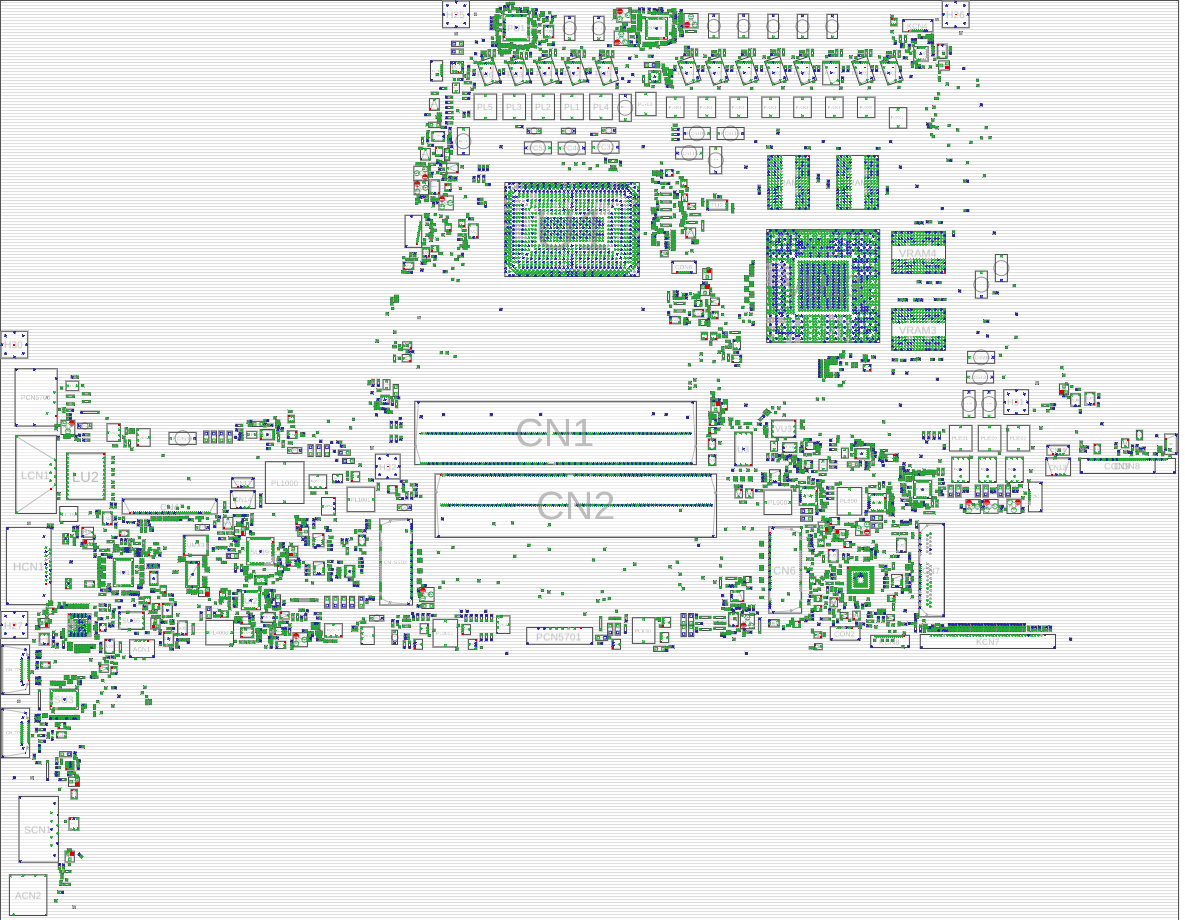

need BV and schematic for Asus FA707RM DANJMMB1AA0
-
Hello, please i need a schematic for my Asus ROG G703GI laptop.. I think my motherboard has a problem with the sound. Thank you!!10-16-2025, 06:21 AM -
Hi i need help with Asus Zebook pro 14 ux6404vi schematic or Boradviews
i have ic damage (Bknn 023 ) i need same ic icant find same ic , so i need file Schematic or Boardviews to find ic info .09-04-2025, 03:51 AM -
I'm not new to this board but this is my first posting so I hope I'm doing this right. I'm looking for the schematic for a ASUS N550JV motherboard P/N: 60NB0860-MB1B10. I have the board view but need the schematic also. TNX07-31-2025, 07:12 PM -
Hello,
i'm looking for a schematic/boardview for an ASUS E3-PRO V5 (NOT E3 PRO GAMING, has a different layout).
I'm trying to find out where i can find SKTOCC# other than from the socket in order to ground it for a Coffee Lake mod. It must be somewhere near/around the SIO but I haven't found a datasheet for the NCT5539D this board has.
I've also found the schematic for the similarly named E3 PRO GAMING V5 but it has a different SIO so it's not of much help. And I don't trust myself to hold still a multimeter probe on top of a LGA socket pin to find where it comes out the...01-18-2025, 09:17 AM -
Hello
I need schematic for this model ASUS FX516PC R6.0
Thanks.12-27-2024, 03:41 PM
