Hi everyone!
Dose anyone have a schematics for a Asrock Z270 Pro4?

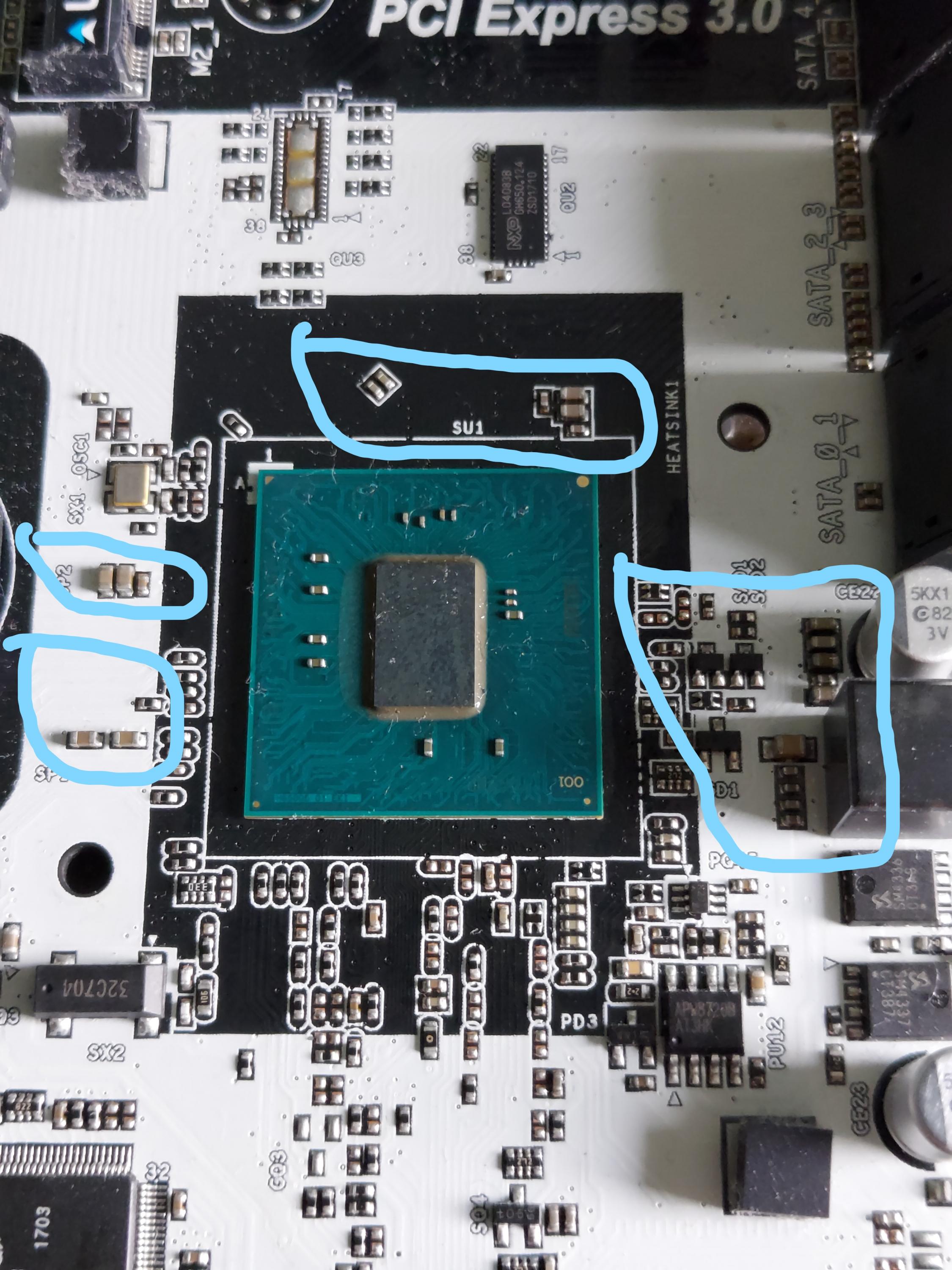

I have a short circut around the Z270 chip
Dose anyone have a schematics for a Asrock Z270 Pro4?
I have a short circut around the Z270 chip
Attached Files
-
Hi, I look for Asrock z70m pro4 boardview preferably, schematics will also do -
Hi,
I have an AsRock B560 Pro4 (boardview: https://www.badcaps.net/forum/troubl...pro4-schematic) that's completely dead (it doesn't even turn on the power supply when the power button is pressed or the power button pins are shorted). I do get about 3.4V on the power button pin, but 1.8VSB isn't there. The resistance to ground on the inductor PL53 is only about 0.1-0.4 Ohms. Am I correct in assuming that there must be a short... -
Hi, I look for ASRock Z270 Gaming-ITX/ac boardview preferably, schematics will also do - a mini ITX board.
Also a similar Z170/Z370/Z390 board may help.
Need to recunstruct some traces around the LAN chip (WGI219V).
Thanks for your help ! -
Dear friends,
I’m currently looking for the schematics of the ASRock C3558D4I‑4L motherboard. If anyone has a copy or knows where I can find it, I would really appreciate it if you could share it with me.
Thanks in advance for your help!...07-18-2025, 11:03 AM -
asrock z370 pro4
No display
No coil voltage
Is it a pwm controller problem?
ISL95824
VDD 5V
VCORE_EN 1.113V...
