GV-N3060GAMING OC-12GD - boardview for specific revision

08-09-2025, 10:26 AM

Hello,
I have problem with my graphic card GV-N3060GAMING OC-12GD.
2 smd elements are missing.
I've already bought a boardview but it's not complete - that specific area is not attached. I tried with different similar models but without success.

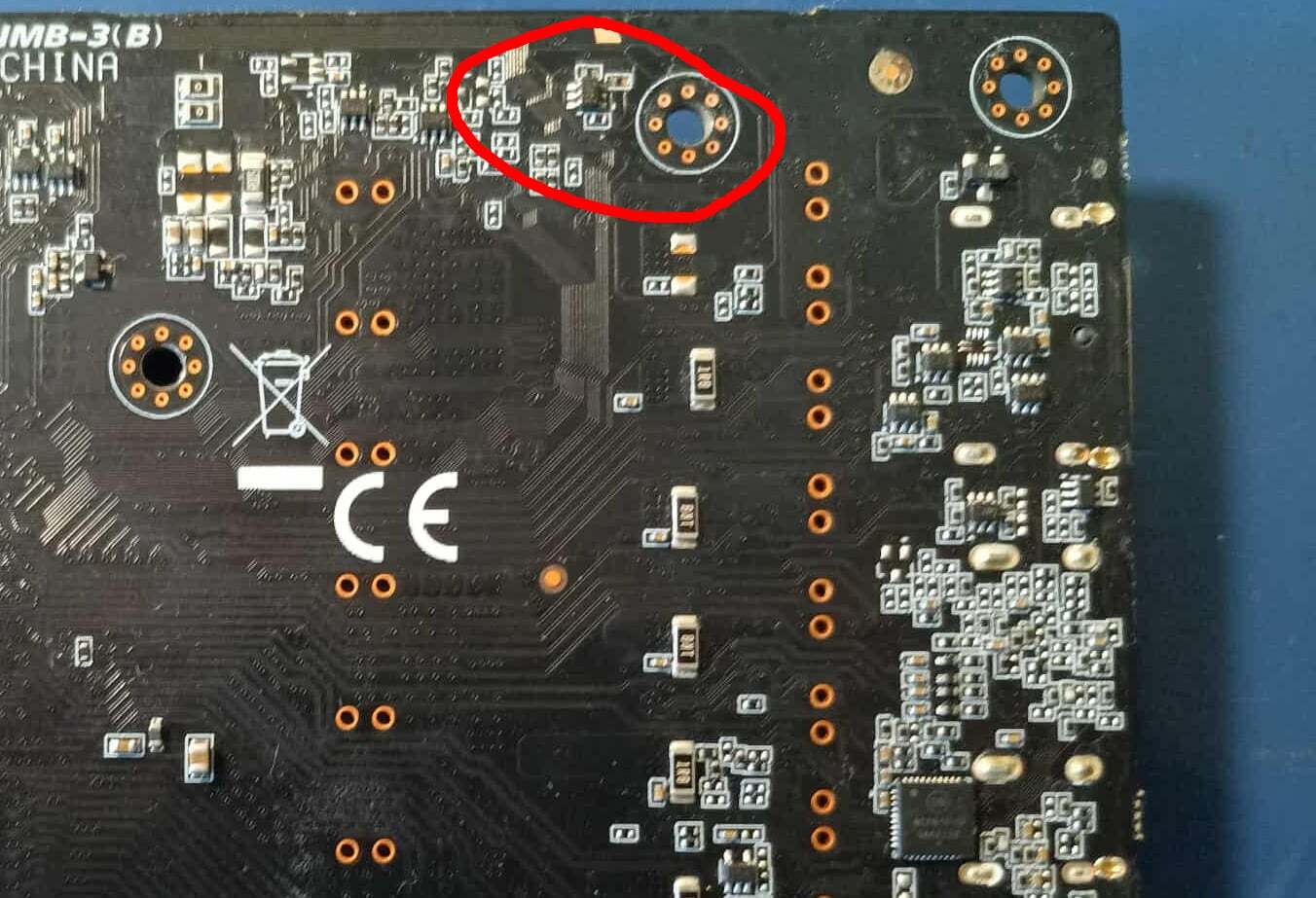

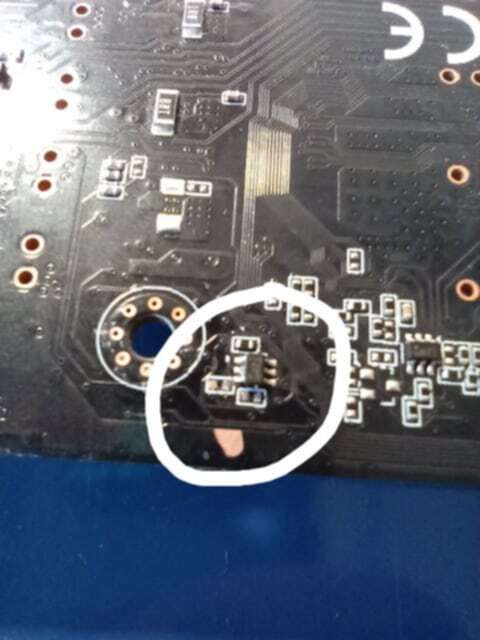

This is my PCB

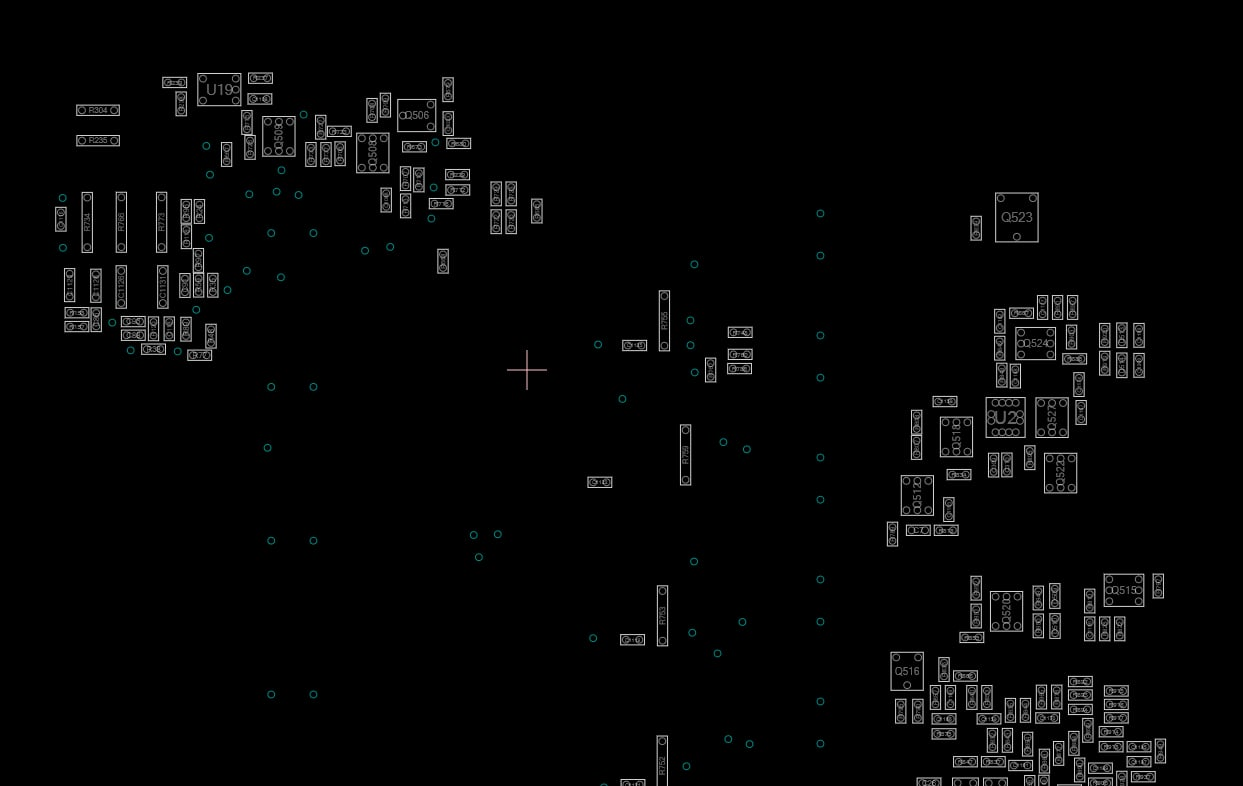

And this is screen of boardview

As you see those missing capacitors or resistors are not on boardview.
Also i compared every single transistor from boardview to real card and everything is related.
It seems that this one is like extra.

Could anyone help?
I would like to know which smd's i need to use.
