    Lenovo Tiny8 triple NVMe IQ6X0IL1 HQ670 NM-D581 Rev 0.5 M90q Gen 3 / P360 Tiny prototype board BIOS dump

    Hi, I hope this is the right place to post this. This is my first post on this forum.

    A friend helped me get a prototype Lenovo motherboard from China, it's got a hole drilled in it but I'm working on trying to revive it to some degree. I dumped the bios in hopes that it might be useful to someone, since this board is configured with the 3rd NVMe SSD slot and maybe it is useful as a reference for modding another bios to support this function. For example the M90q Gen 2 / P350's unpopulated 3rd NVMe slot footprint maybe.
    This bios dump is straight from the chip, nothing has been done to it.

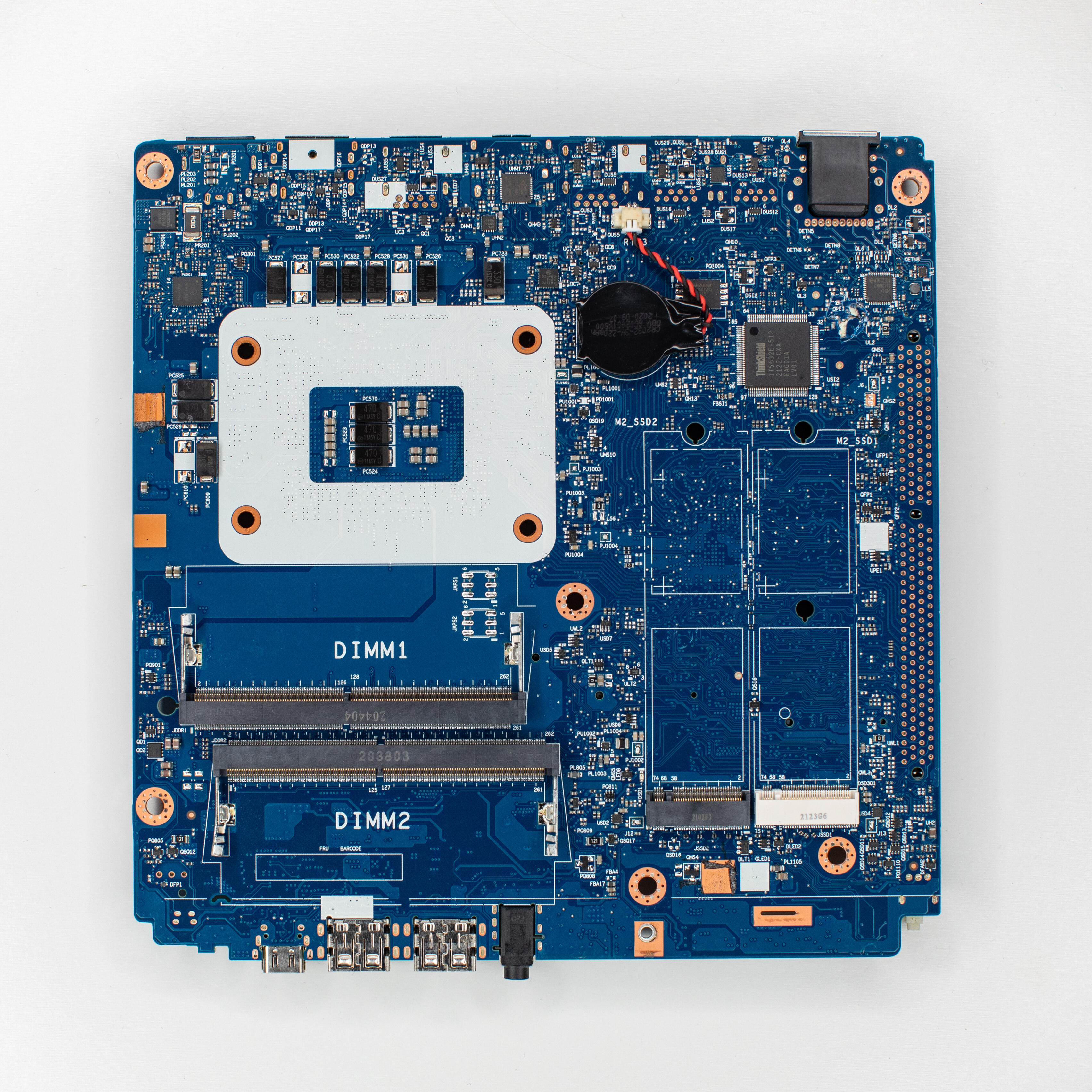

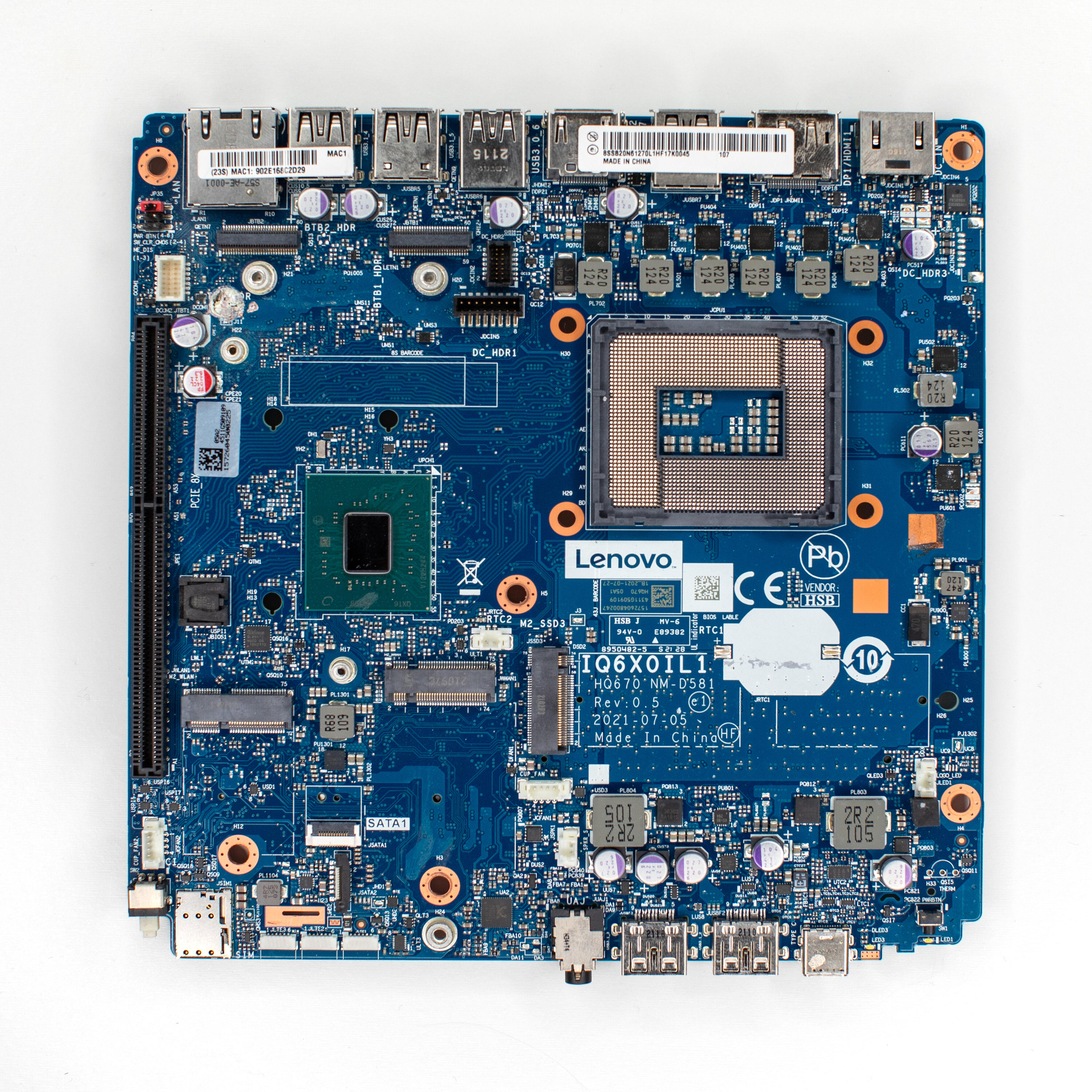

    I've also added high-resolution photos of the board taken by my friend.
    Let me know if there are any questions. I might add a dump of the EC flash later.

    If there's anyone else out there interested in messing around with these small PCs, I've been building a collection of technical information about them on github: https://github.com/a-little-wifi/TinySecrets
    I think it could be a useful resource for people working with these machines, and I'd love it if others could contribute missing information, especially schematics and boardviews for the more recent machines are very welcome.
    Thank you and I hope this helps someone!
    Attached Files
  • peste
    Super Moderator
    • Dec 2016
    • 12787
    • ROMANIA

    #2
    Originally posted by Captaincrap420
    Hi, I hope this is the right place to post this. This is my first post on this forum.

    A friend helped me get a prototype Lenovo motherboard from China, it's got a hole drilled in it but I'm working on trying to revive it to some degree. I dumped the bios in hopes that it might be useful to someone, since this board is configured with the 3rd NVMe SSD slot and maybe it is useful as a reference for modding another bios to support this function. For example the M90q Gen 2 / P350's unpopulated 3rd NVMe slot footprint maybe.
    This bios dump is straight from the chip, nothing has been done to it.

    I've also added high-resolution photos of the board taken by my friend.
    Let me know if there are any questions. I might add a dump of the EC flash later.

    If there's anyone else out there interested in messing around with these small PCs, I've been building a collection of technical information about them on github: https://github.com/a-little-wifi/TinySecrets
    I think it could be a useful resource for people working with these machines, and I'd love it if others could contribute missing information, especially schematics and boardviews for the more recent machines are very welcome.
    Thank you and I hope this helps someone!
    post the bios here..
    Due to a lack of donations, server free space at a critical level, and possible closure of Bios Requests all donations are welcome, click:

    >>>>> https://www.badcaps.net/index.php?pageid=donate1 <<<<<

    Every donation made will go towards server fees and maintenance costs.

    Comment

    • Captaincrap420
      New Member
      • Aug 2019
      • 7
      • Earth

      #3
      Originally posted by peste
      post the bios here..
      It's there as an attachment to my first post. I don't know why it was gone for a moment, but it's back now.

      Comment

      • Captaincrap420
        New Member
        • Aug 2019
        • 7
        • Earth

        #4
        Not sure what's going on, the zip attachment with the bin file seems to be randomly disappearing and reappearing. I'll attach it again here.
        Attached Files

        Comment

        • hoaca388
          Badcaps
          • Jan 2022
          • 11729
          • Socialist Republic of Vietnam

          #5
          Originally posted by Captaincrap420
          Not sure what's going on, the zip attachment with the bin file seems to be randomly disappearing and reappearing. I'll attach it again here.
          ThinkCentre M90q-3
          Attached Files


          ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
          Mọi khoản quyên góp cho badcaps đều được hoan nghênh, hãy nhấp vào liên kết này để quyên góp. Cảm ơn tất cả những người ủng hộ----------------------------------------------------------------------------------------------------------------------------------------------------------------

          Comment

          • jimmyfloyd
            New Member
            • Dec 2024
            • 1
            • United States

            #6
            This is interesting. Thanks for the work so far. i arrived here looking for options to add the second M.2 to a Lenovo M70q Gen1 (tiny6). Do you know if it is possible, or have you run across steps/parts list to add it?

            Comment
