GV-N1060WF20C-3GD

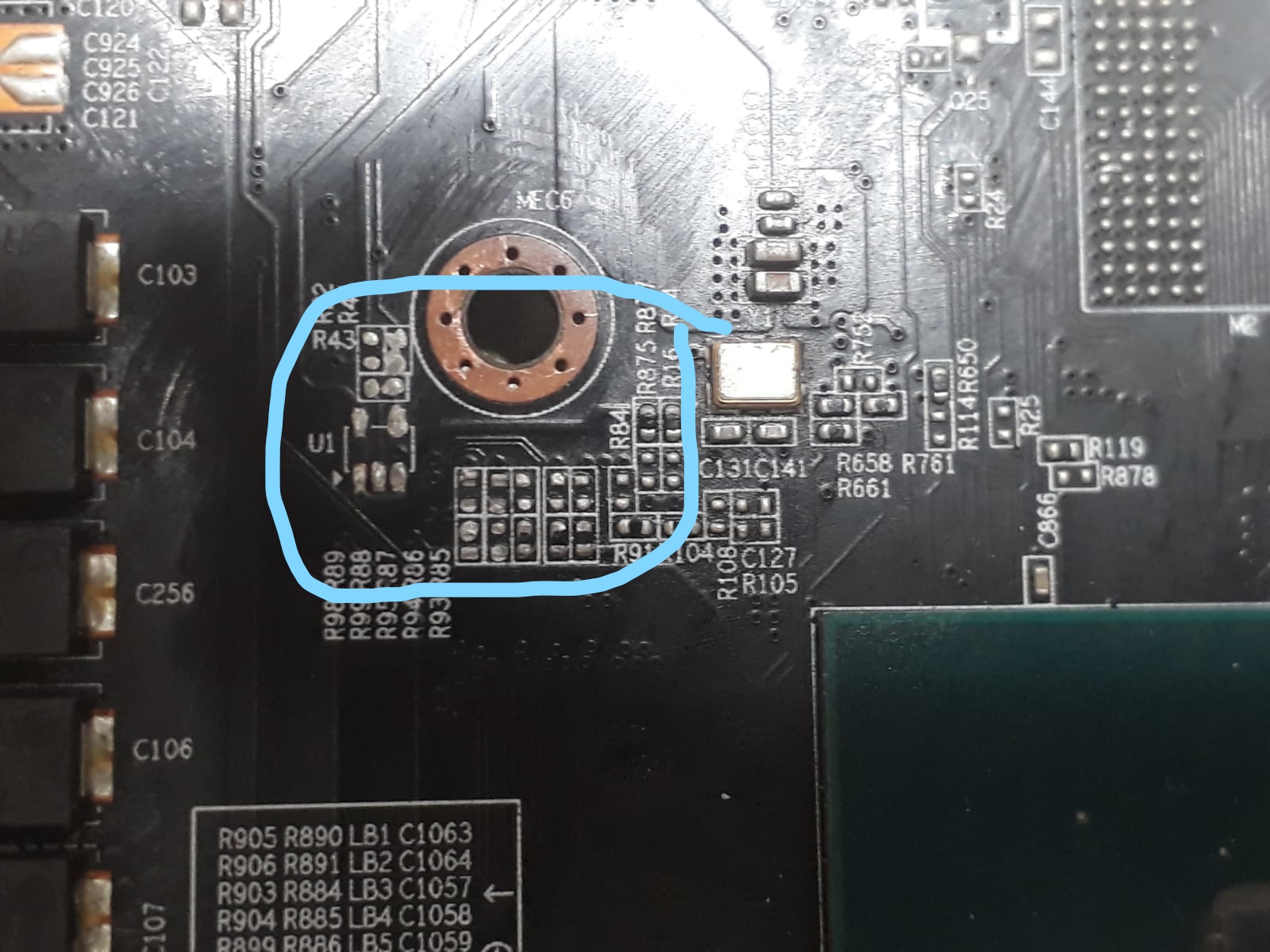

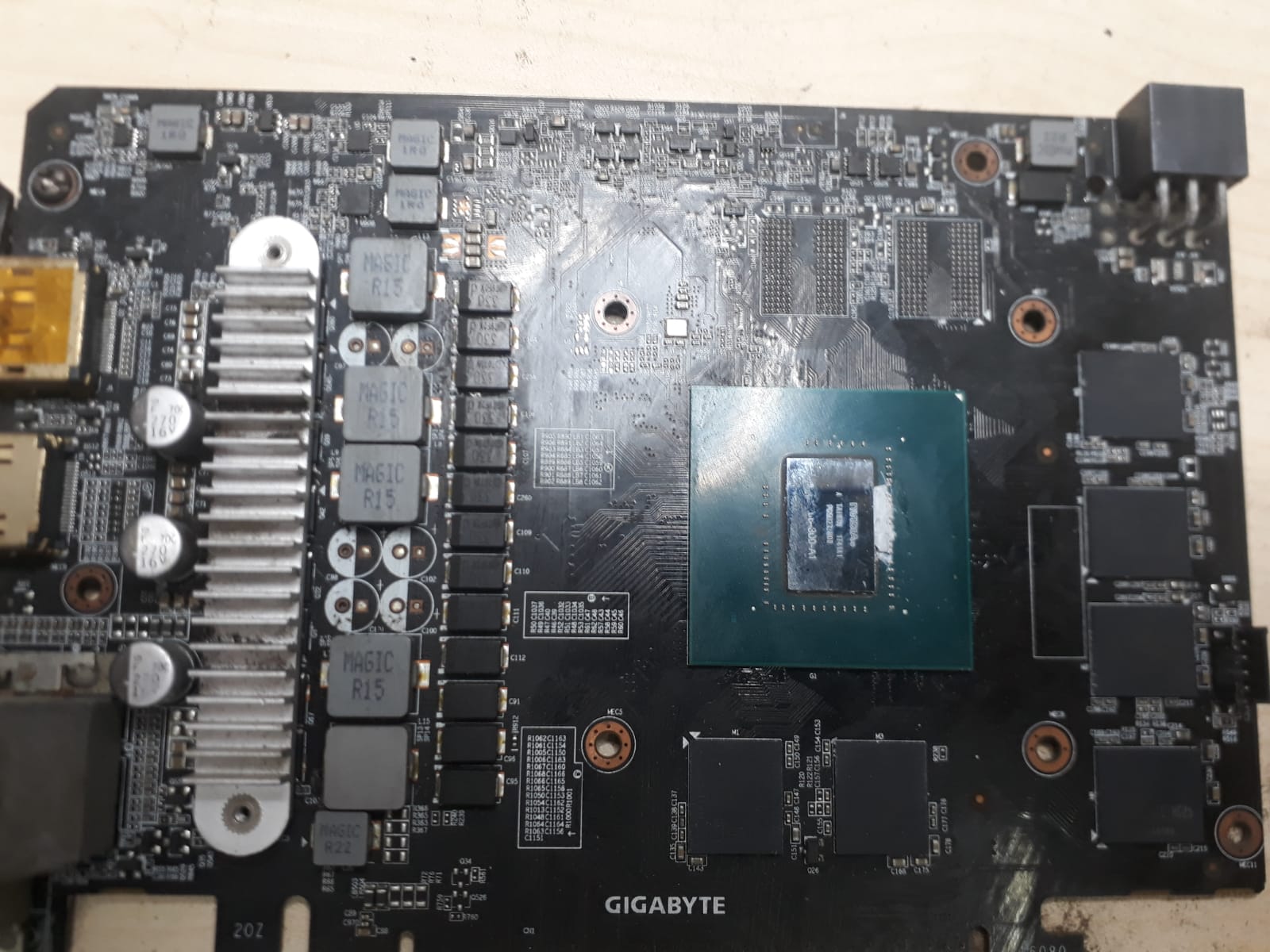

Anyone know the missing components and their value please
thanks
Anyone know the missing components and their value please
thanks
Attached Files
-
NVIDIA GeForce GTX 1060 6GB Schematic & Board View
The GeForce GTX 1060 6 GB was a performance-segment graphics card by NVIDIA, launched on July 19th, 2016. Built on the 16 nm process, and based on the GP106 graphics processor, in its GP106-400-A1 variant, the card supports DirectX 12. This ensures that all modern games will run on GeForce GTX 1060 6 GB. The GP106 graphics processor is an average sized chip with a die area of 200 mm² and 4,400 million transistors. It features 1280 shading units, 80 texture mapping units, and 48 ROPs. NVIDIA has paired 6 GB GDDR5 memory with the... -
Thermal pad thickness for various laptop GPU / Graphics Cards
ASUS Dual RTX 2070 OC 8GB
ASUS ROG STRIX RTX 3080 OC
ASUS ROG STRIX RTX 3090
ASUS TUF Gaming RTX 3080 OC Edition
ASUS TUF GTX 1660 S-O6G GAMING
EVGA RTX 3060 Ti XC GAMING 8GB
EVGA RTX 3060 XC GAMING 12GB GDDR6
EVGA RTX 3080 FTW3 ULTRA GAMING
EVGA RTX 3080 TI FTW3 ULTRA GAMING
EVGA RTX 3090 XC3 ULTRA GAMING 24GB
Gainward RTX 2080 Phoenix GS Specs
Gainward RTX 3070 Phoenix 8GB
Gainward RTX 3080 Ti Phoenix
GIGABYTE AORUS RTX 3080 MASTER 10G
...02-09-2024, 08:08 AM -
Good evening I have an old Nvidia GTX 570 from gigabyte ( GV-N570OC-13I rev. 2.0) that has some missing components and I am unable to either find or determin what component will go there.
The card is detected, gives image but you can't run any 2d or 3d workload like is not detected but the card gives a perfect image and the driver shows is loaded correctly.
If any owns this model and is able to take a photo for me to identify the components or has a schematic for it? Thank you in advance!.
...06-14-2024, 03:04 PM -
Hi friends,
anyone have a Gigabyte rtx4060ti 16G version?
Can you please help identify The missing components In The picture ?
Thanks... -
Hello all.
I am trying to repair a Gigabyte Z490 Aorus Elite AC motherboard that was roughly handled. It had some components ripped off the bottom of the board. The last two I am trying to replace are shown as CKA_FB1 and CKA_FB2 on the schematic and I think they are SMD 0402 30nH inductors to control the resonant impedance of the control rails. I have measured approximately 3.3VDC at CKVDD as per image below. On the board the still in place CKA_FB3 is 1mm x 0.5mm SMD component with a dark body.
I am not familiar with the symbols used in the schematic below if anyone...
