How do I identify capacitors like these (not mine, just example)
I cant find a chart online.
I cant find a chart online.
-
-
Re: Chip type SMT electrolytic capacitor value chart?
pics are always helpful.
if they have a logo, even better.
if not, the markings can be a clue. the pictured ones are most likely Nichicons, for example.

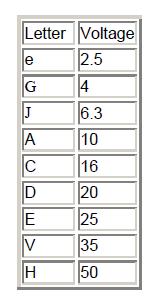

in case you just need the values, the table below works quite often.
it's always better to have a datasheet, though.Attached Files"Every normal man must be tempted at times to spit on his hands, hoist the black flag, and begin slitting throats." - H.L. Mencken -
-
Re: Chip type SMT electrolytic capacitor value chart?
I tried to get pics, but the writing is too fine.
There are 5 different caps,
1:
100
16s.
7Q8
2:
10
16s.
7I7
3:
100
16s.
7Q7
4:
10
16s.
477
5:
4.7
35s.
d87
I assume that the first row of digits must the the capacitance, might be in uf. But my assumption is not really assuring.
All of the electrolytic aluminum can types in this circuit are su'scon sl series, so maybe su'scon is where I should be looking for datasheets.Comment
-
