    Dell XPS 13 7390 2-in-1 DDP31 LF-G175P Boardview and Schematics

    I am looking for the Boardview and Schematics for my Dell XPS 13 7390 2-in-1 Motherboard: DDP31 LF-G175P Rev: 1.0(A00). It is stuck on Dell Logo, Keyboard lights working, Fans spinning continuously. Any help would be greatly appreciated.
  • SMDFlea
    Super Moderator
    • Jan 2018
    • 20695
    • UK

    #2
    Re: Dell XPS 13 7390 2-in-1 DDP31 LF-G175P Boardview and Schematics

    Originally posted by gtuser
    I am looking for the Boardview and Schematics for my Dell XPS 13 7390 2-in-1 Motherboard: DDP31 LF-G175P Rev: 1.0(A00). It is stuck on Dell Logo, Keyboard lights working, Fans spinning continuously. Any help would be greatly appreciated.
    I think LF-G175P is the model number for the fingerprint reader. Look for the model number on the motherboard.

    .
    All donations to badcaps are welcome, click on this link to donate. Thanks to all supporters

    Comment

    • gtuser
      New Member
      • Sep 2023
      • 5
      • United States

      #3
      Re: Dell XPS 13 7390 2-in-1 DDP31 LF-G175P Boardview and Schematics

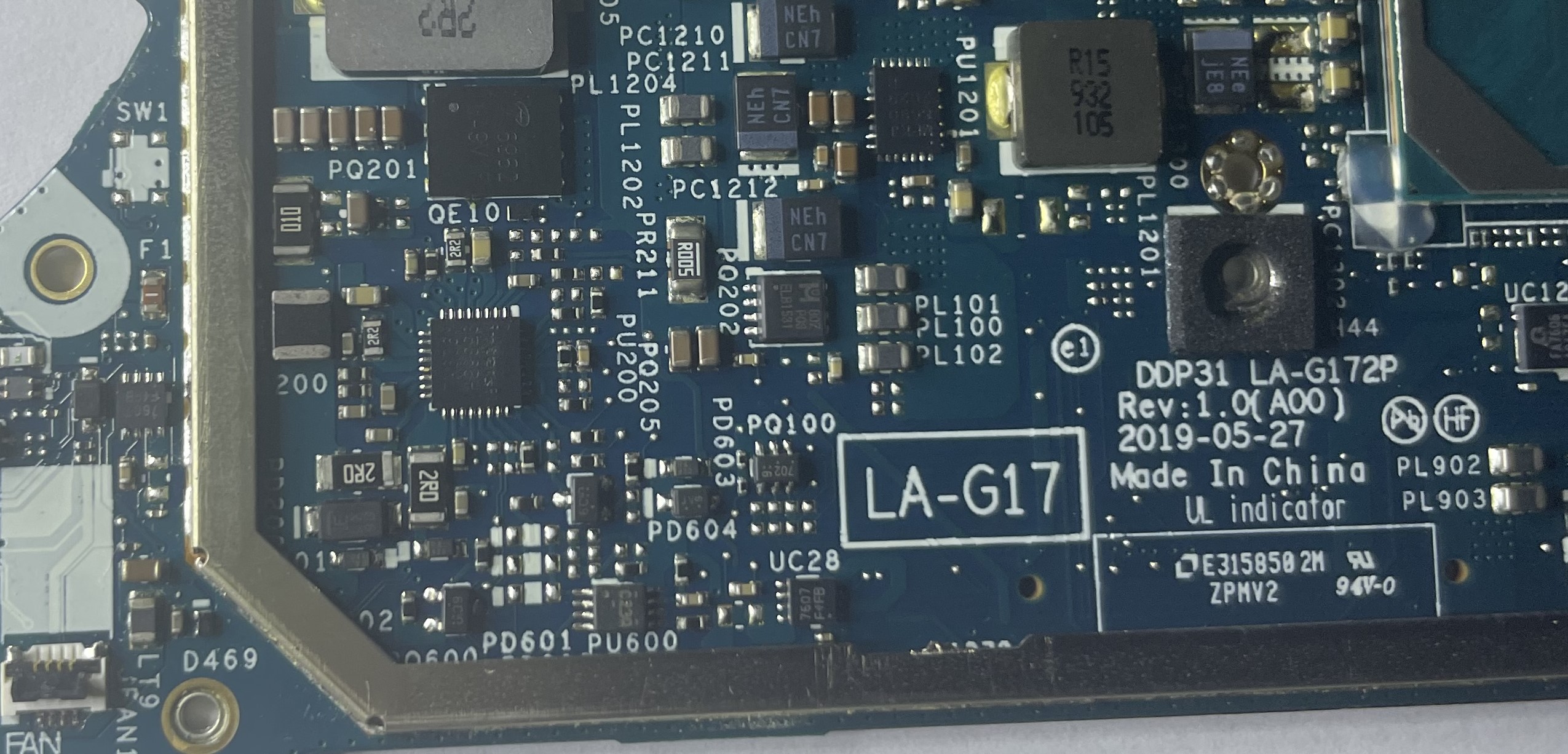

      You are right. The motherboard model number is DDP31 LA-G172P Rev: 1.0(A00), which I now see is discussed in another thread and has the Boardview diagram and schematics. Thanks for catching that.

      Comment

      • gtuser
        New Member
        • Sep 2023
        • 5
        • United States

        #4
        Re: Dell XPS 13 7390 2-in-1 DDP31 LA-G172P Boardview and Schematics

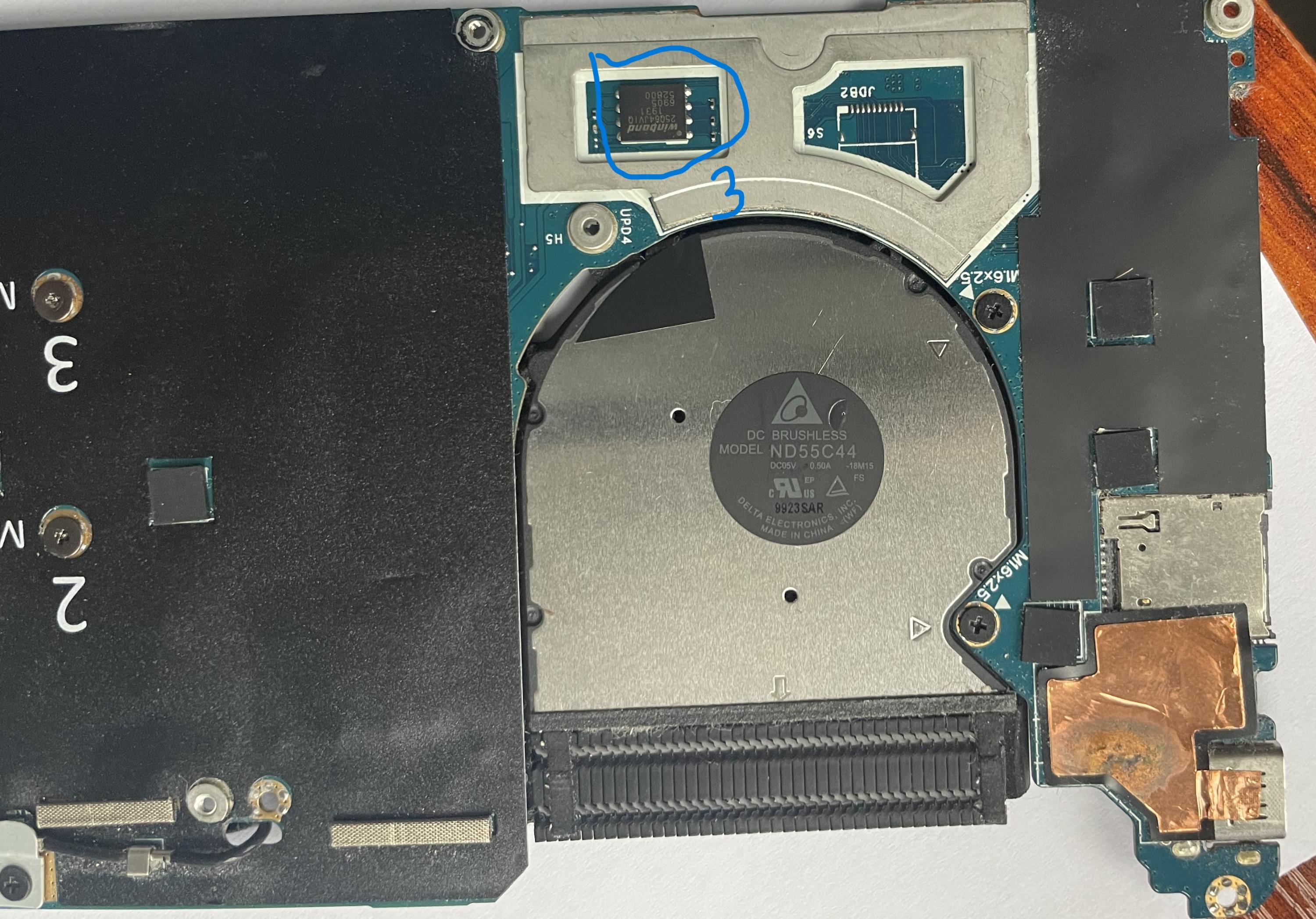

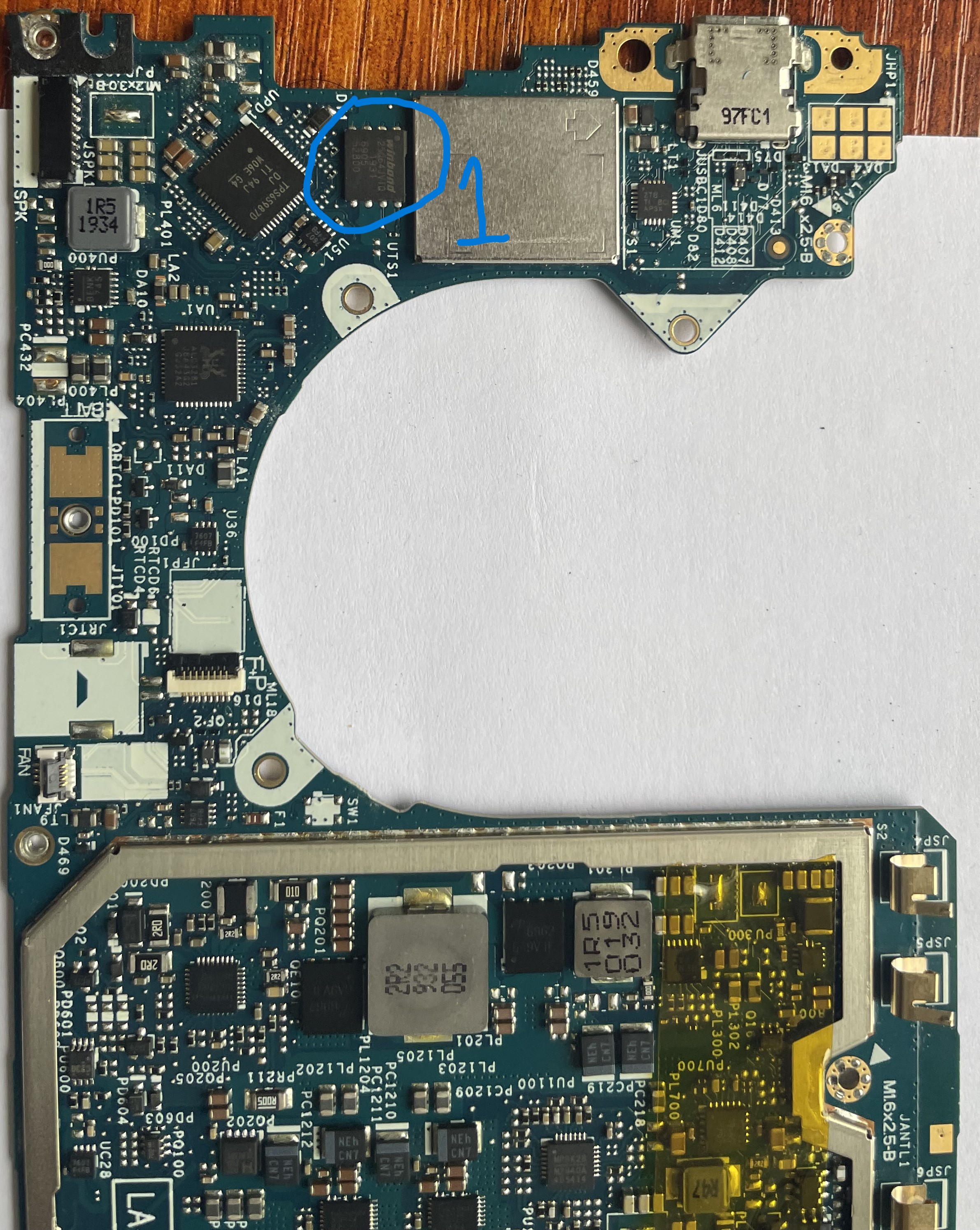

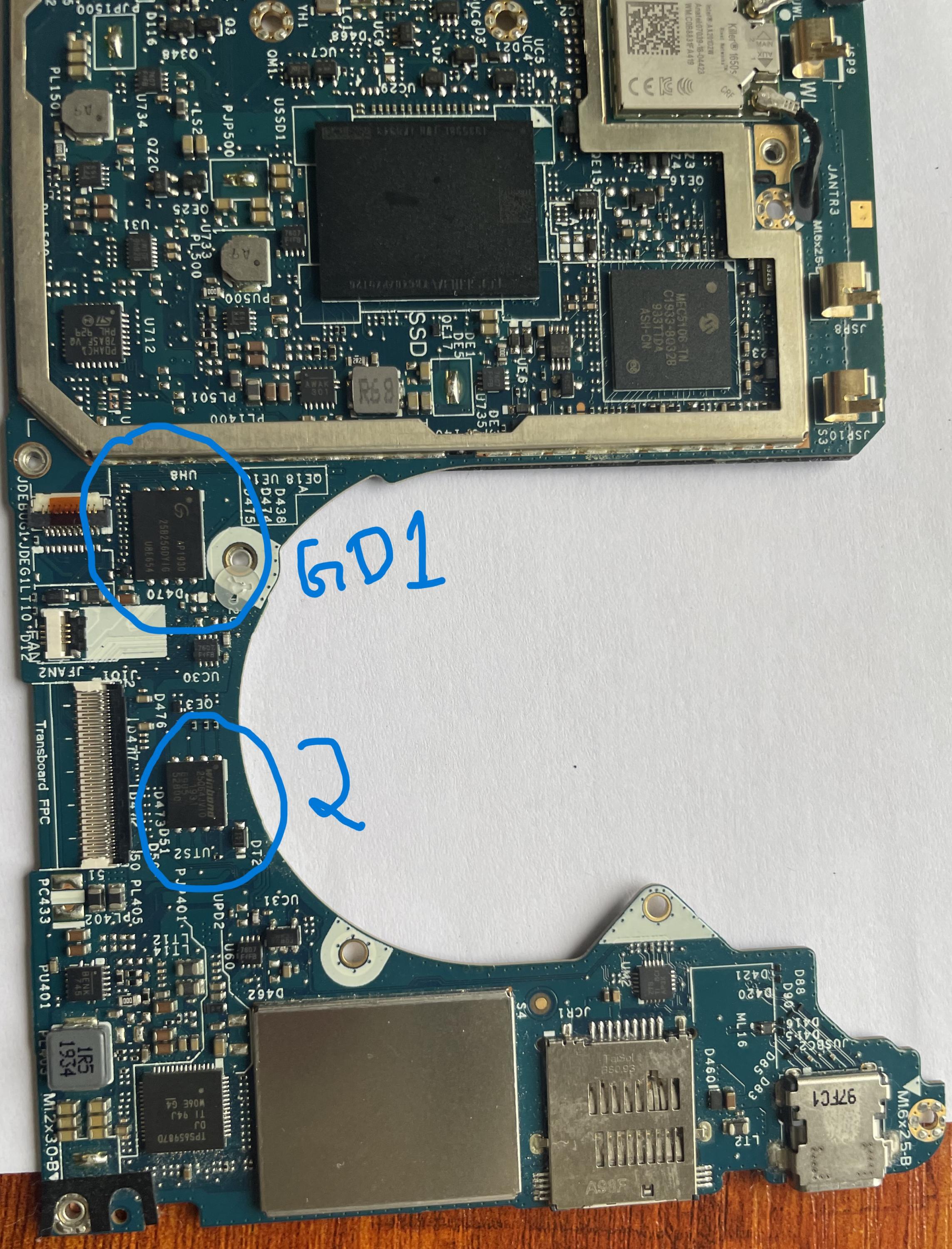

        As per the schematics of DDP31 LA-G172P, there is supposed to be Winbond W25Q256JVEIQ_WSON8_8X6 32MB SPI ROM chip at UH8, but in my motherboard of the same model I see Gigadevice 25B256DYIGR 32MB at UH8. I also see three other Winbond chips 25Q64JVIQ of 8MB at different locations in the motherboard. Do I flash the Gigadevice 25B256DYIGR with new BIOS? I have enclosed some photos for reference.
        Attached Files

        Comment

        • Maxamax
          Student
          • Feb 2024
          • 6
          • Switzerland

          #5
          Have you figured out which chip contains the BIOS ?
          I'm having the same problem right now.

          Comment
