    Dell XPS Model PP25L

    Hello,

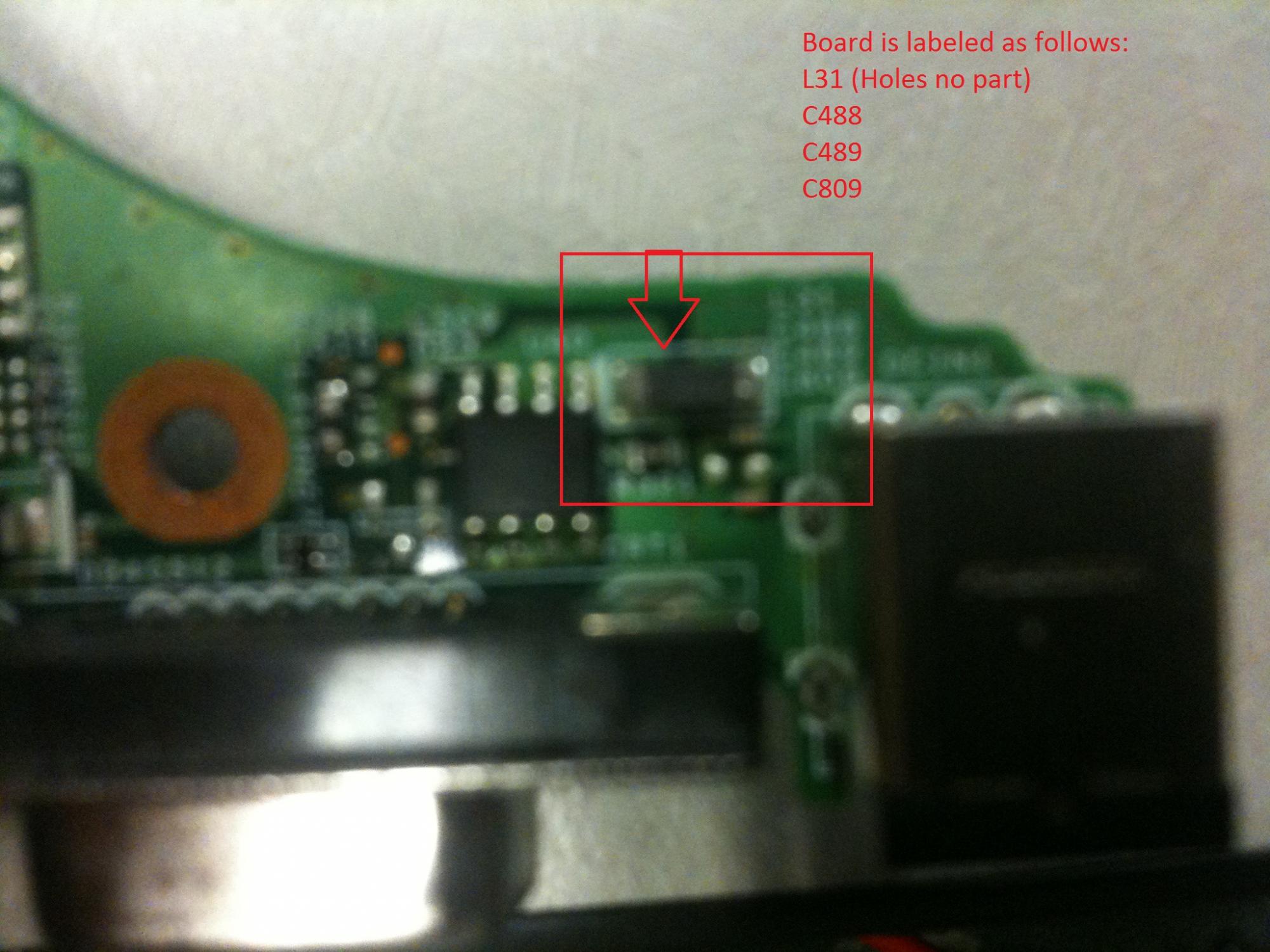

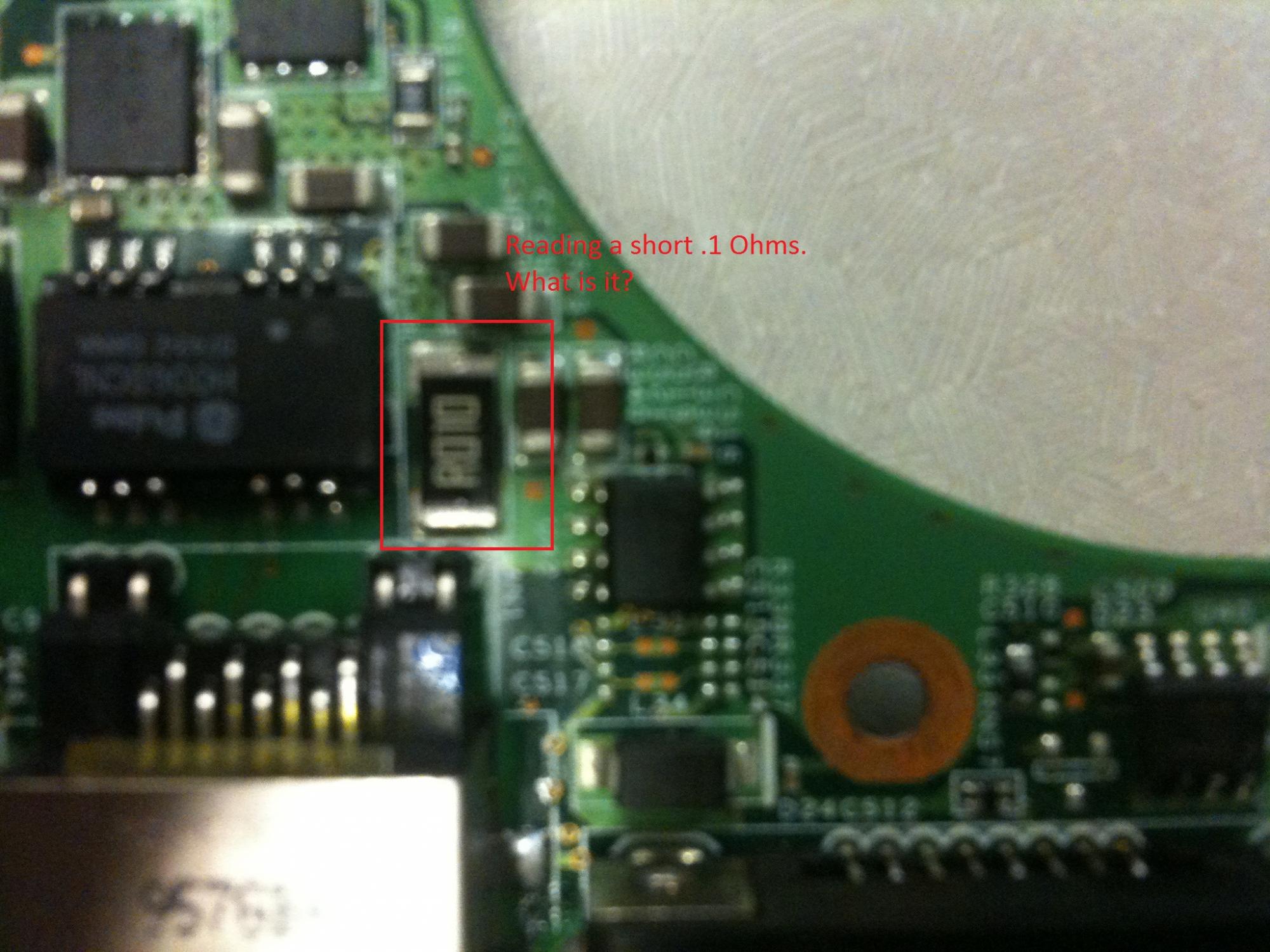

    Does anyone have the schematics for a Dell XPS Model PP25L. I beleive I have found two problems but need to narrow it down. I basicaly need the value of a resistor and a CAP. Please see attached files.
    Attached Files
    Tags: None
    • fddizon
      Badcaps Veteran
      • Sep 2011
      • 555
      • Philippines
      #2
      Re: Dell XPS Model PP25L

      hi,

      sample label and values of smd resistors


      6R8= 6.8 Ohm
      100= 10 Ohm
      750= 75 Ohm
      101= 100 Ohm
      164= 160000 = 160 Kilo Ohm
      472= 4.7 Kilo Ohm
      1200= 120 Ohm
      1201=1200 Ohm= 1.2 Kilo Ohm
      1001=1000 Ohm= 1 Kilo Ohm
      2000= 200 Ohm
      1182= 11800= 11.8 Kilo ohm
      1003= 1000000= 1 Mega Ohm

      does resistor shorts?

      a.occasionally resistors short out especially at hi frequency hi voltage due to external contamination. But usually resistors open up or change to a hi value due to power overstress

      Read more: http://wiki.answers.com/Q/When_do_re...#ixzz1beMzC0nN
