This specification for the DELL XPS 9560 Notebook can be useful for upgrading or repairing a laptop that is not working. As a community we are working through our specifications to add valuable data like the 9560 boardview and 9560 schematic. Our users have donated over 1 million documents which are being added to the site. This page will be updated soon with additional information. Alternatively you can request additional help from our users directly on the relevant badcaps forum. Please note that we offer no warranties that any specification, datasheet, or download for DELL XPS 9560 Notebook is accurate, safe, error free, or the fix you require.
Design > Brand: DELL
Design > Family: XPS
Design > Form Factor: Clamshell
Design > Housing Material: Aluminum, Carbon fiber
Design > Market Positioning: Business
Design > Model Name: 9560
Design > Part Number: 9560-9234
Design > Product Colour: Black, Silver
Design > Product Type: Notebook
Design > Release Date: 30/08/2018
Design > Series: 15
Display > Aspect Ratio: 0.672916667
Display > Display Bezel Technology: InfinityEdge
Display > Display Brightness: 350 cd/m^2
Display > Display Diagonal: 15.6 inch
Display > Display Glass Type: Gorilla Glass
Display > Display Resolution: 3840x2160 pixels
Display > Display Surface: Matt
Display > HD Type: 4K Ultra HD
Display > LED Backlight: Yes
Display > Panel Type: IGZO
Display > Pixel Pitch: 0.09 x 0.09mm
Display > Touch Technology: Multi-touch
Display > Touchscreen: Yes
Display > Touchscreen Type: Capacitive
Graphics > Discrete Graphics Adapter: Yes
Graphics > Discrete Graphics Adapter Memory: 4GB
Graphics > Discrete Graphics Adapter Model: NVIDIA GeForce GTX 1050
Graphics > Discrete Graphics Memory Type: GDDR5
Graphics > Maximum On-board Graphics Adapter Memory: 64GB
Graphics > Number Of Discrete Graphics Adapters Installed: 1
Graphics > On-board Graphics Adapter: Yes
Graphics > On-board Graphics Adapter Base Frequency: 350MHz
Graphics > On-board Graphics Adapter DirectX Version: 12
Graphics > On-board Graphics Adapter DirectX Version2: 12
Graphics > On-board Graphics Adapter Dynamic Frequency (max): 1100MHz
Graphics > On-board Graphics Adapter Family: Intel HD Graphics
Graphics > On-board Graphics Adapter Model: Intel HD Graphics 630
Graphics > On-board Graphics Adapter OpenGL Version: 4
Specification > Display Diagonal: 15.6 inch
Specification > Graphics: Intel HD Graphics 630
Specification > Internal Memory: 16GB DDR4-SDRAM
Specification > Processor: i7-7700HQ 2.8GHz
Specification > Storage: 512GB SSD
Specification > Weight: 2.06kg
Memory > Internal Memory: 16GB
Memory > Internal Memory Type: DDR4-SDRAM
Memory > Maximum Internal Memory: 32GB
Memory > Maximum Internal Memory (64-bit): 32GB
Memory > Memory Clock Speed: 2400MHz
Memory > Memory Form Factor: SO-DIMM
Memory > Memory Slots: 2x SO-DIMM
Memory > Memory Upgrade Note: Additional memory sold separately
Processor > Motherboard Chipset: HM175 Express
Processor > Processor Boost Frequency: 3.8GHz
Processor > Processor Cache: 6MB
Processor > Processor Codename: Kaby Lake
Processor > Processor Cores: 4
Processor > Processor Family: 7th gen Intel Core i7
Processor > Processor Frequency: 2.8GHz
Processor > Processor Lithography: 14nm
Processor > Processor Manufacturer: Intel
Processor > Processor Model: i7-7700HQ
Processor > Processor Series: Intel Core i7-7700 Mobile Series
Processor > Processor Socket: BGA1440
Processor > Processor Threads: 8
Processor > Thermal Design Power (TDP): 45W
Product Code: 9560-9234
Audio > Audio Chip: Realtek ALC3266
Audio > Audio System: MaxxAudio Pro
Audio > Built-in Microphone: Yes
Audio > Number Of Built-in Speakers: 2
Audio > Speaker Power: 2W
Audio > Speakers Manufacturer: Waves
Battery > Battery Charge Indicator: Yes
Battery > Battery Recharge Time: 4 h
Battery > Battery Technology: Lithium-Ion (Li-Ion)
Battery > Battery Voltage: 11.4V
Battery > Number Of Battery Cells: 6
Camera > Front Camera: Yes
Camera > Front Camera HD Type: HD
Camera > Front Camera Resolution: 1280x720 pixels
Camera > Front Camera Resolution (numeric): 0.92MP
Camera > Front Camera Signal Format: 720p
Camera > Video Capturing Speed: 30 fps
Keyboard > Full-size Keyboard: Yes
Keyboard > Keyboard Backlit: Yes
Keyboard > Keyboard Language: UK English
Keyboard > Numeric Keypad: No
Keyboard > Pointing Device: Touchpad
Keyboard > Windows Keys: Yes
Networking > Bluetooth: Yes
Networking > Bluetooth Version: 4.2
Networking > Ethernet LAN: No
Networking > Top Wi-Fi Standard: Wi-Fi 5 (802.11ac)
Networking > Wi-Fi: Yes
Networking > Wi-Fi Standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking > WLAN Controller Model: Killer Wireless-AC 1535
Optical Drive > Optical Drive Type: No

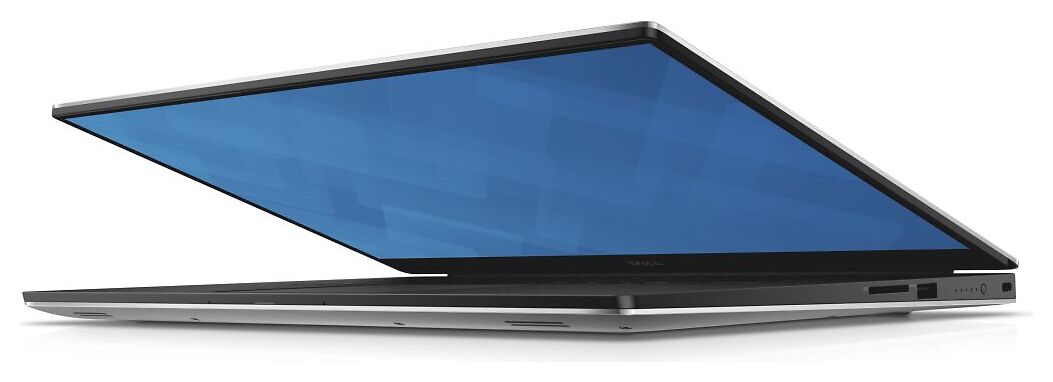

Ports & Interfaces > Charging Port Type: DC-in jack
Ports & Interfaces > Combo Headphone/mic Port: Yes
Ports & Interfaces > DC-in Jack: DC-in jack
Ports & Interfaces > DVI Port: No
Ports & Interfaces > HDMI Ports Qty: 1
Ports & Interfaces > HDMI Version: 1.4
Ports & Interfaces > USB 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Qty: 2
Ports & Interfaces > USB Power Delivery: Yes
Power > AC Adapter Frequency: 50 - 60Hz
Power > AC Adapter Input Voltage: 100 - 240V
Power > AC Adapter Output Current: 6.67A
Power > AC Adapter Output Voltage: 19.5V
Power > AC Adapter Power: 130W
Security > Cable Lock Slot: Yes
Security > Cable Lock Slot Type: Kensington
Security > Password Protection: Yes
Software > Bundled Software: Financial Tracker & Retail Information
Software > Operating System Architecture: 64-bit
Software > Operating System Installed: Windows 10 Home
Software > Operating System Language: English
Software > Trial Software: Microsoft Office, McAfee Live Safe
Storage > Card Reader Integrated: Yes
Storage > Compatible Memory Cards: SD, SDHC, SDXC
Storage > Number Of SSDs Installed: 1
Storage > SSD Capacity: 512GB
Storage > SSD Interface: PCI Express
Storage > Storage Media: SSD
Storage > Total Storage Capacity: 512GB
Weight And Dimensions > Depth: 235mm
Weight And Dimensions > Height (front): 1.1 cm
Weight And Dimensions > Height (rear): 1.7 cm
Weight And Dimensions > Weight: 2.06kg
Weight And Dimensions > Width: 357mm
DELL XPS 9560 Notebook 15 Specification for Upgrade or Repair
