TV regulator ic part number AS1117L

[Duranitron]

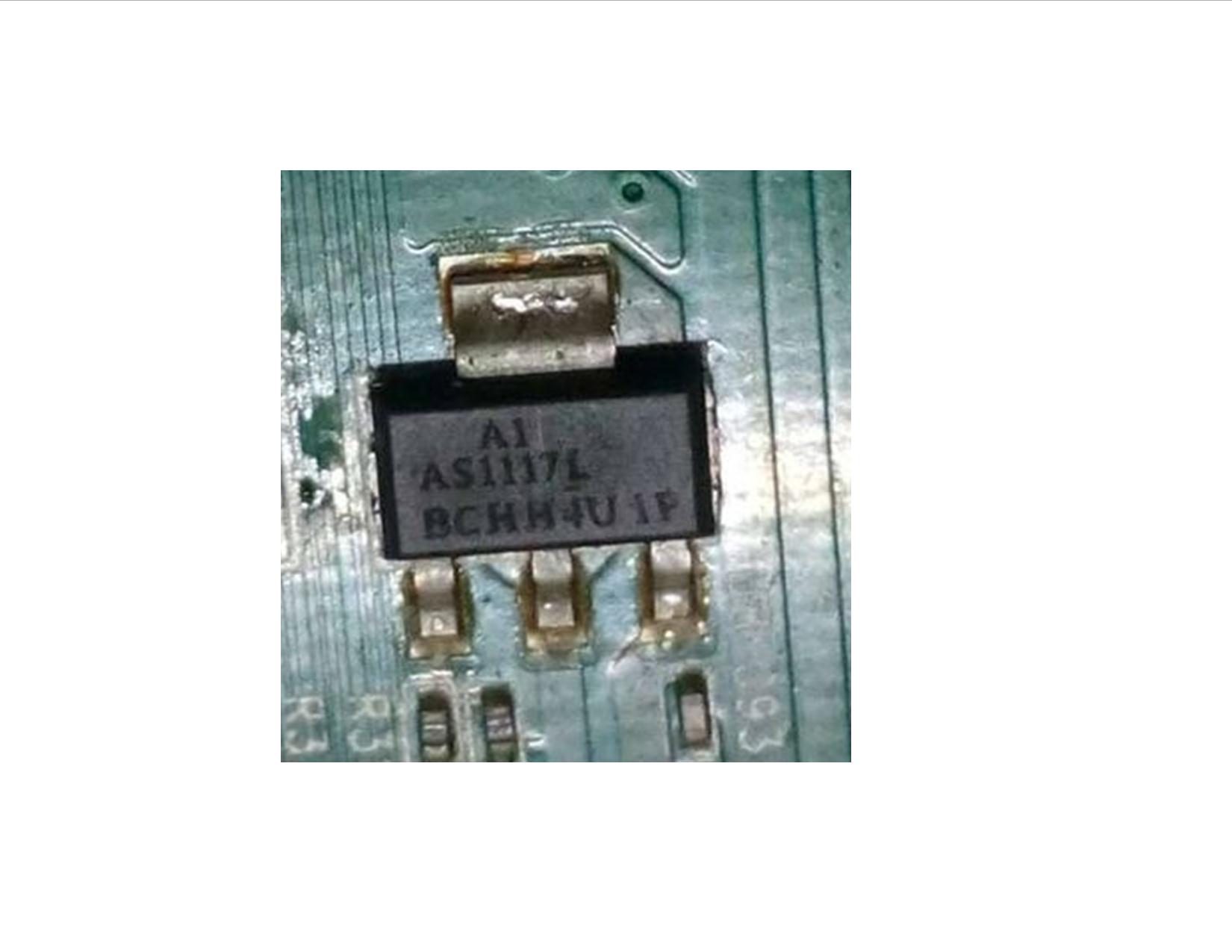

question of this ic AS1117L... i research it that its a regulator ic but the problem is no specific datasheet shows what the output of this regulator is.. as i measure it.. pin 1 is ground, pin 2 out =1.5v , pin 3 in=5v
i don't know if the out is correct . there is no marking in the ic itself.

any suggestion or answer to this.. highly appreciate it.. thanks in advance..

[stj]

Re: TV regulator ic part number AS1117L

it's a variable output part,

[budm]

Re: TV regulator ic part number AS1117L

it's a variable output part,

+1

https://www.badcaps.net/forum/showth...999#post300999

[rustybronco]

Re: TV regulator ic part number AS1117L

https://www.badcaps.net/forum/showpo...91&postcount=7

[Duranitron]

Re: TV regulator ic part number AS1117L

so 1.54vdc is way to high? thanks..

[budm]

Re: TV regulator ic part number AS1117L

You need to look at those two resistor network connected to the ADJ pin to find out what the Output Voltage should be based on the value of those two resistors.
