    Repairing a Timing Controller TCON board for 47LM4600

    Hi folks,

    Just replaced a defective TCON card and my TV is back to life. Great, but I'm trying to fix the TCON board

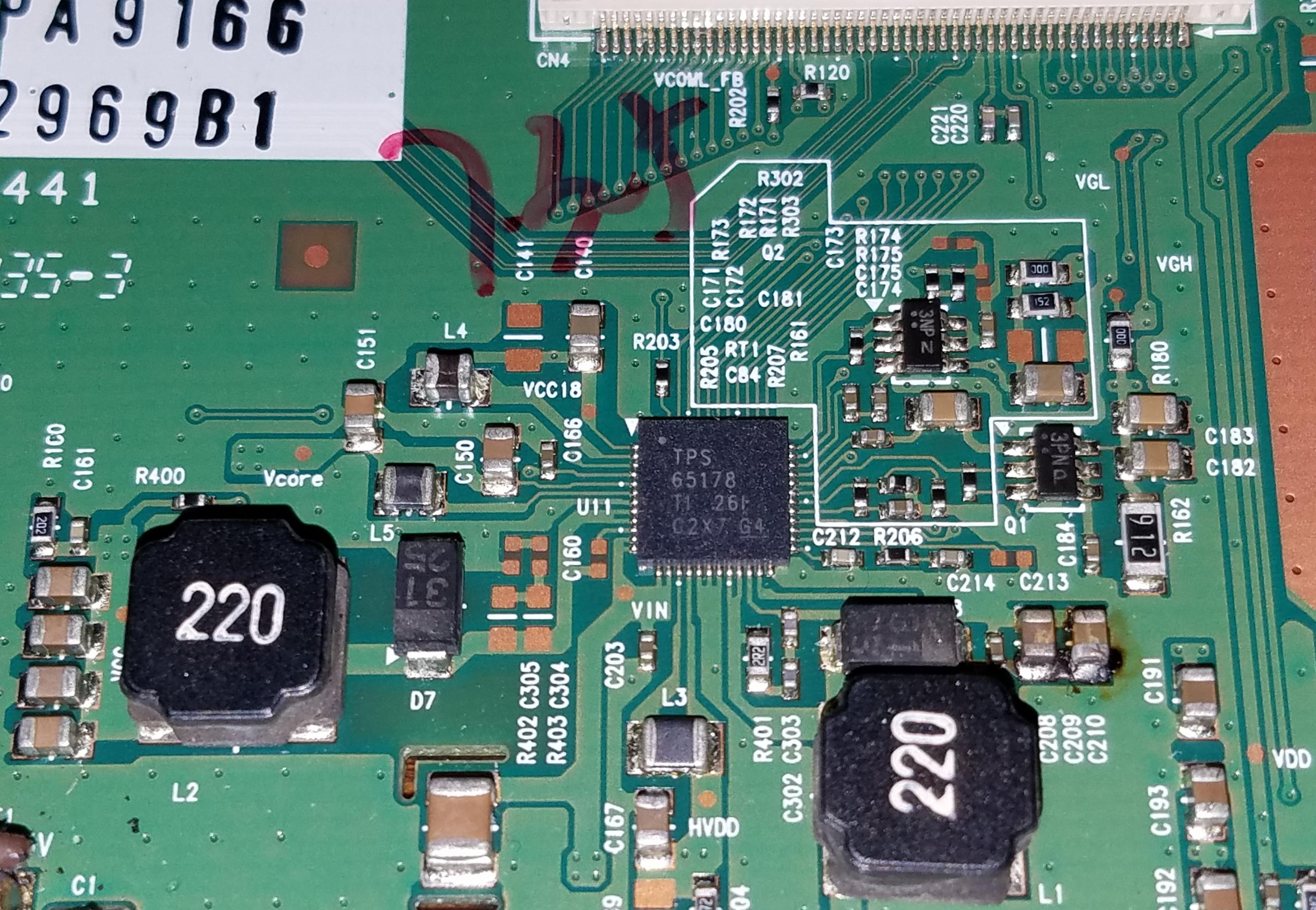

    The board has a dead-short on it. Testing diodes in the power supply circuit region, one seems "Short" and the other not identified as a Diode by my meter.

    By any chance, does anyone have a schematic for that board?

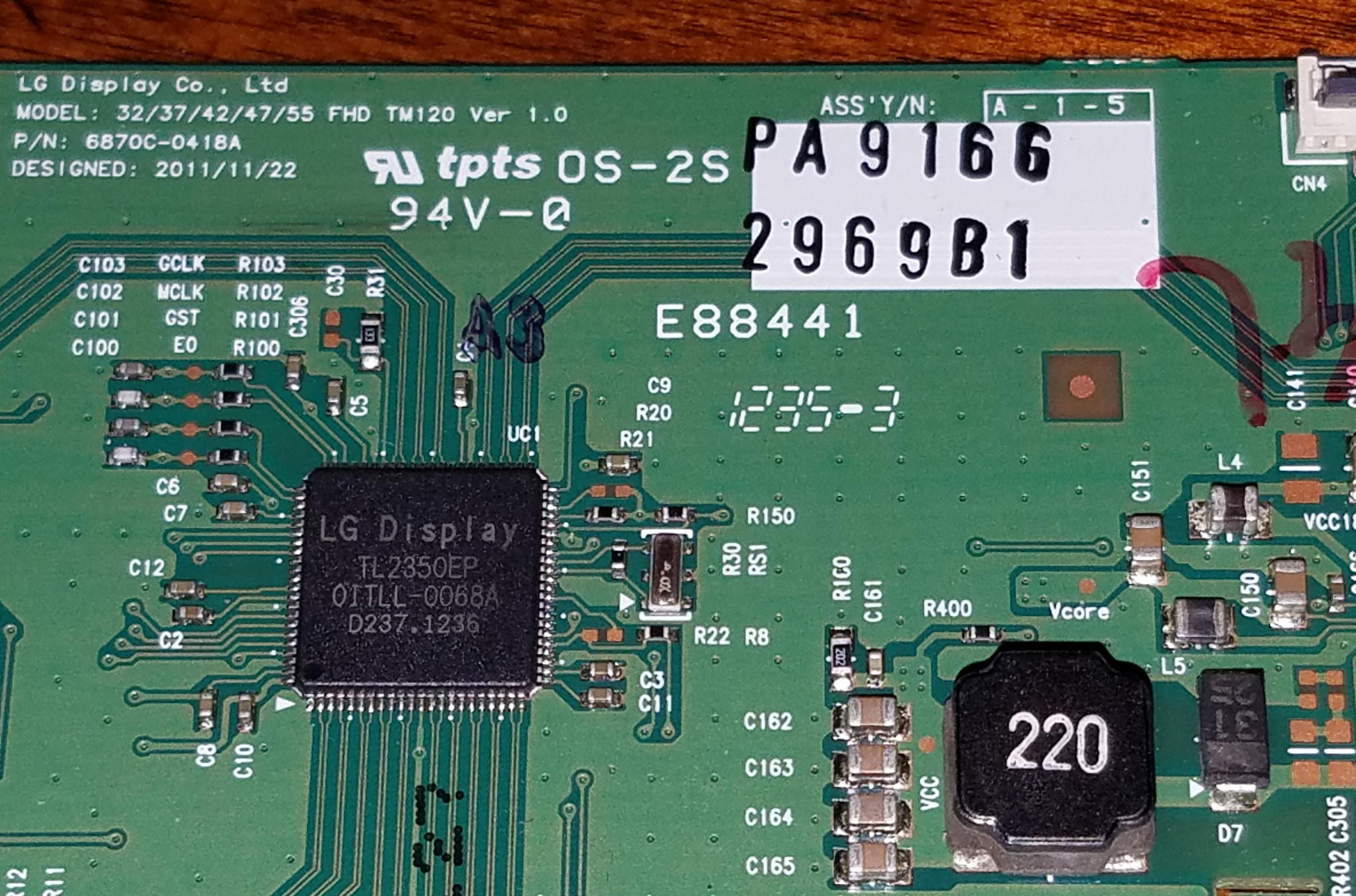

    it's 6870C-0148A or 6871L-2969B

    The Diode has a marking of 31 25 on it. Looked everywhere and I can't find a replacement for it, or what the specs are. Any help is much appreciated.
