Samsung UN48H8000AFXZA No picture Has Sound

[attainteddragon]

Re: Samsung UN48H8000AFXZA No picture Has Sound

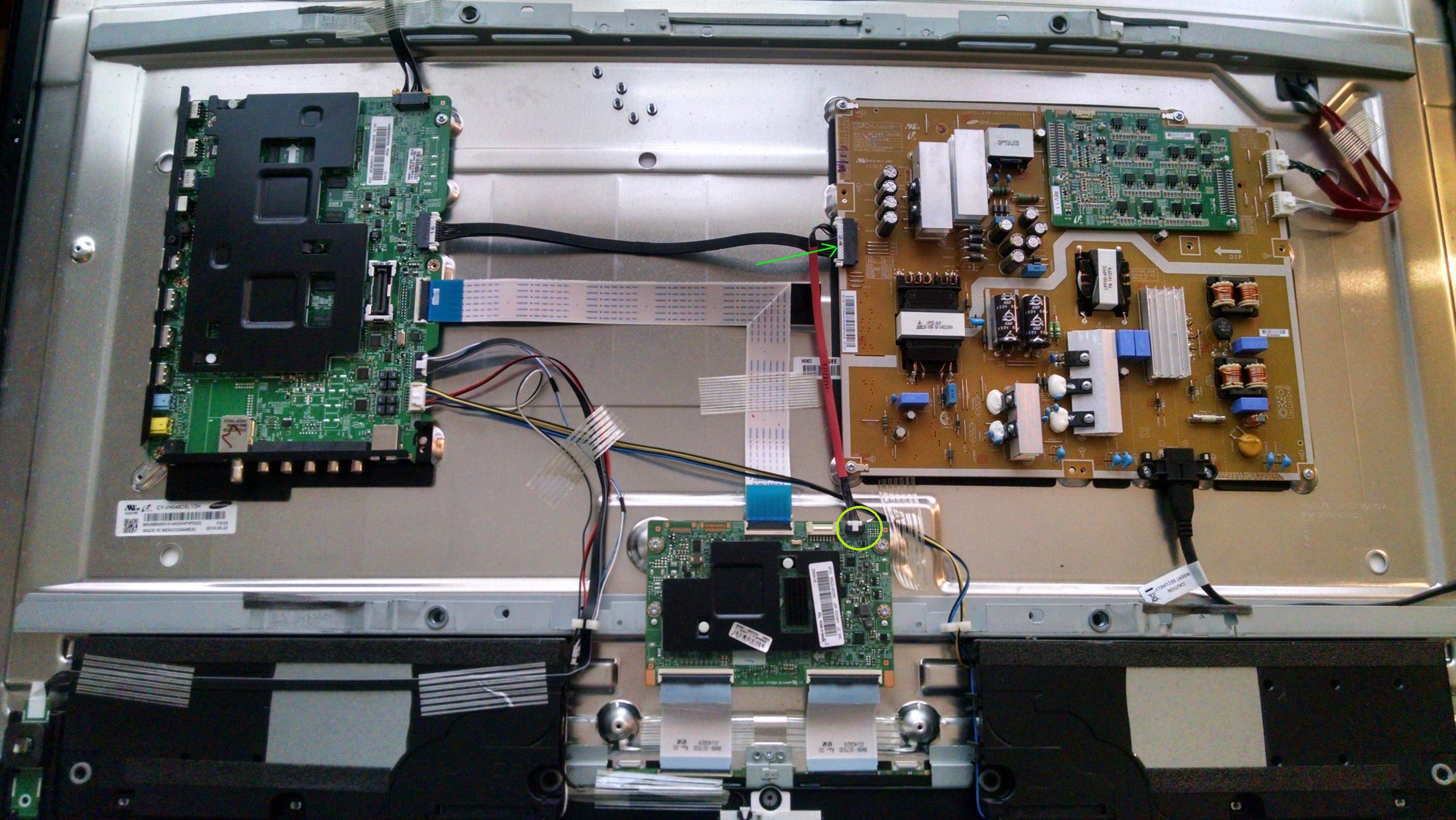

this may not show anything up, but could you do a resistance check on each pin (to chassis ground) of the connector that i have highlighted. no power applied. just take note that there is an earth wire in this loom, so one pin will have low ohms.

[budm]

Re: Samsung UN48H8000AFXZA No picture Has Sound

I just notice that it is one of those LCD panel with tab bonding board on the bottom edge of the LCD panel that usually gets damaged by cleaning fluid.

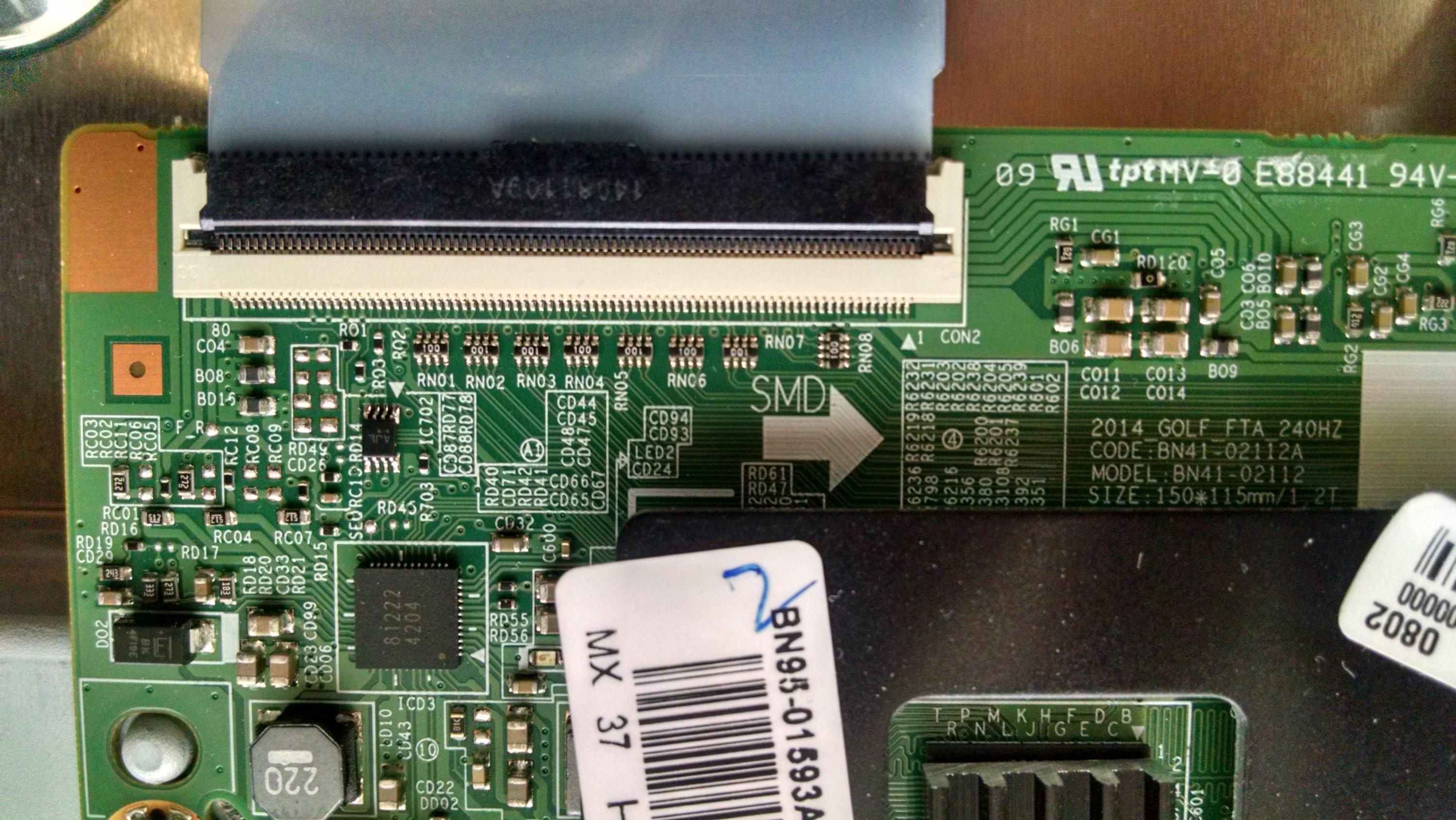

I would to see good straight shot pictures of the T-CON, there may be some Voltage test points that you need to check such as VGH, VGL, VDD, etc.

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

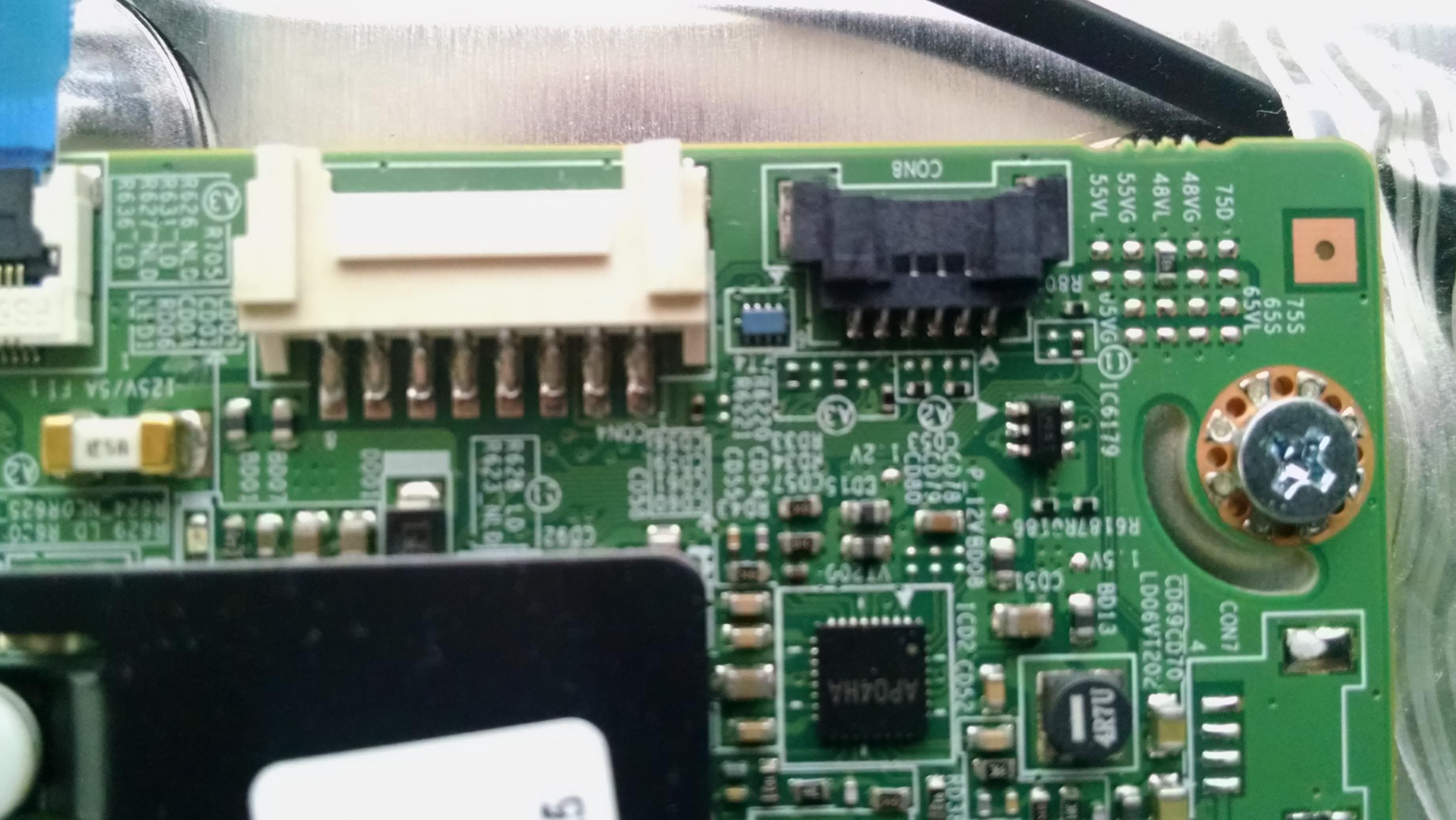

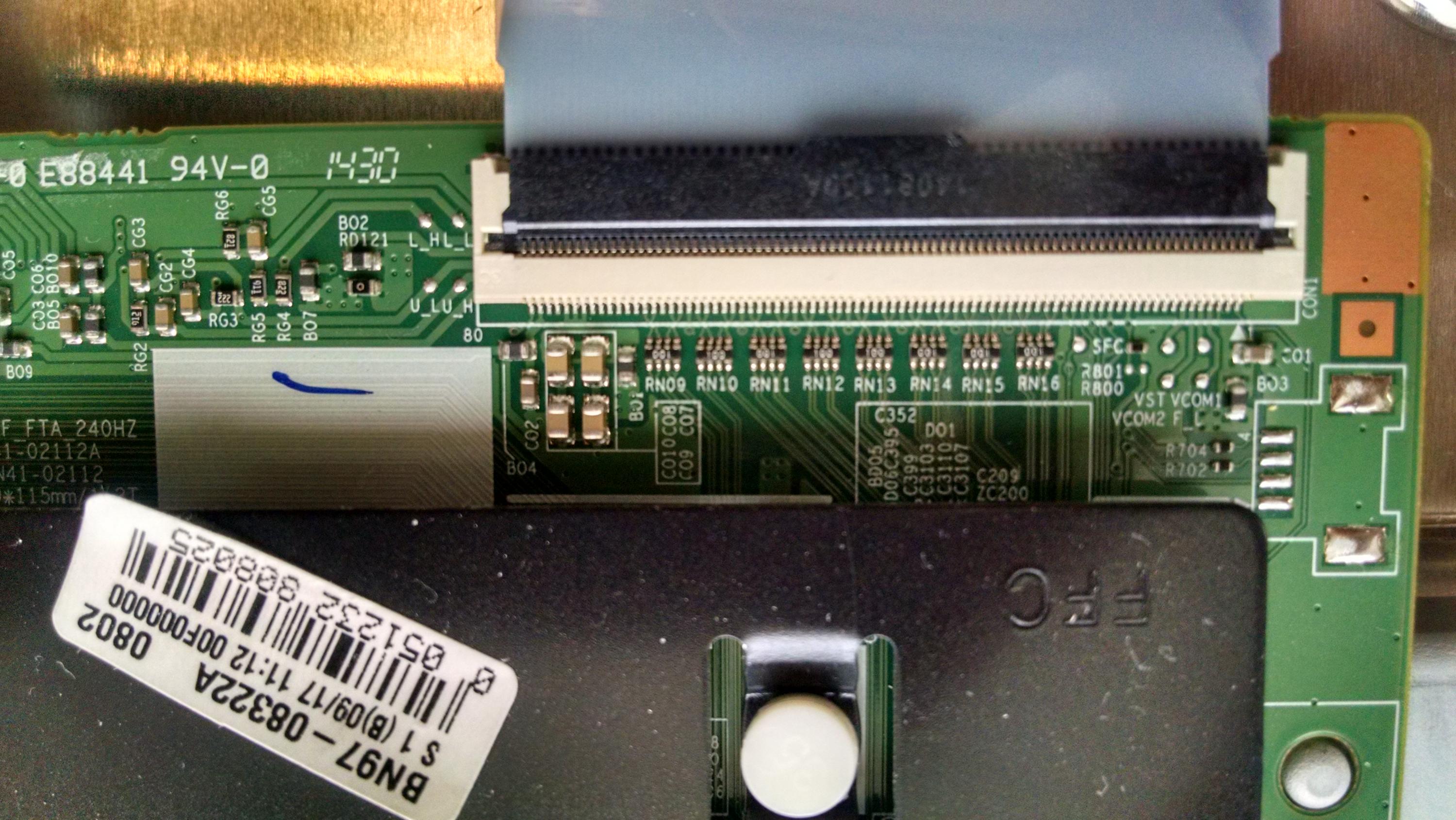

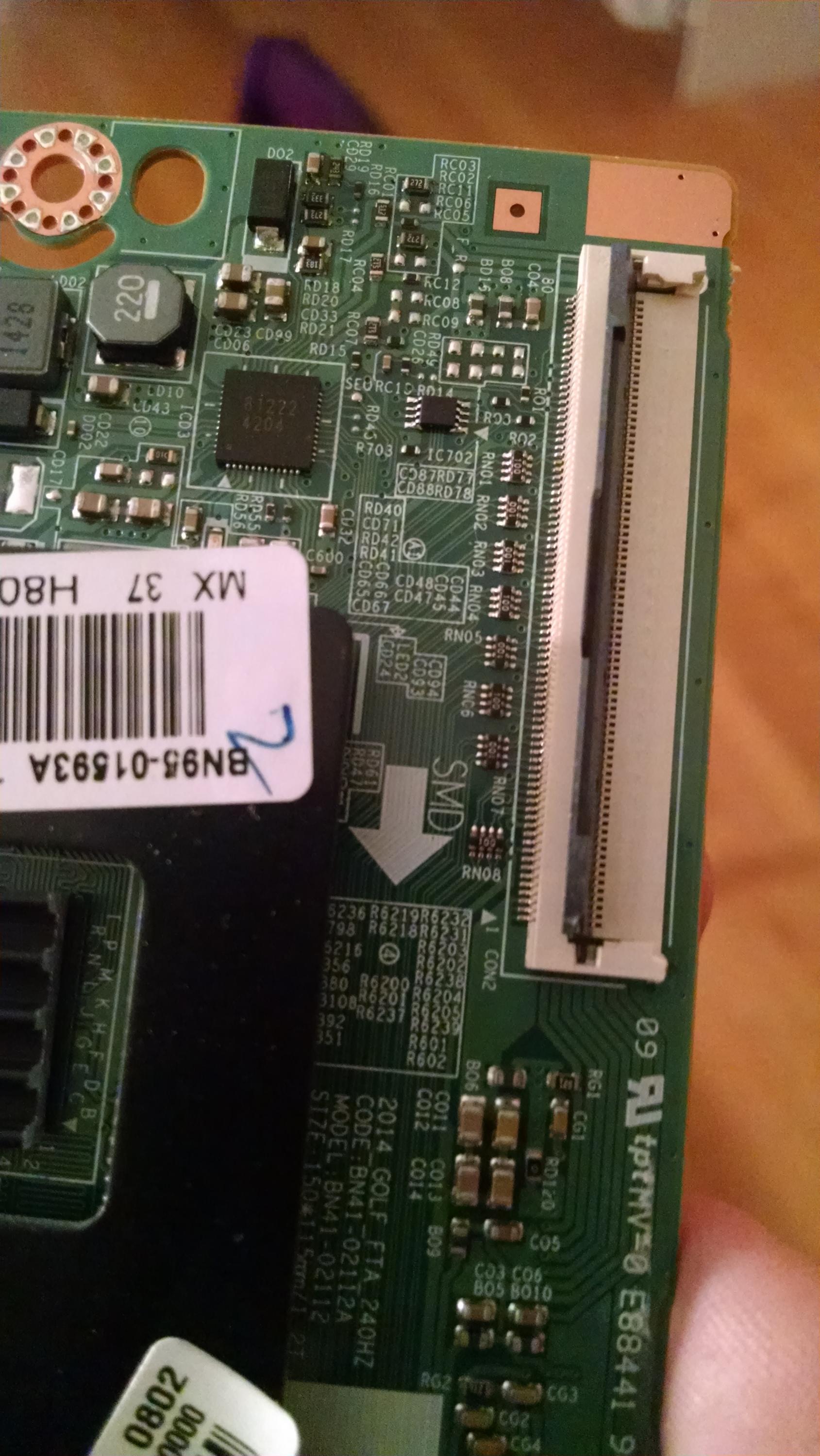

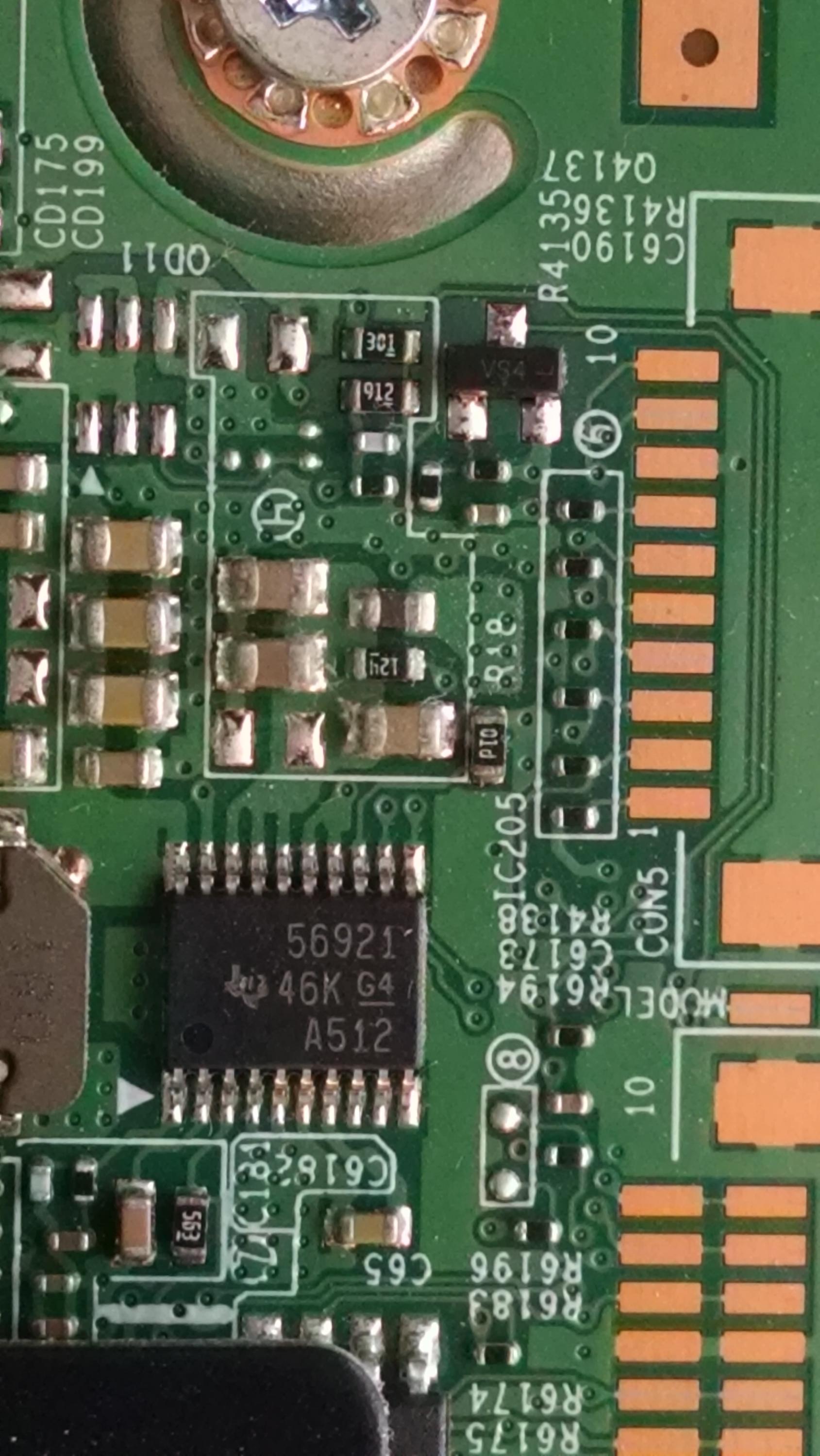

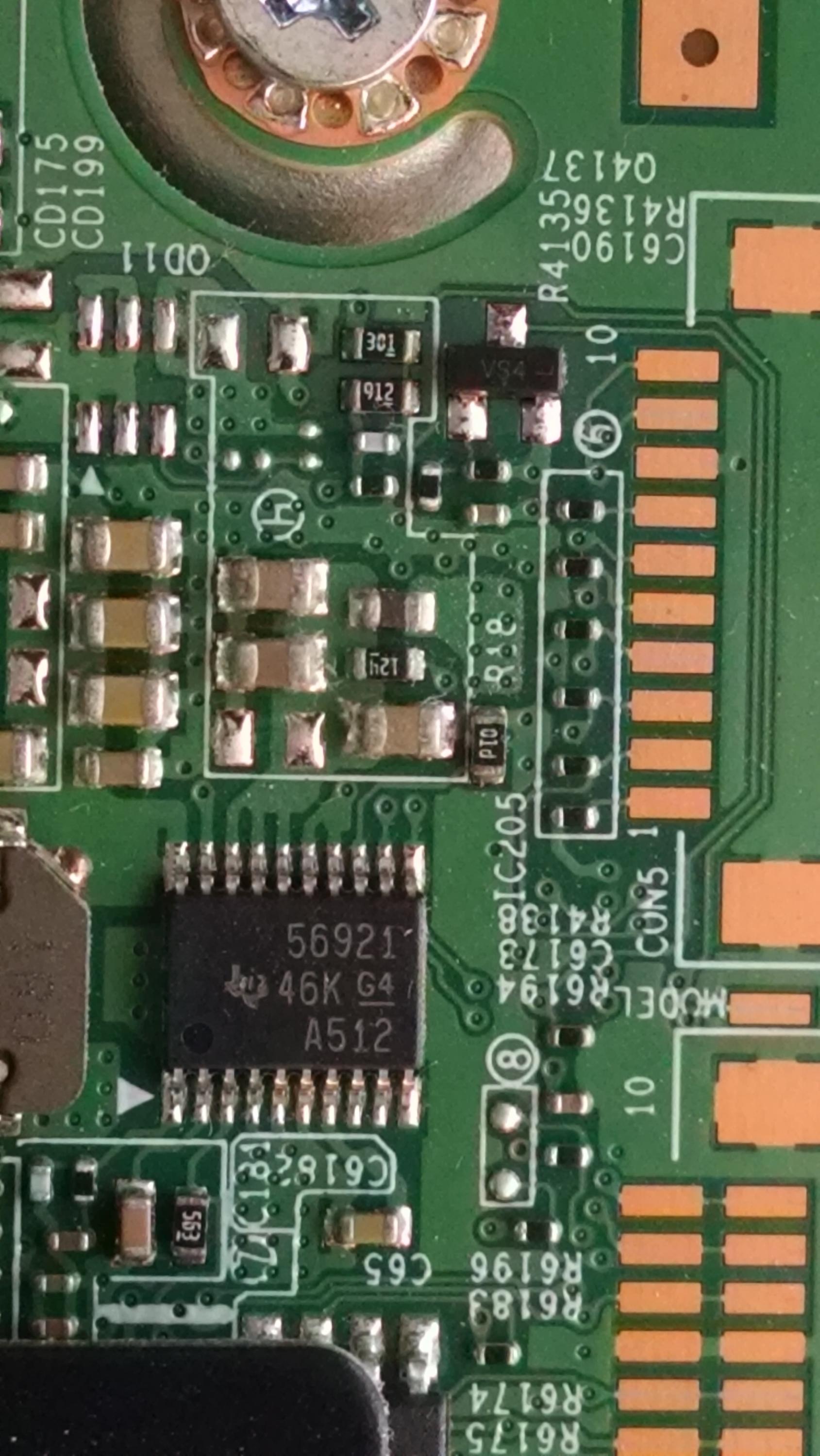

Attached are the tconn pics.

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

hmm the pics are clearer when i open them them from my computer versus when i click them and open them in the thread.

maybe I can increase the pixel level on the camera

[budm]

Re: Samsung UN48H8000AFXZA No picture Has Sound

Not in focus.

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

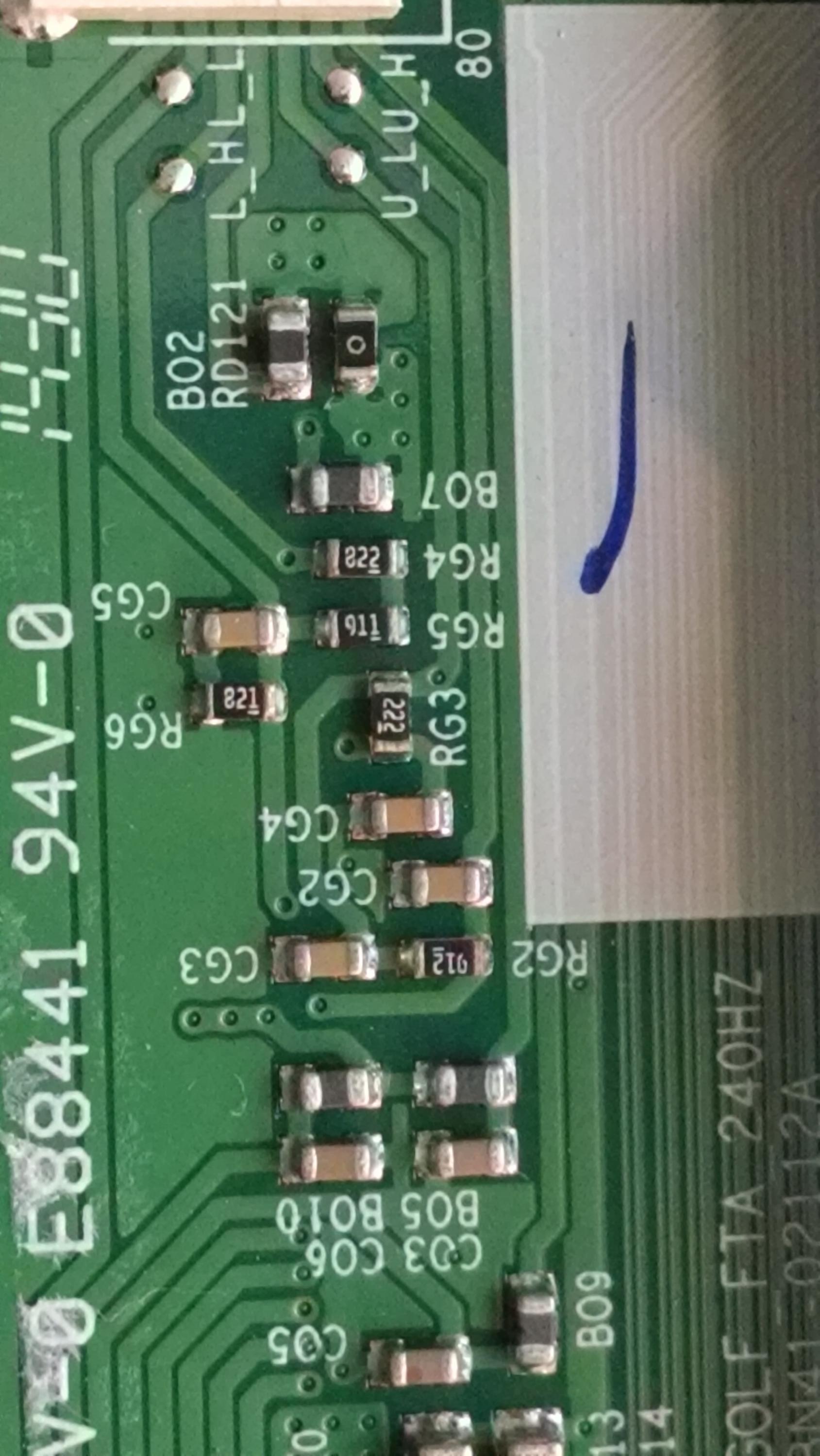

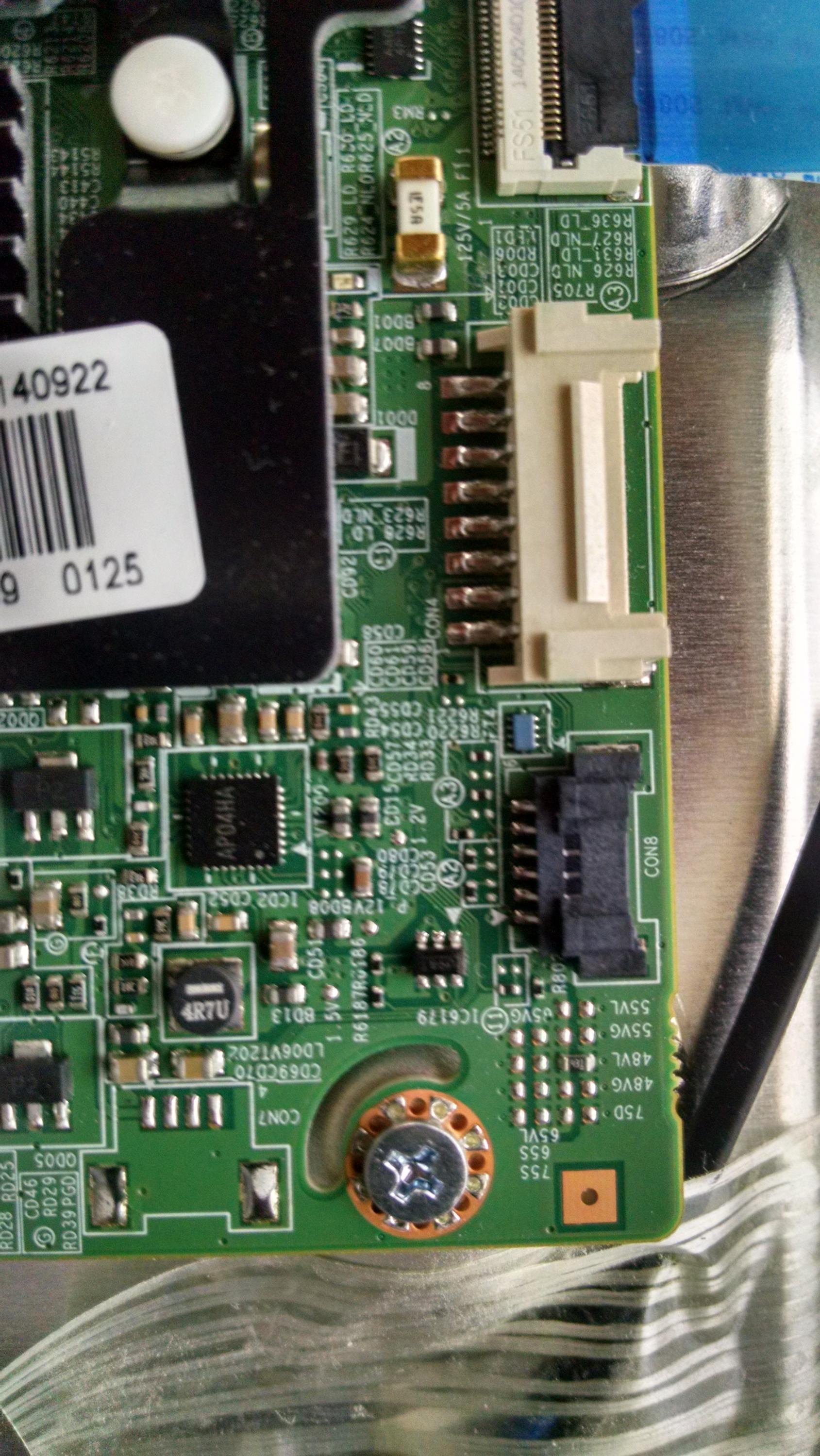

one more pic of the corner where the small red ribbon connector is.

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

none of them come up good on your end?

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

how did the last pic come through?

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

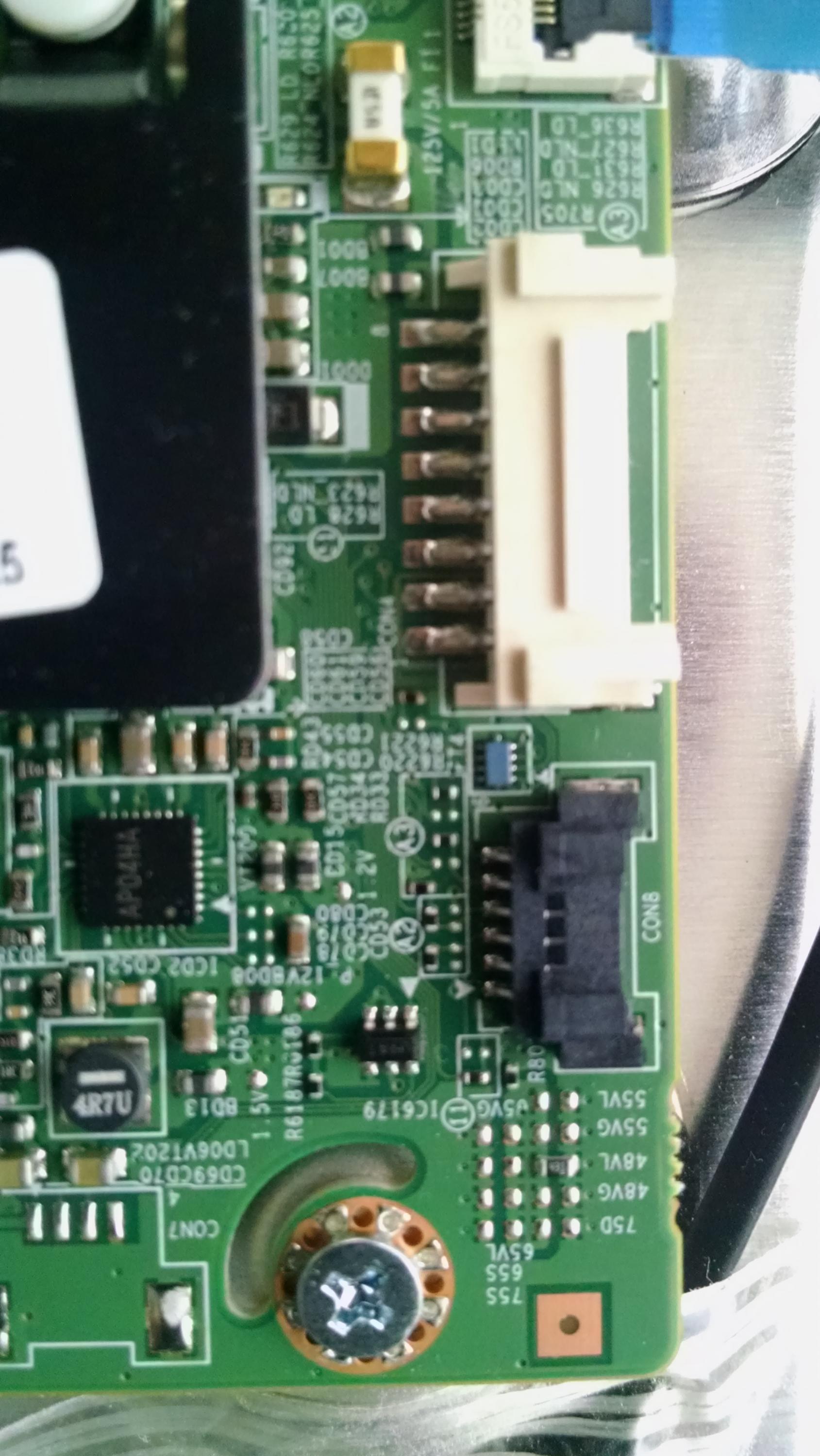

How's this one?

[budm]

Re: Samsung UN48H8000AFXZA No picture Has Sound

Pretty blur to me. Hard for me to see all the test point.

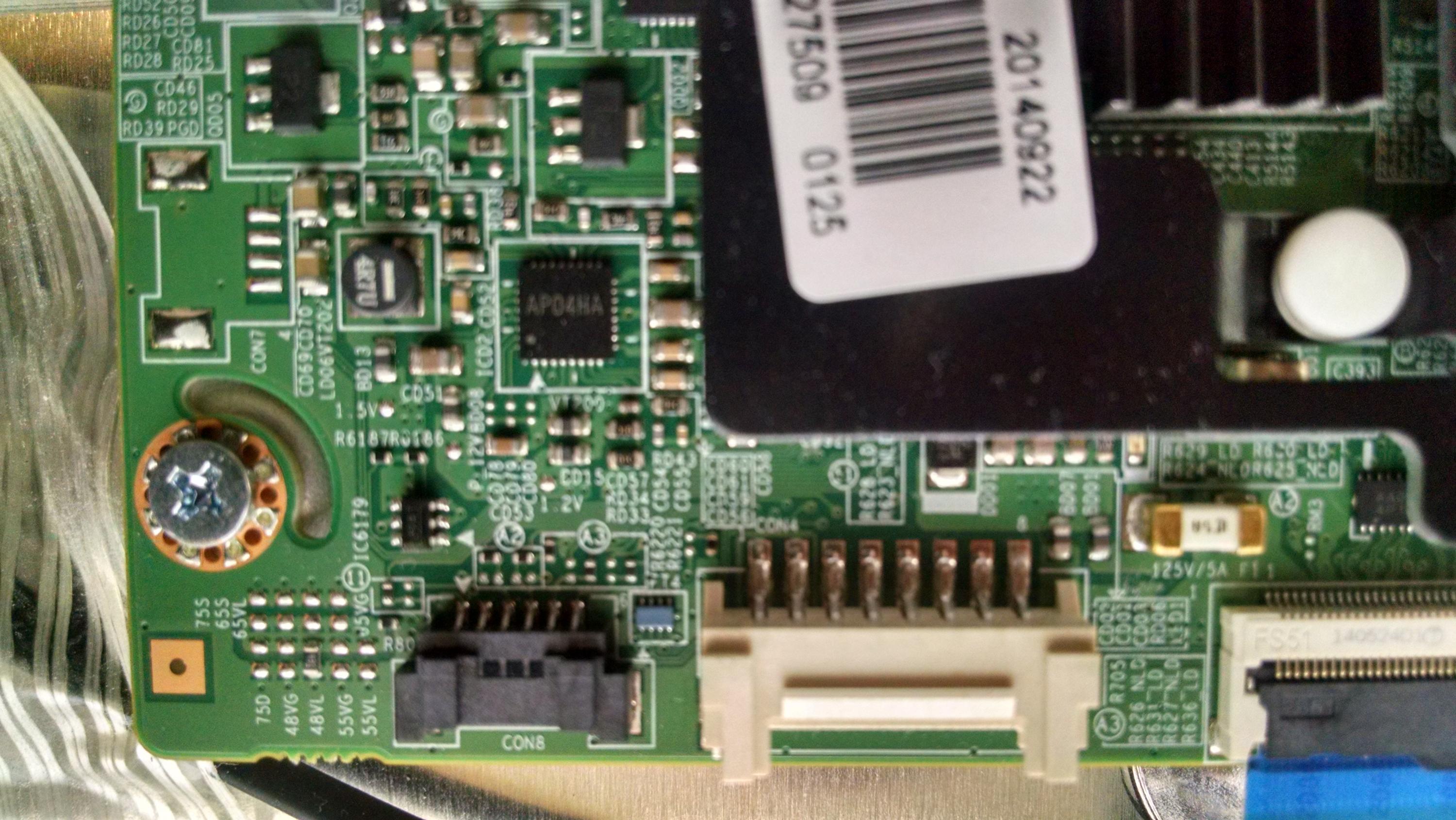

In this one I can see one test point; 1.5V
https://www.badcaps.net/forum/attach...1&d=1494952766
You need to look for more test points and test the Voltages.

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

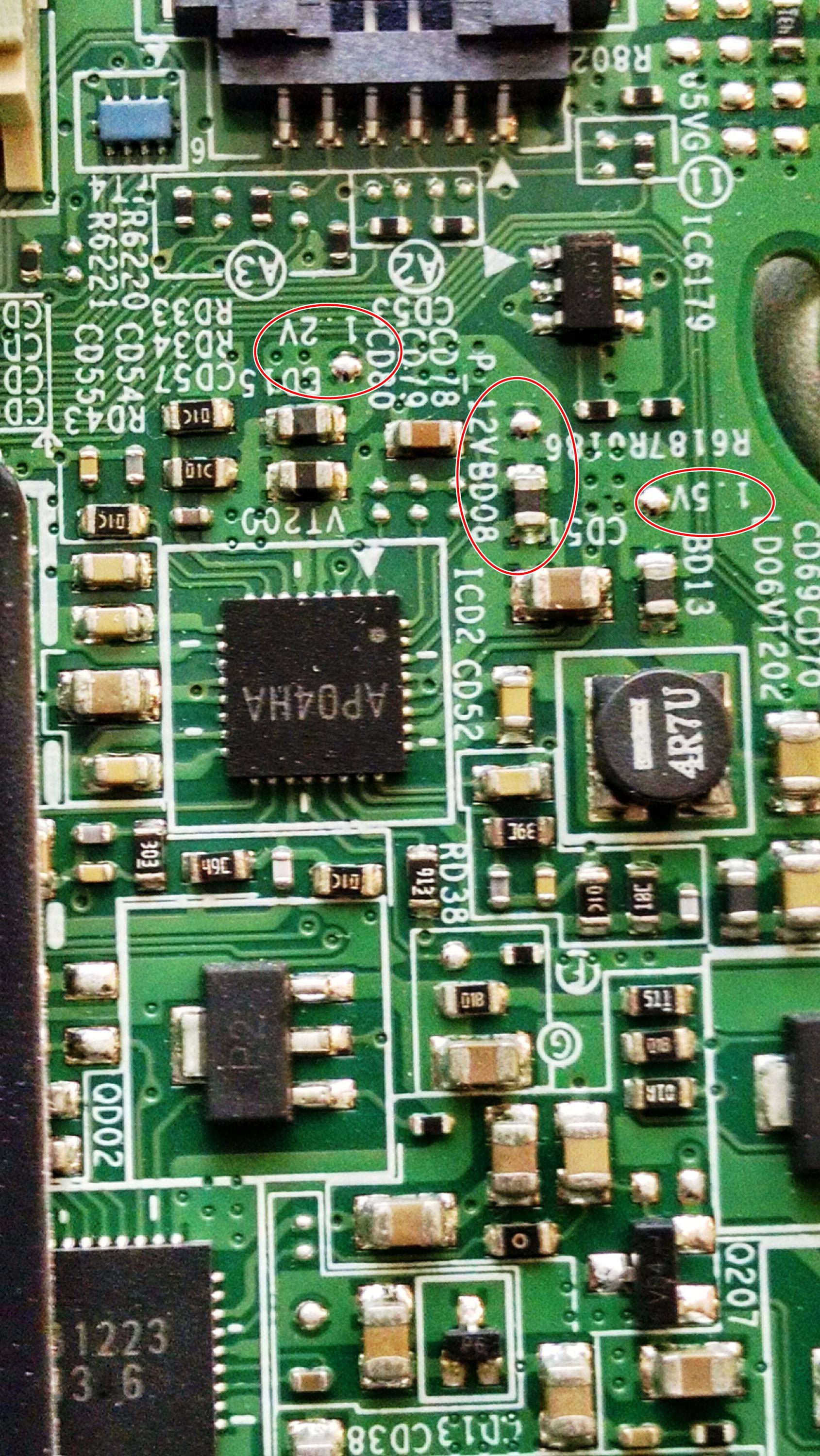

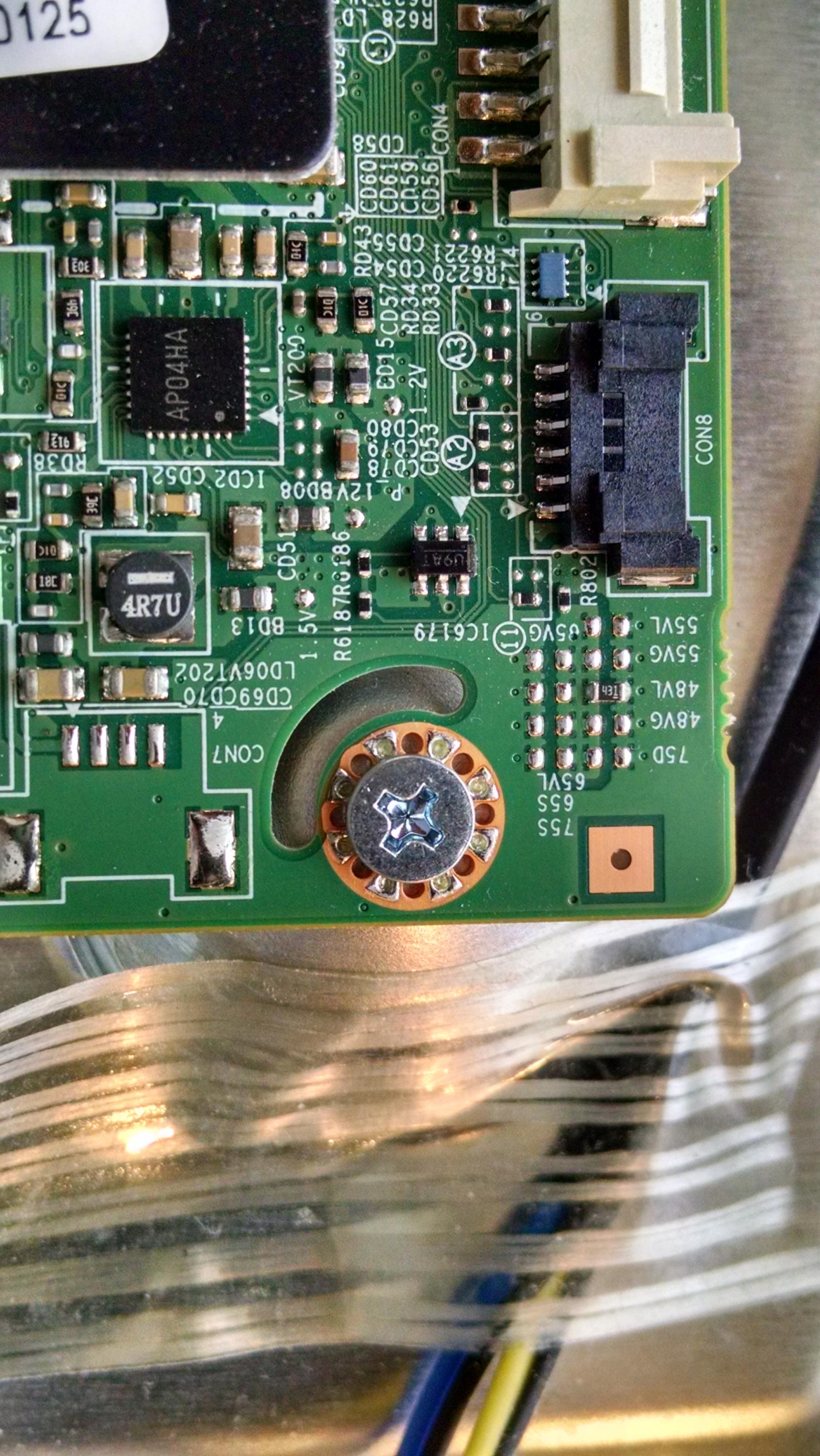

Yeah...here are some more. near the 1.5v there is a 1.2v if you saw that one?

One of these I circled point in red that i could see. The one that says 12v not sure if it's 12v of something else.

Let me know how these look.

[budm]

Re: Samsung UN48H8000AFXZA No picture Has Sound

Just look through the board for more test points.
https://www.badcaps.net/forum/attach...4&d=1494956495
?5VG TOP RIGHT.

https://www.badcaps.net/forum/attach...5&d=1494956495

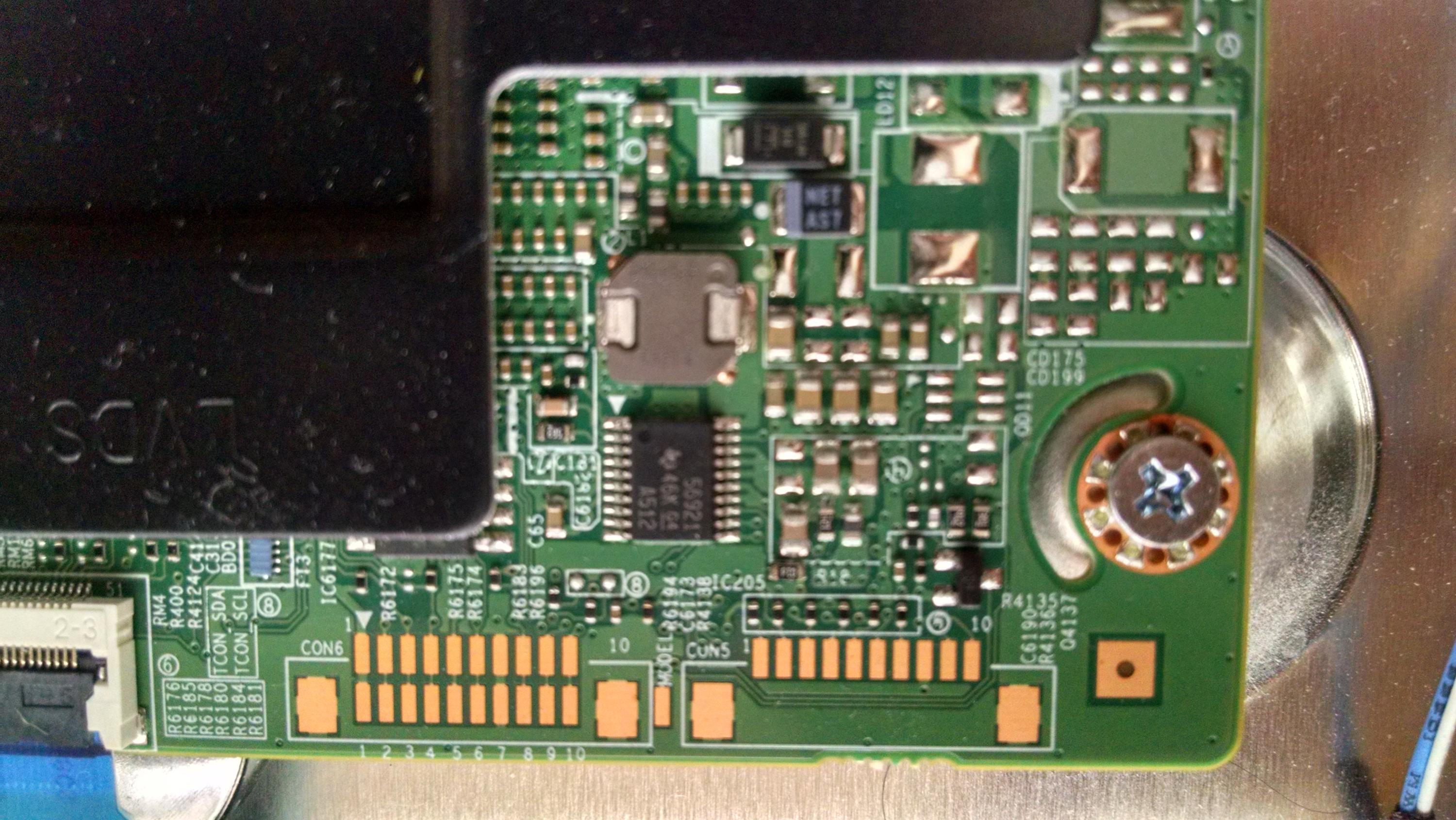

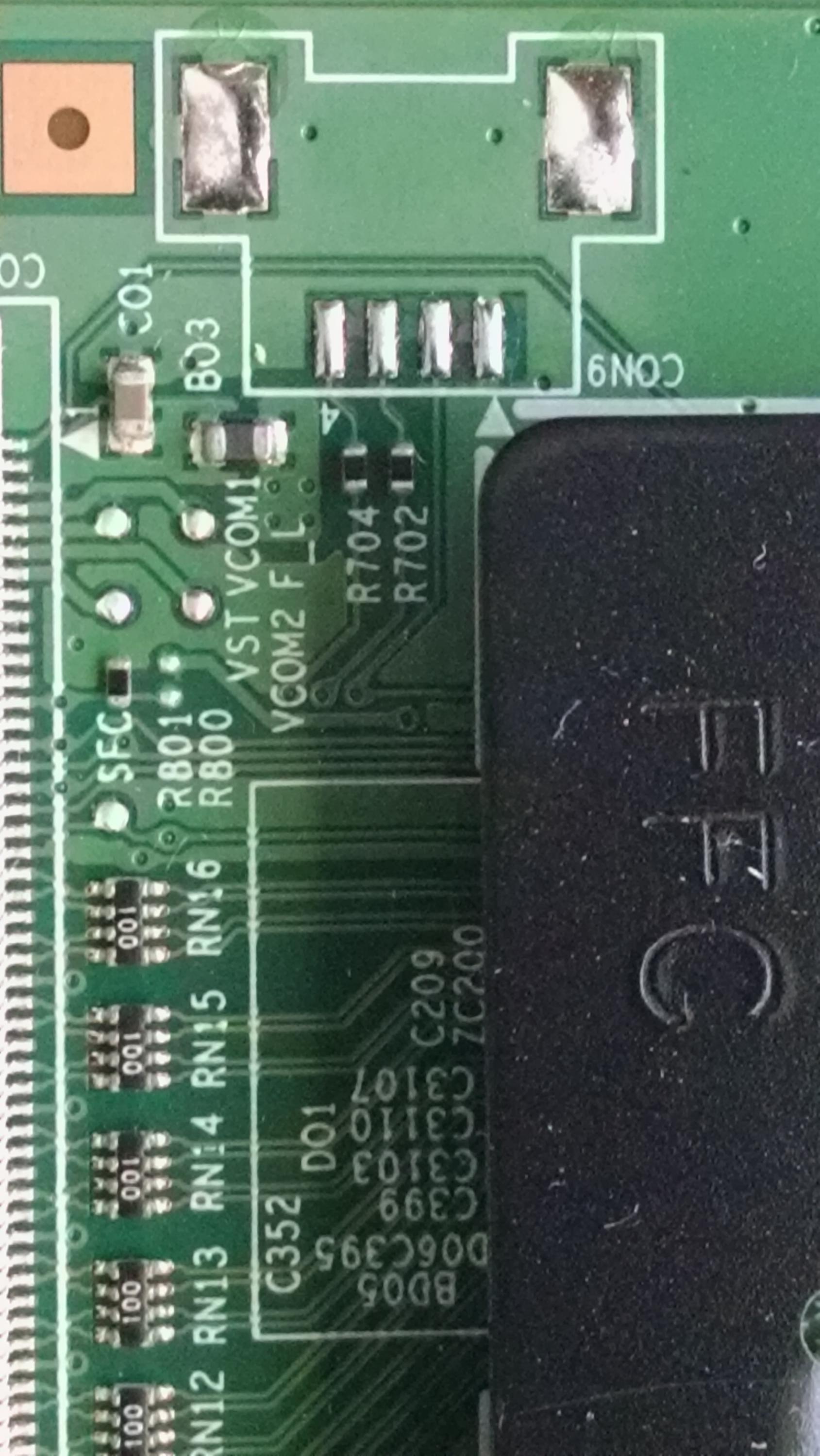

VST, VCOM1, VCOM2

I cannot really going into details since I do not have the board in front of me to really see all the test points.
If the board is not too expensive I would take a chance of replacing it.

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

How do we know if it is tcomm or main?

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

Its not too bad its about $100 for tcomm

[budm]

Re: Samsung UN48H8000AFXZA No picture Has Sound

How do we know if it is tcomm or main?

You will need an oscilloscope to look at the clock, LVDS signals, etc. to see if the main board is sending them to the T-CON or not.

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

do you know how to use one? I have one that was given to me and never used it before. it's this one:

Fluke 123 Scopemeter

https://www.myflukestore.com/p1479/fluke_123.php

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

Checked the 5V, 1.2V, 1.5V and found a 12v. All read correctly.

VST, VCOM1, VCOM2 can you tell me if the point i marked are correct for each, looks like there are 4 points in that area. Looks like there is also an FL point.

[budm]

Re: Samsung UN48H8000AFXZA No picture Has Sound

You have them marked correctly.
The main test points I am looking for are the VGH, VGL, VDD which I cannot see on your board.

[Gladiatorx]

Re: Samsung UN48H8000AFXZA No picture Has Sound

Could it be this Tconn does not have them?

[budm]

Re: Samsung UN48H8000AFXZA No picture Has Sound

LCD panel needs them to work.
http://tvrepairsolution.blogspot.com...lcd-panel.html

https://cdn.badcaps-static.com/pdfs/...6c316493a3.pdf
