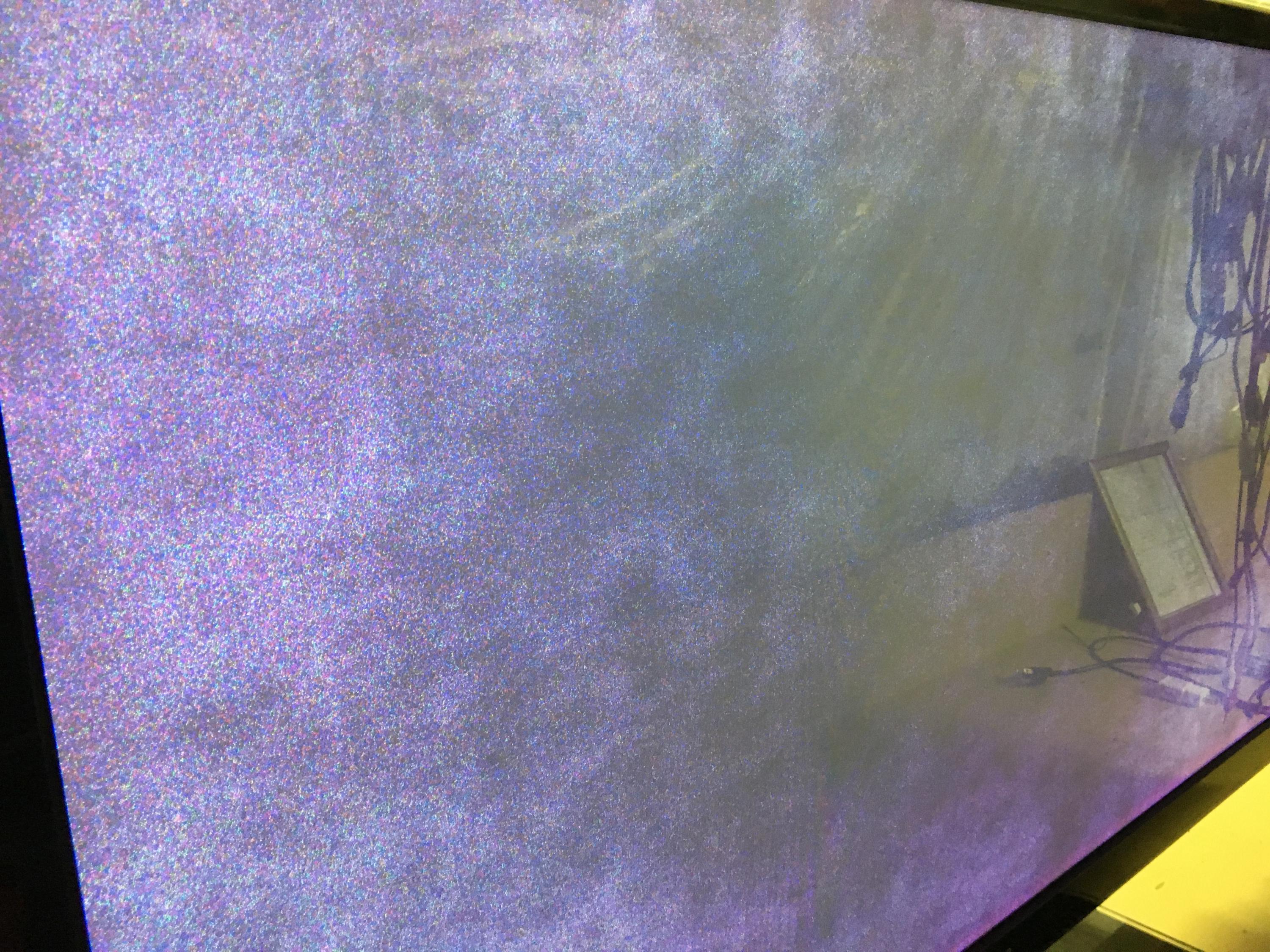

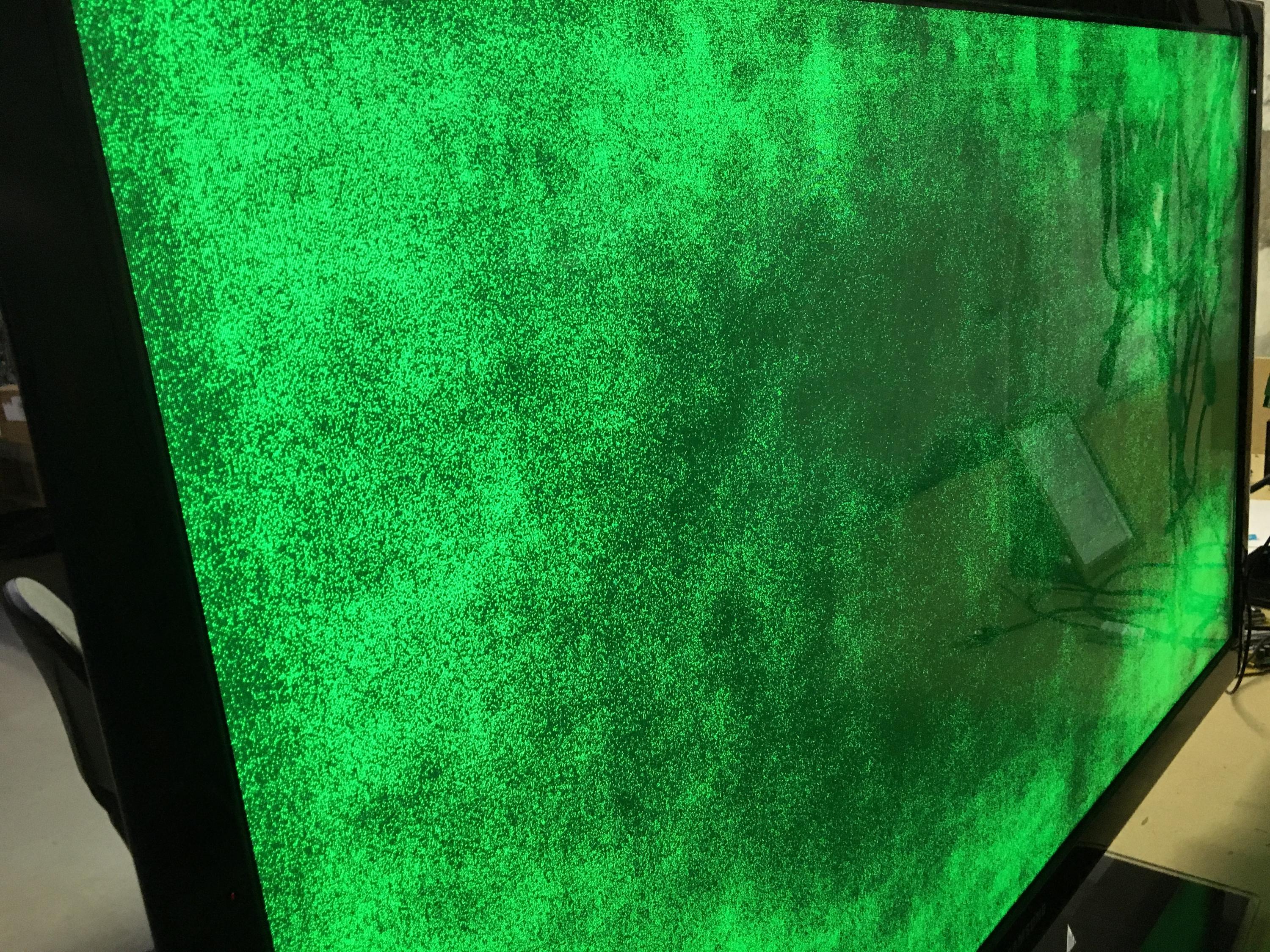

I know its the xsus board since my other boards work fine and the picture is good. What parts could cause this washed out screen?
Attached Files
-
-
Re: Samsung PN51D550C1F Picture problem
The Xsus ? Or do you mean what components on the X sus ?Please Do Not PM My Page Asking For Help Badcaps Is The Place For Advise, Page Linked For Business Reasons Only. Anyone Doing So Will Be Banned Instantly !
https://www.facebook.com/Telford-Tel...7894576335359/ -
Re: Samsung PN51D550C1F Picture problem
The X-Sustain isnt working.TELEFIX
How PLASMA SCREENS WORK, X-SUS and Y-SUS what they do--
http://www.irf.com/technical-info/appnotes/an-1088.pdf
PLEASE DO NOT EMAIL ME PRIVATELY FOR REPAIR ADVICE. QUESTIONS BELONG ON THE FORUM!Comment
-
Re: Samsung PN51D550C1F Picture problem
I meant what components on the xsus.Comment
-
Re: Samsung PN51D550C1F Picture problem
Time to get your test gear out and find out!TELEFIX
How PLASMA SCREENS WORK, X-SUS and Y-SUS what they do--
http://www.irf.com/technical-info/appnotes/an-1088.pdf
PLEASE DO NOT EMAIL ME PRIVATELY FOR REPAIR ADVICE. QUESTIONS BELONG ON THE FORUM!Comment
-
Re: Samsung PN51D550C1F Picture problem
Fets, resistors, diodes, opto couplers, controller Ic's, erc coils, caps, fuses, plugs, heatsink not cold enough.
Just messing, get your meter out and start testing things.Please Do Not PM My Page Asking For Help Badcaps Is The Place For Advise, Page Linked For Business Reasons Only. Anyone Doing So Will Be Banned Instantly !
https://www.facebook.com/Telford-Tel...7894576335359/Comment
-
